Manufacturer no.:
26A140

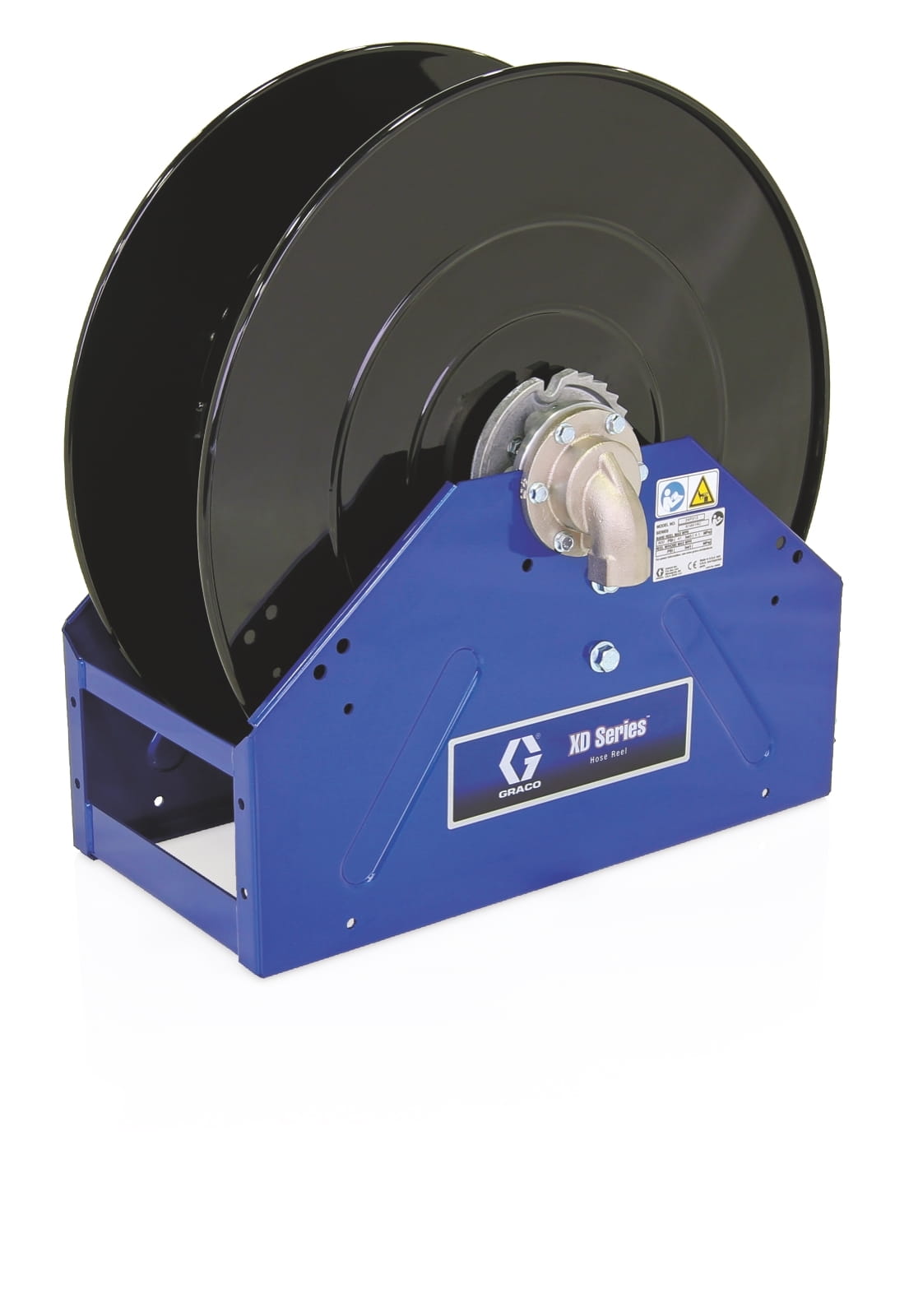

XD40™, antifreeze, 25 mm (1") inlet, no accessories (25 mm x 15 m (1"x 50') capacity), NPT, metallic blue
€2,354.06*
% €2,615.62* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco XD40 and XD50 series hose reels are built to last and perform when you need them. Choose from multiple colour options, thread types, and hoses. Typical materials include: petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, and waste oil.
Ideal for use in both indoor and outdoor areas at heavy-duty vehicle dealerships, fleet maintenance, public works, construction vehicle maintenance, agricultural vehicle maintenance and emergency service.
- Wide range of hose options – standard models come complete with hoses factory installed on the reel, with a wide selection of optional reels for various applications
- Full flow swivel – Maximise fluid flow with minimal pressure drop for faster filling – increasing throughput in your workshop.
- Rugged and durable body – heavy-duty welded reel and ribbed frame for added strength and resistance to wear
- Meets worldwide requirements - comes standard with 90° elbow with NPT threads
| Application: | Antifreeze |
|---|---|
| Colour: | Metallic Blue |
| Frame type: | Box frame |
| Hose included: | No |
| Hose length (m): | 15 |
| Hose reel type: | Reel without accessories |
| Inlet size (inch): | 1 |
| Inlet size (mm): | 25.4 |
| Inlet thread type: | NPT |
| Inner diameter hose (inch): | 1 |
| Inner diameter hose (mm): | 25.4 |
| Maximum operating pressure (psi): | 600 |
| Model: | XD |
| Outlet size (inch): | 1 |
| Outlet size (mm): | 25.4 |
| Recommended environment: | Indoor, For outdoor use |
| Recommended material type: | Antifreeze |
| Reel thread type: | NPT |
| Series: | 40 |
| Single retractor: | 1 |
| Total height (mm): | 664 |
| Total length (mm): | 671 |
| Total width (mm): | 420 |
| Type: | Spring reel |
More information
- Product number: 1034455
- Manufacturer: Graco
- EAN: 00755652366256
Technical details
Operating specifications
| UPC product | 755652366256 |
|---|---|
| Division | LED |
| Price Block | 1 5 0 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
Technical
| Dry weight (lb) | 116 |
|---|---|
| Pants inside diameter (mm) | 25. 4 |
| Inlet size (in) | 1 |
| Inlet size (mm) | 25. 4 |
| Maximum working pressure (psi) | 600 |
| Outlet Size (in) | 1 |
| Outlet Size (mm) | 25. 4 |
| Overall height (in) | 26. 13 |
| Overall height (mm) | 664 |
| Overall Length (in) | 26. 4 |
| Overall Length (mm) | 671 |
| Overall width (in) | 16. 54 |
| Overall width (mm) | 420 |
| Series | 40 |
| Frame type | Box frame |
| Reel Thread Type | NPT |
| Recommended fluid type | Antifreeze |
| Hose reel type | Bare Reel |
| Model | XD |
| includes hose | No |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Deutsch)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (English)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Français)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Español)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Italiano)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (русский)
Verkaufsliteratur
- 303245ENEU Vehicle Service Equipment Buyer's Guide (English (UK))
- 303245ENEU Vehicle Service Equipment Buyer's Guide (русский)
Zertifizierungen
