Manufacturer no.:
245841

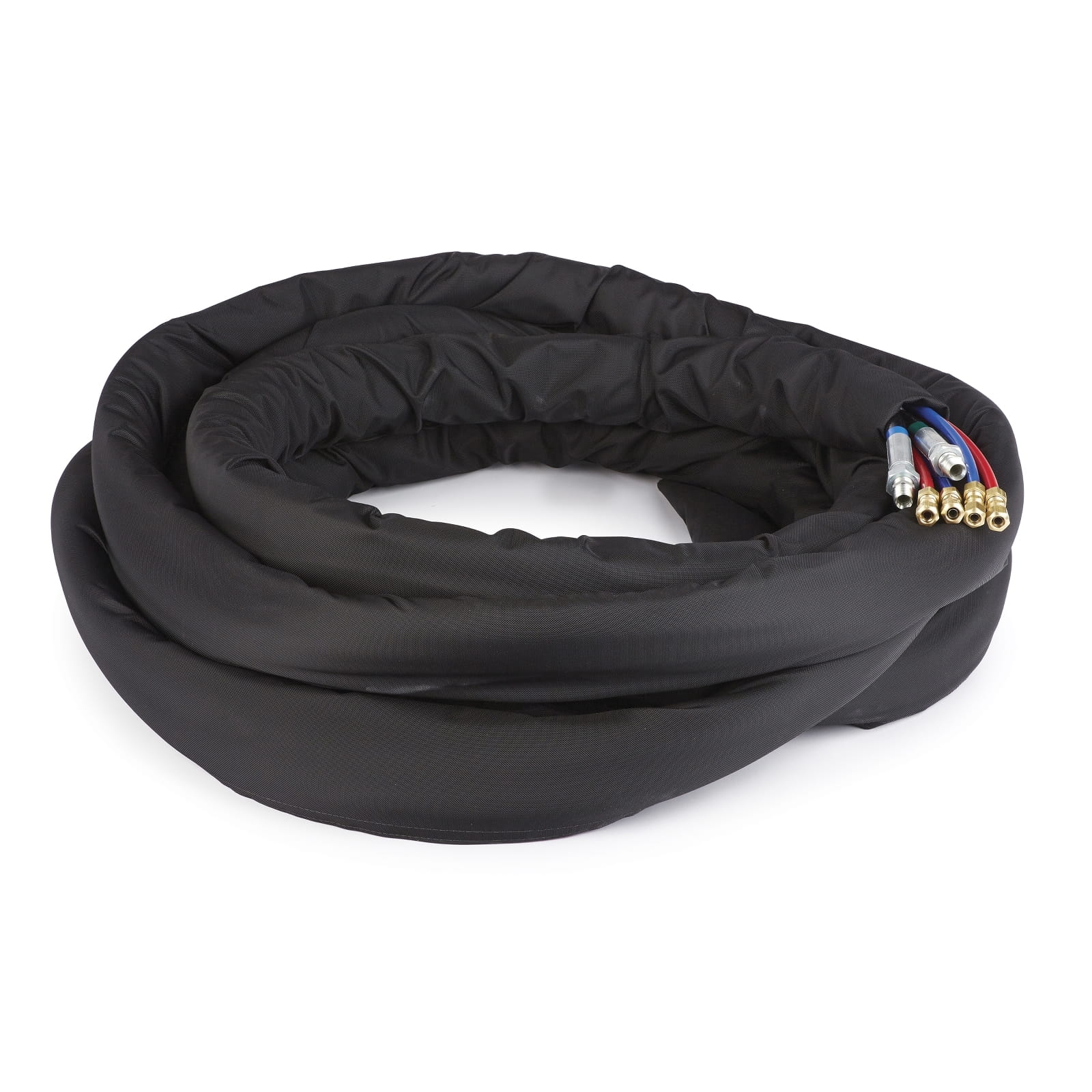

Water-heated hose, 510 bar (7400 psi), 1/4"; 15 m (50 ft)
€3,240.37*
Ready for shipping in 5-8 days
Also interesting
Product information
Water heated hoses are designed for use with multi-component airless equipment for high pressure applications, such as Graco's XP and XM sprayers.
The water heater is a safe and effective way to maintain the temperature between the primary heaters on an XP or XM dispenser and a decentralised mixing manifold.
- Four (4) water-heated hoses ensure optimum heat transfer
- Resealable (Velcro) wear protection and insulation - easy to change A/B hose sizes for ratio equalisation - saves time and money
- Repairable - easy to maintain and replace components
- Brass water fittings suitable for pumping remain tight and prevent leaks
- Lightweight nylon water hoses - robust and easy to cut to length
- Colour-coded A/B hose ends - Prevents material backflow and incorrect connections
- Xtreme-Wrap wear protection - glides easily, does not snag, protects the hose, is water repellent
- Overlapping ends - protection for water and paint connections
- Nominal pressure of 345 and 500 bar (5000 and 7250 psi) - corresponds to the nominal pressures of the XP and XM sprayers
- Large bundle diameter - Add up to two ½" return lines for remote circulation
| For use with: | Multi-component sprayers |
|---|---|
| Hose heater type: | Water/glycol |
| Hose length (m): | 15 |
| Maximum operating pressure (MPa): | 50 |
| Maximum operating pressure (psi): | 7250 |
| Minimum temperature (°C): | 0 |
| Permissible operating pressure (bar): | 500 |
| Type: | material hose |
More information
- Product number: 1037783
- Manufacturer: Graco
- EAN: 00633955836235
- Weight: 13.36 kg
- Length: 700 mm
- Width: 700 mm
- Height: 400 mm
Technical details
Operating specifications
| UPC product | 633955836235 |
|---|---|
| Division | CED |
| Price Block | 050 |
| Country of Origin | US |
| Unit | EA |
| Height | 40 CM |
| Length | 70 cm |
| Width | 70 cm |
| Volume | . 196 m³ |
| Shipping weight | 13.36 KG |
| HTS code (GB) | 39 1 7310090 |
| HTS code (EU) | 39 1 7310090 |
Technical
| For Use With | Plural Component Sprayers |
|---|---|
| Hose Heating Type | Water / Glycol |
| Maximum working pressure (psi) | 7250 |
| Minimum Temperature (°C) | 0 |
| Minimum temperature (°F) | 32 |
| Maximum working pressure (bar) | 500 |
| Maximum working pressure (MPa) | 50 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
Verkaufsliteratur
- 349329DE Ersatz- und Zubehörteile (Deutsch)
- 349329DE Ersatz- und Zubehörteile (Italiano)
- 349329DE Ersatz- und Zubehörteile (English (UK))
- 349329DE Ersatz- und Zubehörteile (Español)
- 349329DE Ersatz- und Zubehörteile (Nederlands)
- 349329DE Ersatz- und Zubehörteile (Français)
- 349329DE Ersatz- und Zubehörteile (Svenska)
- 349329DE Ersatz- und Zubehörteile (Türkçe)
- 349329DE Ersatz- und Zubehörteile (русский)
- 349329DE Ersatz- und Zubehörteile (中文)
- 349329DE Ersatz- und Zubehörteile (English)
