Manufacturer no.:
24G588

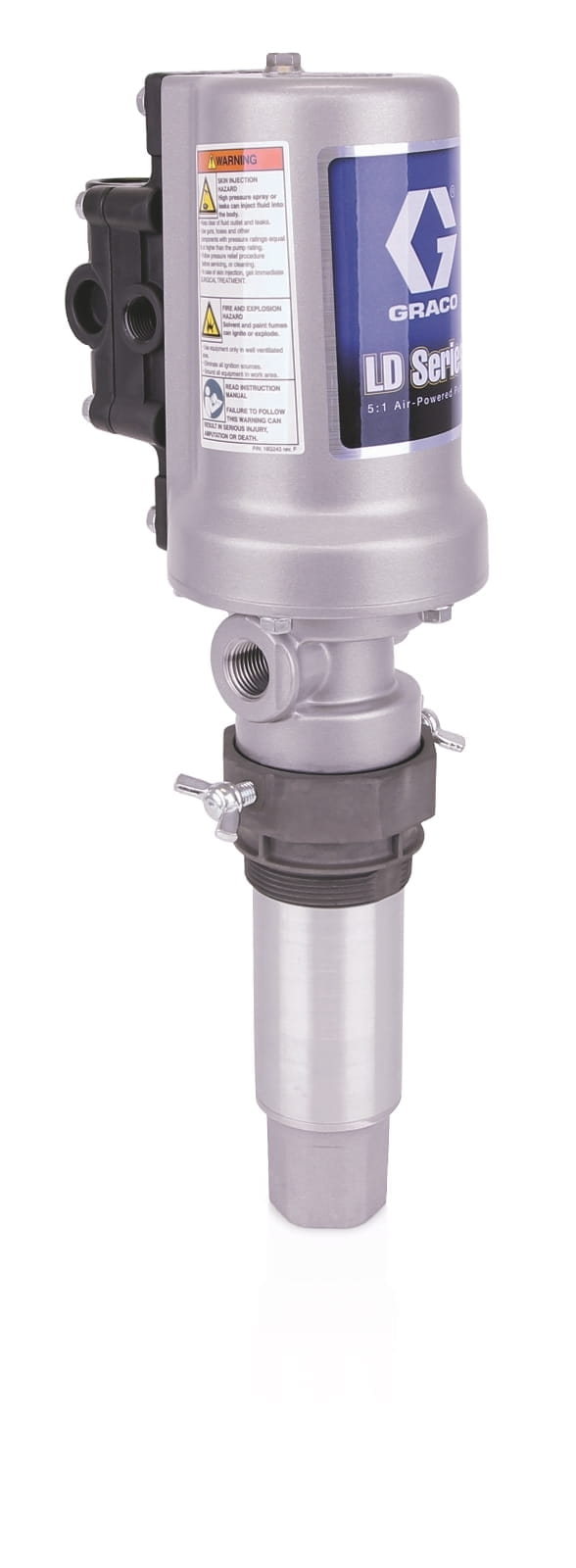

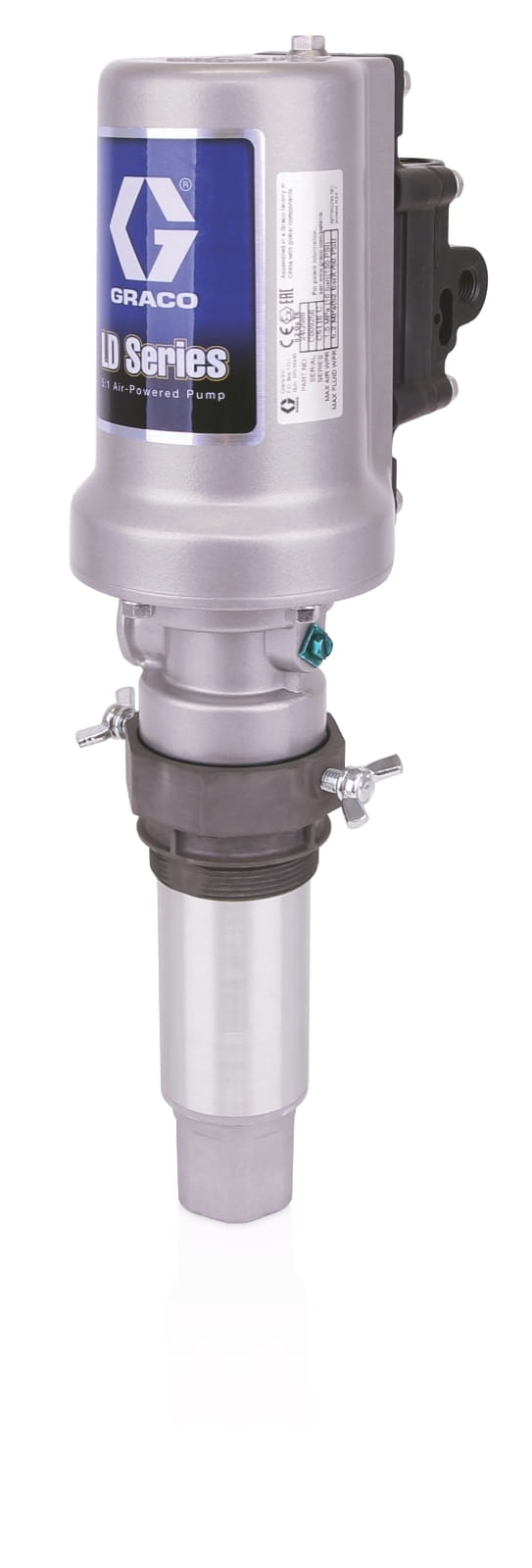

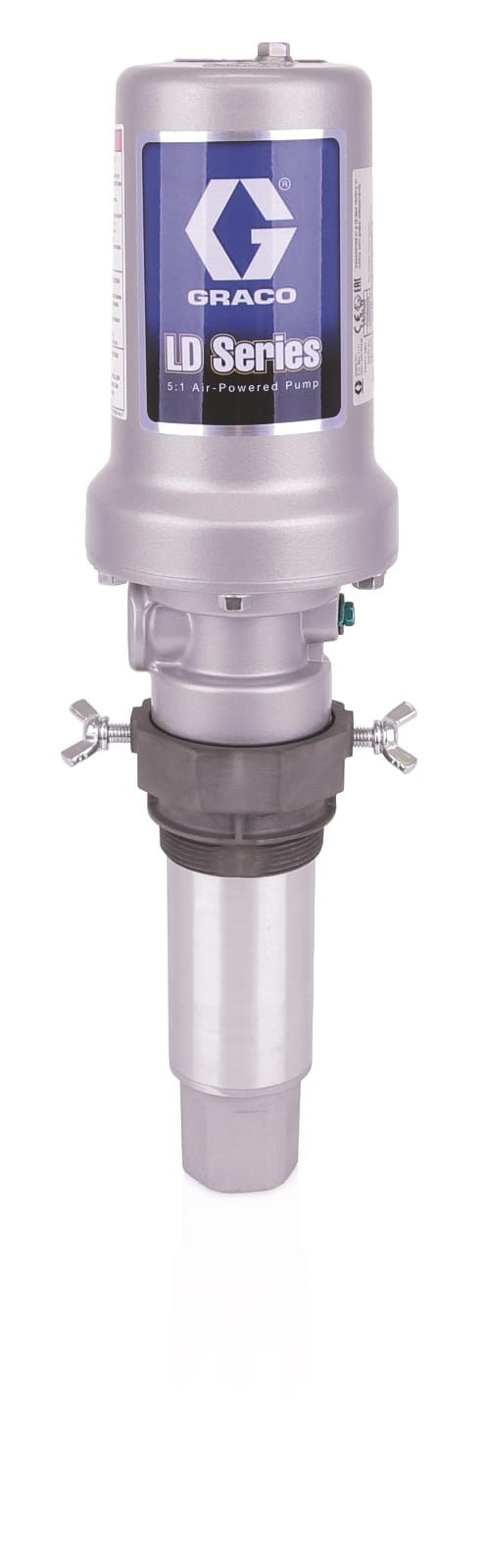

Universal oil pump LD series 5:1 with bunghole adapter - NPT
€510.87*
% €567.63* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The LD Series pumps deliver amazing performance at an amazingly competitive price. Affordable and fully featured, these pumps are built for low-volume applications and offer durability and serviceability. The LD™ Series features a powerful three-inch air motor that delivers the material you need, while the integrated thermal valve protects your equipment from thermal expansion.
- 3" air motor – more power for higher flow rates.
- Innovative air valve – Reduces icing in continuous-use applications. Uses less air than comparable pumps for greater efficiency. Easy to repair or replace without having to disassemble the pump's internal components, which means less downtime.
- Designed for durability – Thanks to the patent-pending design with bearing and plate, O-rings that wear out quickly are not required. It thus offers a durable, longer-lasting solution.
- Modular air valve – Easy to configure air intake and exhaust with just four screws, for simple, hassle-free installation.
- Pilot Valve – Patent-pending self-cleaning design increases reliability in dirty air environments and minimises pressure drop during quick changes, keeping the engine from stalling and providing smoother flow.
- Adjustable bung adapter included – The integrated slide adjustment with easy-to-adjust hand screws allows it to be used for more applications.
- Built-in thermovalve and inlet strainer – Built-in thermovalve protects your equipment from thermal expansion without the hassle of purchasing and installing an additional set. Built-in inlet strainer (oil only) protects your pump from ingredients that can damage your pump.
| Air inlet size (inches): | 1/4 |
|---|---|
| Application: | oil |
| Compatible material: | oil |
| Energy type: | Pneumatic |
| Material outlet size (mm): | 12.7 |
| Maximum air supply pressure (bar): | 10.34 |
| Maximum air supply pressure (kPa): | 1034 |
| Maximum inlet air pressure (psi): | 150 |
| Maximum operating pressure (MPa): | 5.2 |
| Maximum operating pressure (kPa): | 5170 |
| Maximum operating pressure (psi): | 750 |
| Model: | LD |
| Permissible operating pressure (bar): | 51.7 |
| Size of the air inlet (mm): | 6.35 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1/2 |
| Transmission ratio of the pump: | 5:1 |
| Type: | Pneumatic piston pump |
| Weight (kg): | 3,496 |
More information
- Product number: 1034458
- Manufacturer: Graco
- EAN: 00633955613874
- Weight: 4 kg
- Length: 470 mm
- Width: 240 mm
- Height: 190 mm
Technical details
Operating specifications
| UPC product | 6 3 3955613874 |
|---|---|
| Division | LED |
| Price Block | 1 79 |
| Country of Origin | CN |
| Unit | EA |
| Height | 19 CM |
| Length | 47 cm |
| Width | 24 cm |
| Volume | . 021 m³ |
| Shipping weight | 4 .52 KG |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet size (mm) | 6. 35 |
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid outlet size (mm) | 12. 7 |
| Maximum air inlet pressure (bar) | 10. 34 |
| Maximum air inlet pressure (kPa) | 1 0 34 |
| Maximum air inlet pressure (psi) | 150 |
| Maximum working pressure (bar) | 51. 7 |
| Maximum working pressure (kPa) | 5170 |
| Maximum working pressure (psi) | 750 |
| Model | LD |
| Weight (kg) | 0. 3496 |
| Maximum working pressure (MPa) | 5. 2 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (Deutsch)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (Español)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (Français)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (русский)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (中文)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (日本語)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (한국어)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (Čeština)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (Suomi)
- 3A1350U, Handbuch, Öl- und Fettpumpe Serie LD, Einbau, Betrieb, Reparatur, Teile (English)
