Manufacturer no.: 17E872

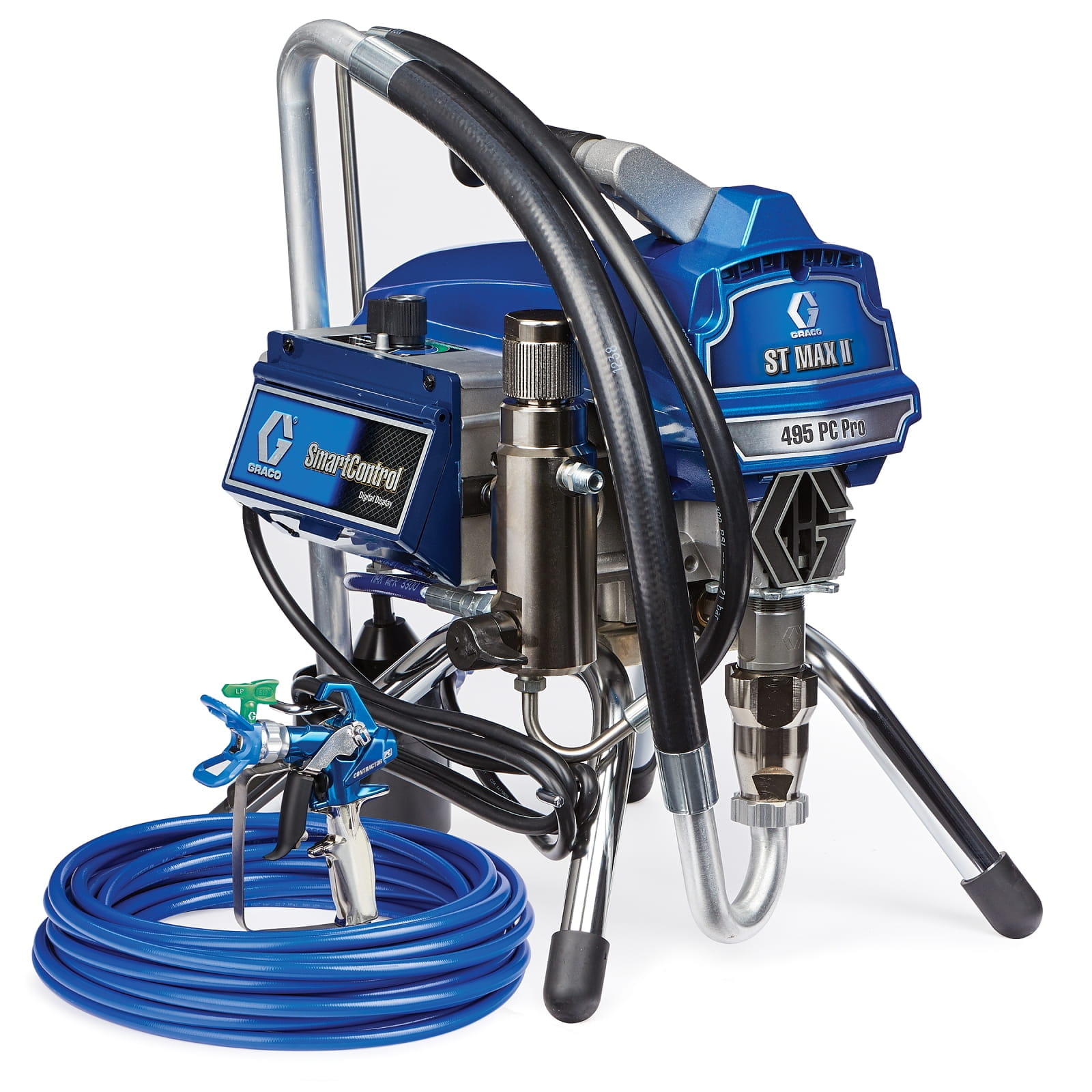

ST Max II 495 PC Pro Electric airless sprayer, stand, 230V, multicord

€5,081.90*

% €5,646.55* (10% saved)

Prices include VAT plus shipping costs

€4,270.50*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Worldwide Shipping
Shape Created with Sketch. Free shipping within Germany
Also interesting
Product information

The ST Max II 495 PC Pro airless sprayer combines the leading technology and performance of Graco's larger Ultra Max II models with a compact design that is lightweight at 34 lbs (15 kg) and easy to transport, while providing more torque, smooth pressure transfer and faster clean-up to complete jobs faster.

Improved productivity Unrivalled reliability. Graco's mid-size electric airless sprayers help you get more work done in a day with increased flow and higher production output.

  • Durable "Endurance Chromex" piston pump
    • Lasts 2 times longer than the next leading brand
    • Durable "V-Max Blue" packings, Chromex piston rod and hardened stainless steel cylinder
    • Faster cleaning with the QuikAccess inlet valve

  • SmartControl with digital display

    • Consistent pressure output with every job
    • Continuous performance monitoring and adjustment of the engine speed to the spraying requirements
    • Measurement of litres/gallons, operating hours and sprayer pressure
    • Support messages and diagnostic support
  • MaxPower motor and Advantage Drive
    • Proven performance for all painting applications
    • Brushless design with high torque
    • The most durable drive
    • Hardened steel gears ensure extremely smooth running
  • One-piece ProConnect pump replacement system
    • No more costly downtime
    • Pump changes in minutes - no tools, bolts or parts to lose
  • FastFlush cleaning system with high flow rate
    • More spraying and less cleaning
    • 4 times faster cleaning with half the amount of water
  • "Easy Out pump filter
    • Easy maintenance and less clogging
    • Exclusive inside-out filter process for a high-quality finish

  • Suction hose with swivel joint

    • Reaches every paint bucket effortlessly

  • "Contractor PC spray gun

    • Comfort and control all day long
    • The lightest gun in its class
    • Up to 50 % less trigger pull
    • Length-adjustable "E-Z Fit" trigger
    • Convert the entire gun in seconds with the ProConnect cartridge
  • Durable chassis construction with stand
    • Withstands harsh operating environments
    • The design allows easy replacement of material containers by a single person
  • "Contractor PC spray gun
    • Comfort and control all day long
    • The lightest gun in its class
    • Up to 50 % less trigger pull
    • Length-adjustable "E-Z Fit" trigger
    • Conversion of the complete gun in seconds with the ProConnect cartridge
Compatible replacement pump: 17C489
Convertible: Not convertible
Filter mesh size: 60
Frame configuration: carrying frame
Frequency (Hz): 50
Hose diameter (inch): 1/4
Hose inlet diameter (cm): 635
Hose inlet diameter (inch): 1/4
Hose inlet diameter (mm): 6.35
Inner diameter of material hose (inch): 1/4
Material outlet size (mm): 6.35
Material outlet thread type: NPSM
Maximum delivery rate (L/min): 2.3
Maximum hose length (m): 30
Maximum nozzle size (inch): 25
Maximum nozzle size 1 gun (inch): 25
Maximum operating pressure (kPa): 2270
Maximum operating pressure (kg/cm²): 22.7
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 90
Minimum generator output (W): 3750
Minimum generator output (kW): 0
Model: ST Max II
Motor size (kW): 0.89
Motor type: Brushless, DC
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating overpressure (psi): 3300
Permissible operating pressure (bar): 227
Phases: 1
Pressure control type: SmartControl
Pump mounting type: ProConnect
Pump rod type: Chromex
Pump sleeve material: Hardened stainless steel
Pump type: Endurance
Rated power (kW): 0.89
Region Plug type: Region IT, DK, CH (plug type L, K & J)
Series: 495 PC Pro
Size of the material outlet opening (inches): 1/4
Spray gun type: Contractor PC Pro pistol
Spraying technology: Airless
Supply voltage: Electric
Total height (cm): 47
Total height (mm): 4,699,000
Total length (cm): 40.6
Total length (mm): 406.4
Total width (cm): 35.6
Total width (mm): 3,556,000
Type: Airless sprayer
Voltage (V): 230
Weight (kg): 15
Wetted material: Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
More information
  • Product number: 1030179
  • Manufacturer: Graco
  • EAN: 00755652818847
  • Weight: 28.122 kg
  • Length: 450 mm
  • Width: 440 mm
  • Height: 510 mm

Technical details

Operating specifications
UPC product 755652818847
Division CED
Price Block 017
Country of Origin US
Unit EA
Height 51 CM
Length 45 cm
Width 44 cm
Volume . 101 M3
Shipping weight 28.12 KG
Technical
Compatible replacement pump 17C489
Convertible Non - convertible
Engine size (HP) 1.2 Brushless DC
Engine size (kW) 0. 89
Fluid outlet size (mm) 6. 35
Frame Configuration Stand
Hose inlet diameter (cm) 0. 635
Hose inlet diameter (in) 1/4
Hose inlet diameter (mm) 6. 35
Maximum flow rate (L/min) 2. 3
Maximum Hose Length (ft) 100
Maximum hose length (m) 30
Maximum sound pressure level (dB(A)) 90
Maximum tip size (in) 0. 025
Maximum tip size gun 1 (in) 0. 025
Maximum working pressure (psi) 3 3 00
Maximum working pressure (kPa) 2 270
Power Rating (HP) 1. 2
Power rating (kW) 0. 89
Pressure control type SmartControl
Overall width (mm) 355. 6000
Model ST Max II
Maximum working pressure (bar) 2 27
Overall Height (cm) 4 7
Overall height (in) 18. 5
Weight (kg) 15
Overall height (mm) 469. 9000
Overall length (cm) 40. 6
Overall width (in) 14
Overall Length (in) 16
Series 495 PC Pro
Overall Length (mm) 406. 4
Overall width (cm) 35. 6
Maximum working pressure (kg/cm²) 22. 7
Hose diameter (in) 1/4
Fluid hose inside diameter (in) 1/4
Outlet paint filter 60 mesh stainless steel screen
Minimum generator power (kW) 0
Frequency (Hz) 50
Pump Mount Type ProConnect
Pump rod type Chrom ex
Minimum generator power (W) 3 7 50
Number of Guns 1
Filter mesh size 60
Region plug type IT, DK, CH region (Type L, K & J plug )
