Manufacturer no.:
19D096

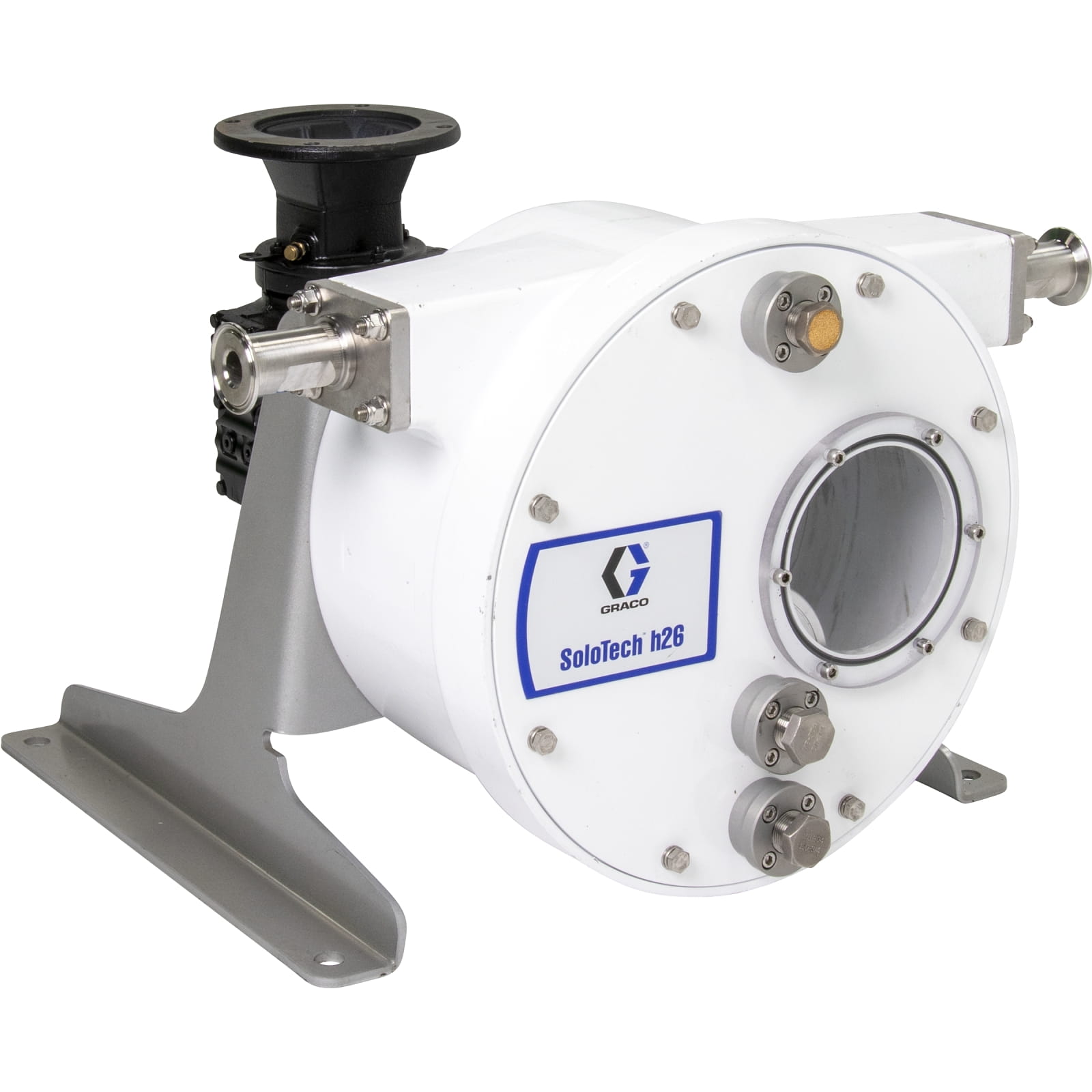

SoloTech h26 peristaltic pump, medium-speed transmission, no motor, IEC, FDA-nitrile hose, stainless steel sanitary fitting
€7,044.09*
% €8,287.16* (15% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
Since only the hose comes into contact with the pumped liquid and there are no check valves in the line, SoloTech peristaltic hose pumps from Graco are ideal for materials that other pumps cannot handle.
For measuring and dispensing flavours, colours, solids, abrasives and suspensions for food, beverage and personal care products.
- Single Roll Design
- The single roller compresses a special sleeve over a full 360° rotation. This reduces compression, temperature and friction, and extends the service life of the sleeve.
- Hose design
- SoloTech customers regularly experience fewer failures and much less maintenance than with other pump technologies.
- Hose connection assembly
- Easy to attach and remove – no special tools required
- 316 stainless steel sanitary clamp construction for easy cleaning
- Removable cover
- Powder-coated aluminium cover with large viewing window for easy access and viewing of internal parts
- Optional leak detector kit attaches to cover
- Pump construction
- Powder coated aluminium casing to reduce the weight of the pump
- Improved mounting flexibility with adjustable feet
- Pumps are reversible and can be used to empty lines or clear clogs
| Diffuser size (cm): | 5.1 |
|---|---|
| Hose diameter (cm): | 2.5 |
| Hose diameter (inch): | 0.98 |
| Hose diameter (mm): | 26 |
| Hose material: | FDA Nitrile |
| Hose nozzle material: | 316 stainless steel |
| Housing material: | Powder-coated aluminum |
| Inlet size (cm): | 5.1 |
| Inlet size (inch): | 2.0 |
| Inlet size (mm): | 50.8 |
| Inlet thread type: | Tri clamp |
| Lubricant material: | FDA glycerin |
| Maximum delivery rate (L/h): | 0 |
| Maximum delivery rate (L/min): | 0 |
| Maximum material pressure (bar): | 8.6 |
| Maximum material pressure (kPa): | 861.8 |
| Maximum material pressure (psi): | 125 |
| Maximum operating temperature (°C): | 40 |
| Maximum pump speed (rpm): | 0 |
| Minimum pump speed (rpm): | 0 |
| Minimum temperature (°C): | -10 |
| Model: | SoloTech |
| Motor type: | Medium speed, NEMA gearbox only |
| Outlet size (inch): | 2.0 |
| Outlet size (mm): | 50.8 |
| Rated power (kW): | 0 |
| Series: | h26 |
| Standards met:: | FDA-compliant materials, EC 1935/2004, CE |
| Total height (cm): | 42 |
| Total height (mm): | 419 |
| Total length (cm): | 86.1 |
| Total length (mm): | 861.1 |
| Total width (cm): | 55 |
| Total width (mm): | 551 |
| Transmission ratio: | 47.02:1 |
| Type: | Electric peristaltic pump |
| Voltage (V ac): | 0 |
| Voltage (V dc): | 0 |
More information
- Product number: 1038834
- Manufacturer: Graco
- EAN: 00769946213584
