Manufacturer no.:
19X117

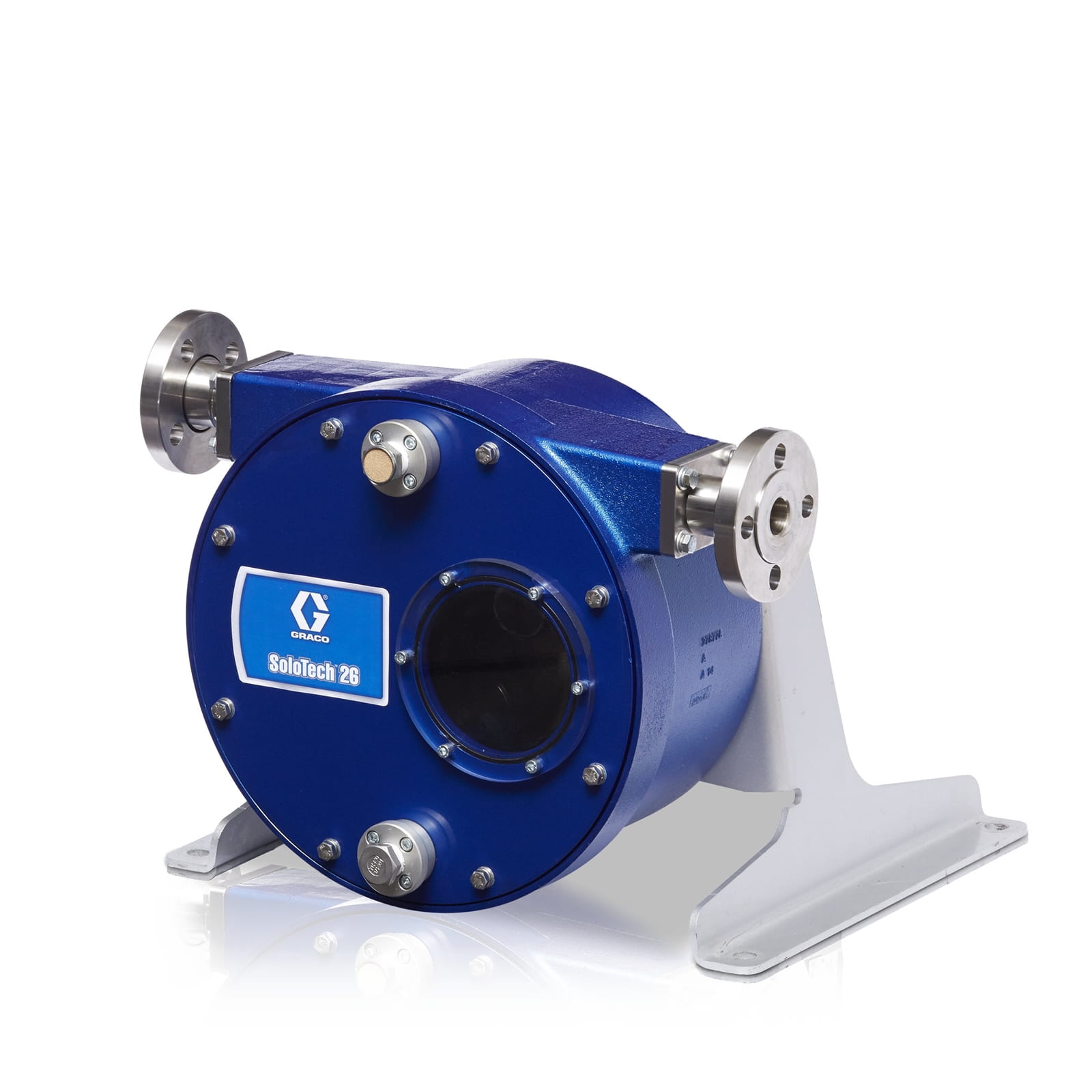

SoloTech™ 26 EPDM high-speed peristaltic pump with SPEDM hose, PVDF connection piece
€7,236.75*
% €8,040.83* (10% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Gracos SoloTech 23 Series peristaltic pump design utilises a single reel that compresses an advanced hose through a complete 360° rotation. This innovative design results in longer hose life when pumping corrosive, abrasive or sensitive materials for measurement or transfer.
Peristaltic peristaltic pumps for industrial measurement and transfer
- More flow per revolution than conventional designs
- Cost-effective to maintain - no valves, seals or rings
- Pumps are reversible and can be used to drain lines or clear blockages
- Longer hose life - only one compression line per revolution
| Application: | industry |
|---|---|
| Diffuser size (cm): | 2.5 |
| Hose diameter (cm): | 2.6 |
| Hose diameter (inch): | 1 |
| Hose diameter (mm): | 26 |
| Hose material: | EPDM |
| Hose nozzle material: | PVDF |
| Housing material: | Powder-coated aluminum |
| Inlet size (cm): | 2.5 |
| Inlet size (inch): | 1 |
| Inlet size (mm): | 25 |
| Inlet thread type: | flange |
| Maximum delivery rate (L/min): | 37.1 |
| Maximum material pressure (bar): | 9 |
| Maximum material pressure (kPa): | 900 |
| Maximum material pressure (psi): | 125 |
| Maximum permissible storage temperature (°C): | 40 |
| Minimum storage temperature (°C): | -10 |
| Model: | SoloTech |
| Motor type: | High speed, IEC gear only |
| Outlet size (inch): | 1 |
| Outlet size (mm): | 25 |
| Pump speed (rpm): | 16-93 |
| Series: | i26 |
| Standards met:: | ATEX, CE |
| Total height (cm): | 42 |
| Total height (mm): | 419 |
| Total width (cm): | 55 |
| Total width (mm): | 551 |
| Transmission ratio: | 19.13:1 |
| Type: | Electric peristaltic pump |
| Volume per cycle (L): | 413 |
More information
- Product number: 1035667
- Manufacturer: Graco
- EAN: 00755652326038
- Weight: 109.315 kg
