Manufacturer no.:
249808

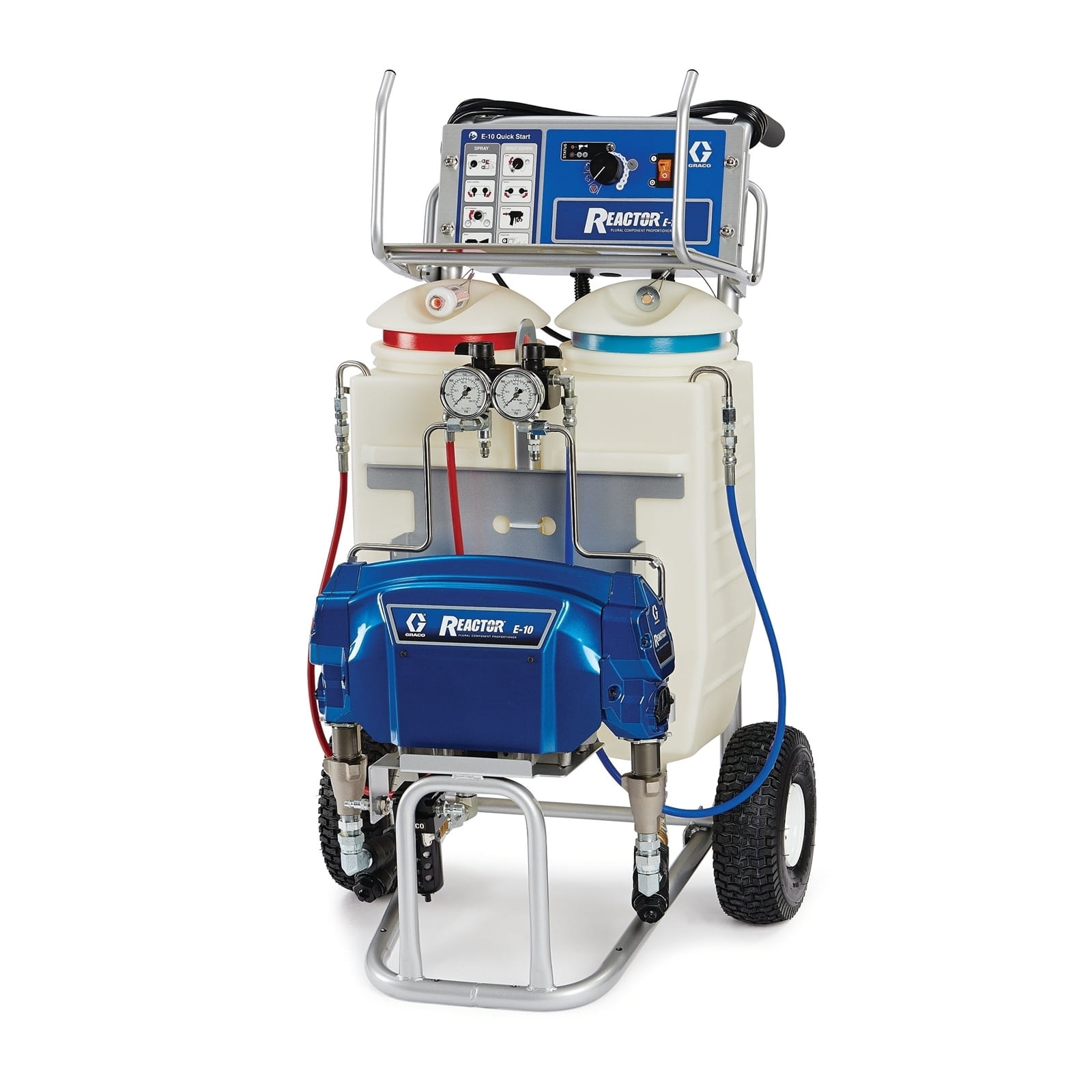

Reactor E-10 -complete dosing unit, MD2 gun, 240 V
€13,770.92*
% €15,301.02* (10% saved)Prices include VAT plus shipping costs
€11,572.20*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The unheated Reactor E-10 for floor coverings is equipped with integrated containers that simplify the precise mixing of materials with a higher viscosity.
Robust, mobile design
- Easy to manoeuvre thanks to large wheels
- Weighs only 68 kg (150 pounds)
- Reliable flow supply from integrated containers
Intuitive user controls
- Easy to start and stop with one-button operation
Powerful operation
- Electric motor improves performance and reduces operating costs
- Maximum flow rate of 1.9 l/min
- Easy connection to a power socket
Reduced maintenance
- Shorter maintenance times thanks to the maintenance-friendly material section
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | Quick coupling pin |
| Air outlet size (inches): | 1/4 |
| Air outlet thread type: | NPSM |
| Application: | Spray foam |
| Applicator type: | Hand- |
| Compatible material: | Multicomponent materials |
| Component type: | Two-component |
| Frequency (Hz): | 50/60 |
| Gun type: | MD2 |
| Hose length (m): | 10.7 |
| Hose type: | Including hose |

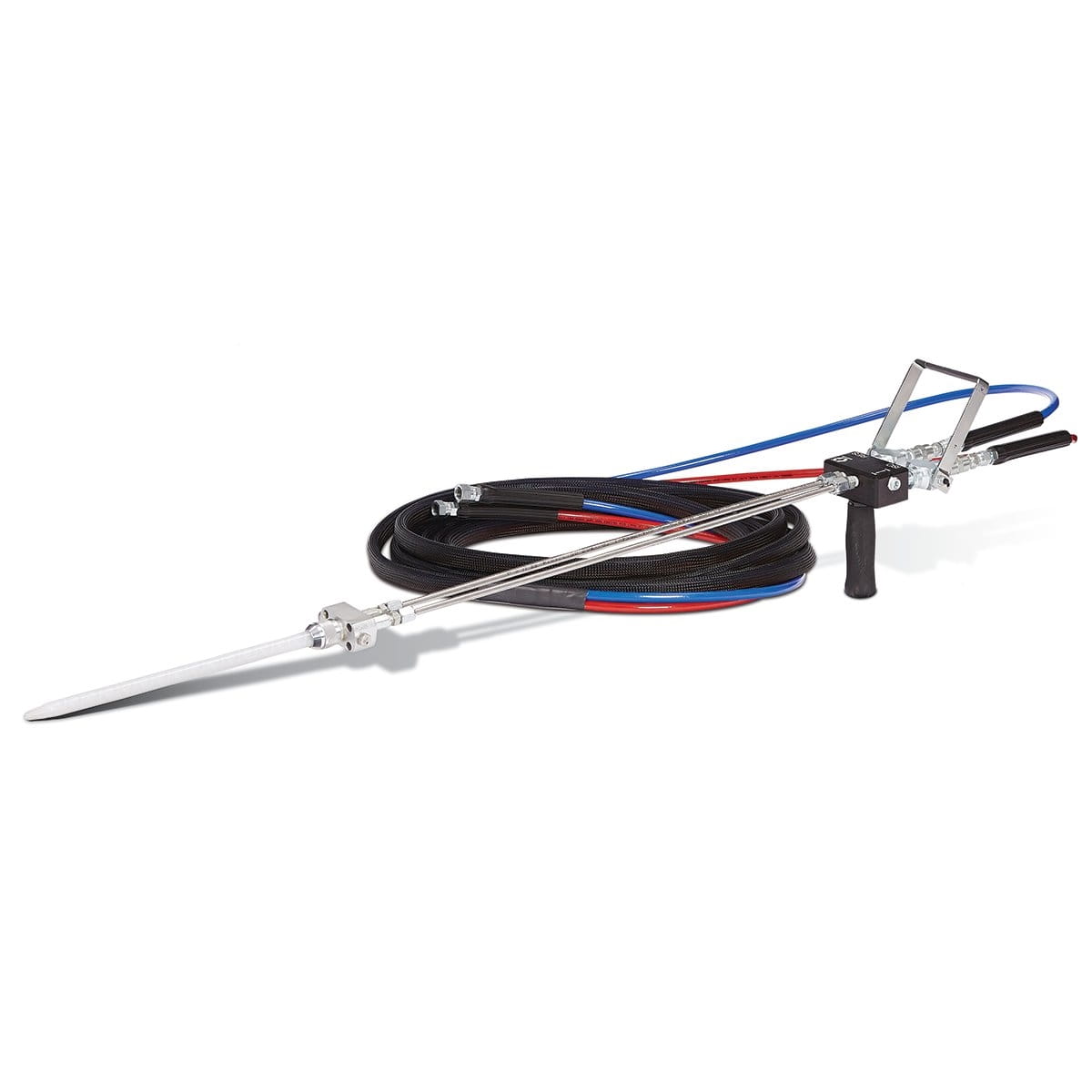

| Includes: | Dispenser, MD2 gun, unheated hose |
| Material application.: | Polyurethane foam |
| Maximum conveying capacity (kg/min): | 5.44 |
| Maximum mixing ratio: | 1:1 |
| Model: | reactor |
| Noise pressure level, (dB(A)): | 94.4 |
| Print type: | Low pressure |
| Product type: | multi-component |
| Series: | E-10 |
| Sink type: | solvent |
| Size of the air inlet (cm): | 635 |
| Size of the air inlet (mm): | 6.35 |
| Size of the air outlet (cm): | 635 |
| Size of the air outlet (mm): | 6.35 |
| Supply voltage: | Electric |
| Total depth (cm): | 38.3 |
| Total depth (mm): | 383 |
| Total height (cm): | 61.3 |
| Total height (mm): | 613 |
| Total width (cm): | 87.8 |
| Total width (mm): | 878 |
| Type: | Complete dosing device |
| Voltage (V): | 240 |
| Wetted material: | Aluminum, brass, carbide, mild steel, chrome, PTFE, stainless steel, UHMWPE |
More information
- Product number: 1036405
- Manufacturer: Graco
- EAN: 00633955109605
- Weight: 124.938 kg
- Length: 1050 mm
- Width: 950 mm
- Height: 1400 mm
Technical details
Operating specifications
| UPC product | 633955109605 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of Origin | US |
| Unit | EA |
Technical
| Air inlet size (cm) | 0. 635 |
|---|---|
| Air inlet size (in) | 1/4 |
| Air inlet size (mm) | 6. 35 |
| Air outlet size (cm) | 0. 635 |
| Air outlet size (in) | 1/4 |
| Air outlet thread type | NPSM |
| Amperage (A) | 8 |
| Component Type | Two Component |
| Frequency (Hz) | 50/60 |
| Includes | Proportioner, MD2 Gun, Unheated H ose |
| Material application | Polyurethane foam |
| Maximum flow rate (kg/min) | 5. 44 |
| Maximum flow rate (lb/min) | 12 |
| Maximum Mix Ratio | 1: 1 |
| Overall Depth (cm) | 38. 3 |
| Overall depth (in) | 15. 06 |
| Overall Depth (mm) | 383 |
| Overall Height (cm) | 61. 3 |
| Overall height (in) | 24. 12 |
| Overall height (mm) | 613 |
| Overall width (cm) | 87. 8 |
| Overall width (in) | 34. 58 |
| Overall width (mm) | 878 |
| Product Type | Plural Component |
| Sound pressure level (dB(A)) | 94. 4 |
| Air Outlet Size (mm) | 6. 35 |
| Model | Reactor |
| Series | E-10 |
| Pants Package | Includes trous ers |
