Manufacturer no.:
AP2012

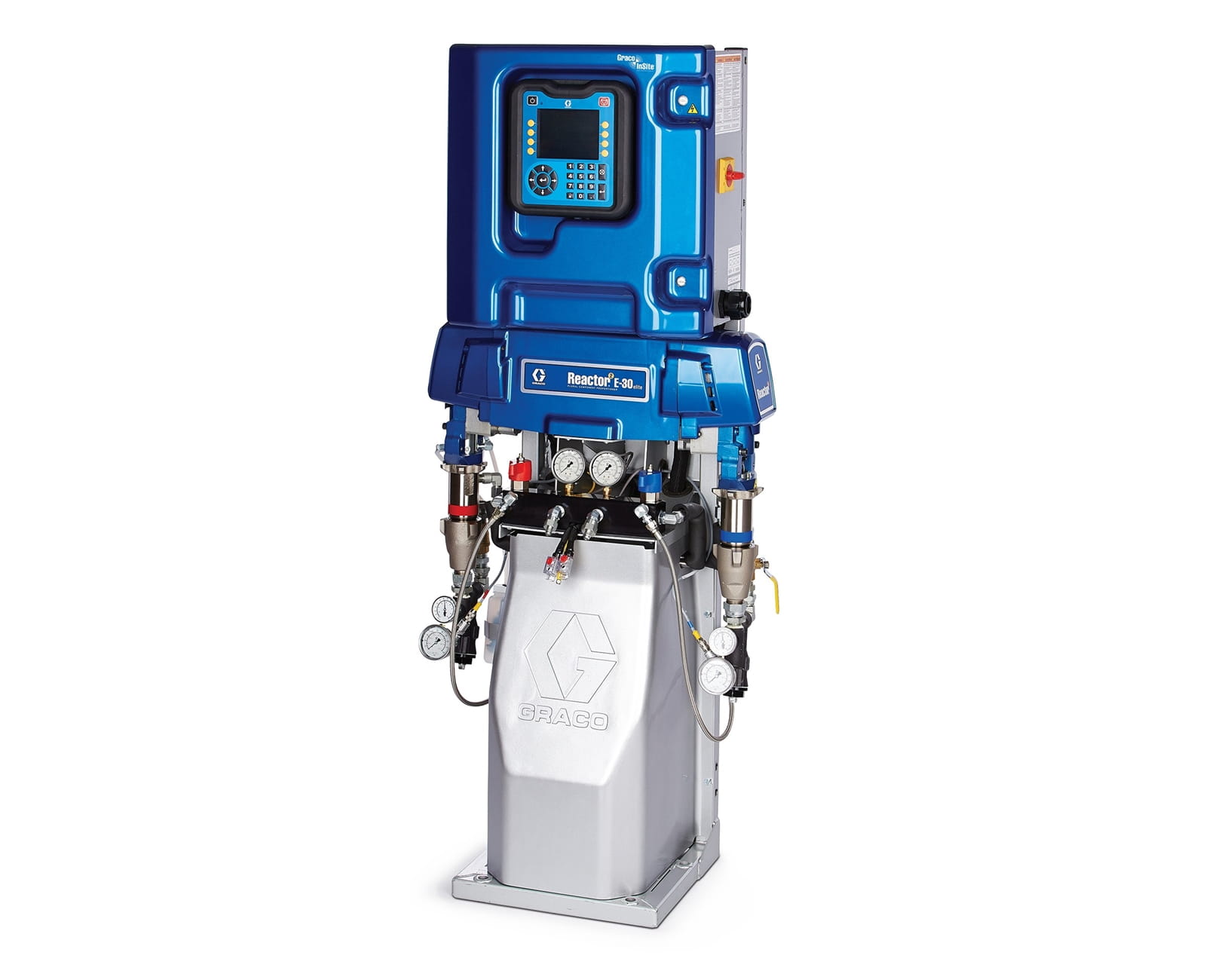

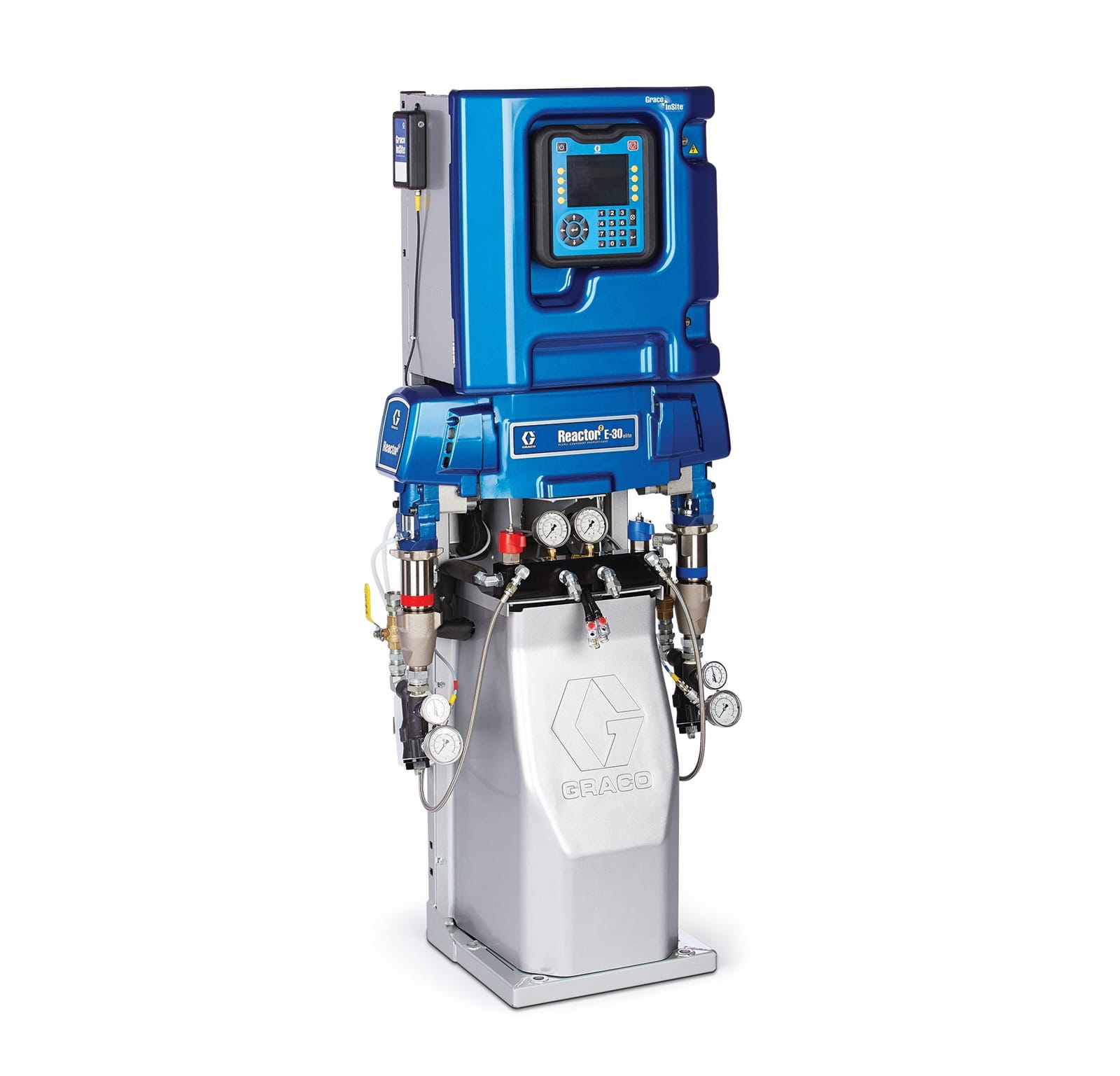

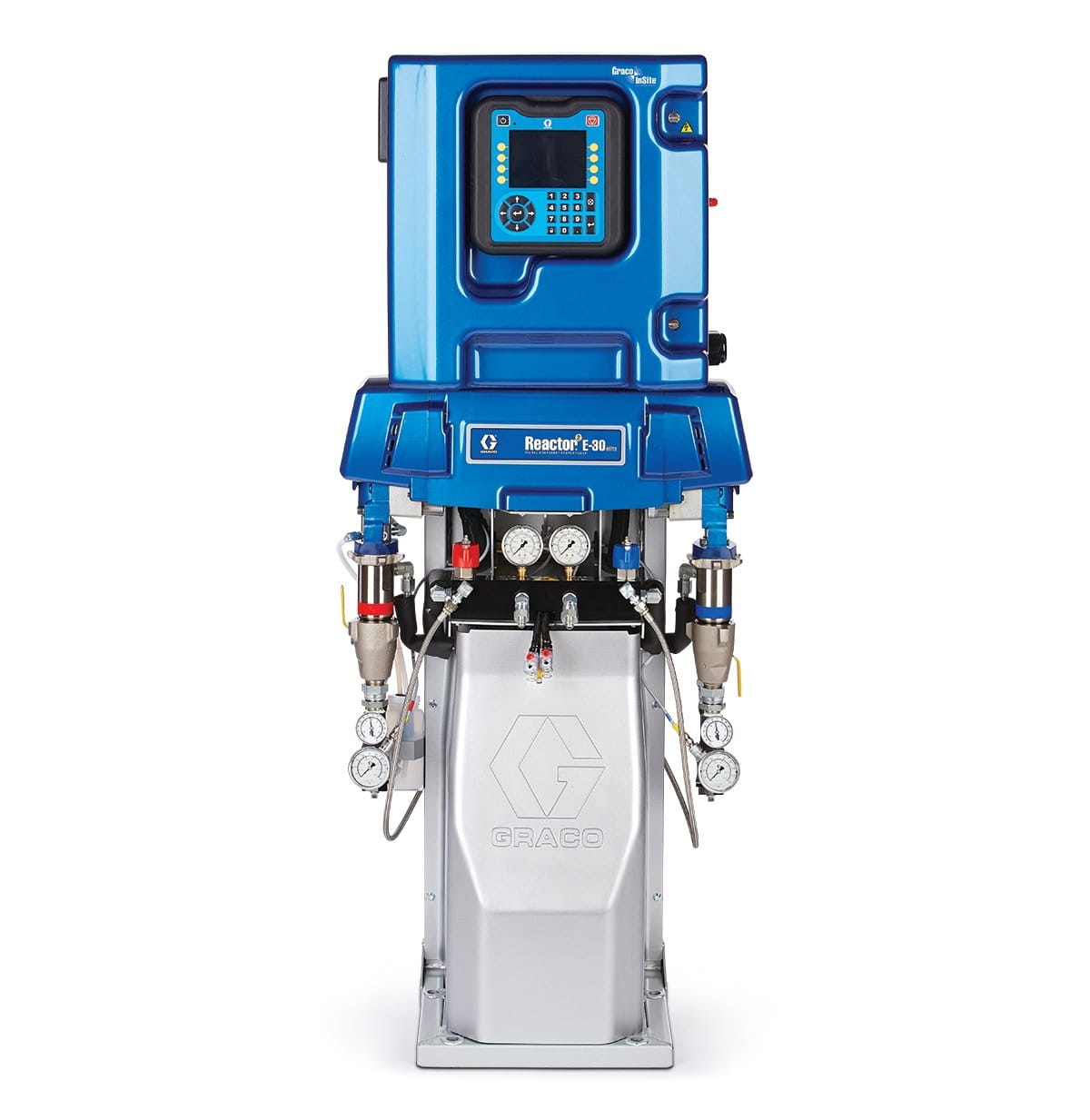

Reactor 2 E-XP2 Elite dispenser, Fusion AP gun, heated hose with Xtreme-Wrap, 230/400 V
€51,886.38*
Ready for shipping in 5-8 Werktage
Also interesting
Product information
Rely on the Reactor 2 E-XP2 dispenser for advanced technology in the application of fast-curing polyurea coatings. As a Reactor 2 Series dispenser, it offers software and hardware enhancements for better spray performance, as well as technologies that improve your profitability. The Graco Reactor 2 E-XP2 is designed to dispense and spray polyurea and other high-pressure coatings. The hybrid heater and heated hose adjust the materials to the correct viscosity before mixing. The quick-disassembly displacement pump for easy maintenance, user-friendly controls and robust construction make the Reactor the preferred choice for coating applications.

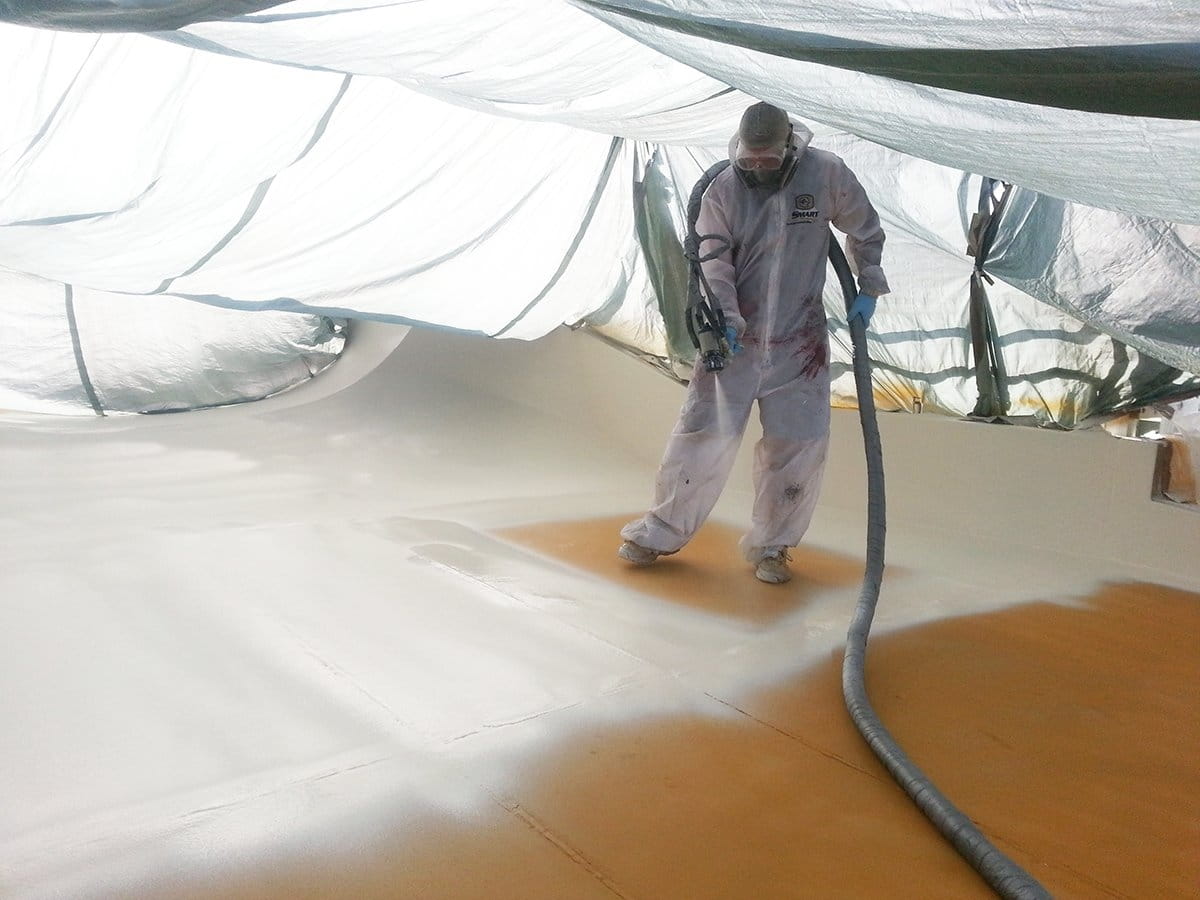

The future technology for polyurea coatings
Advantages of the Reactor 2 E-XP2:
- Compact size – more space in the spray shop
- Ergonomic design – Easier maintenance
- Advanced control modules
- Improved spray performance compared to conventional Reactor electric systems
- Fast and smooth troubleshooting with QR codes
Advanced control technology
- Tracks, monitors and stores project data
- Data can be stored and downloaded to a USB drive
- Store up to 24 chemical recipes
- Drum level indicator
Quick and easy troubleshooting thanks to QR code links
- Helps minimise downtime
- Easily accessible, conveniently placed electronics
Advanced control modules
- Copes with power fluctuations
Surge protection
- Protects your electronics from excessive power spikes
- Smooth and consistent spray performance – similar to hydraulic systems
3-year warranty
- Includes user display module, control modules and electric motor
- One of the best in the industry
| Application: | Protective coatings |
|---|---|
| Applicator type: | Hand- |
| Compatible material: | Multicomponent materials |
| Component A, inlet size (inch): | 1/2 |
| Component A, inlet size (mm): | 12.7 |
| Component A, thread type: | JIC |
| Component B, inlet size (mm): | #10 |
| Component B, outlet size (inch): | 5/8 |
| Component B, outlet size (mm): | 15,875 |
| Component B, thread type: | JIC |
| Component type: | Two-component |
| Frequency (Hz): | 50/60 |
| Gender of the material inlet thread: | Internal thread |
| Gun type: | Fusion AP |
| Hose length (m): | 15, 3 |
| Hose type: | Heated hose |
| Includes: | Dispenser, Fusion AP gun, Heated hose with wear protection, Heated whip end |
| Material application.: | Polyurea |
| Material inlet thread type: | NPT |
| Maximum delivery rate (L/min): | 7.6 |
| Maximum flow rate (cm³/min): | 7570 |
| Maximum material temperature (°C): | 88 |
| Maximum mixing ratio: | 1:1 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Model: | Reactor 2 |
| Noise pressure level, (dB(A)): | 73.6 |
| Permissible operating pressure (bar): | 241 |
| Phases: | 1, 3 |
| Print type: | High pressure |
| Product series: | Not elite |
| Product type: | multi-component |
| Rated power (W): | 15300 |
| Rated power (kW): | 15 |
| Series: | E-XP2 |
| Sink type: | solvent |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the resin inlet (cm): | 1,905 |
| Size of the resin inlet (inch): | 7,506 |
| Size of the resin inlet (mm): | 190,652 |
| Sound level, (dB(A)): | 83.5 |
| Supply voltage: | Electric |
| Total depth (cm): | 38.1 |
| Total depth (mm): | 381 |
| Total height (cm): | 160 |
| Total height (mm): | 1600 |
| Total width (cm): | 66.8 |
| Total width (mm): | 668 |
| Type: | Complete dosing device |
| Voltage (V): | 230, 400 |
| Weight (kg): | 156 |
| Wetted material: | Aluminum, Stainless Steel, Zinc Plated Carbon Steel, Brass, Carbide, Chrome, Chemical Resistant O-Rings, PTFE, UHMWPE |
More information
- Product number: 1037454
- Manufacturer: Graco
- EAN: 00633955643871
- Weight: 224.3 kg
