Manufacturer no.:
A22201

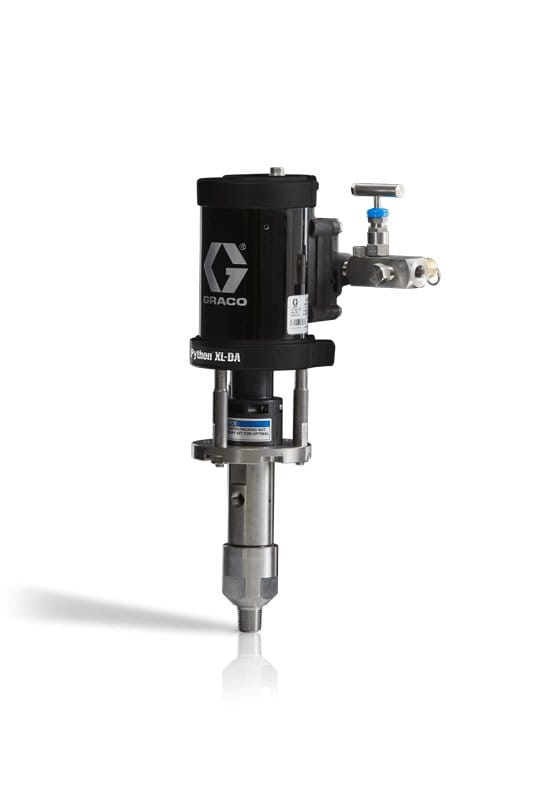

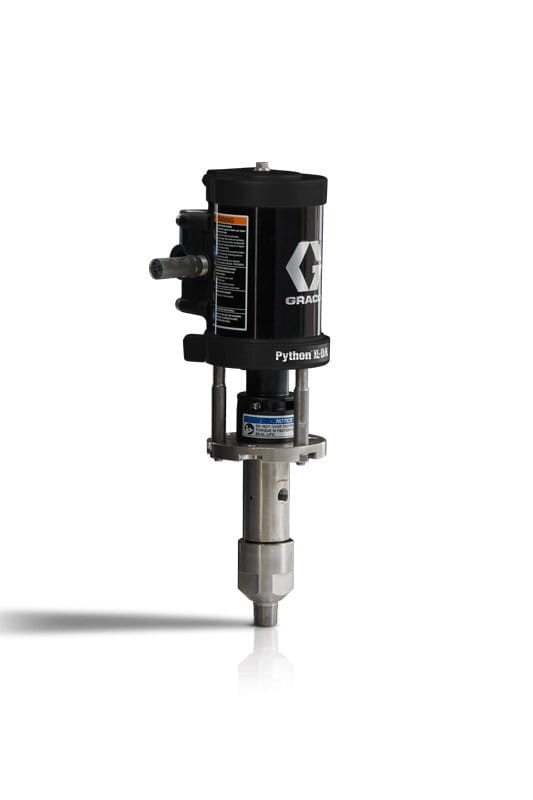

Pneumatic chemical metering pump Python XL-DA, 2-1/2" air motor, 3/8" piston, Chromex beschichtet, FFKM seals, CE approved
€6,643.41*
% €7,381.57* (10% saved)Prices include VAT plus shipping costs
€5,582.70*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information

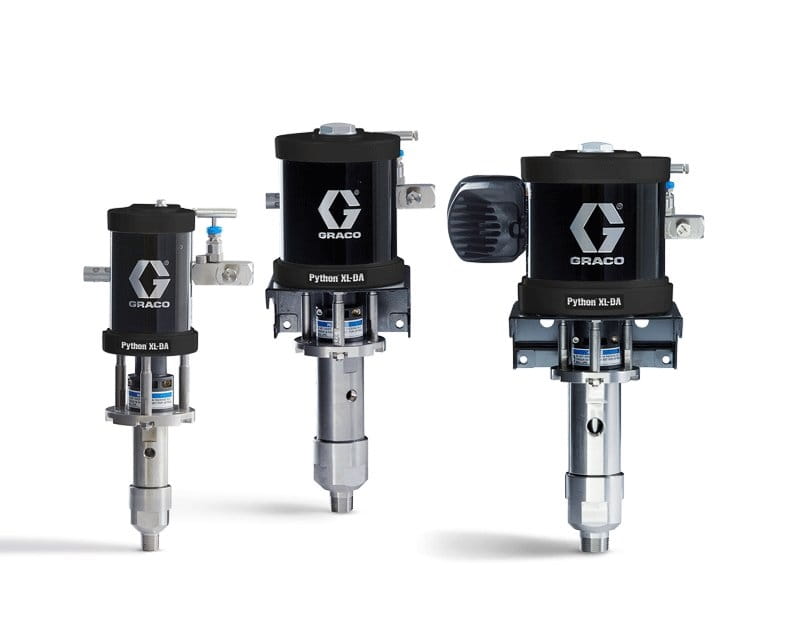

Python XL-DA series pumps are designed for chemical metering applications that require higher flows at high pressures. These pumps operate at low gas or air pressures and use the same Merkur® air motor found in other Graco products. Graco's patented high-efficiency air valve helps minimise fugitive emissions, and gas recovery is possible on certain models. The Python XL-DA pumps liquid in both directions of stroke. This ensures continuous flow operation and prevents air from being trapped in the pump.
- Double-acting
- Pumps liquid in both directions of stroke – resulting in higher flow rates
- Continuous flow operation for better pump efficiency
- 2.5" pump stroke ensures high flow rates
- Self-priming
- anti-clogging system to prevent air from being trapped in the air motor and causing the pump to shut down
- The pump can clear itself of air and resume pumping without adjustment
- Easy to maintain
- Simple pump design for quick seal changes
- Pumps are installed vertically to minimise space requirements
- Minimum number of tools required
- Environmentally friendly
- Exhaust air recovery kit
- Reduced fugitive emissions
- 4.5" air motors are prepared for an add-on kit for gas recovery
| Application: | Non-hazardous area |
|---|---|
| Authorisations: | CE |
| Gender of the material inlet thread: | External thread |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 635 |
| Material outlet size (mm): | 6.35 |
| Maximum operating pressure (MPa): | 30.6 |
| Maximum operating pressure (kPa): | 30600 |
| Maximum operating pressure (psi): | 4400 |
| Maximum operating temperature (°C): | 80 |
| Minimum operating temperature (°C): | -40 |
| Model: | python |
| Permissible operating pressure (bar): | 306 |
| Piston material: | Chromex coated |
| Piston size (cm): | 1.0 |
| Piston size (mm): | 9.5 |
| Sealing material: | FFKM |
| Series: | XL DA |
| Size of the air motor (inch): | 2-1/2 |
| Size of the material inlet opening (inches): | 3/8 |
| Size of the material outlet opening (inches): | 1/4 |
| Type: | Pneumatic chemical pump |
More information
- Product number: 1037364
- Manufacturer: Graco
Technical details
Operating specifications
| UPC product | 7 5 5652782681 |
|---|---|
| Division | LED |
| Price Block | 2 51 |
| Country of origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
| HTS code (EU) | 8 4 13504090 |
| HTS code (GB) | 8 4 13504090 |
Technical
| Fluid inlet size (in) | 3/8 |
|---|---|
| Fluid inlet thread gender | Male |
| Fluid outlet size (cm) | 0. 635 |
| Fluid outlet size (mm) | 6. 35 |
| Maximum operating temperature (°C) | 80 |
| Maximum operating temperature (°F) | 1 76 |
| Maximum working pressure (bar) | 306 |
| Maximum working pressure (kPa) | 30 6 00 |
| Maximum working pressure (psi) | 4 4 00 |
| Minimum operating temperature (°C) | - 40 |
| Minimum operating temperature (°F) | - 40 |
| Plunger material | Chromex coated |
| Plunger Size (cm) | 1 |
| Plunger size (in) | 3/8 |
| Plunger size (mm) | 9. 5 |
| Plunger rod coating | Chrom ex |
| Air motor size (in) | 2-1/2 |
| Approvals | CE |
| Maximum working pressure (MPa) | 30. 6 |
| Series | XL DA |
| Model | Python |
