Manufacturer no.: P68MCS

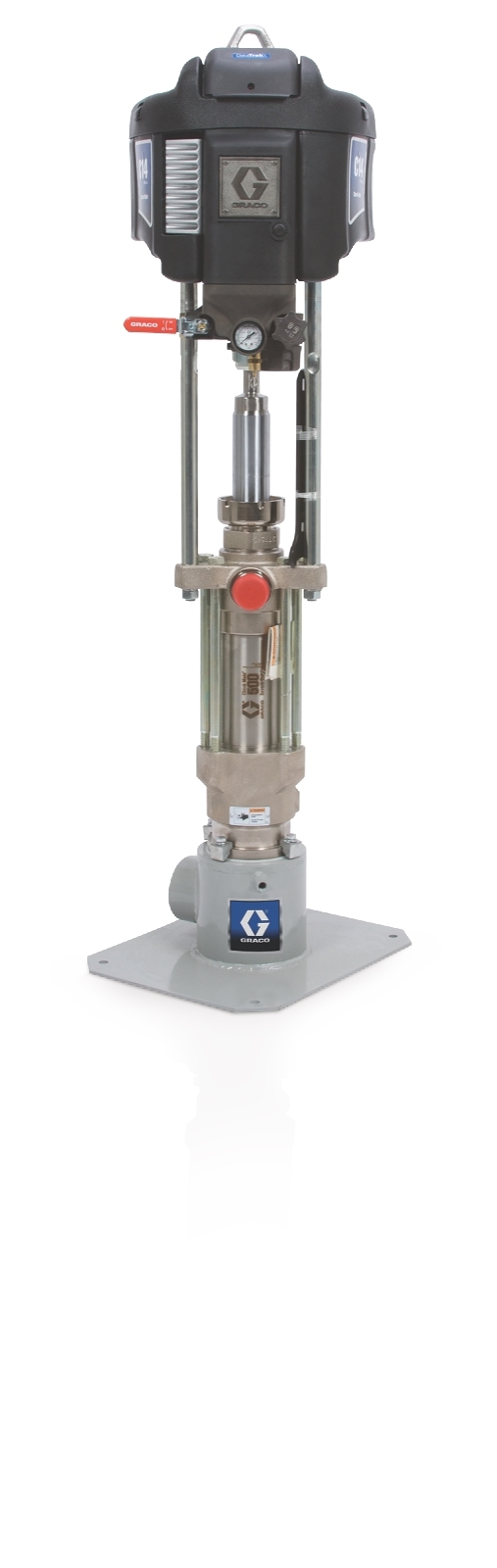

NXT™ Check-Mate® air-operated 68:1 grease pump with DataTrak

€7,811.87*

% €8,679.86* (10% saved)

€6,564.60*

Price excl. VAT

Ready for shipping in 5-8 Werktage

Also interesting

Product information

Move large amounts of grease faster! Graco's proven NXT technology gives you the best value for money - fewer parts, faster repairs and long life.

Intuitive, easy-to-use controls give you pump diagnostics to track material usage and schedule routine maintenance
Long service life -- the Check-Mate pump is a proven workhorse
Less icing and noise - the new NXT air motor is up to 50% quieter than previous models
Integrated ram and pump controls are easy to use
NXT air motor
- Easier maintenance thanks to modular design
- Robust panelling that will not rust or dent
- The most technically advanced air motor on the market
Integrated air regulator
- Lockable, easily rotatable regulator
- Easily accessible thanks to front mounting
- Compact and modular
- Integrated filtration
Xtreme® coupling
- Quick-release coupling facilitates maintenance
Replaceable outlet fitting
- Reduces repair costs
Piston valve with floating piston seal
- Maximum pressure equalisation over a wide material viscosity range
Replaceable seat
- Minimises service costs

Air inlet size (inches):	0.75
Application:	Fat
Compatible material:	Fat
Material outlet size (cm):	2.54
Material outlet size (mm):	25.4
Maximum operating pressure (MPa):	43.4
Maximum operating pressure (kPa):	43000
Maximum operating pressure (psi):	6200
Model:	Check Mate
Permissible operating pressure (bar):	434
Size of the material outlet opening (inches):	1
Type:	Piston pump system
Wetted material:	Alloy Steel, Stainless Steel, Acetal, Carbon Filled PTFE, Mild Steel, Ductile Iron, Electroless Nickel Plating, Electroless Zinc Plating, Electroless Chrome Plating, PTFE, UHMWPE
