Manufacturer no.:
246775

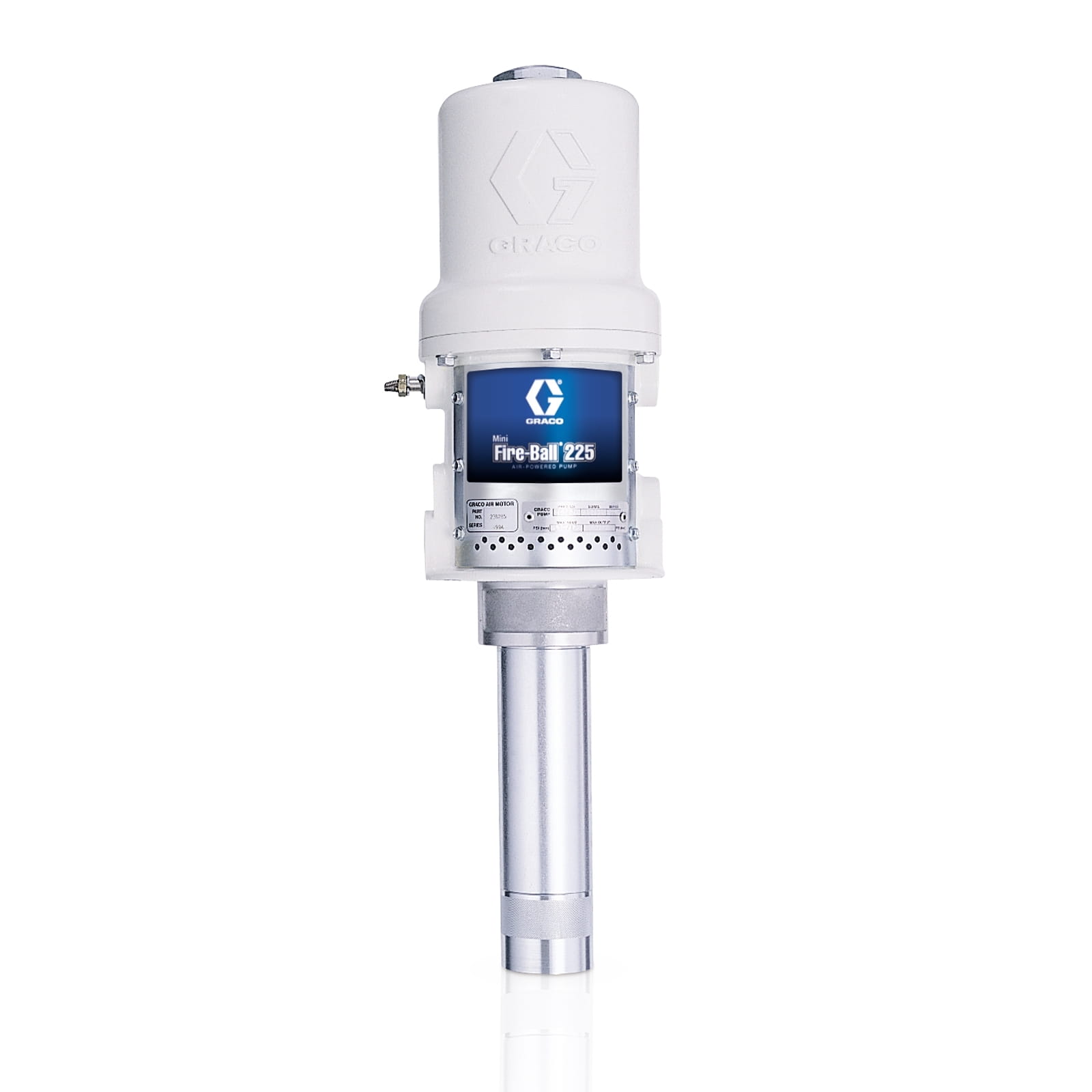

Mini Fire-Ball® 225 oil pump with universal size, ratio 3:1
€1,564.85*
Prices include VAT plus shipping costs
€1,315.00*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
You can't afford downtime, especially if your workshop is small and your labour force is dependent on equipment performance. The Mini Fire-Ball 225 features a design with fewer moving parts, which means less wear and tear, less downtime and more profit for your business.
The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.
- Robust - Unrivalled robust air motor housing made from extremely strong cast aluminium
- Fewer repairs - Fewer moving parts in the air motor assembly means less downtime and therefore lower repair costs
- Longer seal life - Inline pump design with aligned air motor pistons and material pistons maximises seal life
- Less downtime - Graco's unique manufacturing process ensures virtually wear-resistant piston rods
- Excellent sealing - Plastic disc valves seal positively even in environments with polluted "dirty" air and ensure a long service life with low maintenance requirements
- Less icing - The large air inlet guarantees efficient utilisation of compressed air for continuous pump operation without icing
- Corrosion-resistant - Corrosion resistance and long service life of important components thanks to salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 3/8 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | oil |
| Double strokes per gallon: | 43.5 |
| Effective area of the air motor (inches): | 2.25 |
| Energy type: | Pneumatic |
| For use with: | Mineral and synthetic oils (engine, transmission and ATF) |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material inlet thread type: | NPT |
| Material outlet size (mm): | 12.7 |
| Material outlet thread type: | NPT |
| Maximum air supply pressure (bar): | 12.41 |
| Maximum air supply pressure (kPa): | 1241 |
| Maximum continuous double stroke rate (DH/min): | 100 |
| Maximum inlet air pressure (psi): | 180 |
| Maximum operating pressure (MPa): | 3.7 |
| Maximum operating pressure (kPa): | 3700 |
| Maximum operating pressure (psi): | 540 |
| Model: | Mini Fire Ball |
| Noise pressure level, (dB(A)): | 77.8 |
| Permissible operating pressure (bar): | 37 |
| Series: | 225 |
| Size of the air inlet (mm): | 9,525 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 1/2 |
| Sound level, (dB(A)): | 85.6 |
| Transmission ratio of the pump: | 3:1 |
| Type: | Pneumatic piston pump |
| Weight (kg): | 7,264 |
| Wetted material: | Steel, polyurethane, aluminum, Buna-N |
More information
- Product number: 1038721
- Manufacturer: Graco
- EAN: 00633955007918
- Weight: 7.79 kg
- Length: 750 mm
- Width: 260 mm
- Height: 260 mm
Technical details
Operating specifications
| UPC product | 6 3 3955007918 |
|---|---|
| Division | LED |
| Price Block | 2 4 0 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 26 CM |
| Length | 75 cm |
| Width | 26 cm |
| Volume | . 051 m³ |
| Shipping weight | 7 .79 KG |
Technical
| Air inlet size (in) | 3/8 |
|---|---|
| Air inlet size (mm) | 9. 525 |
| Air inlet thread gender | Female |
| Air motor effective diameter (in) | 2. 25 |
| Cycles per gallon | 43. 5 |
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (mm) | 12. 7 |
| Fluid outlet thread gender | Female |
| For use with | Petroleum- and synthetic-based oils (motor, gear and ATF ) |
| Maximum air consumption (SCFM) | 20 |
| Maximum air inlet pressure (bar) | 12. 41 |
| Maximum air inlet pressure (kPa) | 1 2 41 |
| Maximum air inlet pressure (psi) | 180 |
| Maximum continuous cycle rate (CPM) | 100 |
| Maximum working pressure (bar) | 37 |
| Maximum working pressure (kPa) | 3700 |
| Maximum working pressure (psi) | 5 4 0 |
| Model | Mini Fire-Ball |
| Series | 225 |
| Sound pressure level (dB(A)) | 77. 8 |
| Weight (kg) | 0. 7264 |
| Maximum working pressure (MPa) | 3. 7 |
