Best price guarantee
%
Product images may vary
Manufacturer no.: 17E664

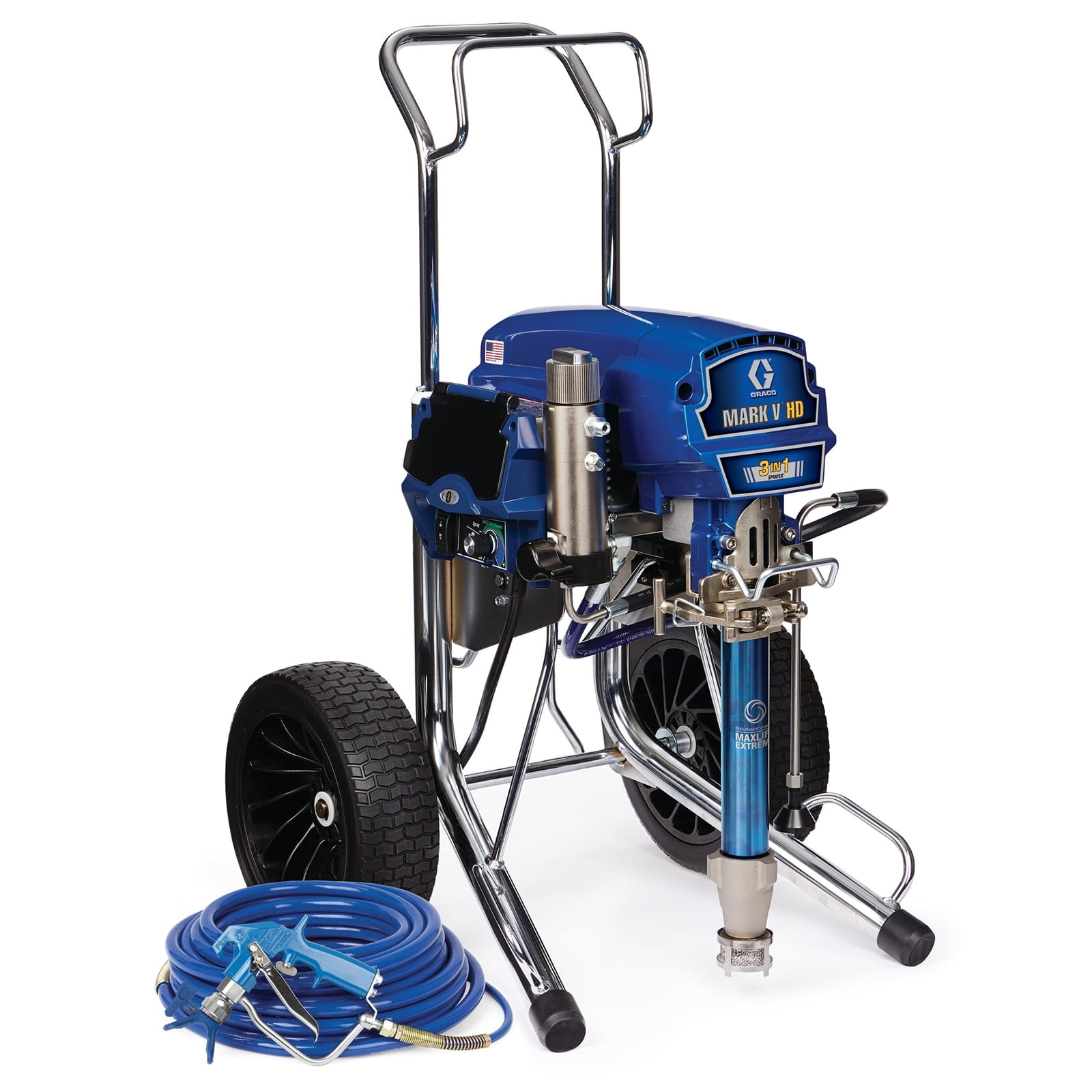

Mark V HD IronMan-Series Electric Airless Sprayer, 230V, EU

€9,471.14*

% €14,350.21* (34% saved)

Prices include VAT plus shipping costs

€7,958.94*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Shape Created with Sketch. Free shipping within Germany
Also interesting
Product information

The Mark V HD is designed for higher flow rates so you can complete jobs faster. This unit offers 20% higher productivity compared to the Mark IV and features an improved high-performance finishing gun that can accommodate a larger nozzle size to handle all textured surfaces and a wide range of primers and paints.

Ideal for demanding job sites. The HD IronMan Series electric airless texture sprayers are built to meet the tough demands of large commercial and industrial jobs, day after day.

  • Endurance Vortex MaxLife Extreme piston pump
    • Maximum durability and service life
    • Breakthrough Vortex™ rotary lobe technology
    • Seals and piston rod with maximum service life 3x longer pump rod service life
    • Maximum versatility, no matter what you are injecting. Long Life ceramic and stainless steel balls for maximum versatility.
  • ProConnect 2 pump exchange system
    • No more costly downtime
    • Pump replacement in minutes
    • No tools, pins or parts to lose
  • Solid rubber tyres
    • Never a flat tyre again
    • Tyres cannot be punctured by nails, screws or other sharp objects
  • SmartControl 4.0 with ProGuard protection system
    • Precision pressure control
    • Lowest dead zone at any pressure provides a consistent spray pattern without pressure fluctuation
    • ProGuard prevents electrical damage from extreme job-site power supply conditions
    • WatchDog pump protection system automatically prevents pump damage when supply is low
  • BlueLink job and sprayer management system
    • Optimise your operation
    • Track every sprayer: Pinpoint location and hourly productivity
    • Keep an eye on job progress: access productivity data and reporting from anywhere
    • Maximise uptime: Set maintenance schedules, alerts and field location notifications
  • MaxFlo 2 with flocculation protection
    • Less flocculation, more productivity
    • Self-cleaning Vibra-Seal technology prevents material buildup
    • Uninterrupted spraying with effective flocculation protection for increased productivity
    • Optimised passages for the thickest coatings
  • Pressure-tight inlet strainer
    • Durable filtration
    • Withstands harsh impacts and maintains flow through filter
  • FastFlush 2 system
    • Now quick cleaning is even FASTER
    • Clean the pump up to six times faster with half the amount of water
    • High-speed material flow with 60% faster motor speed
  • MaxPower motor and Precision Advantage Drive
    • Proven performance for all painting applications
    • High-torque, brushless design with lifetime warranty
    • The longest-lasting drive
    • Hardened steel gears run extra-quiet and are backed by a lifetime warranty.
  • Additional features
    • Easy Out filter manifold
    • High-performance suction valve
    • Durable, ruggedly built chassis
Compatible material: Stains, glass, oil, varnishes, primers, fillers, acrylic paints, interior emulsion paints, exterior emulsion paints, latex, fillers, anti-corrosion paints, fireproofing paints, foam forming materials
Compatible replacement pump: 17H836
Convertible: Not convertible
Double strokes per gallon: 110
Filter mesh size: 60
Frame configuration: Hi boy
Frequency (Hz): 50
Hose inlet diameter (cm): 9,525
Hose inlet diameter (inch): 3/8
Hose inlet diameter (mm): 9,525
Hose reel type: Hose holder
Inlet colour screen: Heavy duty stone catcher
Inner diameter of material hose (inch): 3/8
Material outlet size (mm): 9,525
Material outlet thread type: NPSM
Maximum delivery rate (L/min): 4.3
Maximum hose length (m): 30
Maximum nozzle size (inch): 37
Maximum nozzle size 1 gun (inch): 37
Maximum operating pressure (MPa): 22.7
Maximum operating pressure (kPa): 22700
Maximum operating pressure (kg/cm²): 22.7
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 82
Minimum generator output (W): 5000
Minimum generator output (kW): 0
Model: Mark HD
Motor size (kW): 1.65
Motor type: Brushless, DC
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating overpressure (psi): 3300
Permissible operating pressure (bar): 227
Phases: 1
Pressure control type: SmartControl 4.0
Product series: IronMan
Pump mounting type: ProConnect 2
Pump rod type: MaxLife
Pump sleeve material: MaxLife Extreme
Pump type: Endurance Vortex
Rated power (kW): 1.65
Series: v
Size of the material outlet opening (inches): 3/8
Spray gun type: HD plastering gun, blue
Spraying technology: Airless
Supply voltage: Electric
Total height (cm): 74.9
Total height (mm): 7,493,000
Total length (cm): 66
Total length (mm): 660.4
Total width (cm): 61
Total width (mm): 6,096,000
Type: Airless sprayer
Voltage (V): 230
Volume per cycle (cycles/gal): 110
Weight (kg): 62
Wetted material: Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
More information
  • Product number: 1031934
  • Manufacturer: Graco
  • EAN: 00755652817314
  • Weight: 80.285 kg
  • Length: 800 mm
  • Width: 670 mm
  • Height: 1050 mm

Technical details

Operating specifications
UPC product 75565281 7 314
Division CED
Price Block 2 50
Country of Origin US
Unit EA
Height 105 CM
Length 80 CM
Width 67 cm
Volume . 563 M3
Shipping weight 80.29 kg
Technical
Compatible replacement pump 1 7 H836
Convertible Non - convertible
Engine size (HP) 2.2 Brushless DC
Engine size (kW) 1. 65
Fluid outlet size (mm) 9. 525
Frame Configuration Hi-Boy
Hose inlet diameter (cm) 0. 9525
Hose inlet diameter (in) 3/8
Hose inlet diameter (mm) 9. 525
Hose reel type Hose rack
Maximum flow rate (L/min) 4. 3
Maximum Hose Length (ft) 100
Maximum hose length (m) 30
Maximum sound pressure level (dB(A)) 82
Maximum tip size (in) 0. 037
Maximum tip size gun 1 (in) 0. 037
Maximum working pressure (psi) 3 3 00
Maximum working pressure (kPa) 2 2 700
Power Rating (HP) 2. 2
Power Rating (kW) 1. 65
Maximum working pressure (MPa) 22. 7
Pressure Control Type SmartControl 4. 0
Overall Width (mm) 609. 6000
Model Mark HD
Maximum working pressure (bar) 2 27
Overall Height (cm) 74. 9
Overall Height (in) 29. 5
Weight (kg) 62
Overall height (mm) 749. 3000
Overall length (cm) 66
Overall width (in) 2 4
Overall Length (in) 26
Series V
Overall Length (mm) 660. 4
Overall width (cm) 61
Maximum working pressure (kg/cm²) 22. 7
Fluid hose inside diameter (in) 3/8
Outlet Paint Filter 60 mesh stainless steel screen
Minimum generator power (kW) 0
Frequency (Hz) 50
Pump Mount Type ProConnect 2
Pump rod type MaxLife
Minimum generator power (W) 5 0 00
Number of Guns 1
Filter mesh size 6
Cycles per gallon 110
Volume per cycle (cycles/gal) 110
Product Series IronMan
