Manufacturer no.:
17H212

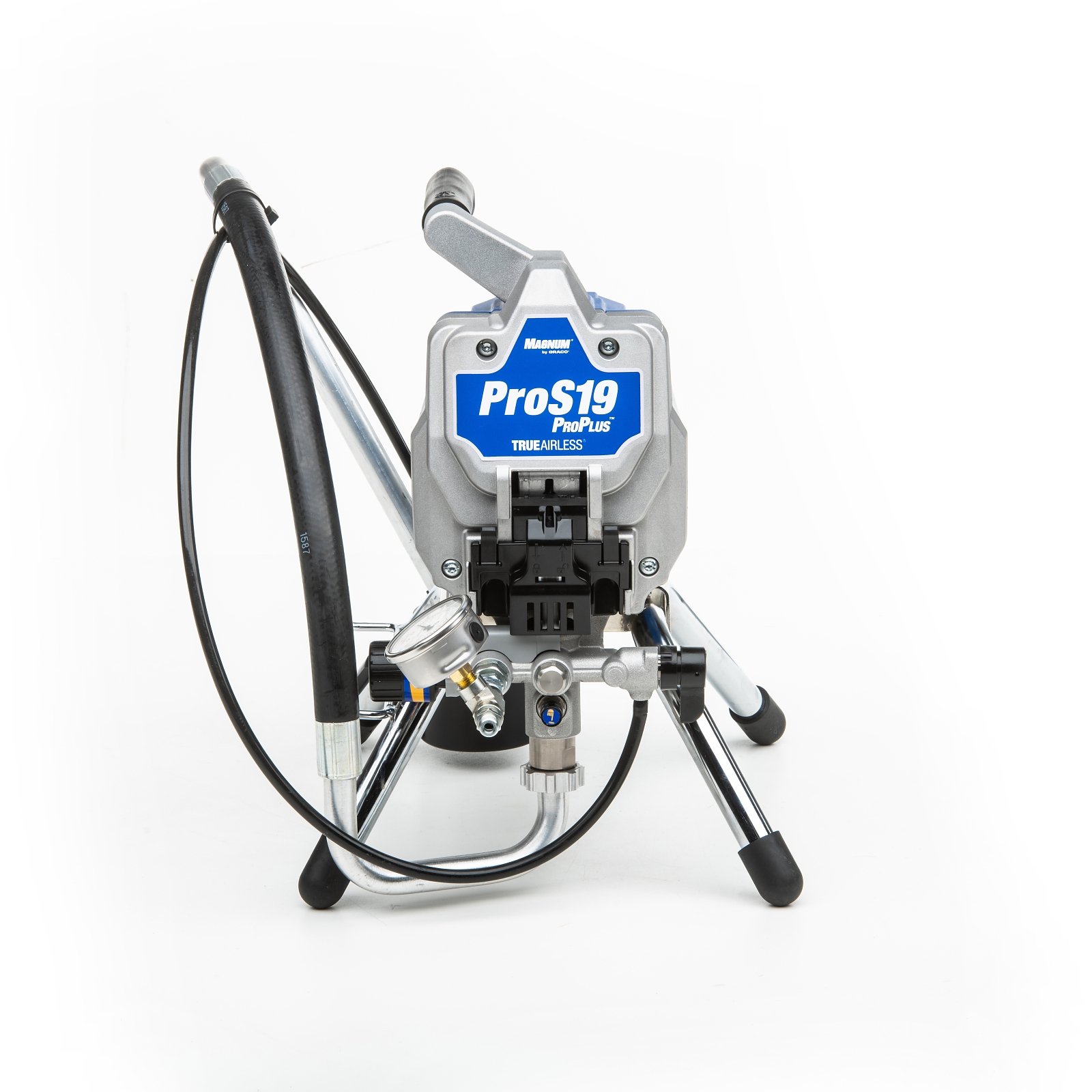

Magnum ProS19 electric airless sprayers
€2,501.98*
Ready for shipping in 5-8 days
Also interesting
Product information
The Magnum ProS19 ProPlus system is designed for a wide range of interior and exterior painting and coating work. It is suitable for large and small projects and can even be used on large construction sites. This workhorse saves you time and money, as it can also spray thick coating materials - with a particularly high finish quality. Its compact design makes it easy to move the paint and sprayer around the site.
- ProX piston pump made of stainless steel - for greater reliability and a longer service life
- ProXChange pump system - prevents downtime thanks to the ability to change pumps quickly and without tools on site
- DC motor - enables longer cables and airless lines up to 45 metres long
- PushPrime - for quick and easy commissioning
- SG3 metal spray gun - the premium spray gun with hose swivel joint prevents twisting, even with long hoses
- TrueAirless spray nozzle with SoftSpray technology - for more control and less overspray with a wide range of coatings
- Compact design - so the sprayer is mobile at any location
- Pressure adjustment - easily adjustable paint flow
- InstaClean pump fliter - the additional filter effect prevents nozzle blockages caused by particles in the paint
- Power Flush adapter - can be connected to any garden hose for quick and easy cleaning
| Compatible nozzle size (inch): | 0.009, 0.011, 0.013, 0.015, 0.017, 0.019 |
|---|---|
| Frame configuration: | carrying frame |
| Includes: | SG3 spray gun, TrueAirless 515 spray nozzle, RAC5 nozzle guard, 1/4" x 15m DuraFlex hose, Pump Armor storage fluid (235ml), garden hose connector, quick start guide and user manual |
| Inlet colour screen: | 35 mesh stainless steel strainer |
| Material outlet size (mm): | 6.35 |
| Maximum delivery rate (L/min): | 1.4 |
| Maximum hose length (m): | 45 |
| Maximum nozzle size (inch): | 19 |
| Maximum operating pressure (MPa): | 20.7 |
| Maximum operating pressure (kPa): | 20700 |
| Maximum operating pressure (psi): | 3000 |
| Minimum generator output (W): | 2500 |
| Model: | Magnum |
| Motor type: | DC motor |
| Number of guns: | 1 |
| Outlet colour screen: | InstaClean |
| Permissible operating pressure (bar): | 207 |
| Phases: | 1 |
| Pressure control type: | Adjustable |
| Product series: | Pro series |
| Pump mounting type: | ProXchange |
| Pump rod type: | Stainless steel |
| Pump sleeve material: | stainless steel |
| Pump type: | Pistons |
| Rated power (W): | 653 |
| Rated power (kW): | 0.65 |
| Recommended annual consumption: | 1500 L |
| Region Plug type: | EU region (plug type C, E & F) |
| Series: | ProS19 |
| Size of the material outlet opening (inches): | 1/4 |
| Supply voltage: | Electric |
| Total height (cm): | 46.7 |
| Total height (mm): | 467 |
| Total length (cm): | 42.4 |
| Total length (mm): | 424 |
| Total width (cm): | 34.3 |
| Total width (mm): | 343 |
| Type: | Airless sprayer |
| Voltage (V): | 240V |
| Weight (kg): | 11.3 |
| Wetted material: | Aluminum, brass, carbide, fluoroelastomer, leather, nylon, steel, galvanized, polypropylene, PVC, stainless steel, UHMWPE |
More information
- Product number: 1036015
- Manufacturer: Graco
- EAN: 00755652298335
- Weight: 11.009 kg
- Length: 460 mm
- Width: 380 mm
- Height: 505 mm
Technical details
Operating specifications
| UPC product | 755652298335 |
|---|---|
| Division | CED |
| Price Block | 061 |
| Country of Origin | US |
| Unit | EA |
| Height | 50.5 CM |
| Length | 46 CM |
| Width | 38 cm |
| Volume | . 088 m³ |
| Shipping weight | 18 KG |
Engine Size (HP)
| Engine size (HP) | 0. 875 |
|---|---|
| Fluid outlet size (mm) | 6. 35 |
| Frame Configuration | Stand |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, RAC5 Spray Tip Guard, 1/4 in x 15 m DuraFlex Hose, Pump Armor Storage Fluid (235 ml), Garden Hose Connector, Quick Start-Up Guide and Operational Manual |
| Maximum flow rate (L/min) | 1. 4 |
| Maximum hose length (ft) | 150 |
| Maximum hose length (m) | 45 |
| Maximum tip size (in) | 0. 019 |
| Maximum working pressure (psi) | 3000 |
| Maximum working pressure (kPa) | 2 0 700 |
| Power Rating (HP) | 0. 875 |
| Power rating (kW) | 0. 65 |
| Power rating (W) | 653 |
| Maximum working pressure (MPa) | 20. 7 |
| Pressure control type | Adjustable |
| Overall Width (mm) | 3 43 |
| Model | Magnum |
| Maximum working pressure (bar) | 2 07 |
| Overall Height (cm) | 46. 7 |
| Overall height (in) | 18. 4 |
| Weight (kg) | 11. 3 |
| Overall height (mm) | 467 |
| Overall length (cm) | 42. 4 |
| Overall width (in) | 13. 5 |
| Overall Length (in) | 16. 7 |
| Series | ProS19 |
| Overall Length (mm) | 4 24 |
| Overall width (cm) | 34. 3 |
| Compatible tip size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0. 019 |
| Outlet Paint Filter | InstaClean |
| Pump Mount Type | ProXchange |
| Pump rod type | Stainless Steel |
| Minimum generator power (W) | 250 |
| Number of Guns | 1 |
| Amperage (A) | 8 |
| Recommended annual usage | 1500 L |
| Product Series | Pro Series |
| region_plug_type | EU region (Type C, E & F plug ) |
Further manufacturer information
Produkthandbücher
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (Deutsch)
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (English)
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (Español)
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (Français)
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (Italiano)
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (Nederlands)
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (Polski)
- 3A3416D, Handbuch, Magnum ProS19 und 21 Airless-Spritzgeräte, Betrieb, Teile (Português)
