Manufacturer no.:
17H449

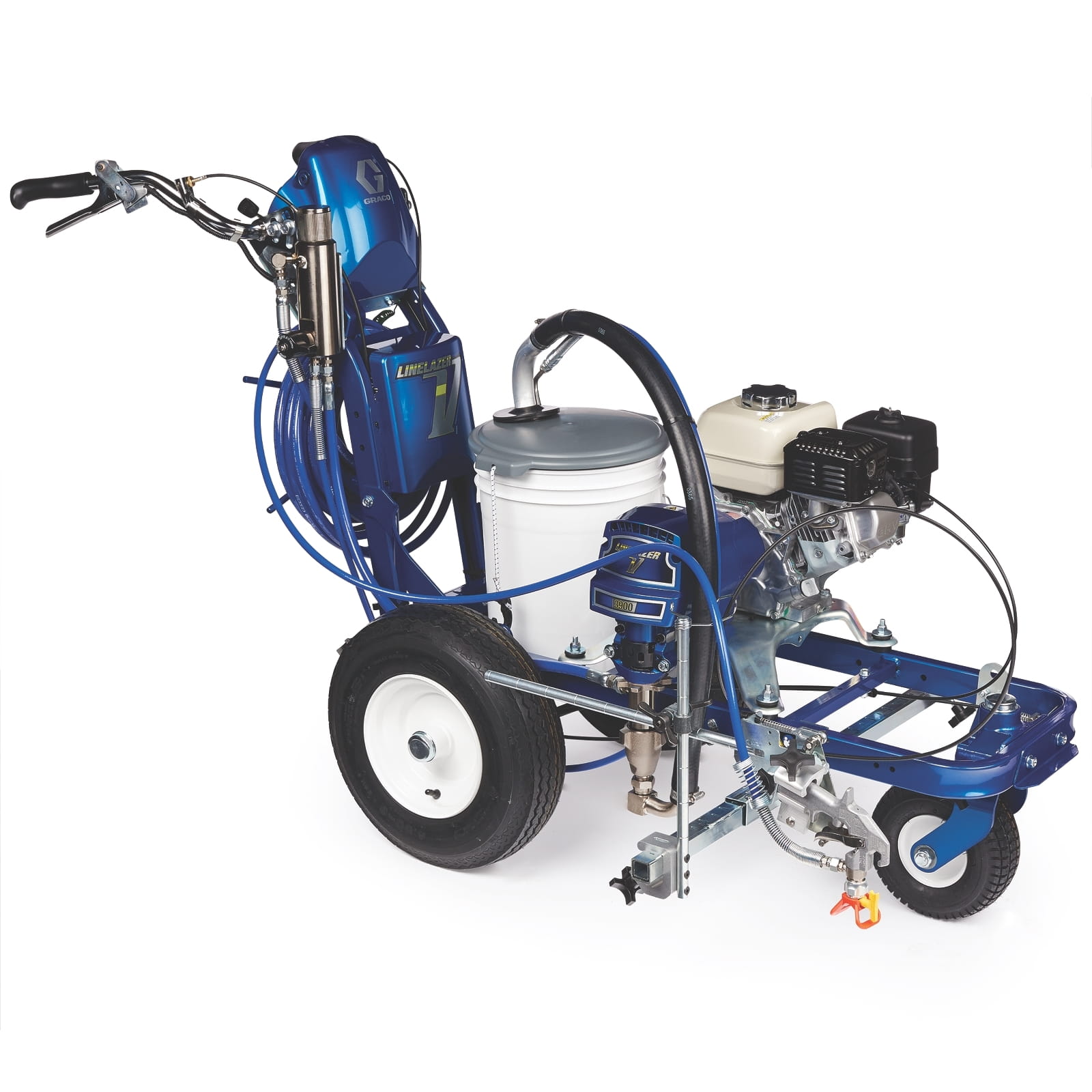

LineLazer V 3900 Standard series petrol-powered airless line marker, 1 manual gun
€24,714.81*
Ready for shipping in 5-8 days
Also interesting
Product information
When it's time for airless line marking with 1 or 2 guns, a LineLazer V 3900 Standard Series line marker is an excellent choice. These durable line markers deliver consistent lines for all your basic marking needs.
The LineLazer V Standard Series is ideal for contractors with higher production, who are performing and considering larger re-marking jobs with simple spray pattern applications that require a single colour or single or dual gun marking solution.
- LiveLook display with SmartControl
- Track, measure and control every aspect of your job
- Real-time information for perfect lines
- Honda® GX120 engine
- Reliable and easy to start
- Favoured by users: outstanding performance and proven reliability
- Oil level warning shuts down the engine to prevent damage if the oil level drops too low
- EasyMark gun adjustment system
- Uncomplicated marking guidance system
- Easy gun adjustment: on/off, forwards/backwards
- Perfect gun set-up - every time
- EZ Align wheel system
- Simple front wheel alignment ensures a straight line with the device
- Intuitive design, no special tools required
- DualComfort handlebar system
- Suitable for all users and easy to adjust
- Solid four-bolt design
- QuickSelect gun selection aid
- Easy control of two guns with just one chrome gun lever
- Endurance Chromex pump
- Durable pumps deliver precise flow for a variety of marking materials
- Industry's best pump performance with field-proven design.
- Handle the most demanding materials with a rod treated for longer durability - 4x harder than ordinary chrome
- Easy Out pump filter
- Easy pump maintenance and less clogging
- Less dirt and fewer clogged nozzles thanks to inside-out design
| Compatible material: | Colors for road markings |
|---|---|
| Compatible surfaces: | road, lawn |
| Fuel tank capacity (L): | 2.5 |
| Gun activation: | Hand- |
| Includes: | Nozzles, protection, gun, hose, pump filter, TSL |
| Maximum delivery rate (L/min): | 4.7 |
| Maximum nozzle size (cm): | 889 |
| Maximum nozzle size (inch): | 35 |
| Maximum nozzle size (mm): | 8,890 |
| Maximum operating pressure (kPa): | 2270 |
| Maximum operating pressure (psi): | 3300 |
| Maximum sound pressure level (dB(A)): | 85.5 |
| Model: | LineLazer V |
| Motor model: | GX120 |
| Number of colours: | Monochrome |
| Number of guns: | 1 |
| Number of pumps: | 1 |
| Permissible operating pressure (bar): | 227 |
| Product series: | Standard |
| Pump type: | Endurance |
| Rated power (kW): | 2.98 |
| Series: | 3900 |
| Supply voltage: | petrol |
| Total height (cm): | 113.03 |
| Total height (mm): | 1130.3 |
| Total length (cm): | 173.36 |
| Total length (mm): | 1733.55 |
| Total width (cm): | 87.0 |
| Total width (mm): | 870 |
| Type: | Hand-held line marking device |
| Weight (kg): | 104 |
More information
- Product number: 1038857
- Manufacturer: Graco
- EAN: 00755652319962
- Weight: 146.963 kg
- Length: 1900 mm
- Width: 1000 mm
- Height: 1300 mm
Technical details
Operating specifications
| UPC product | 755652319962 |
|---|---|
| Division | CED |
| Price Block | 018 |
| Country of Origin | US |
| Unit | EA |
| Height | 130 CM |
| Length | 190 CM |
| Width | 100 cm |
| Volume | 2 .47 m³ |
| Shipping weight | 146.96 KG |
Technical
| Engine brand | Honda |
|---|---|
| Engine model | GX120 |
| Fuel tank capacity (gal) | 0. 66 |
| Fuel tank capacity (L) | 2. 5 |
| Includes | Tips, guard, gun, hose, pump filter, TSL |
| Maximum flow rate (L/min) | 4. 7 |
| Maximum sound pressure level (dB(A)) | 85. 5 |
| Maximum tip size (cm) | 0. 0889 |
| Maximum tip size (in) | 0. 035 |
| Maximum tip size (mm) | 0. 8890 |
| Maximum working pressure (bar) | 2 27 |
| Maximum working pressure (kPa) | 2 270 |
| Maximum working pressure (psi) | 3 3 00 |
| Model | LineLazer V |
| Number of Colours | One Colour |
| Number of Guns | 1 |
| Number of Pumps | 1 |
| Overall height (cm) | 113. 03 |
| Overall Height (in) | 44. 5 |
| Overall height (mm) | 1130. 3 |
| Overall Length (cm) | 173. 36 |
| Overall Length (in) | 68. 25 |
| Overall Length (mm) | 1733. 55 |
| Overall width (cm) | 87 |
| Overall width (in) | 34. 25 |
| Overall width (mm) | 870 |
| Power Rating (HP) | 4 |
| Power rating (kW) | 2. 98 |
| Series | 3 9 00 |
| Weight (kg) | 104 |
| Product series | Standard |
