Manufacturer no.:
HEL15D

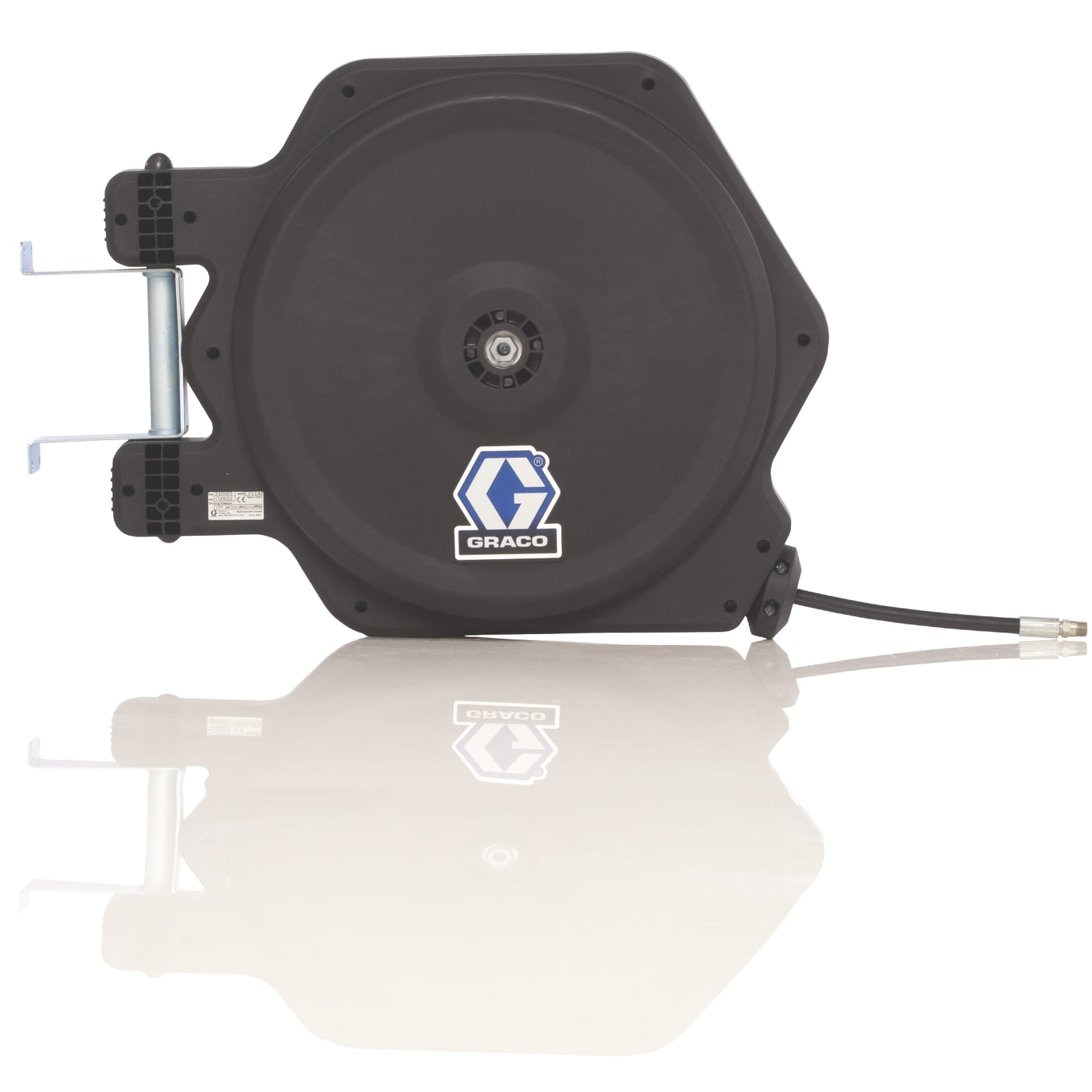

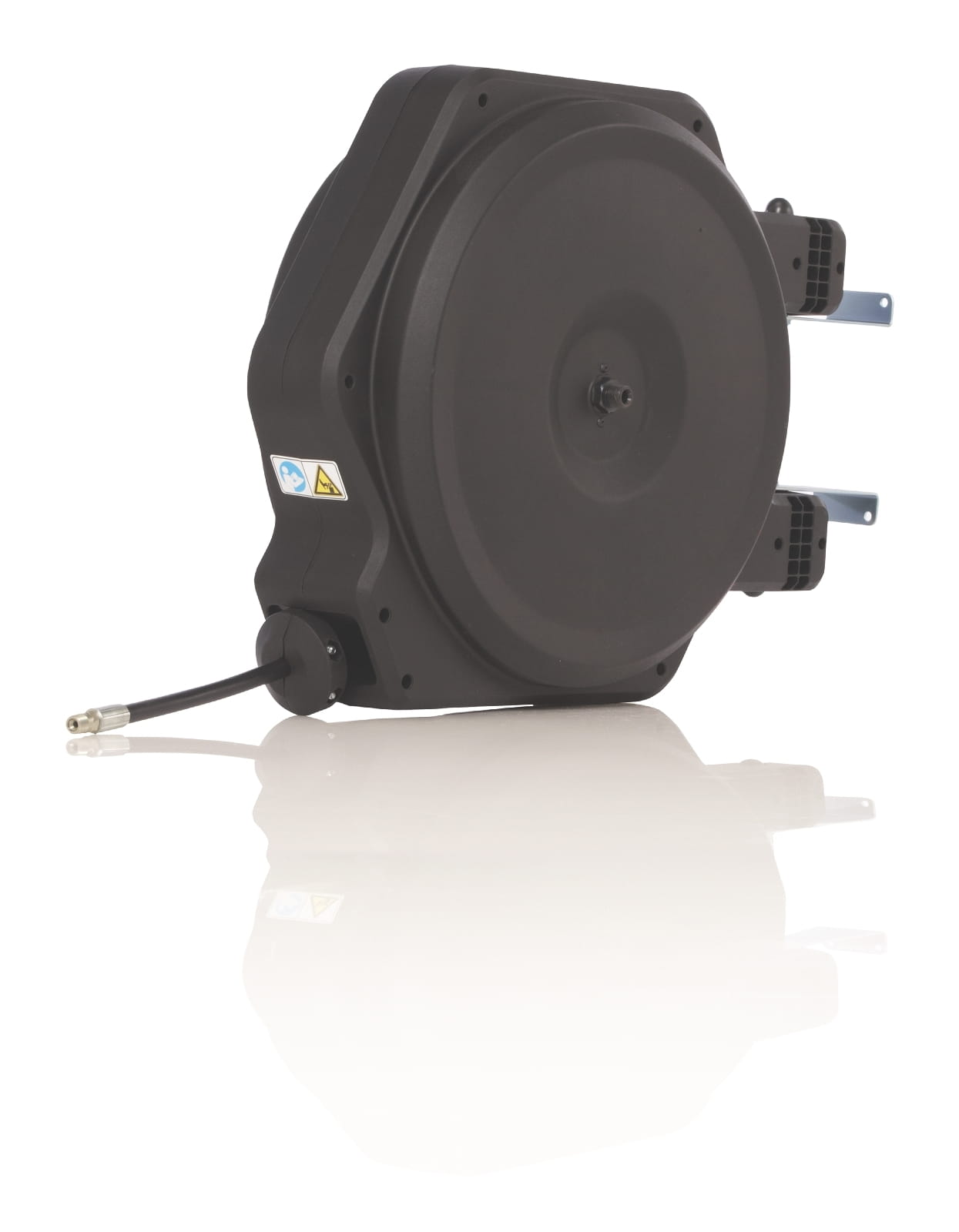

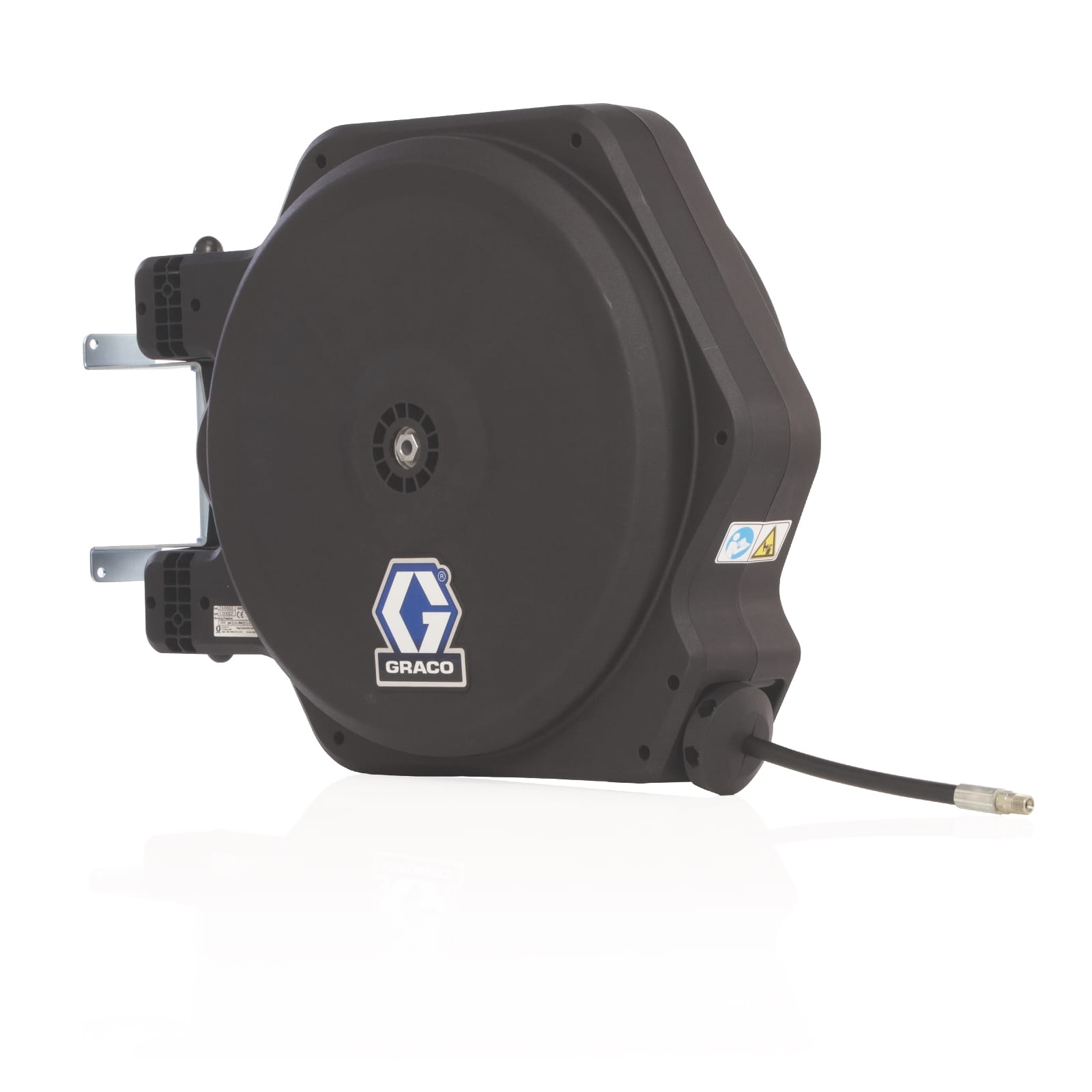

LD™ series closed hose reel with 6 mm x 15 m (1/4" x 50') BSPT hose reel for air applications
€238.83*
% €265.37* (10% saved)Prices include VAT plus shipping costs
€200.70*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Graco's one-piece enclosed hose reels keep the workplace organised and safe.
Designed for light-duty applications in sales offices, service and body shops and industrial manufacturing facilities.
- Large material connection - Maximises material flow with minimal pressure drop
- Easy spring tension adjustment - Spring tension can be easily increased or decreased when the retractor is pressurised.
- Complete housing - Robust, dent-proof, corrosion-resistant housing
| Application: | Air |
|---|---|
| Frame type: | Housing |
| Hose length (m): | 15 |
| Hose reel type: | Reel with trousers |
| Inlet size (inch): | 1/2 |
| Inlet size (mm): | 12.7 |
| Inlet thread type: | NPT |
| Inner diameter hose (inch): | 1/4 |
| Inner diameter hose (mm): | 6.35 |
| Maximum operating pressure (psi): | 250 |
| Maximum temperature (°C): | 60 |
| Minimum temperature (°C): | -10 |
| Outlet size (inch): | 1/4 |
| Outlet size (mm): | 6.35 |
| Recommended environment: | Interior |
| Type: | Spring reel |
| Wetted parts: | Aluminium, Buna-N, PVC |
More information
- Product number: 1033016
- Manufacturer: Graco
- EAN: 00633955557963
- Weight: 11.778 kg
- Length: 590 mm
- Width: 210 mm
- Height: 510 mm
Technical details
Operating specifications
| UPC product | 6 3 3955557963 |
|---|---|
| Division | LED |
| Price Block | 148 |
| Country of origin | CN |
| Unit | EA |
| Height | 51 CM |
| Length | 59 cm |
| Width | 21 cm |
| Volume | 0 . 063 m³ |
| Shipping weight | 11.78 KG |
| HTS code (GB) | 4 0 09220090 |
| HTS code (EU) | 4 0 09220090 |
Technical
| Dry Weight (lb) | 2 1 |
|---|---|
| Hose inside diameter (mm) | 6. 35 |
| Inlet size (in) | 1/2 |
| Inlet size (mm) | 12. 7 |
| Maximum temperature (°C) | 60 |
| Maximum temperature (°F) | 1 4 0 |
| Maximum working pressure (psi) | 2 50 |
| Minimum temperature (°C) | -10 |
| Minimum temperature (°F) | 14 |
| Outlet size (in) | 1/4 |
| Outlet Size (mm) | 6. 35 |
| Frame Type | Enclosed |
| Hose reel type | Reel with hose |
| Model | LD |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Deutsch)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Suomi)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (한국어)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (日本語)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (中文)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Italiano)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (English)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Français)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (русский)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Español)
Verkaufsliteratur
- 303245ENEU Vehicle Service Equipment Buyer's Guide (English (UK))
- 303245ENEU Vehicle Service Equipment Buyer's Guide (русский)
Zertifizierungen
