Best price guarantee
%
Product images may vary
Manufacturer no.: 16R308

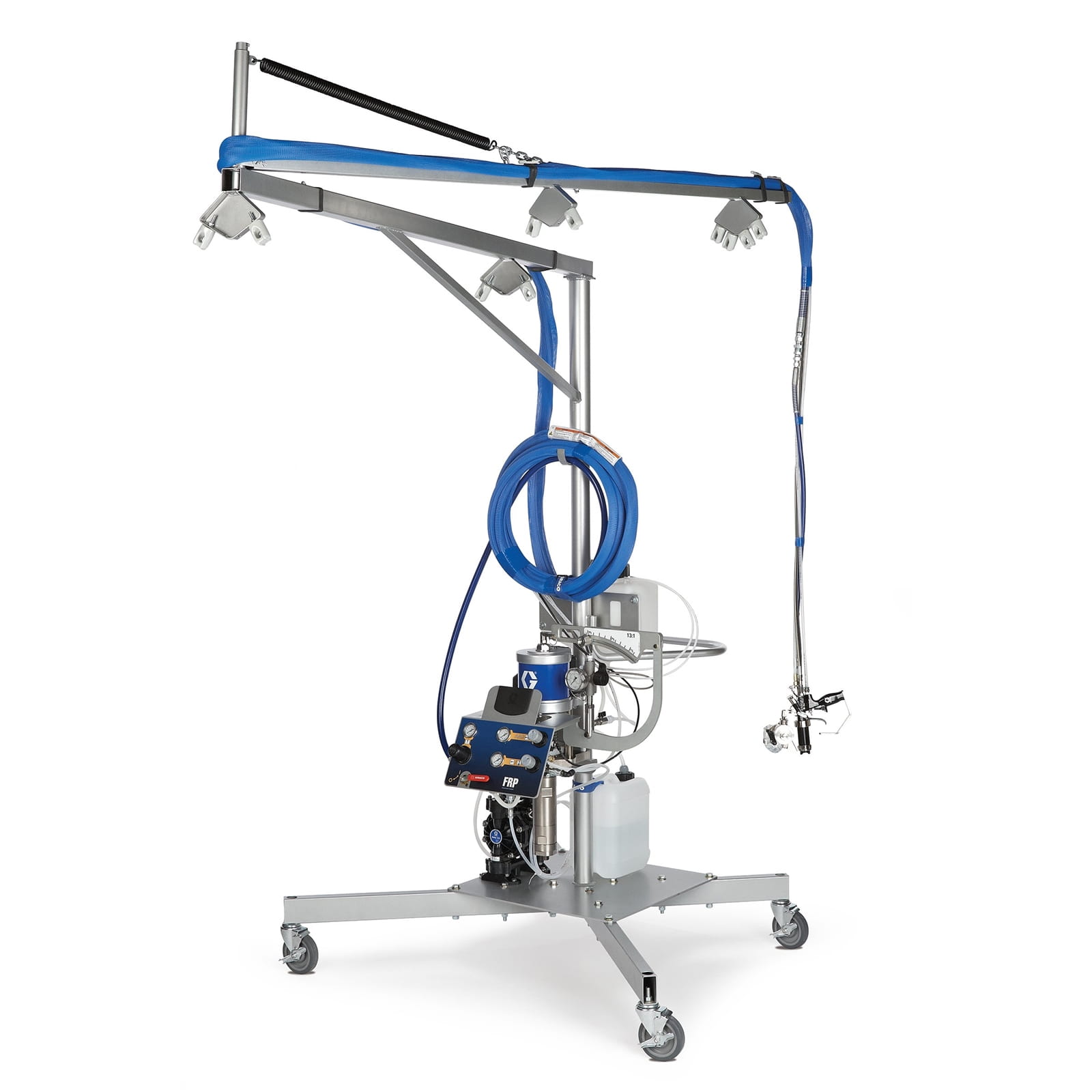

Internal mixing system with cutting device, 9:1 ratio with 15.2 m (50 ft) hose, chassis, mast and boom

€14,223.95*

% €15,804.39* (10% saved)

Prices include VAT plus shipping costs

€11,952.90*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Shape Created with Sketch. Free shipping within Germany
Product question
Also interesting
Product information

To keep material costs low, the system has been designed so that no buffer tank is required and pump priming requires little solvent and resin. The system also includes a dual trigger function that allows operators to switch from wetting to cutting without dismantling the fibreglass cutter. By using only Graco components that are proven in a wide range of industries, you get a technically advanced, robust and durable solution.

Glass fibre chopper system for open moulds - Graco's fibre spraying components and systems make it easy to handle glass fibres and catalysed resin. The GFP system can be used to apply chopped glass fibre to open moulds. It provides precise dosing at the correct ratio with an easy transition from wetting to cutting.

  • Optimised mixing ratio stability

    • Catalyst pump with adjustable mixing ratio - for quick and easy ratio changes without tools
    • Precision linkage ensures superior mixing ratio control and uniform curing

  • Lower total cost of ownership

    • Easy maintenance - fewer repair parts
    • Long-life seals mean less downtime
    • Pumps with longer maintenance intervals
    • No pressure equalisation tank required - fewer parts, less solvent and less resin required to prime the pump

  • Optional DataTrak™ controller

    • Resin consumption monitoring - helps ensure product quality by tracking resin consumption per piece, shift or day
    • Tracks cycles for preventive maintenance schedule
    • Displays flow rate in real time - prevents material waste due to worn nozzles

  • Roving management system

    • Better guidance - less tangling, more uptime

  • Gravity fed catalyst system

    • Keeps the catalyser pump filled for consistent delivery

  • New linkage and catalyst pump

    • Newly developed pump holder enables significantly better control of the mixing ratio
    • Enables infinitely variable adjustment of the catalyst percentage without tools
    • Ensures the correct catalyst percentage and optimum results
    • Deviations of no more than 1%

  • Balanced Graco NXT® air motor

    • Provides the same output pressure on the up and down stroke - resulting in a more even spray pattern
    • Shorter pump stroke for a better spray pattern

  • Control console

    • User-friendly operator interface with closely spaced pressure gauges

  • Sturdy, lightweight chassis

    • Easy manoeuvrability
    • Robust, durable castors
Air inlet size (inches): 1/4
Air inlet thread type: NPT
Component A, inlet size (inch): 3/8
Component B, inlet size (inch): 1-5/16
Component B, thread gender: External thread
Component B, thread type: UN-2A
Gender of the air inlet thread: Internal thread
Gender of the material inlet thread: External thread
Gender of the material outlet thread: Internal thread
Hose length (m): 15.2
Includes: Hose
Material inlet thread type: NPT
Material outlet thread type: NPT
Maximum air supply pressure (bar): 6.9
Maximum air supply pressure (kPa): 690
Maximum delivery rate (L/min): 6.8
Maximum flow rate (cm³/min): 6800
Maximum inlet air pressure (psi): 100
Maximum operating pressure (MPa): 6.2
Maximum operating pressure (kPa): 6200
Maximum operating pressure (psi): 900
Model: FRP
Permissible operating pressure (bar): 62
Series: IC
Size of the material inlet opening (inches): 3/4
Size of the material outlet opening (inches): 3/4
System ratio: 9:1
Total depth (cm): 487.7
Total depth (mm): 4877
Total height (cm): 254
Total height (mm): 2540
Total width (cm): 365.8
Total width (mm): 3658
Type: Dosing system
Wetted material: Stainless steel, carbide, UHMWPE, PTFE, acetal
More information
  • Product number: 1035594
  • Manufacturer: Graco
  • EAN: 00755652622703
  • Weight: 168.736 kg
  • Length: 1050 mm
  • Width: 900 mm
  • Height: 2300 mm

Technical details

Operating specifications
UPC product 755652622703
Division IPD
Country of origin US
Unit EA
Height 0 CM
Length 0 CM
Width 0 CM
Volume 0 M3
Shipping weight 0 KG
Technical
Air inlet size (in) 1/4
Air inlet thread gender Female
Component A inlet size (in) 3/8
Component B inlet size (in) 1 -5/16
Component B Thread Gender Male
Fluid inlet size (in) 3/4
Fluid inlet thread gender Male
Fluid outlet thread gender Female
Includes Hose
Maximum air inlet pressure (bar) 6. 9
Maximum air inlet pressure (kPa) 690
Maximum air inlet pressure (psi) 100
Maximum flow rate (cc/min) 6800
Maximum flow rate (L/min) 6. 8
Maximum working pressure (bar) 62
Maximum working pressure (kPa) 6200
Maximum working pressure (MPa) 6. 2
Maximum working pressure (psi) 900
Overall Depth (cm) 487. 7
Overall Depth (in) 1 92
Overall depth (mm) 4 8 77
Overall height (cm) 2 54
Overall height (in) 100
Overall height (mm) 2540
Overall width (cm) 365. 8
Overall width (in) 1 44
Overall width (mm) 3658
System Ratio 9: 1
Model FRP
Series IC
