Manufacturer no.:
EFR4AOOC
EFR proportioning system with 1:1 mix ratio, 480-volt Z-pump with low volume of 80 cm³ and high volume of 80 cm³, carbon steel manifolds
€51,084.56*
% €56,760.62* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information

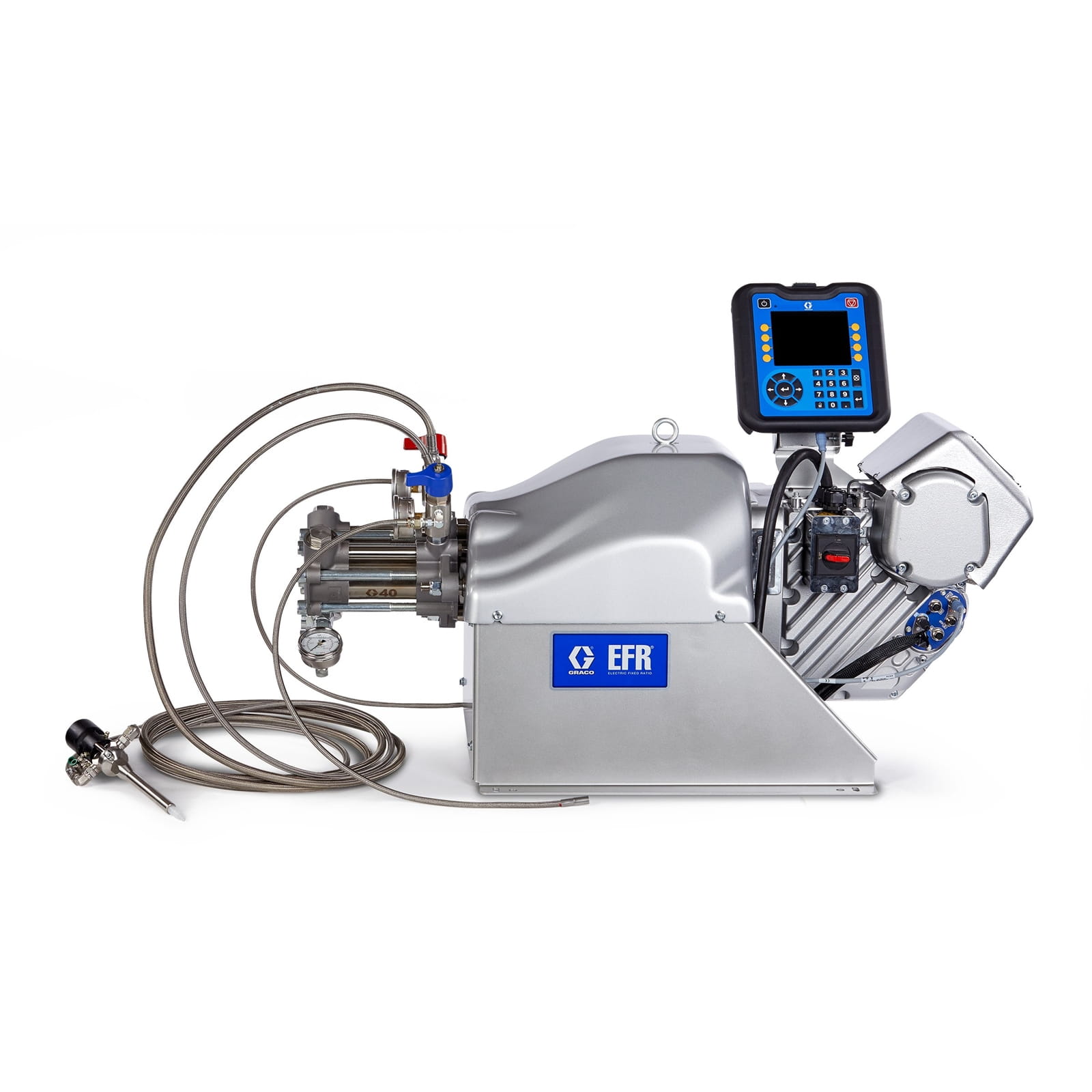

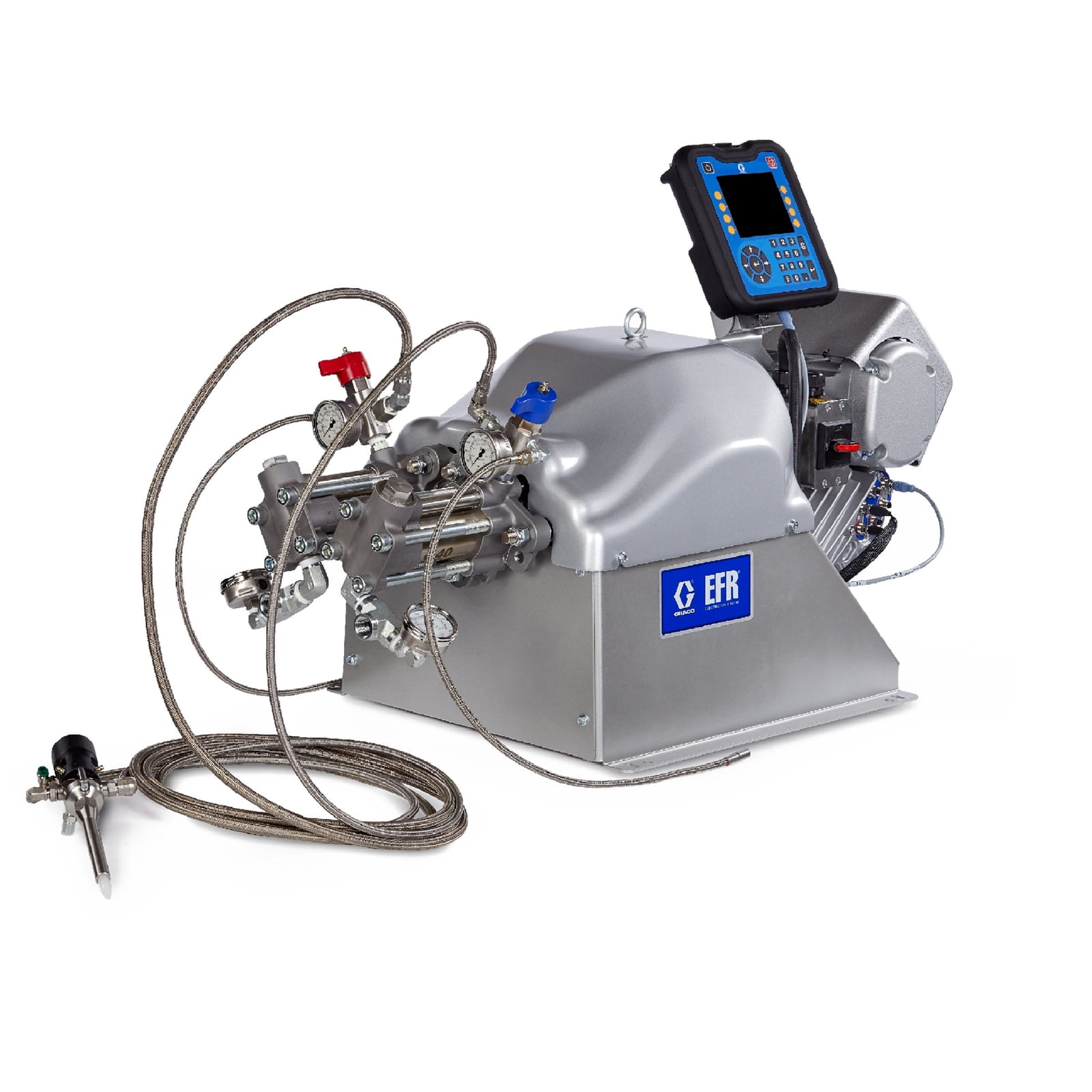

Graco's EFR system is a fixed-ratio meter, mix, and dispense system for feeding two-component adhesives and sealants. The EFR system provides superior control over material and dispensing of gaskets, bead and gun applications, and potting applications, and is ideal for applications that require precision dispensing. You can rely on the precise, versatile and user-friendly EFR system.
| Gender of the material inlet thread: | Internal thread |
|---|---|
| Gender of the material outlet thread: | Internal thread |
| Material inlet thread type: | NPT |
| Material outlet thread type: | NPT |
| Maximum inlet pressure (psi): | 2000 |
| Maximum material temperature (°C): | 50 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Model: | EFR |
| Permissible operating pressure (bar): | 241 |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 1/2 |
| Supply voltage: | Electric |
| Type: | Dosing system |
| Weight (kg): | 182 |
| Wetted material: | Stainless Steel, Zinc Plated Carbon Steel, Brass, Tungsten Carbide, Chrome, Fluoroelastomer, PTFE, UHMWPE, Silicone Nitride |
More information
- Product number: 1030161
- Manufacturer: Graco
- EAN: 00755652858041
Technical details
Operating specifications
| UPC product | 755652858041 |
|---|---|
| Division | IPD |
| Price Block | 2 24 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 101 CM |
| Length | 112 CM |
| Width | 144 cm |
| Volume | 1 ,629 m³ |
| Shipping weight | 238 KG |
Technical
| Amperage (A) | 10 |
|---|---|
| Fluid inlet size (cm) | 1, 905 |
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Fluid outlet thread gender | Female |
| Maximum fluid temperature (°C) | 50 |
| Maximum fluid temperature (°F) | 120 |
| Maximum input pressure (psi) | 2 0 00 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (MPa) | 24. 1 |
| Maximum working pressure (psi) | 3 5 00 |
| Weight (kg) | 1 82 |
| Model | EFR |
Further manufacturer information
Produkthandbücher
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (English)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Français)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Español)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (中文)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (日本語)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Italiano)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Türkçe)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Čeština)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Português)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (한국어)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Polski)
- 3A0019ZAC, Manual, Z-Pump S1, S3, and S4 Series, Instructions - Parts, English (Nederlands)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Deutsch)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Français)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Español)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (中文)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (日本語)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Italiano)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Türkçe)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Čeština)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Português)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (한국어)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Polski)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (English)
- 3A6786H, Handbuch, Elektrisches Dosiergerät mit festem Mischverhältnis EFR, Anweisungen - Teile (Nederlands)

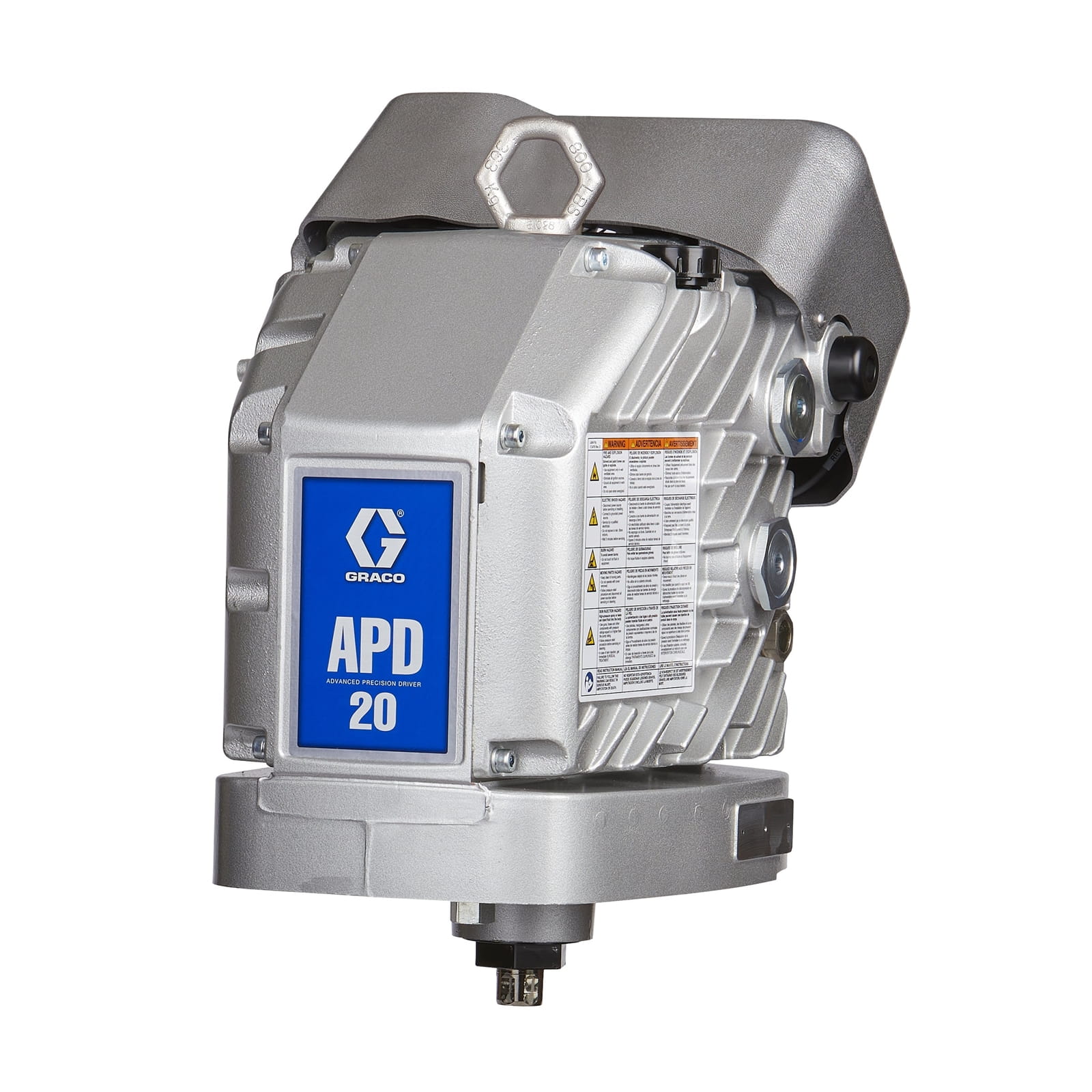

- 3A8585B, Handbuch, APD20 Elektrischer Antrieb, Anleitung (Deutsch)
