Manufacturer no.: 77X990

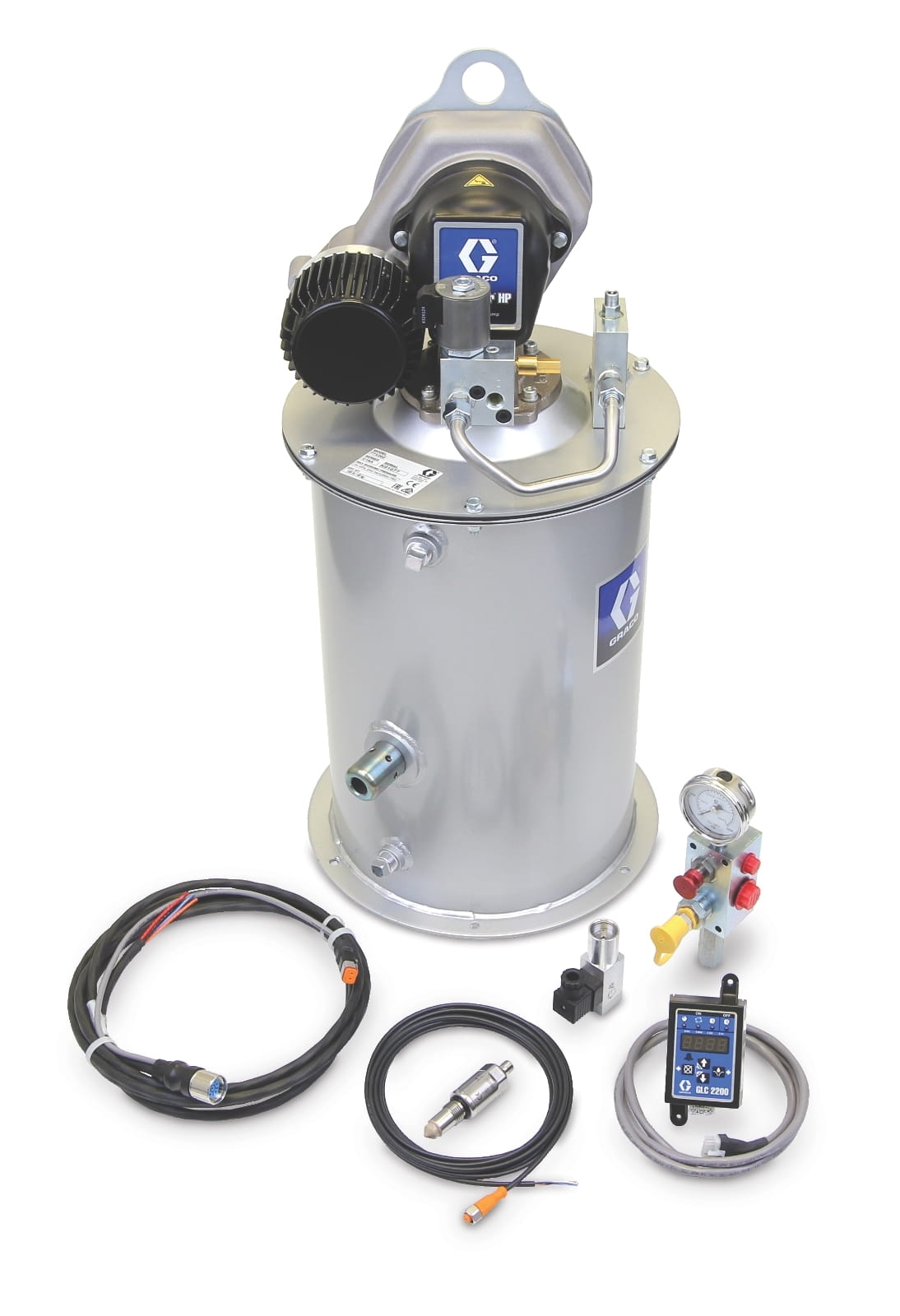

Dyna-Star® 24 VDC HP pump, automatic fill stop, low fill level, GLC 2200, wiring harness, cable, pressure switch, remote fill distributor for 41 kg (90 lb).

€13,698.00*

% €15,881.74* (13.75% saved)

Prices include VAT plus shipping costs

€11,510.92*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Heavy-duty machinery and equipment in the mining industry require fresh lubricant to protect critical pivot points from contamination. An automatic lubrication system from Graco ensures the ongoing lubrication of important components and keeps them operational without costly material downtime.

Electric pumps for heavy-duty automatic lubrication and transfer systems.

Auto-fill shutdown - mechanical shutdown of the filling pump for safe and efficient refilling
Graco Advantage Drive™ - heavy duty gear drive - lubricated for life
Pipe-in-pipe venting and filling path - instant conversion of a drum system into a single-line manifold system
Relief valve attached directly to the pump - no more brackets or additional hoses and pipes
Motor control - speed and AMP control
Capable even in cold weather (-40 ºC)
More efficient seal replacement
The remote filling unit with ventilation (with built-in pressure gauge) allows the filler opening to be positioned at any desired location

Air inlet size (inches):	1/4
Application:	On-road vehicles, off-road vehicles
Compatible material:	Fat
Energy type:	Electric
Gender of the material outlet thread:	Internal thread
IP dimensioning:	IP69K

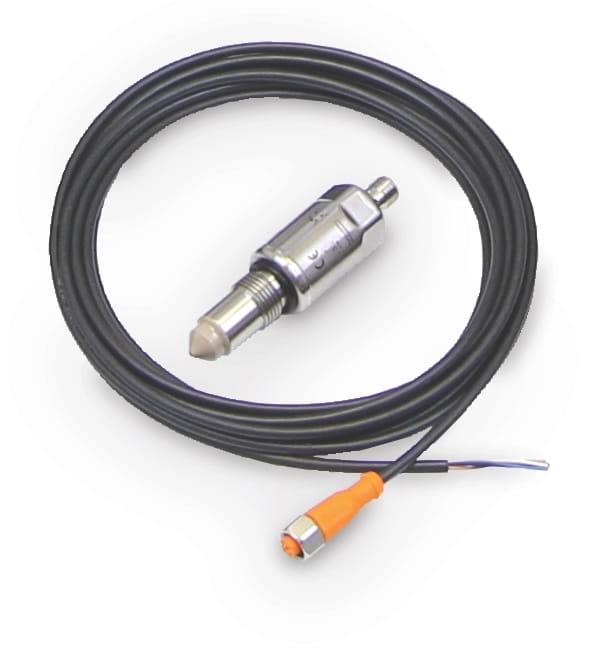

Includes:	24VDC HP pump with auto fill stop and low level monitor, GLC2200 controller, wiring harness, low level sensor cable, power cable, pressure switch, remote fill manifold for 90lb container
Material outlet size (cm):	9,525
Material outlet size (mm):	9.5250
Material outlet thread type:	NPT
Maximum NLGI grade:	No. 2
Maximum operating pressure (MPa):	34.4
Maximum operating pressure (kPa):	34400
Maximum operating pressure (psi):	5000
Minimum cST degree (cST):	40
Minimum voltage (V dc):	18
Model:	Dyna Star
Permissible operating pressure (bar):	344
Power connection type:	M12
Size of the air inlet (cm):	635
Size of the air inlet (mm):	6.35
Size of the material outlet opening (inches):	0.375
Total depth (cm):	41
Total depth (mm):	410
Total height (cm):	96.5
Total height (mm):	965
Total width (cm):	36.8
Total width (mm):	368
Type:	Electric piston pump
Voltage (V dc):	24
Weight (kg):	52.2

More information

Product number: 1036920
Manufacturer: Graco
EAN: 00755652370437
Weight: 71.441 kg

Technical details

Specifications

Operating specifications

UPC product	755652370437
Division	LED
Price Block	128
Country of origin	US
Unit	EA

Technical

Air inlet size (in)	1/4
Air inlet size (mm)	6. 35
Fluid outlet size (mm)	9. 5250
Fluid outlet thread gender	Female
Includes	24 VDC HP pump with auto-fill shut-off and low-level monitor, GLC2200 controller, wiring harness, low-level sensor cable, power cable, pressure switch, remote fill manifold for 90-pound reservoir
Maximum NLGI grade	#2
Maximum working pressure (bar)	3 44
Maximum working pressure (kPa)	3 4400
Maximum working pressure (psi)	5 0 00
Model	Dyna-Star
Voltage (V DC)	2 4
IP rating	IP69K
Minimum cST grade (cST)	40
Minimum voltage (V dc)	18
Overall Depth (cm)	41
Overall depth (in)	16. 13
Overall Depth (mm)	410
Overall height (cm)	96. 5
Overall height (in)	38
Overall height (mm)	965
Overall width (cm)	36. 8
Overall width (in)	14. 5
Overall width (mm)	368
Weight (kg)	52. 2
Maximum working pressure (MPa)	34. 4
