Manufacturer no.:
CS03WD

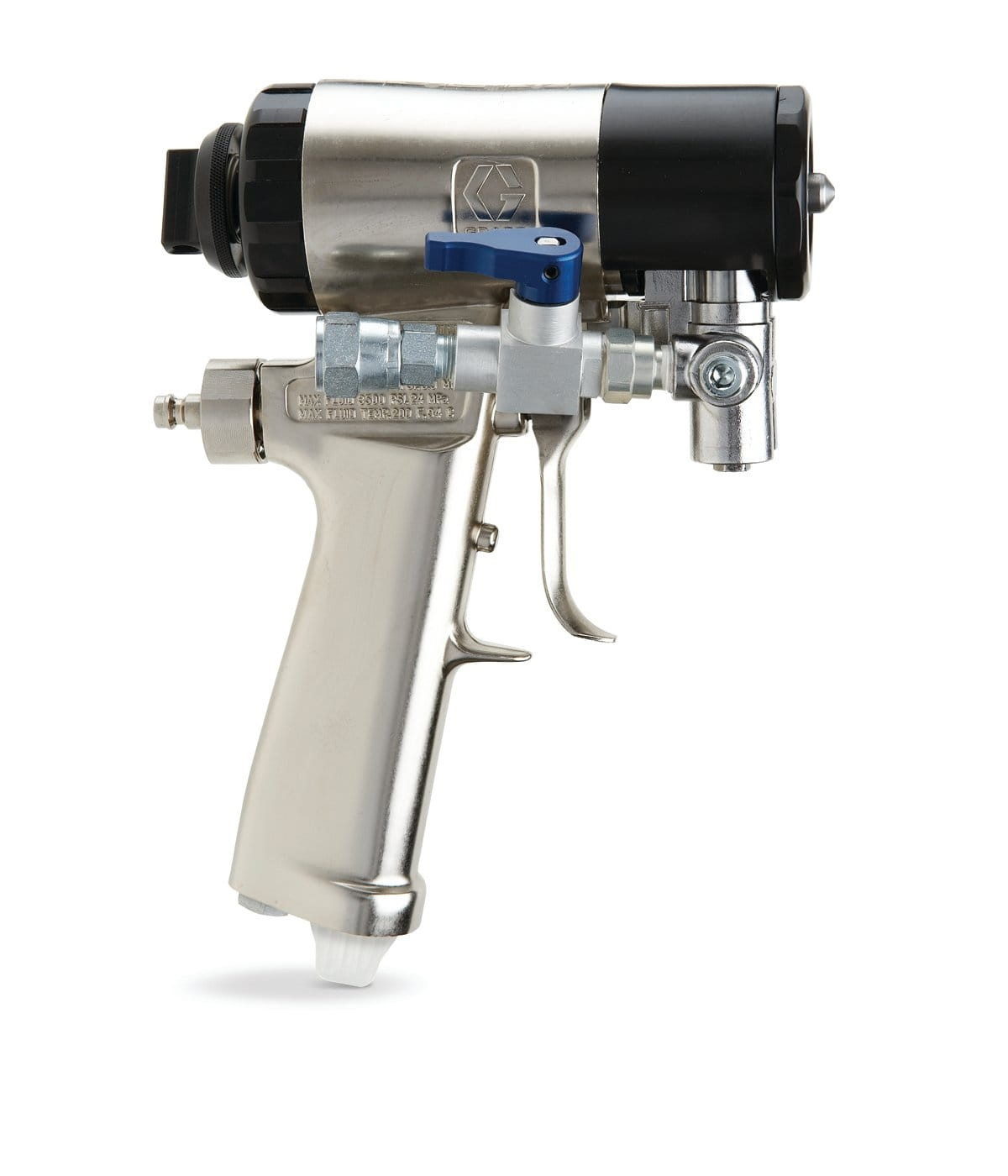

CS-Fusion gun, 457 mm (18") wide round pattern, 0.06 mixing chamber
€3,599.93*
% €4,235.21* (15% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Fusion CS gun is a step ahead of all other applicators thanks to ClearShot technology. With this revolutionary technology, the Fusion CS requires almost no bore maintenance, extending your spraying time and reducing downtime for servicing. This gun offers you a range of advantages with its flexibility for polyurea and foam applications.
For high-output spraying of polyurethane foam and polyurea applications.
- New technology consists of a ClearShot material and a non-reusable ClearShot cartridge.
- Removes foam and keeps the mixing chamber clean
- Saves nearly an hour of maintenance time on each spray day
- First-ever liquid purge – reduces purge air by 75% and minimises foam recoil
- Easy-to-use cartridge fits in the ergonomic handle
Variable flow – an industry first
- First multi-component gun with variable flow
- Switch from large to small fan patterns in seconds
- More flexibility when spraying in small, confined areas
- Ten different settings
Quick-Change front – easy and clean
- Replace material heads in seconds
- The non-stick polymer shroud keeps the gun head cleaner
- "Airmeter" reduces material build-up
- Quick and easy changes eliminate lengthy interruptions and keep jobs on schedule
| Actuation lock: | Lock |
|---|---|
| Air inlet size (inches): | 1/4 |
| Air inlet thread type: | NPT |
| Compatible material: | Polyurethane, polyurea, polyurethane spray foam, non-heat foam |
| Component A, inlet size (cm): | 1.27 |
| Component A, inlet size (inch): | 1/2-20 |
| Component A, inlet size (mm): | 12.7 |
| Component A, inlet thread type: | UNF |
| Component B, inlet size (cm): | 142,875 |
| Component B, inlet size (inch): | 9/16-18 |
| Component B, inlet size (mm): | 142,875 |
| Component B, inlet thread type: | UNF |
| Component type: | multi-component |
| Fume cupboard type: | Two-finger |
| Gender of the air inlet thread: | External thread |
| Gun activation: | Hand- |
| Gun type: | Fluid flushing |
| Gun weight (g): | 1180 |
| Gun weight (kg): | 1.18 |
| Gun weight (oz): | 41.6 |
| Impact slot size (inch): | 60 |
| Impact slot size (mm): | 1.50 |
| Includes: | Mixing chamber |
| Maximum air inlet pressure (MPa): | 0.9 |
| Maximum air pressure (MPa): | 0.9 |
| Maximum air pressure (bar): | 9 |
| Maximum air pressure (kPa): | 900 |
| Maximum air pressure (psi): | 130 |
| Maximum air supply pressure (bar): | 9 |
| Maximum air supply pressure (kPa): | 900 |
| Maximum conveying capacity (kg/min): | 11.3 |
| Maximum inlet air pressure (psi): | 130 |
| Maximum material operating pressure (MPa): | 24.5 |
| Maximum material operating pressure (bar): | 245 |
| Maximum material pressure (MPa): | 24.1 |
| Maximum material pressure (bar): | 241 |
| Maximum material pressure (kPa): | 24100 |
| Maximum material pressure (psi): | 3500 |
| Maximum material temperature (°C): | 93 |
| Minimum air supply pressure (MPa): | 0.55 |
| Minimum air supply pressure (bar): | 5.5 |
| Minimum air supply pressure (kPa): | 550 |
| Minimum air supply pressure (psi): | 80 |
| Minimum delivery rate (kg/min): | 0.45 |
| Mixing chamber: | 03 (0.060) |
| Model: | Fusion CS |
| Noise pressure level, (dB(A)): | 75.27 |
| Nozzle opening size (inches): | 57 |
| Permissible operating overpressure (psi): | 3500 |
| Rinsing method: | liquid |
| Series: | Round |
| Size of the air inlet (cm): | 635 |
| Size of the air inlet (mm): | 6.35 |
| Size of the material opening (cm): | 145 |
| Size of the material opening (mm): | 1.45 |
| Sound level, (dB(A)): | 73.45 |
| Spray gun mixing type: | impact |
| Spray pattern: | Wide round |
| Spray pattern size (mm): | 457.2 |
| Total height (cm): | 21 |
| Total height (mm): | 206 |
| Total length (cm): | 19 |
| Total length (mm): | 191 |
| Total width (cm): | 8 |
| Total width (mm): | 84 |
| Type: | spray gun |
| Wetted parts: | Aluminium, stainless steel, mild steel, carbide, chemical-resistant O-rings |
More information
- Product number: 1030122
- Manufacturer: Graco
- EAN: 00633955362383
- Weight: 2.864 kg
- Length: 410 mm
- Width: 260 mm
- Height: 140 mm
Technical details
Operating specifications
| UPC product | 6 3 3955362383 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of Origin | US |
| Unit | EA |
| Height | 14 CM |
| Length | 41 cm |
| Width | 26 cm |
| Volume | . 015 m³ |
| Shipping weight | 2 .86 KG |
Technical
| Air inlet size (cm) | 0. 635 |
|---|---|
| Air inlet size (in) | 1/4 |
| Air inlet size (mm) | 6. 35 |
| Air inlet thread gender | Male |
| Component A inlet size (cm) | 1. 27 |
| Component A inlet size (in) | 1 /2-20 |
| Component A inlet size (mm) | 12. 7 |
| Component A inlet thread type | UNF |
| Component B inlet size (cm) | 1. 42875 |
| Component B inlet size (in) | 9/16-18 |
| Component B inlet size (mm) | 14. 2875 |
| Component B inlet thread type | UNF |
| Component Type | Plural Component |
| Fluid Orifice Size (cm) | 0. 145 |
| Fluid Orifice Size (mm) | 1. 45 |
| Gun Weight (g) | 1180 |
| Gun weight (kg) | 1. 18 |
| Gun weight (lb) | 2. 6 |
| Gun weight (oz) | 41. 6 |
| Includes | Mix Chamber |
| Maximum air pressure (bar) | 9 |
| Maximum air pressure (kPa) | 900 |
| Maximum air pressure (psi) | 130 |
| Maximum flow rate @ PSI (lb/min) | 25 |
| Maximum fluid pressure (bar) | 2 41 |
| Maximum fluid pressure (kPa) | 2 4 100 |
| Maximum fluid pressure (psi) | 3 5 00 |
| Maximum fluid temperature (°C) | 93 |
| Maximum fluid temperature (°F) | 2 00 |
| Minimum air inlet pressure (bar) | 5. 5 |
| Minimum air inlet pressure (kPa) | 550 |
| Minimum air inlet pressure (psi) | 80 |
| Model | Fusion CS |
| Overall Height (cm) | 2 1 |
| Overall height (in) | 8. 1 |
| Overall height (mm) | 2 06 |
| Overall Length (cm) | 19 |
| Overall Length (in) | 7. 5 |
| Overall Length (mm) | 1 91 |
| Overall width (cm) | 8 |
| Overall width (in) | 3. 3 |
| Overall width (mm) | 84 |
| Pattern Size (in) | 18 in @ 24 in from target |
| Pattern size (mm) | 457. 2 |
| Purge Method | L iquid |
| Series | Round |
| Spray Gun Mix Type | Imp ing ement |
| Trigger lock | L ocking |
| Trigger Type | Two -finger |
| Sound pressure level (dB(A)) | 75. 27 |
| Minimum flow rate (kg/min) | 0. 45 |
| Minimum flow rate (lb/min) | 1 |
| Maximum fluid working pressure (MPa) | 24. 5 |
| Maximum fluid working pressure (bar) | 2 45 |
| Maximum fluid pressure (MPa) | 24. 1 |
| Maximum flow rate (kg/min) | 11. 3 |
| Maximum flow rate (lb/min) | 25 |
| Maximum air pressure (MPa) | 0. 9 |
| Maximum air inlet pressure (bar) | 9 |
| Maximum air inlet pressure (kPa) | 900 |
| Maximum air inlet pressure (psi) | 130 |
| Impingement port size (in) | 0. 060 |
| Impingement port size (mm) | 1. 50 |
| Minimum air inlet pressure (MPa) | 0. 55 |
| Maximum air inlet pressure (MPa) | 0. 9 |
