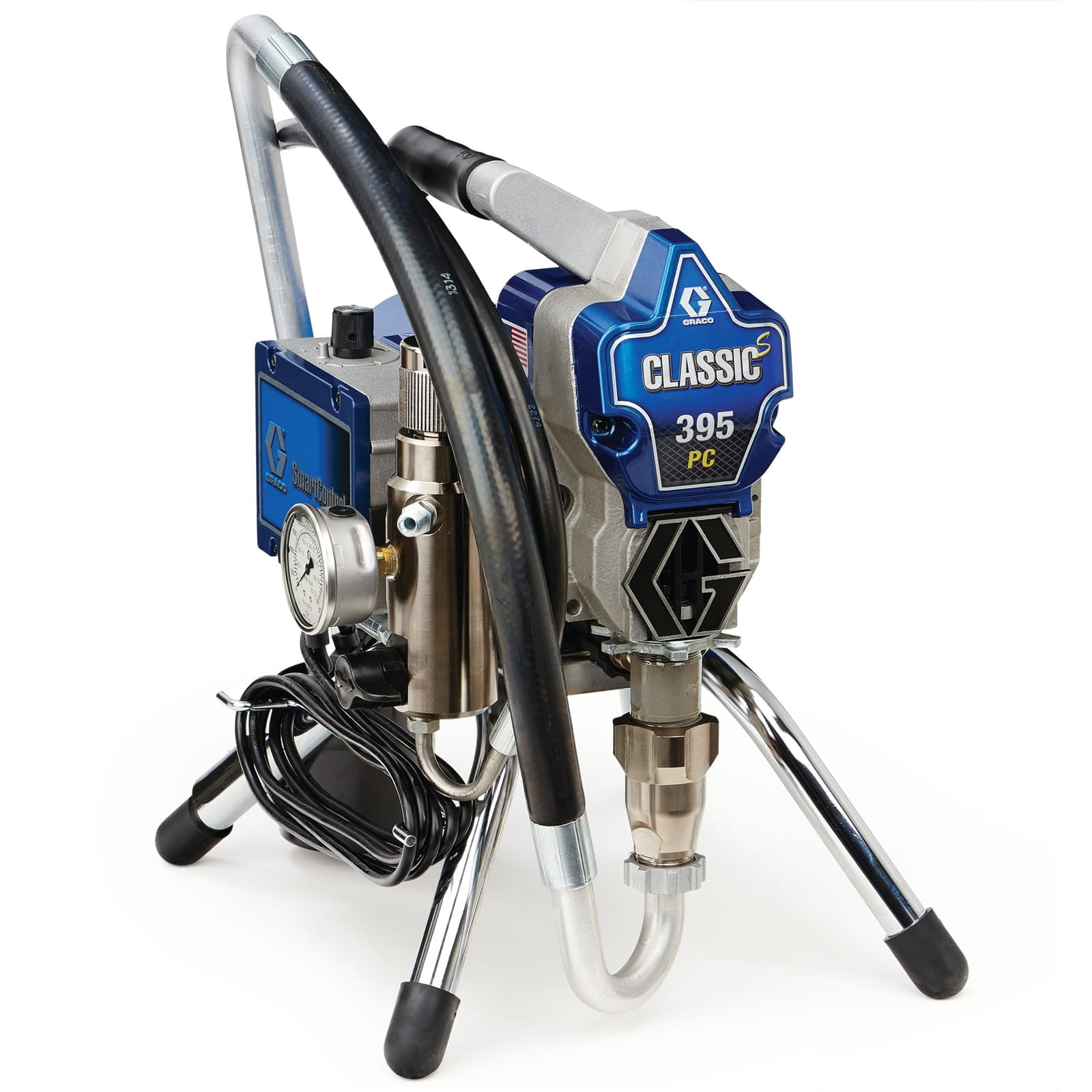

Classic S 395 PC Electric airless sprayer, stand, 230V, CEE
€3,427.20*
% €4,569.60* (25% saved)Ready for shipping in 5-8 Werktage
The performance and versatility of the Classic S 395 PC has made it Graco's most popular sprayer. The SmartControl 1.0 pressure control ensures a constant spray jet without fluctuations, and its proven reliability makes it perfect for professionals who spray with a variety of coatings on a daily basis.
The CLASSIC S 395 PC is the best choice for professionals looking for the highest performance, control and ease of use for their daily residential jobs.
- Durable Endurance Chromex piston pump
- Lasts 2x longer than the next leading brand
- Durable V-Max Blue packings, Chromex piston rod and hardened stainless steel cylinder
- Faster cleaning thanks to QuikAccess inlet valve
- SmartControl 1.0
- Even pressure delivery
- Constant monitoring of performance and adjustment of motor speed to your nozzle size and spraying requirements
- Ideal for RAC X LP nozzles, which are often used for fine finish and low overspray applications
- Durable TEFC DC motor
- Get more work done
- High torque produces the most power possible for all painting applications
- Advantage drive
- The drive with the longest service life
- Hardened steel gears ensure extremely quiet operation .y
- ProConnect One-piece pump replacement system
- No more costly downtime
- Pump replacement within minutes - no tools, pins or parts to lose
- Easy Out pump filter
- Easy maintenance and fewer blockages
- Exclusive inside-out filter process ensures a high-quality finish
- Robust steel frame
- Thick chrome-plated steel for maximum robustness in harsh environments
- The 4-legged stand provides greater stability
- Swivelling intake spout
- Paint buckets are easy to reach
- All units are supplied complete and ready to spray
- FTX-E 4-finger airless spray gun
- RAC X 517 spray nozzle and guard
- BlueMax II airless hose 1/4" x 15 m
Compatible material: | Primers, stains, acrylic paints, enamels, latex, interior paint, exterior paint |
---|---|
Compatible replacement pump: | 17C489 |
Convertible: | Not convertible |
Double strokes per gallon: | 700 |
Filter mesh size: | 60 |
Frame configuration: | Hi boy |
Frequency (Hz): | 50 |
Hose diameter (inch): | 1/4 |
Hose inlet diameter (cm): | 635 |
Hose inlet diameter (inch): | 1/4 |
Hose inlet diameter (mm): | 6.35 |
Inner diameter of material hose (inch): | 1/4 |
Material outlet size (mm): | 6.35 |
Material outlet thread type: | NPSM |
Maximum delivery rate (L/min): | 2 |
Maximum hose length (m): | 15 |
Maximum nozzle size (inch): | 23 |
Maximum nozzle size 1 gun (inch): | 23 |
Maximum operating pressure (MPa): | 22.8 |
Maximum operating pressure (kPa): | 22700 |
Maximum operating pressure (kg/cm²): | 22.7 |
Maximum operating pressure (psi): | 3300 |
Maximum sound pressure level (dB(A)): | 90 |
Minimum generator output (W): | 4000 |
Minimum generator output (kW): | 0 |
Model: | Classic S |
Motor size (kW): | 0.65 |
Motor type: | TEFCDC |
Number of guns: | 1 |
Outlet colour screen: | 60 mesh stainless steel sieve |
Permissible operating overpressure (psi): | 3300 |
Permissible operating pressure (bar): | 228 |
Phases: | 1 |
Pressure control type: | SmartControl |
Pump mounting type: | ProConnect |
Pump type: | Endurance |
Rated power (kW): | 0.65 |
Region Plug type: | EU region (plug type C, E & F) |
Series: | 395 pcs |
Size of the material outlet opening (inches): | 1/4 |
Spray gun type: | FTX pistol |
Spraying technology: | Airless |
Supply voltage: | Electric |
Total height (cm): | 47 |
Total height (mm): | 4,699,000 |
Total length (cm): | 40.6 |
Total length (mm): | 406.4 |
Total width (cm): | 35.6 |
Total width (mm): | 3,556,000 |
Type: | Airless sprayer |
Voltage (V): | 110 |
Volume per cycle (cycles/gal): | 700 |
Weight (kg): | 20 |
Wetted material: | Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
- Product number: 1037678
- Manufacturer: Graco
- EAN: 00755652000037
- Weight: 26.308 kg
- Length: 440 mm
- Width: 450 mm
- Height: 490 mm
