Manufacturer no.:
PG2131

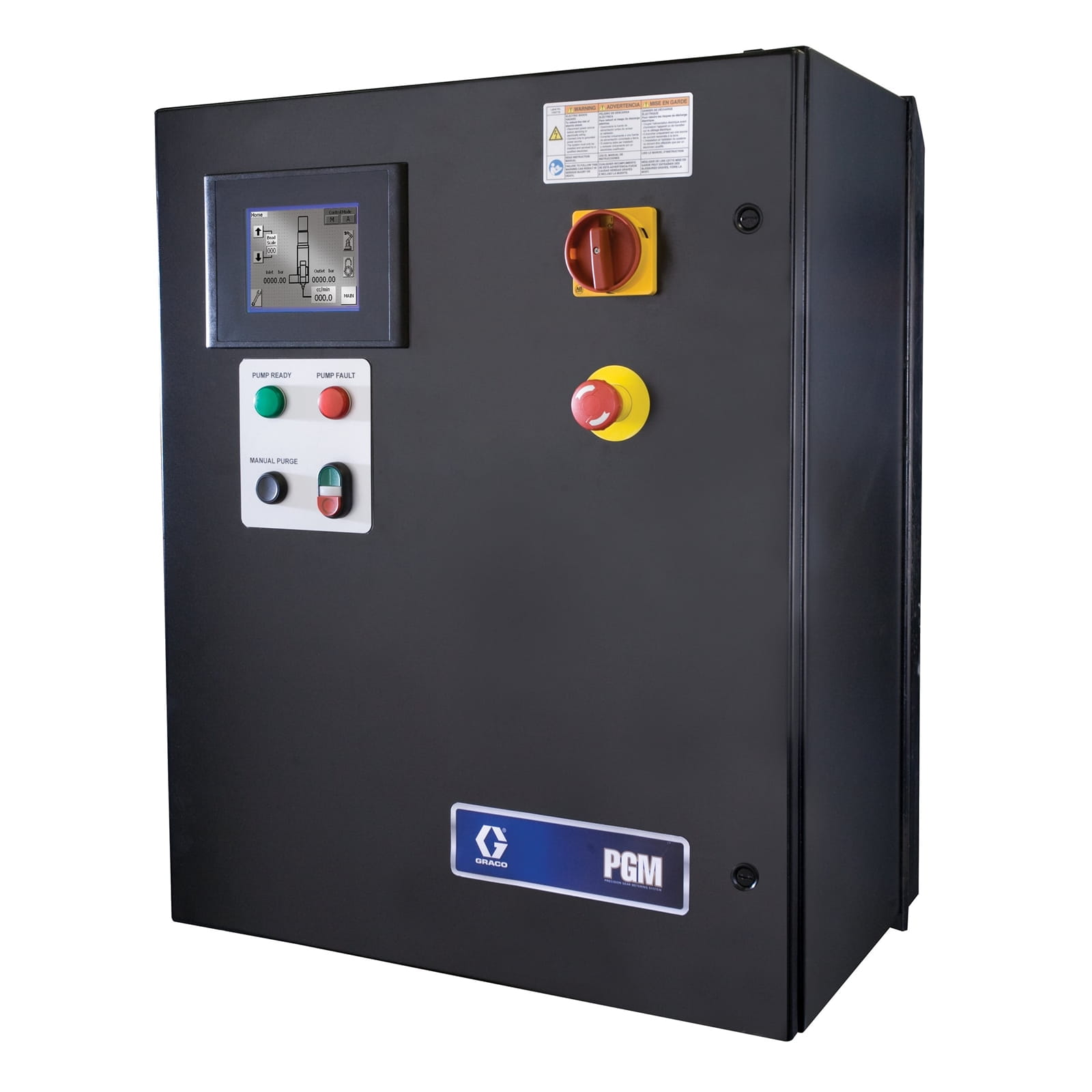

20cm³ unheated PGM control system 9m with EnDure back suction valve
€51,350.17*
% €57,055.74* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Graco PGM metering system delivers smooth, consistent bead metering - even with high viscosity materials. And because it also offers higher flow rates, production facilities can dramatically improve their production capacity and amortisation.
Improve your production capacity with PGM's high flow rates
- High flow rates - up to 1600 cm³/min
- Smooth, consistent bead dosing - even at high flow rates
- Less material wastage thanks to clean starts and stops
- Material cost savings thanks to bead control
- Precise dosing control through wrist attachment
- Touchscreen controls are simple to operate, easy to integrate
| Ambient/hot-melting/hot-melting: | Room temperature;Warm melting materials;Hot melting materials |
|---|---|
| Application: | Gluing, sealing, sealing |
| Applicator type: | Automatically |
| Compatible material: | 1K sealants and adhesives |
| Component type: | Single component |
| Controls: | Yes |
| Energy type: | Electric |
| Frequency (Hz): | 50/60 |
| Gun activation: | Automatically |

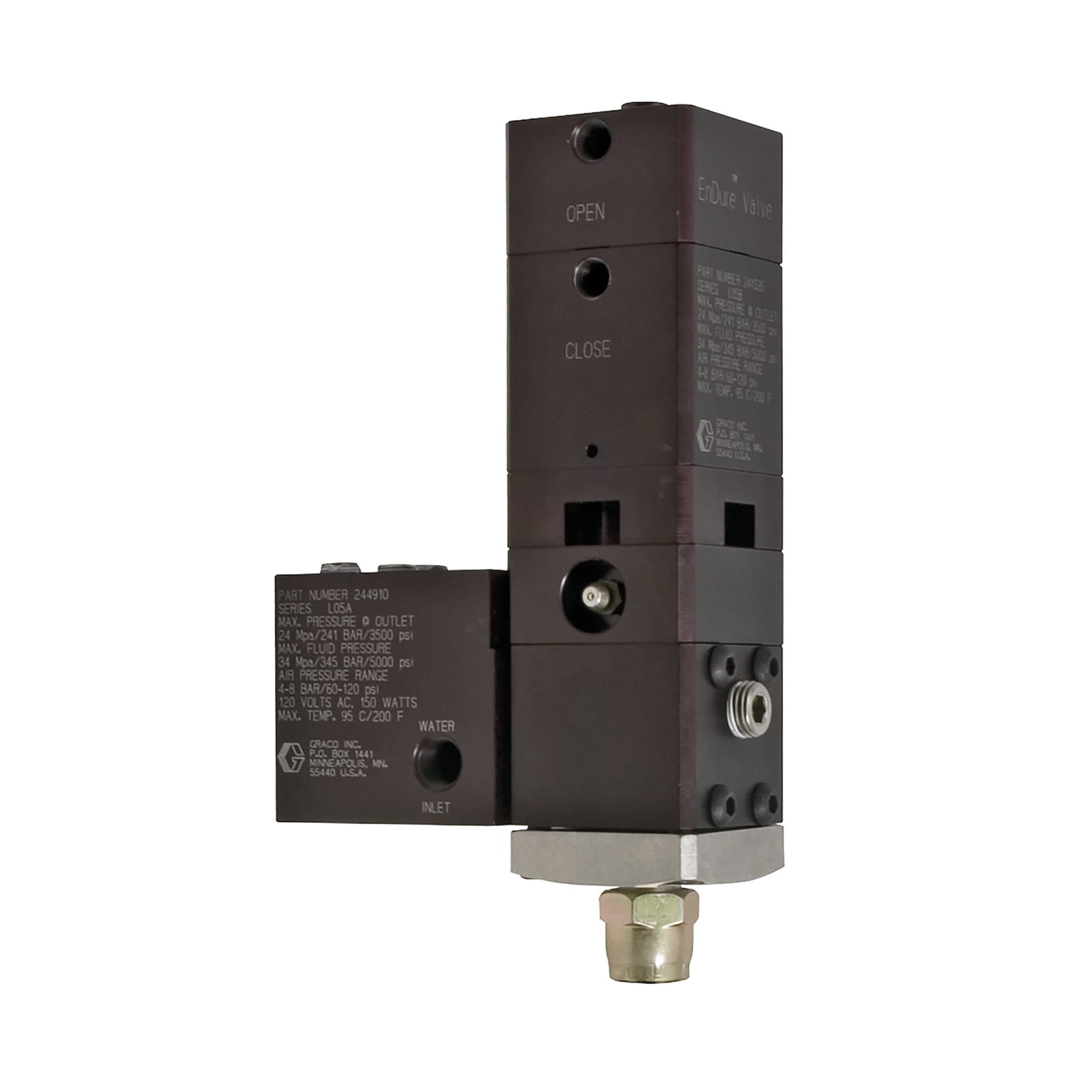

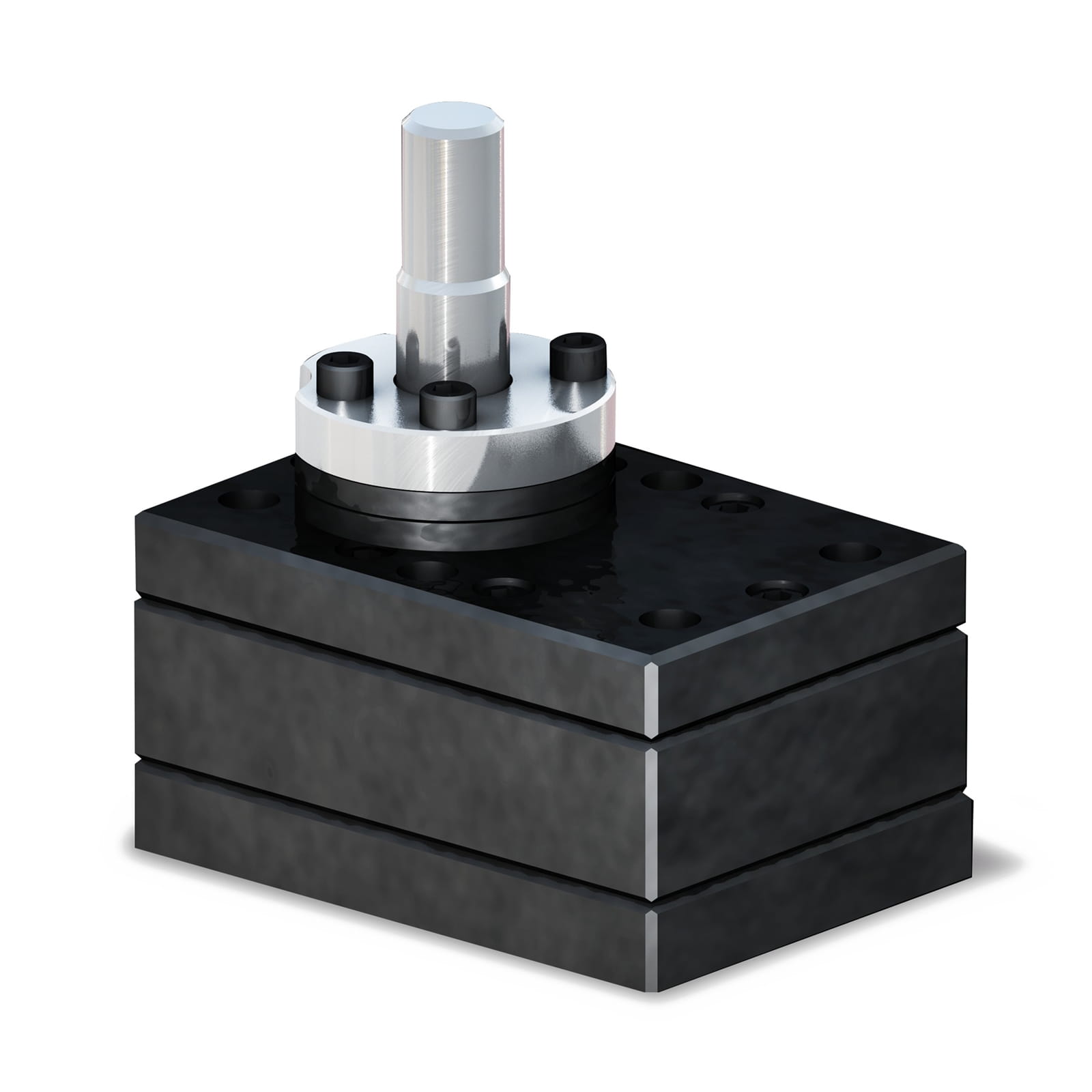

| Includes: | Precision gear meter, environmental transmitter kit, EnDure metering valve |
| Input cycle rate (Hz): | 50-60 |
| Length of the controls (m): | 9 |
| Maximum air supply pressure (bar): | 6.9 |
| Maximum air supply pressure (kPa): | 690 |
| Maximum ambient temperature (°C): | 49 |
| Maximum delivery rate (L/min): | 1.6 |
| Maximum flow rate (cm³/min): | 1600 |
| Maximum hose length (m): | 40 |
| Maximum inlet air pressure (psi): | 100 |
| Maximum material viscosity (cP): | 1000000 |
| Maximum operating pressure (MPa): | 17.2 |
| Maximum operating pressure (kPa): | 17200 |
| Maximum operating pressure (psi): | 2500 |
| Maximum operating temperature (°C): | 204 |
| Measurement type: | gear |
| Minimum flow rate (L/min): | 0.04 |
| Minimum flow rate (cm³/min): | 40 |
| Minimum material viscosity (cP): | 1000 |
| Minimum voltage (V ac): | 240 |
| Model: | PGM |
| Noise pressure level, (dB(A)): | 72 |
| Permissible operating overpressure (psi): | 1500 |
| Permissible operating pressure (bar): | 172 |
| Phases: | 1 |
| Pump size (cm³): | 20 |
| Size of the material inlet opening (inches): | 1/4 |
| Sound level, (dB(A)): | 79 |
| Supply voltage: | Electric |
| Total depth (cm): | 22.6 |
| Total depth (mm): | 226 |
| Total height (cm): | 55.3 |
| Total height (mm): | 553 |
| Total width (cm): | 24.1 |
| Total width (mm): | 241 |
| Type: | Dosing system |
| Valve type: | EnDure feedback |
| Weight (kg): | 27.22 |
| Wetted material: | Stainless steel, chrome, carbide, acetal plastic, PTFE, chemical-resistant O-rings |
More information
- Product number: 1035019
- Manufacturer: Graco
- EAN: 00755652064824
- Weight: 104.326 kg
Technical details
Operating specifications
| UPC product | 755652064824 |
|---|---|
| Division | IPD |
| Price Block | 009 |
| Country of Origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 104.33 KG |
| HTS code (GB) | 8413190090 |
| HTS code (EU) | 8413190090 |
Technical
| Ambient/Warm Melt/Hot Melt | Ambi ent |
|---|---|
| Amperage (A) | 18. 5 |
| Component type | Single Component |
| Fluid inlet size (in) | 1/4 |
| Frequency (Hz) | 50/60 |
| Includes | Precision Gear Meter, Ambient Transducer Kit, Endure Dispense Valve |
| Maximum air inlet pressure (bar) | 6. 9 |
| Maximum air inlet pressure (kPa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum flow rate (cc/min) | 1 6 00 |
| Maximum flow rate (L/min) | 1. 6 |
| Maximum fluid viscosity (cP) | 1000000 |
| Maximum Hose Length (m) | 40 |
| Maximum operating temperature (°C) | 2 04 |
| Maximum operating temperature (°F) | 400 |
| Maximum working pressure (bar) | 1 72 |
| Maximum working pressure (kPa) | 1 7 200 |
| Maximum working pressure (MPa) | 17. 2 |
| Maximum working pressure (psi) | 2 500 |
| Minimum flow rate (cc/min) | 40 |
| Minimum flow rate (GPM) | 0. 011 |
| Minimum flow rate (L/min) | 0. 04 |
| Minimum fluid viscosity (cP) | 1 0 00 |
| Overall Depth (cm) | 22. 6 |
| Overall depth (in) | 8. 9 |
| Overall Depth (mm) | 2 26 |
| Overall height (cm) | 55. 3 |
| Overall height (in) | 21. 75 |
| Overall height (mm) | 553 |
| Overall Width (cm) | 24. 1 |
| Overall width (in) | 9. 5 |
| Overall width (mm) | 2 41 |
| Sound pressure level (dB(A)) | 72 |
| Weight (kg) | 27.2 2 |
| Minimum ambient temperature (°F) | 40 |
| Maximum ambient temperature (°F) | 120 |
| Minimum Voltage (V ac) | 2 4 0 |
| Maximum ambient temperature (°C) | 4 9 |
| Input cycle rate (Hz) | 50-60 |
| Controls | Yes |
| length_of_controls_m | 9 |
| pump_size_cc | 20 |
| Valve Type | EnDure Snuff-Back |
| Model | PG M |
