Manufacturer no.:
CMNN58

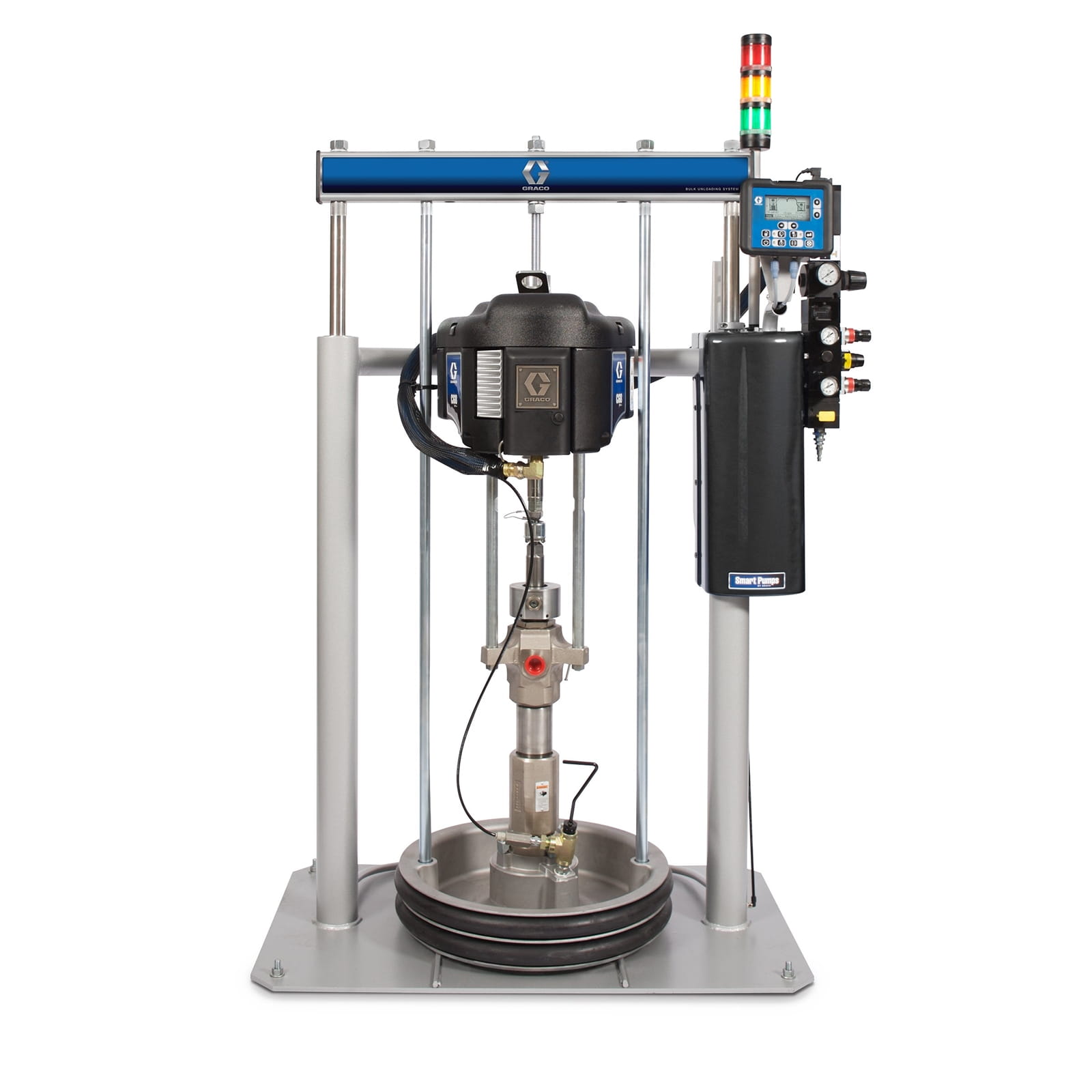

200 L 3.0 RAM feeder.
€11,709.24*
% €13,010.27* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco feeders reliably deliver one-component sealants, adhesives, and other medium- to high-viscosity materials from pails or drums to dispensing systems.
Bulk unloader for ambient temperature sealants, adhesives, and other medium- to high-viscosity materials
- For large drums up to 200 litres (55 gallons)
- Graco D200 - For high-volume applications on the production line
- Industry-first controls give you instant, critical information at your fingertips
- Quick placement of drums or pails
- Plate scrapers can be replaced in seconds
- Quick-connect, turn-buckle mounting and cartridge packings allow pump service without removing the pump from the ram
- High-quality, robust parts reduce maintenance time and maximise uptime
| Ambient/hot-melting/hot-melting: | Surroundings |
|---|---|
| Application: | Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling |
| Container type: | barrel |
| Control console material: | n.a. |
| Control console type: | n.a. |
| Energy type: | Pneumatic |
| Material container volume (litres): | 200 |
| Material follower plate: | Normal steel |
| Maximum height (cm): | 259.9 |
| Maximum height (m): | 2.6 |
| Maximum height (mm): | 2599 |
| Maximum operating temperature (°C): | 49 |
| Minimum height (cm): | 164.6 |
| Minimum height (m): | 1.65 |
| Minimum height (mm): | 1646 |
| Model: | Check Mate |
| Pump type: | None - just RAM |
| Series: | D200 |
| Total depth (cm): | 63.5 |
| Total depth (mm): | 635 |
| Total width (cm): | 106.7 |
| Total width (mm): | 1067 |
| Type: | Feeding device |
| Wetted material: | PTFE, PTFE, EPDM, PTFE coated aluminum, Galvanized carbon steel, Stainless steel |
More information
- Product number: 1032456
- Manufacturer: Graco
- EAN: 00633955259782
- Weight: 195.5 kg
- Length: 740 mm
- Width: 1400 mm
- Height: 1870 mm
Technical details
Operating specifications
| UPC product | 633955259782 |
|---|---|
| Division | IPD |
| Price Block | 2 22 |
| Country of Origin | US |
| Unit | EA |
| Height | 187 CM |
| Length | 74 CM |
| Width | 140 CM |
| Volume | 1 ,937 m³ |
| Shipping weight | 195.5 KG |
Technical
| Ambient/Warm Melt/Hot Melt | Ambi ent |
|---|---|
| Container Type | D rum |
| Control panel type | N/A |
| Material Container Volume (gal) | 52. 8 |
| Material container volume (litres) | 2 00 |
| Maximum height (cm) | 259. 9 |
| Maximum height (ft) | 8. 53 |
| Maximum height (in) | 102. 3 |
| Maximum height (m) | 2. 6 |
| Maximum height (mm) | 2 5 99 |
| Maximum operating temperature (°C) | 4 9 |
| Maximum operating temperature (°F) | 120 |
| Minimum height (cm) | 164. 6 |
| Minimum height (ft) | 5. 4 |
| Minimum height (in) | 64. 8 |
| Minimum height (m) | 1. 65 |
| Minimum height (mm) | 1 6 46 |
| Model | Check-Mate |
| Overall Depth (cm) | 63. 5 |
| Overall depth (in) | 25 |
| Overall depth (mm) | 635 |
| Overall width (cm) | 106. 7 |
| Overall width (in) | 4 2 |
| Overall width (mm) | 1067 |
| Ram Material | Carbon steel |
| Series | D200 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Deutsch)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Français)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Español)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (中文)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Polski)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (日本語)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Italiano)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (한국어)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Türkçe)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Čeština)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Nederlands)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (Svenska)
- 313906P, Zufuhrsysteme, Betrieb (noptc) (English)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Deutsch)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Français)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Español)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (中文)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Polski)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (日本語)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Italiano)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (한국어)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Türkçe)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Čeština)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Nederlands)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (Svenska)
- 313917ZAJ, Handbuch, Zufuhrsystemes, Reparatur-Teile (English)
Verkaufsliteratur
- 338921DE Graco® Versorgungssysteme (Deutsch)
- 338921DE Graco® Versorgungssysteme (中文)
- 338921DE Graco® Versorgungssysteme (Nederlands)
- 338921DE Graco® Versorgungssysteme (Français)
- 338921DE Graco® Versorgungssysteme (Italiano)
- 338921DE Graco® Versorgungssysteme (Polski)
- 338921DE Graco® Versorgungssysteme (русский)
- 338921DE Graco® Versorgungssysteme (Español)
- 338921DE Graco® Versorgungssysteme (Svenska)
- 338921DE Graco® Versorgungssysteme (English (UK))
- 338921DE Graco® Versorgungssysteme (日本語)
Zertifizierungen
