Manufacturer no.: CM8A3H

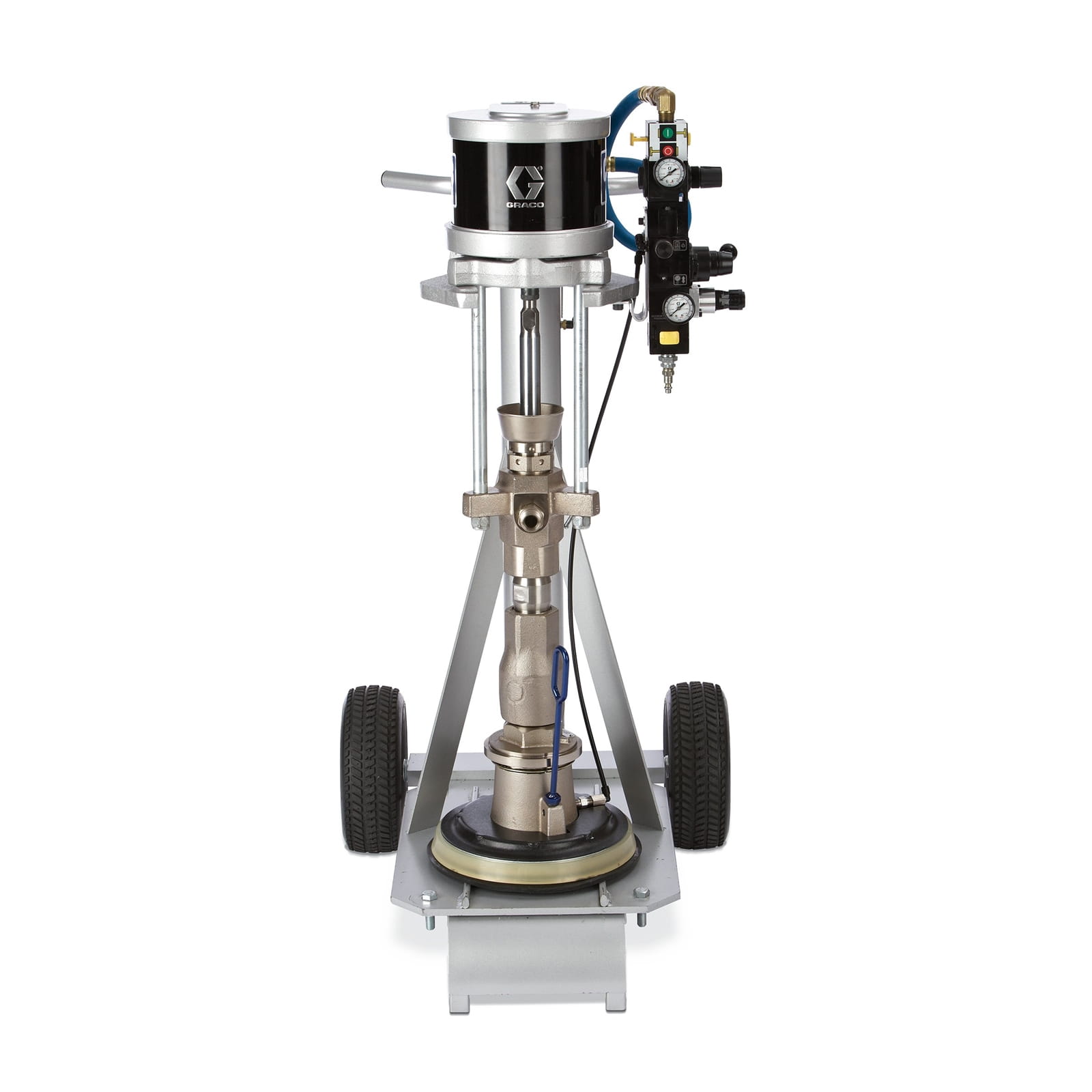

20 L S20 dispenser, 38:1 ratio

€9,629.36*

% €10,699.29* (10% saved)

Prices include VAT plus shipping costs

€8,091.90*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feeders reliably deliver one-component sealants, adhesives, and other medium- to high-viscosity materials from pails or drums to dispensing systems.

Bulk unloader for ambient sealants, adhesives, and other medium- to high-viscosity materials.

5 gallon (20 litre) pail sizes offer the same proven technologies as the larger systems, but with smaller NXT air motors.
Graco S20 - For low-volume applications of medium- to high-viscosity materials
Industry-first controls give you instant, critical information at your fingertips
Quickly place the pail
Plate scrapers can be replaced in seconds
Quick-disconnect fittings, turnbuckle mounting and cartridge pump packings allow pump service without removing the pump from the ram
High-quality, robust parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Surroundings
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	Bucket
Control console material:	n.a.
Energy type:	Pneumatic
Material container volume (litres):	115
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	10.34
Maximum air supply pressure (kPa):	1034
Maximum air supply pressure (kg/cm²):	10.55
Maximum delivery rate (L/min):	3.4
Maximum height (cm):	150.6
Maximum height (m):	1.51
Maximum height (mm):	1506
Maximum inlet air pressure (psi):	150
Maximum material pressure (bar):	262
Maximum material pressure (kPa):	26200
Maximum material pressure (psi):	3800
Maximum operating pressure (MPa):	26.2
Maximum operating pressure (kPa):	26200
Maximum operating pressure (psi):	3800
Maximum operating temperature (°C):	49
Minimum height (cm):	90.9
Minimum height (m):	0.91
Minimum height (mm):	909
Model:	Check Mate
Permissible operating pressure (bar):	262
Pump type:	Suction piston
Series:	S20
Total depth (cm):	48.26
Total depth (mm):	482.6
Total width (cm):	43.18
Total width (mm):	431.8
Transmission ratio of the pump:	38:1
Type:	Feeding device
Wetted material:	Alloy Steel, Stainless Steel, Acetal, Carbon Filled PTFE, Mild Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plated, Chrome Plating, High Molecular Weight Polyethylene, Galvanized Carbon Steel, EPDM, Fluoroelastomer

More information

Product number: 1030698
Manufacturer: Graco
EAN: 00633955499294
Weight: 101.472 kg
Length: 640 mm
Width: 762 mm
Height: 1615 mm

Technical details

Specifications

Operating specifications

UPC product	633955499294
Division	IPD
Price Block	2 22
Country of Origin	US
Unit of measurement	EA
Height	161.5 CM
Length	64 CM
Width	76.2 CM
Volume	. 788 m³
Shipping weight	101.47 KG

Technical

Ambient/Warm Melt/Hot Melt	Ambi ent
Container Type	Pail
Material container volume (gal)	30. 4
Material Container Volume (l)	115
Maximum air inlet pressure (bar)	10. 34
Maximum air inlet pressure (kg/cm²)	10. 55
Maximum air inlet pressure (kPa)	1 0 34
Maximum air inlet pressure (psi)	1 5 0
Maximum flow rate (L/min)	3. 4
Maximum fluid pressure (bar)	2 62
Maximum fluid pressure (kPa)	2 6 200
Maximum fluid pressure (psi)	3800
Maximum height (cm)	150. 6
Maximum height (ft)	4. 94
Maximum height (in)	59. 3
Maximum height (m)	1. 51
Maximum height (mm)	1506
Maximum operating temperature (°C)	4 9
Maximum operating temperature (°F)	120
Maximum working pressure (bar)	2 62
Maximum working pressure (kPa)	2 6 200
Maximum working pressure (MPa)	26. 2
Maximum working pressure (psi)	3800
Minimum Height (cm)	90. 9
Minimum height (ft)	2. 98
Minimum height (in)	35. 8
Minimum height (m)	0. 91
Minimum height (mm)	909
Model	Check-Mate
Overall Depth (cm)	48. 26
Overall depth (in)	19
Overall Depth (mm)	482. 6
Overall width (cm)	43. 18
Overall width (in)	17
Overall width (mm)	431. 8
Ram material	Carbon steel
Series	S20
