Binks MX35/60 – Airless/AirCombi piston pump (ratio 60:1, 220 cc/cycle)

The Binks MX35/60 is a robust, industry-proven piston pump for heavy-duty coating applications. It combines a 60:1 gear ratio with 220 cc/cycle and delivers up to 6.6 l/min (at 60 cycles/min) and a maximum material pressure of 480 bar. The patented magnetic switch ensures smooth, low-pulsation stroke change; ceramic-coated pistons significantly increase service life. Outfits are available in wall-mounted or trolley versions. :contentReference[oaicite:0]{index=0} :contentReference[oaicite:1]{index=1}

Highlights & advantages

• High performance: 60:1, 220 cc/cycle, up to 6.6 l/min, max. 480 bar – for heavy industrial applications. :contentReference[oaicite:2]{index=2}
• Magnetic switch: fast, virtually pulsation-free stroke change for an even spray pattern. :contentReference[oaicite:3]{index=3}
• Ceramic-coated piston: highly wear-resistant, lower friction, longer service life of the packings. :contentReference[oaicite:4]{index=4}
• Material compatibility: stainless steel or mild steel material parts for water- or solvent-based media. :contentReference[oaicite:5]{index=5}
• Quiet operation: noise level approx. 80.7 dB(A) (at 30 cycles/min @ 7 bar). :contentReference[oaicite:6]{index=6}
• 5-year pump warranty on workmanship and material defects (excluding wear parts). :contentReference[oaicite:7]{index=7}

Areas of application

Corrosion protection, large steel structures, oil & gas, shipbuilding, containers, commercial vehicle/chassis manufacturers and much more. Suitable for solvent- and water-based coatings, zinc-rich primers, cold tar epoxies, enamel and polyurethane paints. :contentReference[oaicite:8]{index=8}

Technical

*Measuring conditions according to data sheet. Sources: Binks MX35/60 catalogue information & data overview. :contentReference[oaicite:9]{index=9} :contentReference[oaicite:10]{index=10}

Versions & part numbers

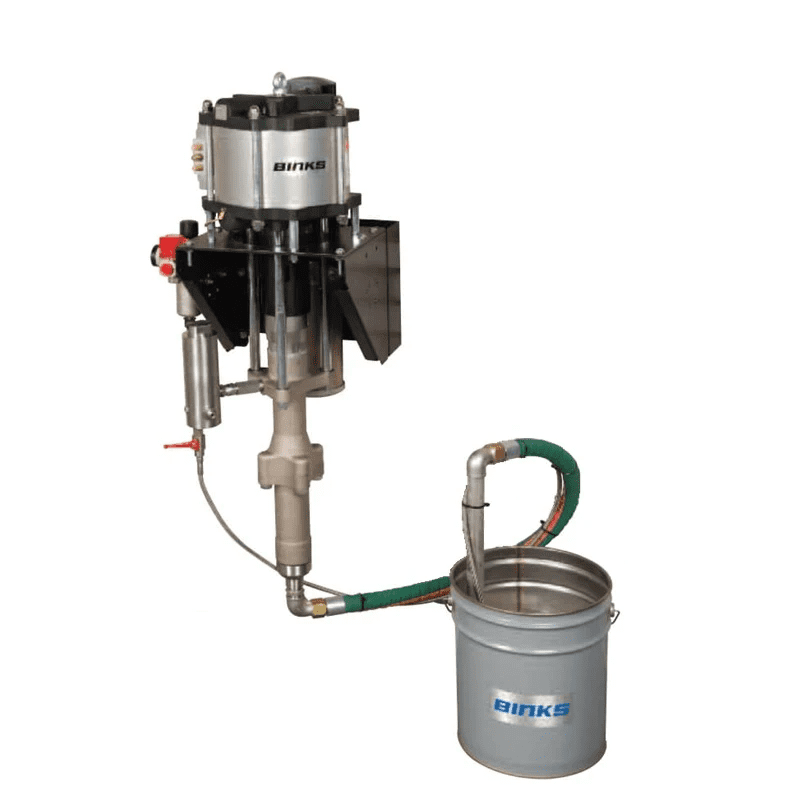

Wall-mounted version (airless control)

• MX22060PU-SAH-WAL – stainless steel
• MX22060PU-CAH-WAL – Normal steel
• MX22060PU-SMH-WAL – Stainless steel (manual packing)
• MX22060PU-CMH-WAL – Normal steel (manual packing)

Trolley version (airless control)

• MX22060PU-SAH-CAL – Stainless steel
• MX22060PU-CAH-CAL – Normal steel
• MX22060PU-SMH-CAL – Stainless steel (manual packing)
• MX22060PU-CMH-CAL – Normal steel (manual packing)

Designations according to catalogue (decoding: pump/transmission – seal – material – packing – inlet – fastening – atomisation). :contentReference[oaicite:11]{index=11} :contentReference[oaicite:12]{index=12}

Compatible accessories (selection)

• Binks Airless A75 hand spray gun (up to 7,500 psi / 517 bar)
• Binks AA4400M AirCombi gun (incl. air cap/nozzle/hose package)
• Stainless steel high-pressure filter (mesh 30–200), micro swivel joints, high-pressure hoses

For further accessory and spare part numbers, see data sheet/lists. :contentReference[oaicite:13]{index=13}

Why MX35/60?

Designed for high layer thicknesses, abrasive media and long service life: low-pulsation operation, high pressure reserves and durable ceramic pistons increase process reliability and reduce downtime and maintenance times. :contentReference[oaicite:14]{index=14}

FAQ
