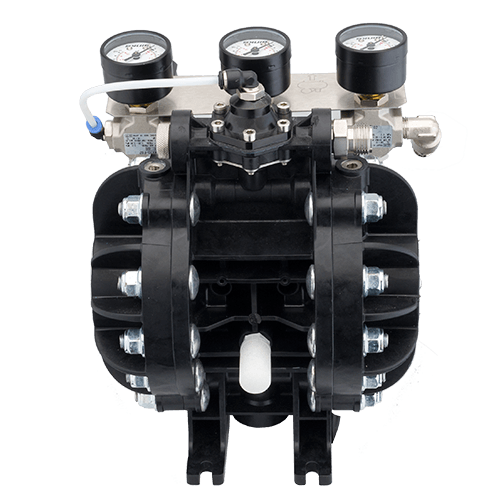

BINKS DX70 Unregulated basic pump
€710.19*
% €887.74* (20% saved)Prices include VAT plus shipping costs
Price excl. VAT
Ready for shipping in 1-3 Tage
Binks DX70 Diaphragm Pump 1:1 – consistent material delivery, fast color changes, reduced downtime

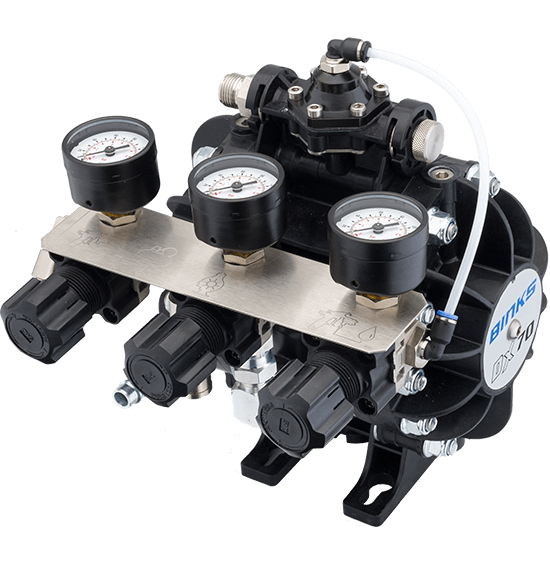

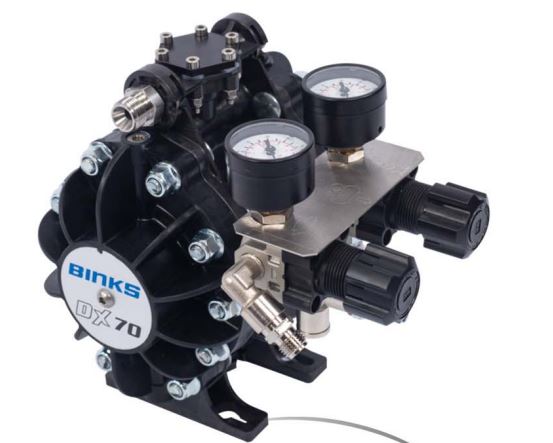

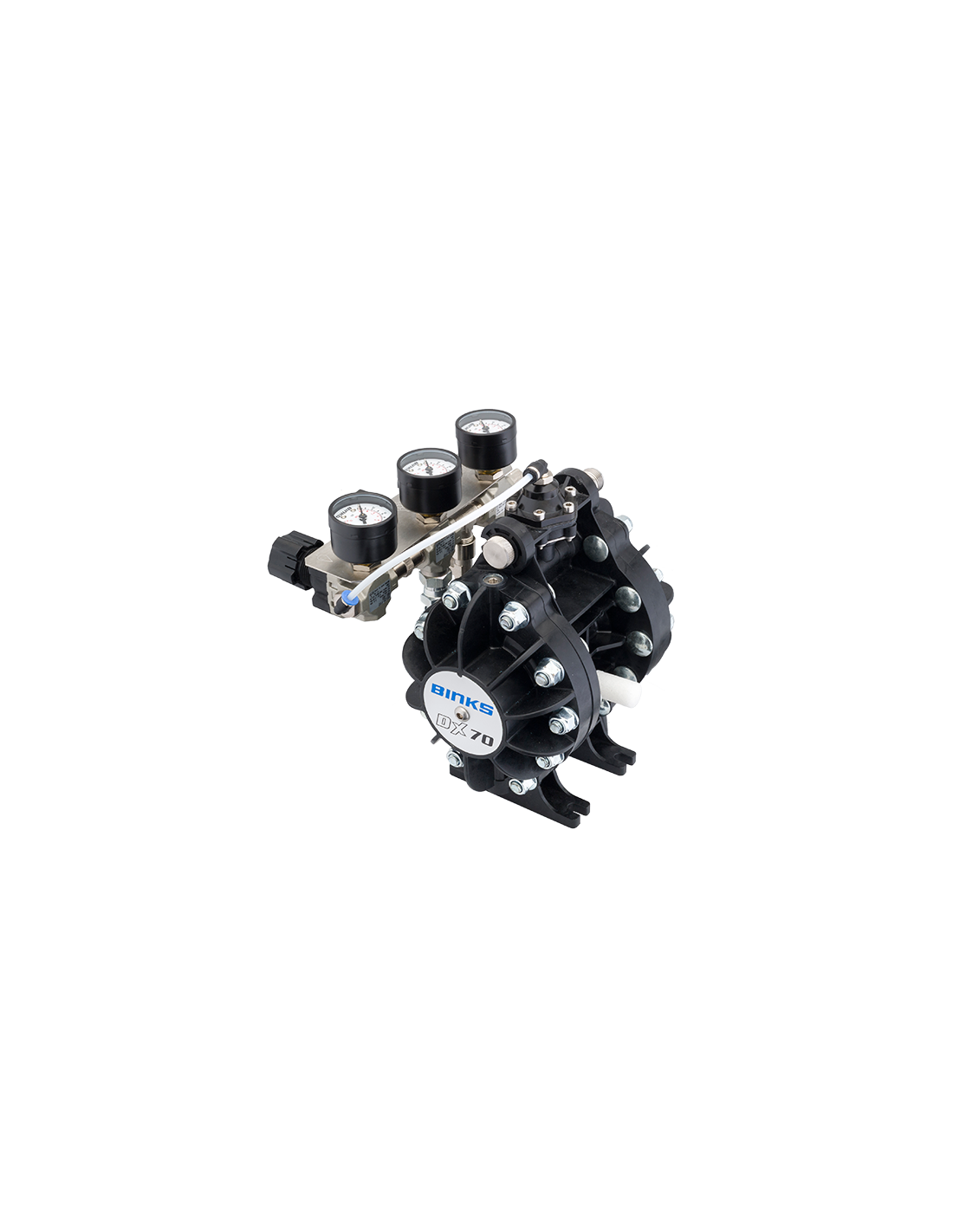

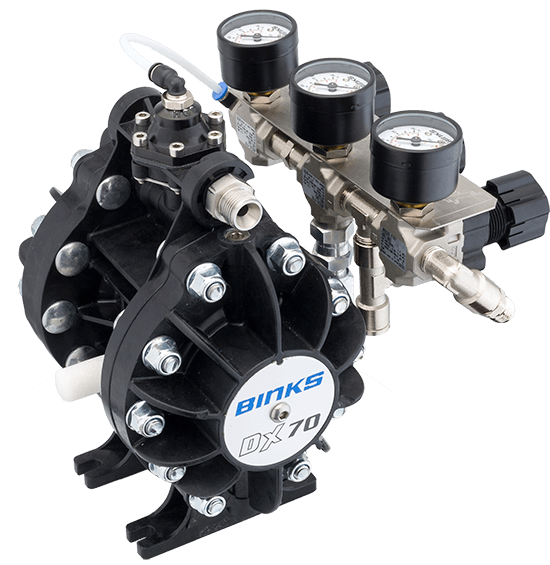

Binks DX70 – air-operated double diaphragm pump with 1:1 ratio for direct material supply to one or two spray guns (industry, workshop & serial production processes).
The DX70 was developed for reliable delivery of paints and coating materials – with virtually pulsation-free material supply (depending on version, with integrated material pressure regulator), fast cleaning, and short color change times. The design with a crease-free diaphragm supports long service life and smooth, low-maintenance operation.
- 1:1 diaphragm pump – stable delivery for 1–2 spray guns
- Fast color changes & refilling – reduces downtime
- Virtually pulsation-free (model/version dependent, e.g. with material pressure regulator)
- Long service life thanks to crease-free diaphragm & robust design
- Low maintenance – no complex sealing package like classic pump concepts
Details & Information
Product features
- Air-operated double diaphragm pump with 1:1 ratio
- Designed for 1–2 spray guns – direct material supply
- Crease-free diaphragm for even load distribution and long service life
- Material delivery directly to the gun – stable process, fewer interruptions
- Fast color changes & quick flushing (low chamber volume – less material loss)

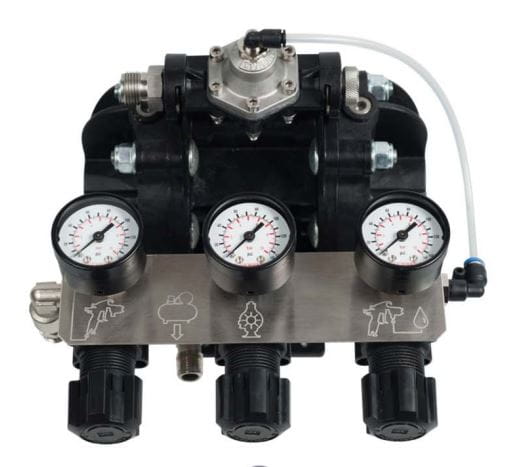

- Optional integrated material pressure regulator – very smooth, consistent delivery

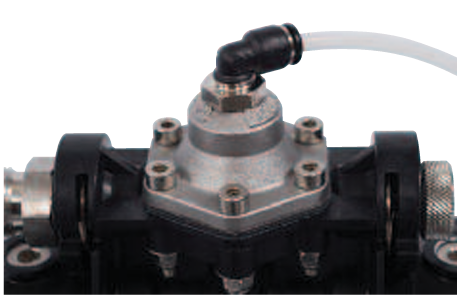

- Stall-free air control valve – smooth operation, low maintenance
- Quick-connect couplings on air and material lines (setup-friendly)

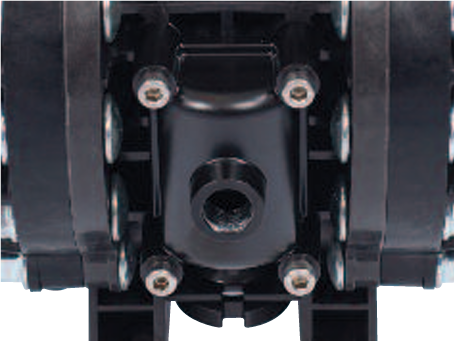

- Four-fold check valve assembly – service-friendly replacement
Variants overview – configurations & system setup
The DX70 is available as a base pump and in various mounting/system configurations (e.g. wall, tripod, cart, pail mounting) – depending on process and material supply.
| Variant | Typical benefit |
|---|---|
| Base pump (with/without material pressure regulator) | Flexible integration into existing systems, smooth delivery depending on version |

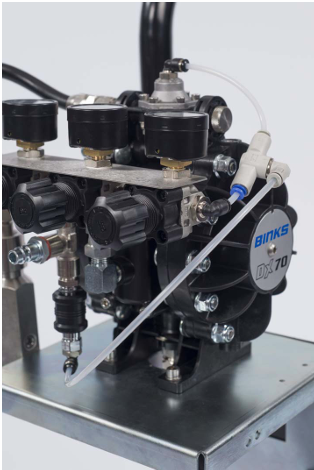

| Wall / tripod mounting | Space-saving, stable, ideal for fixed workstations |
| Cart | Mobile use, quick workstation changes |
| Pail mounting (e.g. 25 l) | Direct material extraction, easy handling with standard containers |
| Optional: filters (30–200 µm), agitator | Clean application, consistent material quality |
Setup & commissioning (checklist)
To ensure stable and clean operation of the Binks DX70, we recommend a quick setup check before commissioning:
- Air preparation (filtration / avoid condensate) – for consistent pump operation
- Hose lengths & diameters matched to the application – reduces pressure loss
- Material filter selection based on material & surface requirements (e.g. 30–200 µm)
- Mounting option suited to the process (wall / tripod / cart / pail mounting)
- Flushing / color change concept – minimizes material loss and downtime
Purpose / applications
- Industrial & serial coating (material delivery to the spray gun)
- Woodworking / carpentry shops
- Vehicle manufacturing (commercial vehicles, agricultural & off-road vehicles)
- Marine applications (boat / yacht)
- Aerospace (process-dependent)
Product flyer
Further details can be found in the official product flyer for the Binks DX70 .
- Product number: 1026837
- Manufacturer: Binks
- EAN: 5021845097234
- Weight: 2.5 kg
Technical details
| Product type | Air-driven double diaphragm pump |
| Translation | 1:1 |
| Application | Material supply for 1–2 spray guns |
| Max. delivery rate | up to approx. 4.2 l/min (depending on application) |
| Max. air/material pressure | up to 7 bar (100 psi) |
| Material options | For water- and solvent-based systems; depending on the design, also for special coatings |
| Safety | CE / ATEX (depending on model), grounding concept |
Note: Delivery rate and process stability depend on material, hose lengths, filtration and compressed air quality.
