Suction Feed Spray Guns – Bottom Cup for Precise Coating

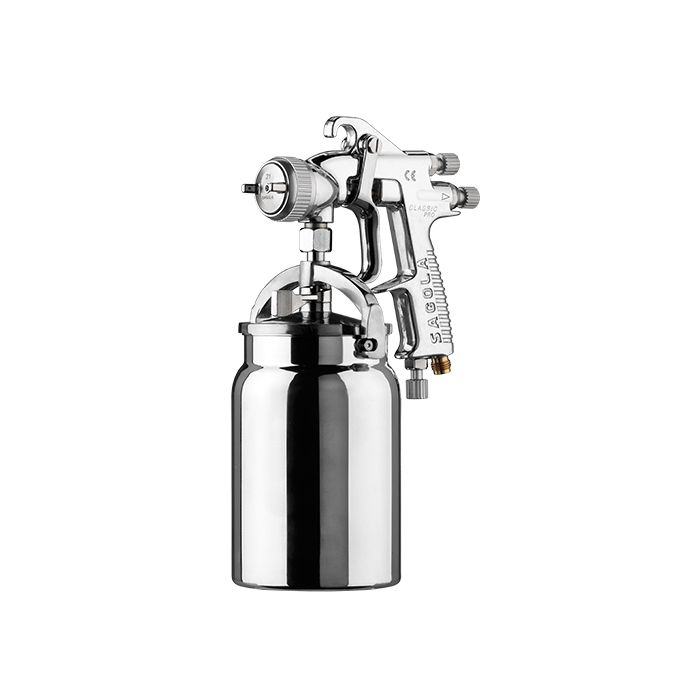

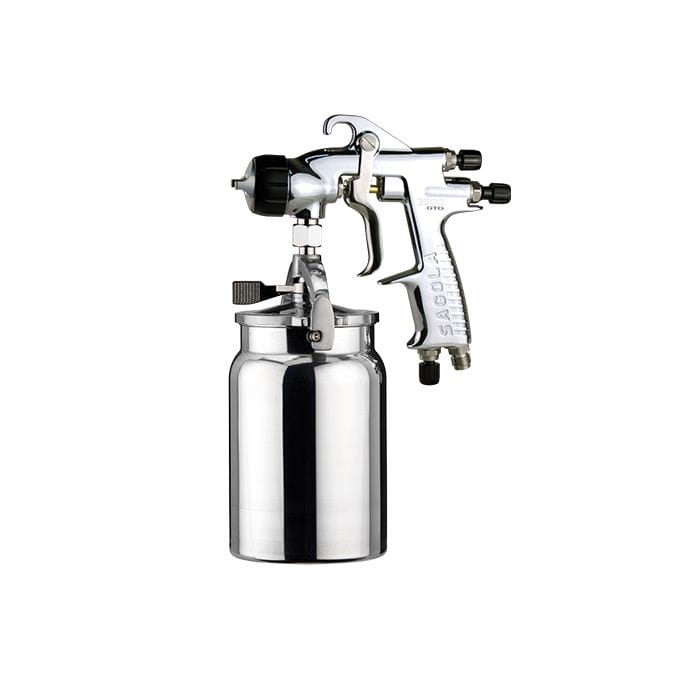

Discover suction feed spray guns (bottom cup) for base and colour coats, clear coats and fillers/primers. The material is drawn via a feed tube from the cup below – ideal for frequent colour changes, good balance and a clear view of the surface. Depending on the process with metal or plastic cups as well as disposable cup systems and matching adapters.

Use & Benefits

Flexible application from primer to clear coat, clean edges thanks to finely controllable spray pattern and material-efficient work with suitable nozzle sets, air caps and filters. Particularly strong in repair and small-series processes with fast changes in colour, effect and viscosity.

Technology & Settings

Nozzle sizes by medium: 1.2–1.4 mm (base/colour), 1.3–1.4 mm (clear coat), 1.7–2.5 mm (fillers/primers). HVLP runs at lower pressure (typically 1.5–2.0 bar) with high transfer efficiency; RP/Airspray delivers very fine atomisation at 2.0–2.5 bar. Cup sizes typically 0.5–1.0 L. Strainers/filters in the cup stabilise the flow; optional PPS® adapters simplify mixing, spraying and storage.

Accessories & Integration

Connection via quick couplings to compressed air; choice between metal and plastic cups (with/without disposable). Air pressure regulators with gauge, fine filters, seal kits, feed tubes and air caps ensure repeatability. For fast media changes, flushing ports and suitable cleaners are useful.

Advantages at a Glance

• Clear view of the surface thanks to the bottom-mounted cup
• Quick colour changes thanks to cup/PPS® systems
• Finely controllable spray pattern for edges, spot & smart repair
• Robust design and cost-efficient maintenance

Top Manufacturers for Suction Feed Spray Guns

• SATA – HVLP/RP bottom-feed with precise air caps and a wide nozzle range.
• DeVilbiss – lightweight designs, fine atomisation, extensive cap portfolio.
• Anest Iwata – ergonomic guns, stable process windows for clear/base coats.
• Walther Pilot – industrial variants with robust cups and accessories.
• Krautzberger – durable airspray guns with efficient air guidance.
• Binks – proven bottom-feed systems and spare parts.
• Sagola – solid workshop guns for continuous use.
• Sames – precise air caps for repeatable results.
• Ecco Finishing – stainless media paths and finely tuned nozzles.
• Wagner – innovative spray technologies focusing on energy efficiency and even film build for trade and industry.
• Beschichtpunkt – specialist in application technology and gravity feed spray guns, focusing on precise atomisation, ergonomics and high surface quality.
• Colad – paint shop consumables, masking & mixing systems for efficient processes.
• Elcometer – precise measuring & test equipment for film thickness, adhesion, climate & surface prep.
• Mirka – abrasives, polishing systems & dust extraction for perfect surface prep.
• Ransburg – electrostatic spray guns & systems for efficient, material-saving coating.

Discover suction feed spray guns, nozzle sets and air caps – matched to your media and components. Request personal consultation now or View products.
