High-Pressure Pump Spray Packs

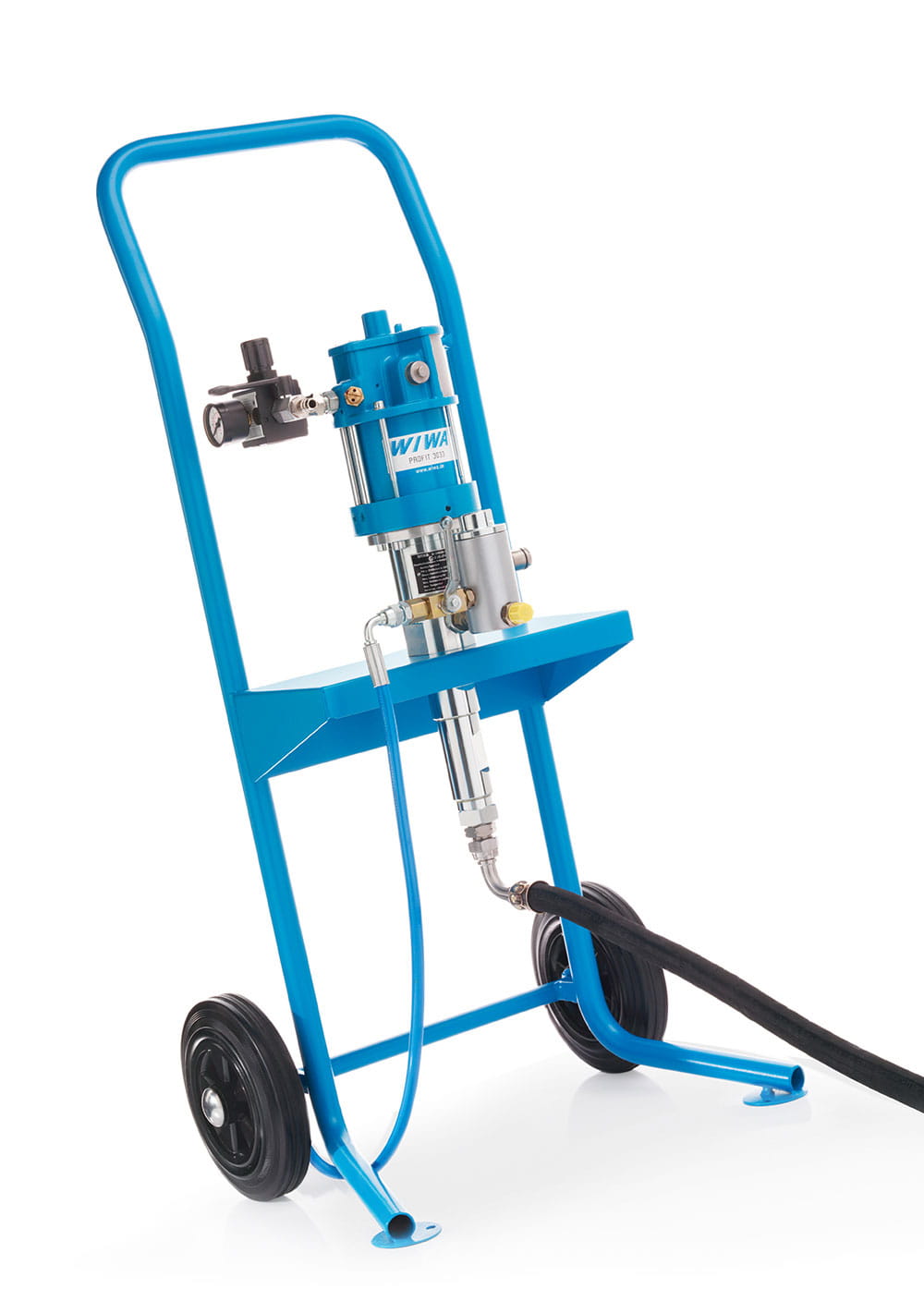

High-pressure pump spray packs are complete systems for Airless and AirCombi applications – either cart-mounted on a rugged trolley or supplied as a wall-mount set. Each spray pack combines a piston pump, regulator/gauges, filters, hoses and, optionally, a pulsation damper plus – depending on version – a spray gun.
The result: rapid commissioning, stable pressure and a constant material flow over long hose runs, even at higher viscosity. We size pressure ratio (e.g. 10:1 to 60:1), flow rate (l/min), tip size, filter mesh, hose package and configuration precisely to your medium and process.
Use cases & benefits
Ready-to-use systems for furniture & interior finishing, metal fabrication, plastics processing, booth protection, marine and general industry.
Properly sized spray packs deliver stable pressures with low pulsation and ensure repeatable finishes with minimal rework. Cart systems provide flexibility for changing work sites, while wall-mount versions are ideal for stationary lines with limited space.
Technology & settings
- Pressure & flow: defined by pump ratio, tip size, viscosity and line length.
- Pulsation: minimize with a damper and optimally sized hose cross-sections.
- Materials: choose steel, stainless steel or lined variants for chemical- and solvent-resistant applications.
- Filters & screens: match to the tip size; integrate regulators/gauges for precise pressure control; select suction tube/drum follower plate for the container used.
- Safety: consistently observe ATEX, grounding and pressure relief requirements.
Accessories & integration
Accessories include spray packs (cart or wall), pulsation dampers, high-pressure filters, pressure regulators and gauges, high-pressure hoses, whip hoses, swivels, pressure relief valves (PRV), suction tubes and drum follower plates, material manifolds as well as seal and maintenance kits.
We check compatibility (medium, viscosity, connection pattern) and integrate the set optimally into your shop and line.
Key advantages at a glance
- Complete & ready – matched components in one set
- Stable pressure & low pulsation for Airless & AirCombi
- Cart or wall-mount – tailored to the application
- Compatible with common systems & regulators
Top brands – High-Pressure Pump Spray Packs
- Graco – Merkur/King spray packs, Airless/AA-ready, regulators & filters.
- Wagner – IceBreaker/Puma spray packs (cart/wall), AirCoat/AA solutions.
- WIWA – spray pack systems & peripherals.
- Sames – (formerly Kremlin) pump sets, guns, air caps & accessories.
- Binks – pumps, Airless accessories & tips.
- DeVilbiss – regulators, guns & air caps.
- Anest Iwata – high-pressure pump sets & AirCombi components.
- Walther Pilot – fittings, manifolds & high-pressure accessories.
- Krautzberger – material pumps, connection kits & brackets.
- Ecco – precision guns & tips.
- Nordson – high-performance application systems.
- Elcometer – Airless/AA accessories, tips & hoses.
- beschicht. – own brand: spray packs & 10:1–60:1 pumps.
Go directly to High-Pressure Pump Spray Packs – or consulting & compatibility check.
Guides & resources
Airless Plus / AirCombi? What does that mean?
Clearly explained: choose pressure ratio, tip size & filtration correctly — for reliable feed and a premium finish.
Learn moreFrequently asked questions about high-pressure pump spray packs
What is a high-pressure pump spray pack and what is it suitable for?
Spray packs are fully assembled high-pressure pump systems for Airless or AirCombi applications — either cart-mounted or as a wall-mount set. They include a pump, regulator/gauges, filters, hoses and often the gun. Benefits: rapid deployment, matched components and high process reliability.
How do I choose pressure ratio, flow rate and configuration (cart/wall)?
The pressure ratio (10:1–60:1) follows from target spray pressure, viscosity and hose lengths. The required flow rate (l/min) depends on tip bore, film thickness and desired takt time. Cart provides mobility & drum handling; wall-mount saves space. Choose filter mesh to suit the tip; consider ATEX and stainless steel for solvents.
What ensures stable pressure, safety and a clean finish?
Pulsation dampers, correctly sized hose packages and dry compressed air stabilize the flow. Precise regulators/gauges, short dead volumes, suitable filters and a matched gun/tip raise quality. Safety: grounding/ATEX, certified pressure relief (PRV) and low-leak connections.
Customer reviews
Start your spray pack inquiry
We support the sizing of pressure ratio & flow rate, the selection of tip size & filter mesh, the cart/wall configuration and the integration of dampers, regulators & hoses — for stable pressure, minimal pulsation and first-class surfaces.
