Manufacturer no.: 572103

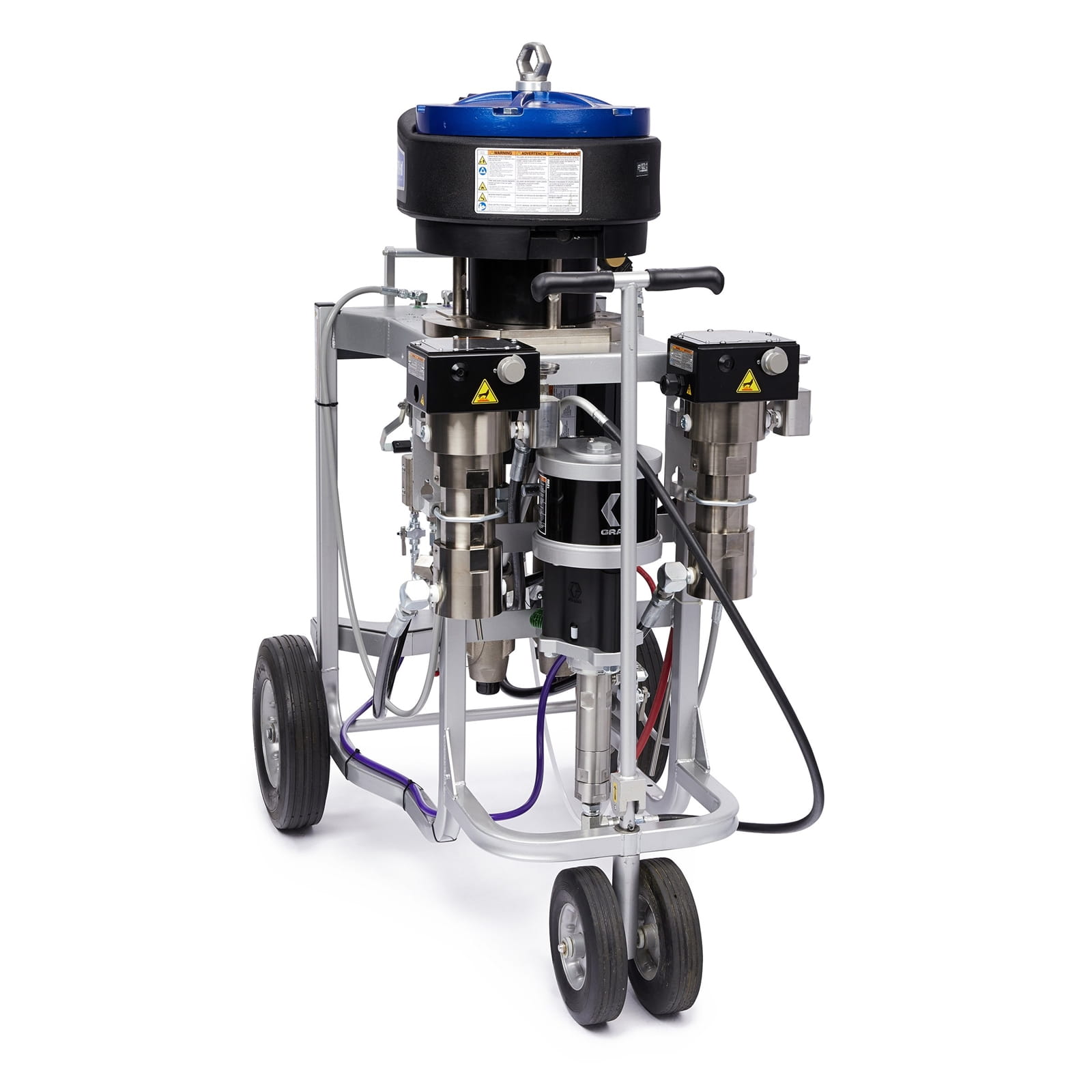

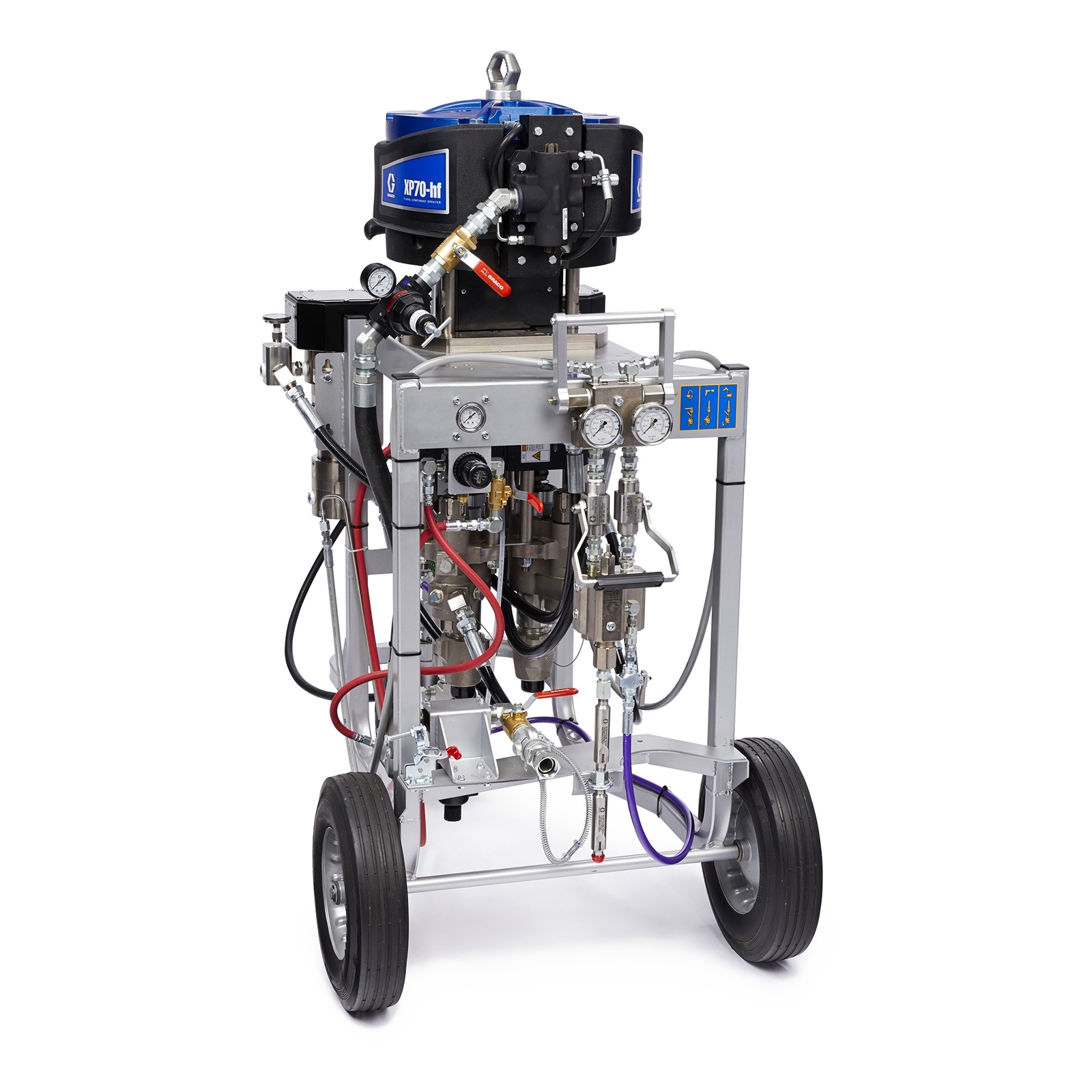

XP70-hf complete spray unit for hazardous areas, trolley, 1:1 ratio solvent pump, heaters

Price on request

Prices include VAT plus shipping costs

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Request price

Also interesting

Product information

Two-component spraying – simple and affordable. The XP-hf system combines the popular XP70 sprayers with the powerful XL 10000 air motor. The combination of these two technologies ensures faster completion of your jobs with higher flow rates and at the same time less wear. Designed for higher output, the Graco Xp70-hf is ideal for applications where multiple guns or larger nozzle sizes are to be used for spraying. Flexible options for mixing ratio, pressure and flow rate: Choose the system that best suits your application. If you occasionally change materials, then Graco XP sprayers are the right choice. Simply change one or both displacement pumps to easily change the ratio. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1, and 4:1 ratios.

High pressure performance for two-part high-strength coatings

Reduces material waste
No discarding of unused mixed material at the end of the day
Saves money on cleaning because less solvent is used
Consistent material quality – no guesswork or human error in measuring materials
Easy to use – minimal training required
Reduces maintenance costs
Rated at 50 MPa (500 bar, 7250 psi) to handle viscous materials and long lengths of tubing

Air inlet size (inches):	1
Air inlet thread type:	NPSM
Applicator type:	Airless automatic, airless hand system
Compatible material:	Protective coatings, primer, epoxy resin, polyurethane, two-component coating, solvent
Component type:	multi-component
Configuration:	Chassis assembly with 26.5 liter material container
Gender of the air inlet thread:	External thread
Gender of the material inlet thread:	External thread
Gender of the material outlet thread:	Internal thread
Hose length (m):	10.7
Includes:	Air motor, lower pumps, chassis, spray gun, supply hose, solvent pump, A/B hazardous area heaters
Material application.:	Beschichtungen, Lacke, Farben
Material inlet thread type:	NPSM
Material outlet thread type:	NPT
Maximum air inlet pressure (MPa):	0.69
Maximum air pressure (MPa):	0.69
Maximum air pressure (bar):	6.9
Maximum air pressure (kPa):	690
Maximum air pressure (psi):	100
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum delivery rate (L/min):	11.36
Maximum flow rate (cm³/min):	11360
Maximum hose length (m):	91.4
Maximum inlet air pressure (psi):	100
Maximum material temperature (°C):	71
Maximum material viscosity (cP):	20000
Maximum number of cycles (DH/min):	40
Maximum operating pressure (MPa):	49
Maximum operating pressure (kPa):	49000
Maximum operating pressure (psi):	7100
Maximum operating temperature (°C):	54
Maximum spray pressure (MPa):	50
Maximum spray pressure (bar):	500
Maximum spray pressure (kPa):	50000
Maximum spray pressure (psi):	7250
Measurement type:	Fixed mechanical positive displacement
Minimum material viscosity (cP):	200
Mixing accuracy (%):	+/- 5
Mixing ratio:	1:1
Noise pressure level, (dB(A)):	86.8
Number of containers:	0
Number of hardeners:	1
Number of reducers:	0
Number of resin colours:	1
Permissible operating pressure (bar):	490
Product type:	multi-component
Series:	XP70-hf
Sink type:	solvent
Size of the material inlet opening (inches):	1-1/4
Size of the material outlet opening (inches):	1/2
Sound level, (dB(A)):	96
Supply voltage:	Air
Total depth (cm):	132.1
Total depth (mm):	1321
Total height (cm):	157.5
Total height (mm):	1575
Total width (cm):	88.9
Total width (mm):	889
Type:	Multi-component sprayer
Weight (kg):	290
Wetted material:	Electroless Nickel Plated Carbon Steel, Coated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, Solvent Resistant PTFE Plastics, Carbon Filled PTFE, Aluminum
