Manufacturer no.:
571403

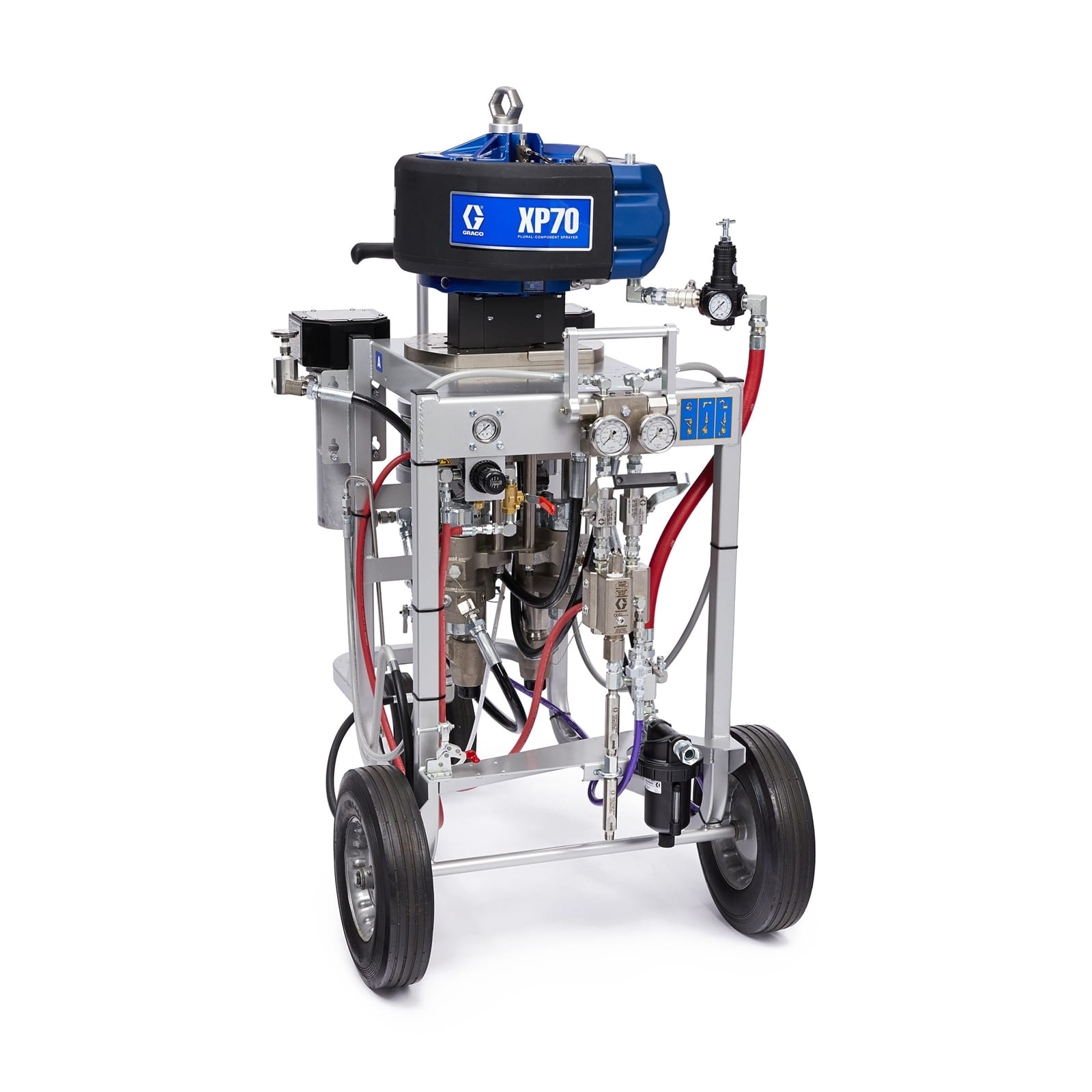

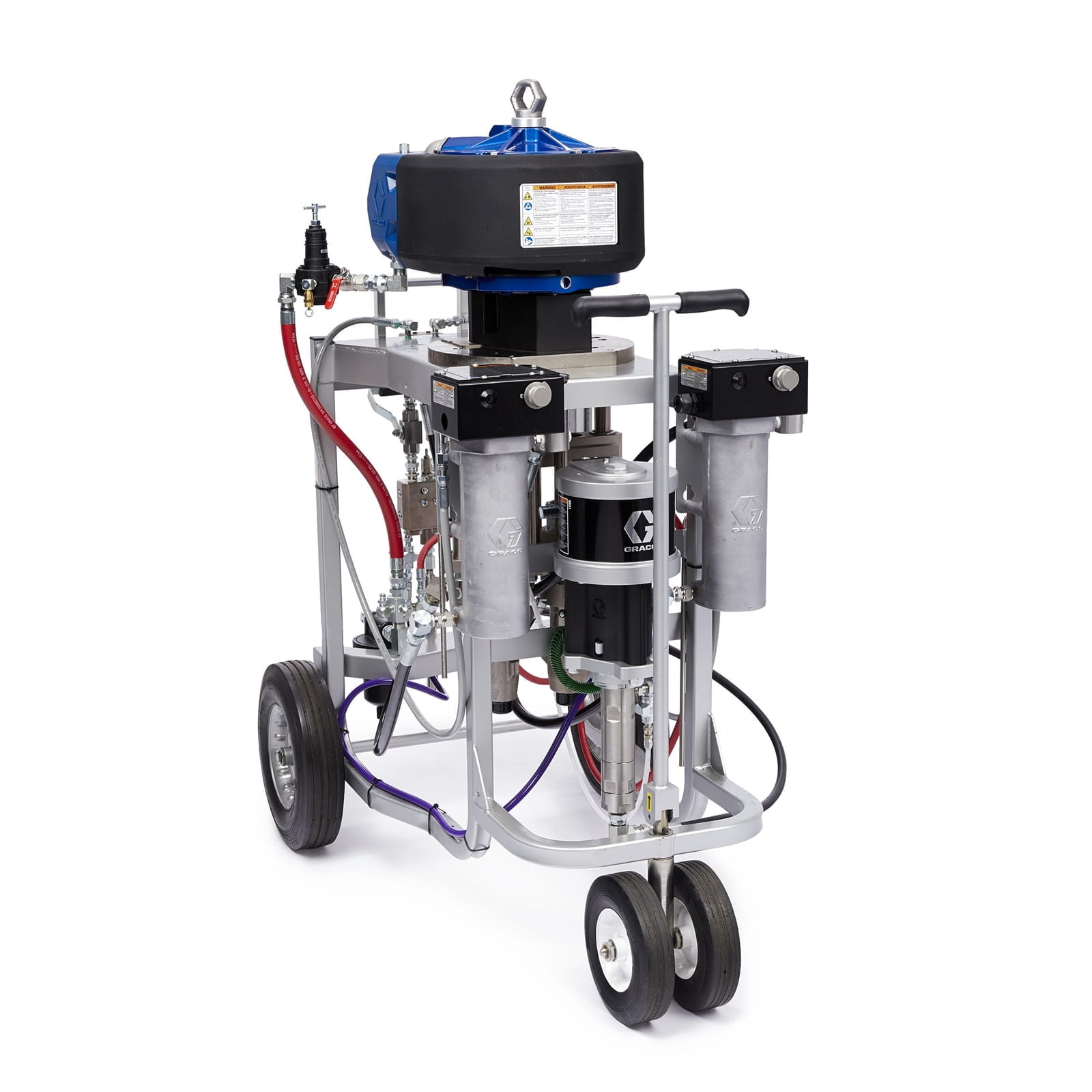

XP70 complete sprayer for hazardous areas, chassis, mixing ratio 4:1, solvent pump, heaters, XTR gun, 240 V
Price on request
Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Graco XP70 multi-component sprayer is designed to pump, mix and atomise high viscosity, high strength coatings with superior results. In addition, the XP70 is designed for gravity feed, eliminating the need for feed pumps and reducing costs. If you are switching from hand mixing, you will quickly realise that the XP offers an excellent return on investment as it reduces material waste and uses less solvent when cleaning.
High-pressure performance for two-part high-strength coatings
- Reduces material waste
- No throwing away of unused mixed material at the end of the working day
- Saves money on cleaning as less solvent is used
- Consistent material quality - no guesswork or human error when measuring materials
- Easy to operate - minimal training required
- Reduces maintenance costs
- Rated to 50 MPa (500 bar, 7250 psi) to handle viscous materials and long hose lengths
| Air inlet size (inches): | 3/4 |
|---|---|
| Air inlet thread type: | NPSM |
| Applicator type: | Airless automatic, airless hand system |
| Compatible material: | Protective coatings, primer, epoxy resin, polyurethane, two-component coating, solvent |
| Component type: | multi-component |
| Configuration: | Chassis assembly with 26.5 liter material container |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | External thread |
| Gender of the material outlet thread: | Internal thread |
| Hose length (m): | 10.7 |
| Includes: | Pump, (4) hoses, solvent hose, (2) heaters, solvent pump, suction hose |
| Material application.: | Beschichtungen, Lacke, Farben |
| Material inlet thread type: | NPSM |
| Material outlet thread type: | NPT |
| Maximum air inlet pressure (MPa): | 1.21 |
| Maximum air supply pressure (bar): | 12.07 |
| Maximum air supply pressure (kPa): | 1207 |
| Maximum delivery rate (L/min): | 7.2 |
| Maximum flow rate (cm³/min): | 7200 |
| Maximum hose length (m): | 91.4 |
| Maximum inlet air pressure (psi): | 175 |
| Maximum material temperature (°C): | 71 |
| Maximum material viscosity (cP): | 20000 |
| Maximum number of cycles (DH/min): | 40 |
| Maximum operating pressure (MPa): | 50 |
| Maximum operating pressure (kPa): | 50000 |
| Maximum operating pressure (psi): | 7250 |
| Maximum operating temperature (°C): | 54 |
| Maximum spray pressure (MPa): | 50 |
| Maximum spray pressure (bar): | 500 |
| Maximum spray pressure (kPa): | 50000 |
| Maximum spray pressure (psi): | 7250 |
| Measurement type: | Fixed mechanical positive displacement |
| Minimum material viscosity (cP): | 200 |
| Mixing accuracy (%): | +/- 5 |
| Mixing ratio: | 4:1 |
| Noise pressure level, (dB(A)): | 86 |
| Number of containers: | 0 |
| Number of hardeners: | 1 |
| Number of reducers: | 0 |
| Number of resin colours: | 1 |
| Permissible operating pressure (bar): | 500 |
| Product type: | multi-component |
| Series: | XP70 |
| Sink type: | solvent |
| Size of the material inlet opening (inches): | 1-1/4 |
| Size of the material outlet opening (inches): | 1/2 |
| Sound level, (dB(A)): | 98 |
| Supply voltage: | Air |
| Total depth (cm): | 132.1 |
| Total depth (mm): | 1321 |
| Total height (cm): | 157.5 |
| Total height (mm): | 1575 |
| Total width (cm): | 88.9 |
| Total width (mm): | 889 |
| Type: | Multi-component sprayer |
| Weight (kg): | 261 |
| Wetted material: | Electroless Nickel Plated Carbon Steel, Coated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, Solvent Resistant PTFE Plastics, Carbon Filled PTFE, Aluminum |
More information
- Product number: 1031684
- Manufacturer: Graco
- EAN: 00633955614345
- Weight: 331.5 kg
- Length: 1470 mm
- Width: 1170 mm
- Height: 1760 mm
