Manufacturer no.:
24P324

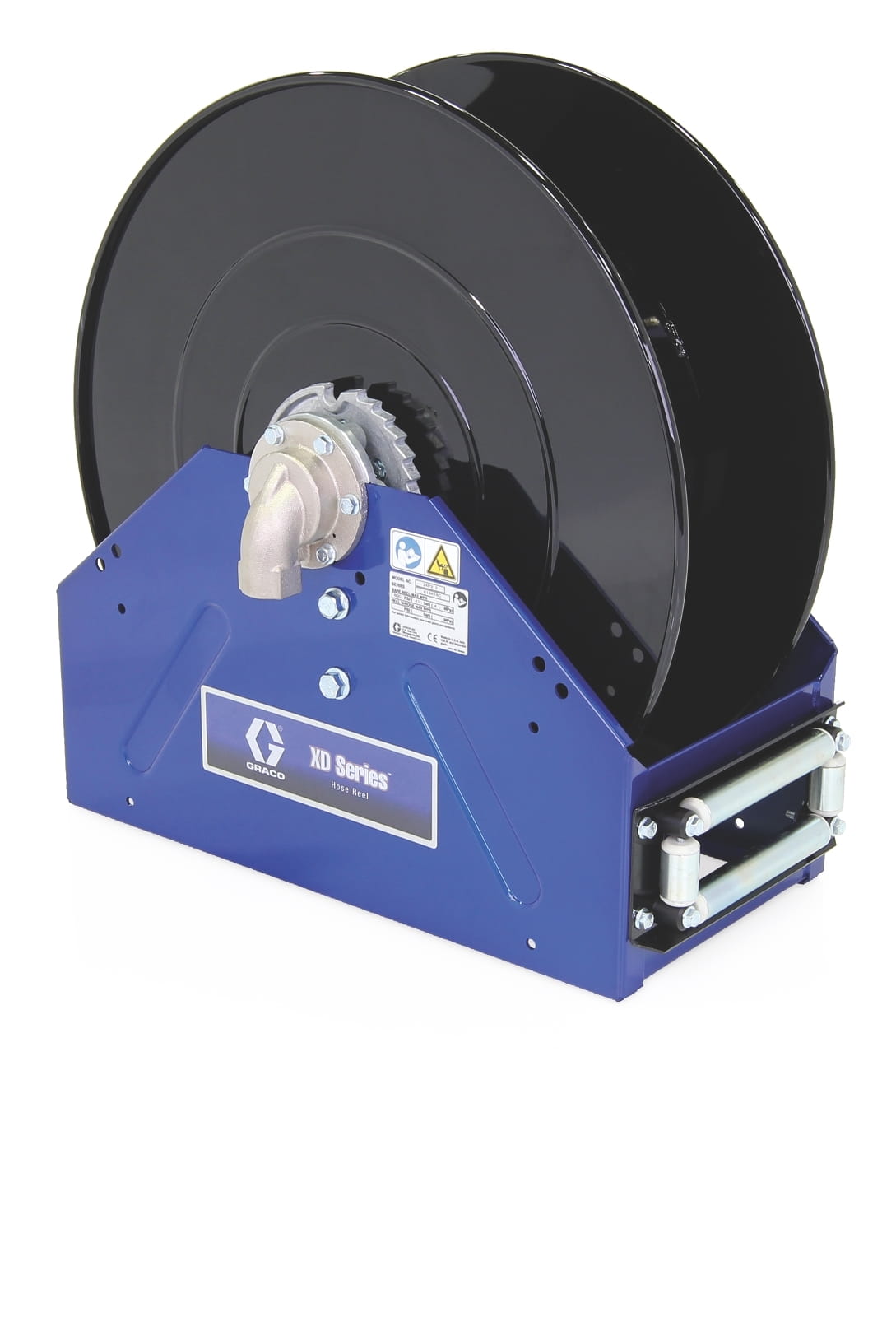

XD40™, oil, 25 mm (1") inlet, without accessories (19 mm X 30 m (3/4" X 100') capacity), NPT, metallic blue
€3,668.77*
Ready for shipping in 5-8 days
Also interesting
Product information
The XD40 and XD50 series hose reels from Graco can withstand a lot and work - whenever they are needed. Choose from several colour options, thread types and hoses. Typical materials include: Petroleum and synthetic based oils, diesel fuel, air, water, antifreeze and waste oil.
Ideal for indoor and outdoor use at heavy goods vehicle dealerships, fleet maintenance, public workshops, construction vehicle maintenance, agricultural vehicles and emergency vehicles.
- Extensive hose range - standard models are supplied complete with factory-installed hoses on the hose reel, wide range of optional hose reels for different applications
- Full flow swivel - Maximise material flow with minimal pressure drop for faster filling - increasing throughput in your workshop.
- Robust and durable body - Robust welded spool and ribbed frame for added strength and wear resistance
- Meets global requirements - 90° elbow with NPT threads as standard
| Application: | oil |
|---|---|
| Colour: | Metallic Blue |
| Frame type: | Box frame |
| Hose included: | No |
| Hose length (m): | 30 |
| Hose reel type: | Reel without accessories |
| Inlet size (inch): | 1 |
| Inlet size (mm): | 25.4 |
| Inlet thread type: | NPT |
| Inner diameter hose (inch): | 3/4 |
| Inner diameter hose (mm): | 19.05 |
| Maximum operating pressure (psi): | 2000 |
| Model: | XD |
| Outlet size (inch): | 1 |
| Outlet size (mm): | 25.4 |
| Recommended environment: | Indoor, For outdoor use |
| Recommended material type: | oil |
| Reel thread type: | NPT |
| Series: | 40 |
| Single retractor: | 1 |
| Total height (mm): | 664 |
| Total length (mm): | 671 |
| Total width (mm): | 444 |
| Type: | Spring reel |
| Wetted parts: | Galvanised steel, anodised aluminium, nitrile rubber |
More information
- Product number: 1035047
- Manufacturer: Graco
- EAN: 00633955379947
- Weight: 81.54 kg
- Length: 800 mm
- Width: 350 mm
- Height: 900 mm
Technical details
Operating specifications
| UPC product | 6 3 3955379947 |
|---|---|
| Division | LED |
| Price Block | 1 5 0 |
| Country of Origin | US |
| Unit of measurement | EA |
| Height | 90 CM |
| Length | 80 CM |
| Width | 35 cm |
| Volume | . 252 m³ |
| Shipping weight | 81.54 kg |
| HTS code (EU) | 8479899790 |
| HTS code (GB) | 8479899790 |
Technical
| Dry Weight (lb) | 1 52 |
|---|---|
| Hose inside diameter (mm) | 19. 05 |
| Inlet size (in) | 1 |
| Inlet size (mm) | 25. 4 |
| Maximum working pressure (psi) | 2 0 00 |
| Outlet Size (in) | 1 |
| Outlet Size (mm) | 25. 4 |
| Overall height (in) | 26. 13 |
| Overall height (mm) | 664 |
| Overall Length (in) | 26. 4 |
| Overall Length (mm) | 671 |
| Overall width (in) | 17. 47 |
| Overall width (mm) | 444 |
| Series | 40 |
| Frame type | Box Frame |
| Reel Thread Type | NPT |
| Recommended fluid type | Oil |
| Hose reel type | Bare Reel |
| Model | XD |
| includes hose | No |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Deutsch)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (English)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Français)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Español)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Italiano)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (русский)
Verkaufsliteratur
- 303245ENEU Vehicle Service Equipment Buyer's Guide (English (UK))
- 303245ENEU Vehicle Service Equipment Buyer's Guide (русский)
