Manufacturer no.:
24P326

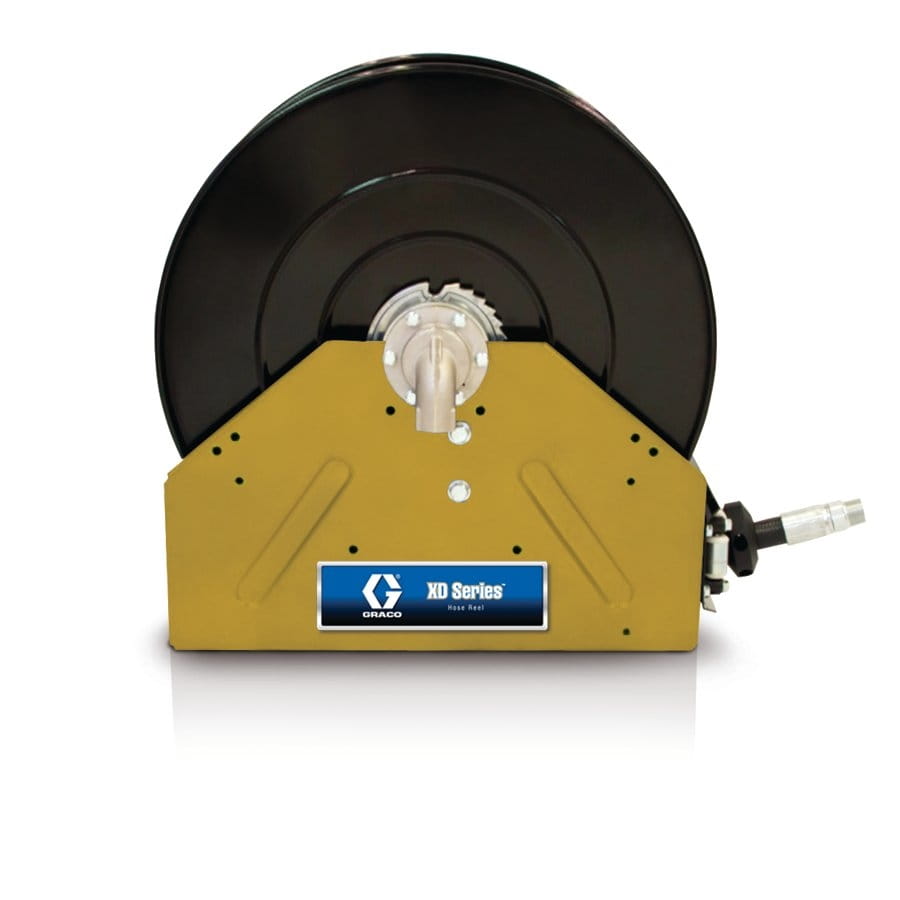

XD40™, oil, 25 mm (1") inlet, no accessories (19 mm X 30 m (3/4" X 100') capacity), NPT, white
€3,466.83*
% €3,852.03* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco XD40 and XD50 series hose reels are built to last and perform when you need them. Choose from multiple colour options, thread types, and hoses. Typical materials include: petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, and waste oil.
Ideal for use in both indoor and outdoor applications at heavy-duty vehicle dealerships, fleet maintenance, public works, construction vehicle maintenance, agricultural vehicle maintenance and emergency service.
- Wide range of hose options – standard models come complete with hoses factory installed on the reel, with a wide selection of optional reels for various applications
- Full flow swivel – Maximise fluid flow with minimal pressure drop for faster filling – increasing throughput in your workshop.
- Rugged and durable body – heavy-duty welded reel and ribbed frame for added strength and resistance to wear
- Meets worldwide requirements - comes standard with 90° elbow with NPT threads
| Application: | oil |
|---|---|
| Colour: | White |
| Frame type: | Box frame |
| Hose included: | No |
| Hose length (m): | 30 |
| Hose reel type: | Reel without accessories |
| Inlet size (inch): | 1 |
| Inlet size (mm): | 25.4 |
| Inlet thread type: | NPT |
| Inner diameter hose (inch): | 3/4 |
| Inner diameter hose (mm): | 19.05 |
| Maximum operating pressure (psi): | 2000 |
| Model: | XD |
| Outlet size (inch): | 1 |
| Outlet size (mm): | 25.4 |
| Recommended environment: | Indoor, For outdoor use |
| Recommended material type: | oil |
| Reel thread type: | NPT |
| Series: | 40 |
| Single retractor: | 1 |
| Total height (mm): | 664 |
| Total length (mm): | 671 |
| Total width (mm): | 444 |
| Type: | Spring reel |
| Wetted parts: | Galvanised steel, anodised aluminium, nitrile rubber |
More information
- Product number: 1032789
- Manufacturer: Graco
- EAN: 00633955379985
- Weight: 81.193 kg
Technical details
Operating specifications
| UPC product | 633955379985 |
|---|---|
| Division | LED |
| Price Block | 1 5 0 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 81.19 KG |
| HTS code (EU) | 7326905000 |
| HTS code (GB) | 7326905000 |
Technical
| Dry Weight (lb) | 1 52 |
|---|---|
| Hose inside diameter (mm) | 19. 05 |
| Inlet size (in) | 1 |
| Inlet size (mm) | 25. 4 |
| Maximum working pressure (psi) | 2 0 00 |
| Outlet Size (in) | 1 |
| Outlet Size (mm) | 25. 4 |
| Overall height (in) | 26. 13 |
| Overall height (mm) | 664 |
| Overall Length (in) | 26. 4 |
| Overall Length (mm) | 671 |
| Overall width (in) | 17. 47 |
| Overall width (mm) | 444 |
| Series | 40 |
| Frame type | Box Frame |
| Reel Thread Type | NPT |
| Recommended fluid type | Oil |
| Hose reel type | Bare Reel |
| Model | XD |
| includes hose | No |
