Manufacturer no.:
30A040

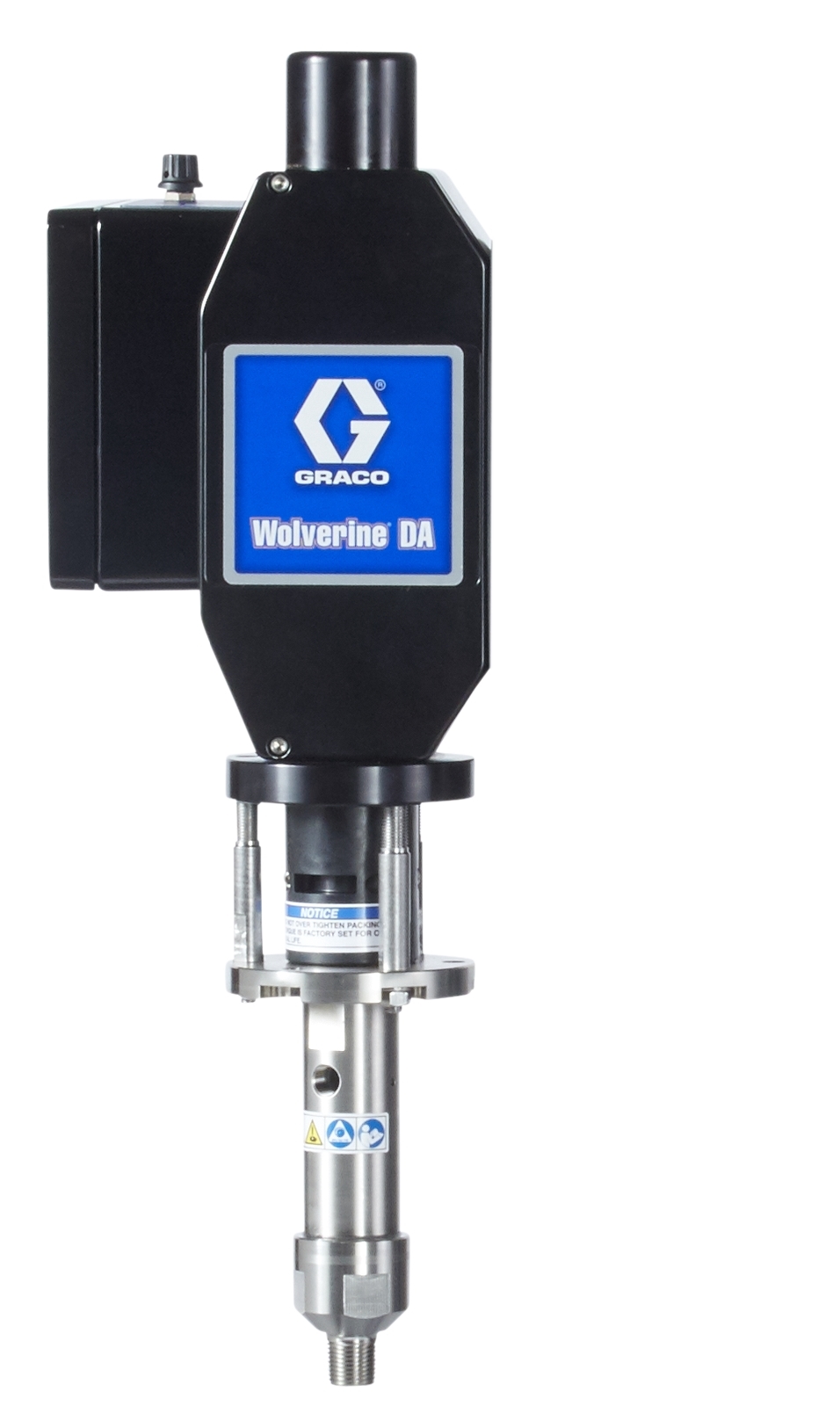

Wolverine® DA pump, 24 VDC, 3/4", ceramic-coated piston, FFKM seals
€10,220.55*
% €11,356.17* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Wolverine DA uses a double-acting pump fluid section, which helps it achieve double the flow of a similar single-acting pump. It is also self-priming, allowing the pump to free itself from trapped air and resume operation without being physically located at the pump. The fluid sections are universal and can be used with pneumatic and electric actuators. The Wolverine DA mounts directly to a pole, eliminating the need for a stand. The pump uses a brushless motor that helps keep power draw to a minimum and has variable speed control built right into the motor.
- Double acting
- Delivers fluid in both directions of stroke – resulting in higher flow rates
- Continuous flow operation for better pump efficiency
- Doubles the flow of a similar single-acting pump
- Self-priming
- Anti-seizing system to prevent air from becoming trapped in the air motor and causing the pump to shut down
- Pump is self-priming and will resume pumping without adjustment
- Maintenance-friendly
- Simple pump design for quick seal replacement
- Pumps are installed vertically to minimise space requirements

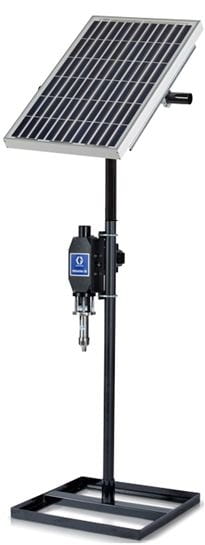

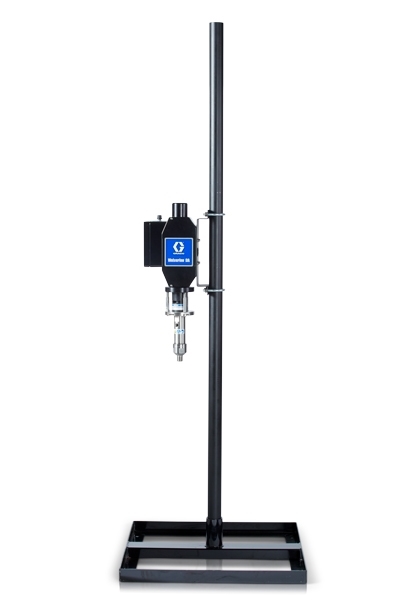

- Pump mounts directly to a pole
- Minimum number of tools required
- Variable speed motor
- Suitable for applications that require continuous chemical dosing
- Brushless DC motor to reduce current draw
- Variable speed control eliminates the need for a separate controller
| Application: | Hazardous zone |
|---|---|
| Gender of the material inlet thread: | External thread |
| Gender of the material outlet thread: | Internal thread |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 6.35 |
| Material outlet size (mm): | 635 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 4.1 |
| Maximum operating pressure (kPa): | 4100 |
| Maximum operating pressure (psi): | 600 |
| Maximum sound pressure level (dB(A)): | 70 |
| Model: | Wolverine |
| Permissible operating pressure (bar): | 41 |
| Piston material: | Ceramic coated |
| Sealing material: | FFKM |
| Series: | DA |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 0.75 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 0.25 |
| Tension: | 24 VDC |
| Type: | Electric chemical pump |
| Voltage (V dc): | 24 |
More information
- Product number: 1037695
- Manufacturer: Graco
Technical details
Operating specifications
| UPC product | 755652793632 |
|---|---|
| Division | LED |
| Price Block | 2 51 |
| Country of Origin | US |
| Unit of measurement | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
Technical
| Fluid inlet size (in) | 0. 75 |
|---|---|
| Fluid inlet thread gender | Male |
| Fluid outlet size (cm) | 6. 35 |
| Fluid outlet size (mm) | 0. 635 |
| Fluid outlet thread gender | Female |
| Maximum working pressure (bar) | 41 |
| Maximum working pressure (kPa) | 4 100 |
| Maximum working pressure (psi) | 600 |
| Plunger material | Ceramic coated |
| Plunger Size (in) | 3/ |
| Voltage (V DC) | 2 4 |
| Voltage | 24 VDC |
| Plunger rod coating | Cer amic |
| Maximum working pressure (MPa) | 4. 1 |
| Fluid inlet size (cm) | 1. 905 |
| Fluid inlet size (mm) | 19. 05 |
| Maximum sound pressure level (dB(A)) | 70 |
| Series | DA |
| Model | W olverine |
