Wolverine® DA pump, 24 VDC, 1", Chromex-coated piston, FFKM seals
€12,305.79*
% €13,673.10* (10% saved)Ready for shipping in 5-8 Werktage
The Wolverine DA utilises a double-acting pump material section that helps to achieve twice the flow of a similar single-acting pump. Self-priming, allowing the pump to free itself of trapped air and resume operation without being physically located on the pump. The material sections are universal and can be used with pneumatic and electric drives. The Wolverine DA is mounted directly onto a mast, so no stand is required. The pump uses a brushless motor, which helps to keep power consumption to a minimum, and has variable speed control directly on the motor.
- Double-acting
- Pumps liquid in both stroke directions - resulting in higher flow rates
- Continuous flow operation for better pump efficiency
- Doubles the flow of a similar single-acting pump
- Self-priming
- Anti-blocking system to prevent air from being trapped in the air motor and causing the pump to shut down
- The pump can clear itself of air and resume pumping without adjustments
- Ease of maintenance
- Simple pump design for quick seal replacement
- Pumps are installed vertically to minimise space requirements

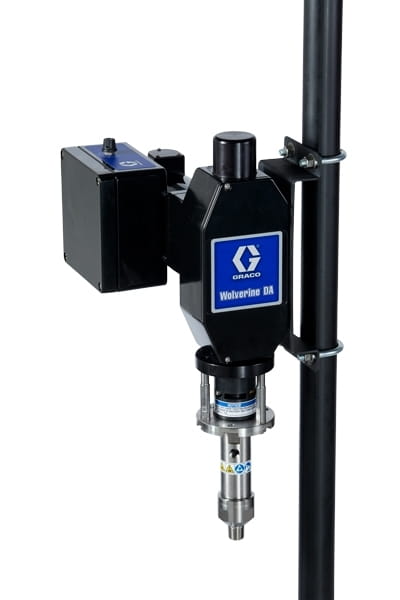

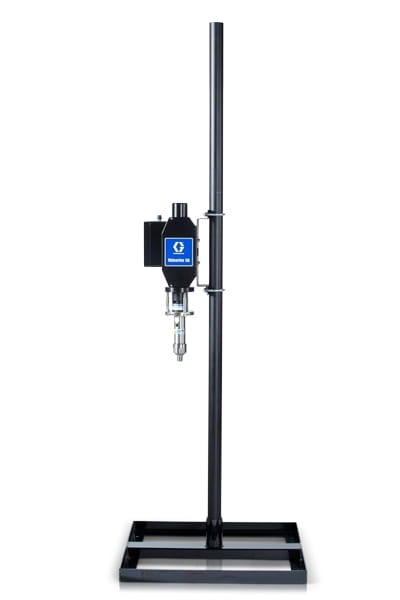

- The pump is mounted directly on a mast
- Minimum number of tools required
- Variable speed motor
- Suitable for applications that require continuous chemical dosing
- Brushless DC motor to reduce current consumption
- Variable speed control eliminates the need for a separate controller
| Application: | Hazardous zone |
|---|---|
| Gender of the material inlet thread: | External thread |
| Gender of the material outlet thread: | Internal thread |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 12.7 |
| Material outlet size (mm): | 1.27 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 2.6 |
| Maximum operating pressure (kPa): | 2600 |
| Maximum operating pressure (psi): | 380 |
| Maximum sound pressure level (dB(A)): | 70 |
| Model: | Wolverine |
| Permissible operating pressure (bar): | 26 |
| Piston material: | Chromex coated |
| Sealing material: | FFKM |
| Series: | DA |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 0.5 |
| Tension: | 24 VDC |
| Type: | Electric chemical pump |
| Voltage (V dc): | 24 |
- Product number: 1032285
- Manufacturer: Graco
