Product information

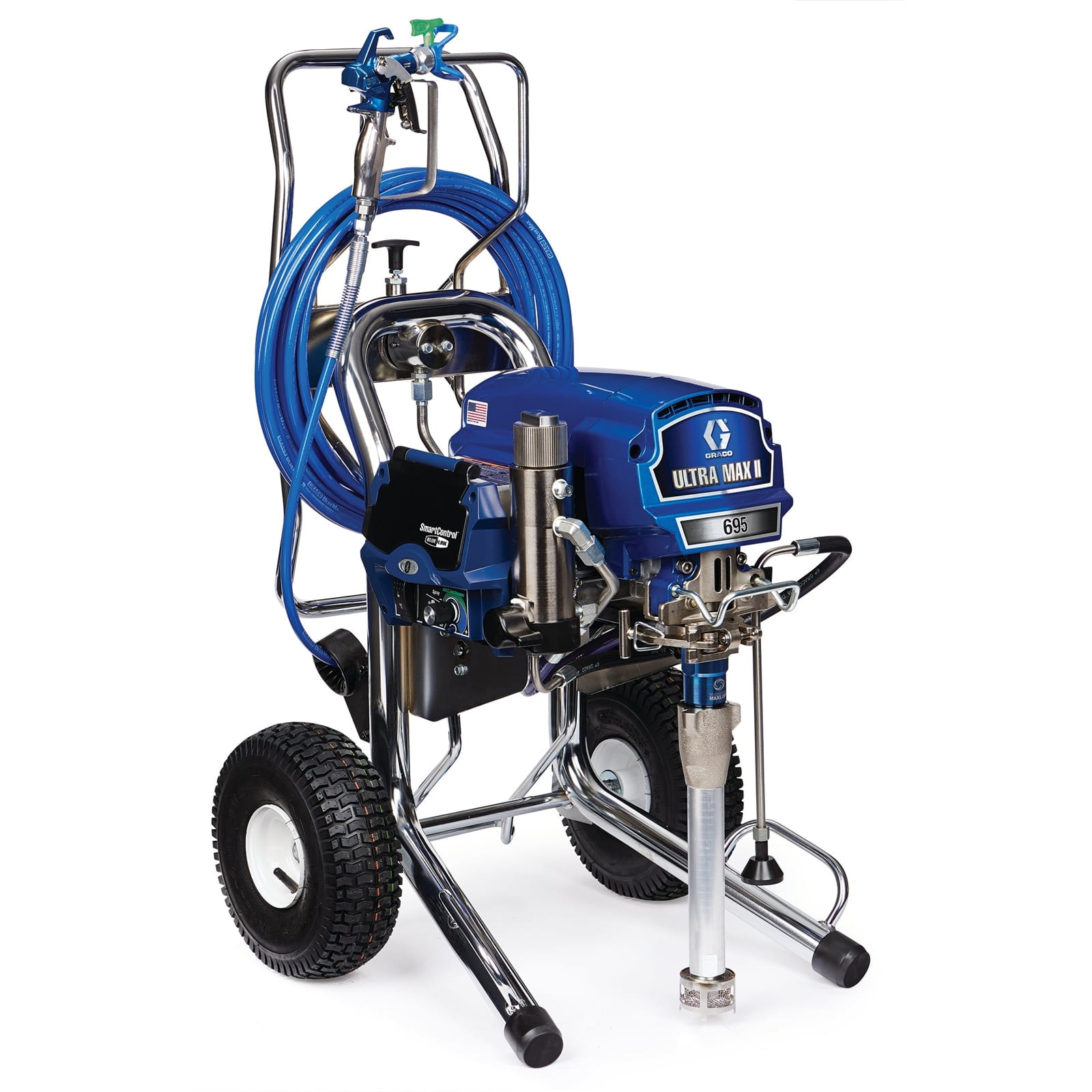

The Ultra Max II 695 ProContractor range offers reliability and performance with its 1.75 hp brushless DC motor, Endurance Vortex MaxLife pump and BlueLink application and sprayer management system, as well as time-saving features such as the ProConnect 2 pump replacement system and QuikReel hose management system.

Work smarter, get more jobs done The ProContractor range of electric airless sprayers are specifically designed for professional renovation contractors and painting and decorating businesses who want to increase the number of larger jobs they can complete and be able to apply a wide variety of coatings with different nozzle sizes.

  • Endurance Vortex MaxLife piston pump
    • Outstanding pump life
    • Pioneering Vortex torsion bar technology
    • Lasts 6x longer after each replacement thanks to innovative MaxLife technology
    • Oversized passages for high flow to rotate the rod for even wear
    • Replace pump in minutes with the new QuikPak cartridge repair system
  • SmartControl 4.0 with ProGuard protection system
    • Precision pressure control
    • The lowest dead zone at any pressure delivers a uniform spray pattern without pressure fluctuations
    • ProGuard prevents electrical damage caused by extreme power supply conditions at the point of use
    • WatchDog pump protection system automatically prevents pump damage when material supply is too low
  • BlueLink application and sprayer management system
    • Optimise your operation
    • Track every sprayer: accurate location and hourly productivity
    • Keep an eye on work progress: on-demand productivity data and reporting from anywhere
    • Maximise uptime Set maintenance schedules, alerts and job site notes
  • QuikReel hose management system
    • Simple hose management
    • Unwind and rewind up to 90 metres (300 feet) of hose in seconds.
    • No twisting, kinking or coiling
    • Use only as much hose length as needed - the rest stays on the reel
  • MaxPower motor and Advantage Drive
    • Get more work done
    • Proven performance for all painting applications
    • Brushless design with high torque
    • The drive with the longest service life
    • The hardened steel gears run particularly quietly
    • Lifetime warranty on motor and drive train
  • ProConnect 2 pump replacement system
    • No more costly downtime
    • Pump replacement within minutes
    • Pinless design, no tools required
  • FastFlush 2 system
    • Now fast cleaning is even FASTER
    • Clean the pump up to six times faster with half the amount of water
    • Material flow at high speed thanks to 60% higher motor speed
  • Permanent filtration
    • Easy maintenance and fewer blockages thanks to Easy Out filter
    • Pressure-resistant inlet strainer withstands hard impacts and maintains consistent flow
  • Additional features
    • High-performance suction valve
    • Durable chassis with robust construction
    • LED display
  • Contractor PC spray gun
    • High spraying comfort and control - all day long
    • Lightest spray gun in its class
    • Up to 50 % less trigger force
    • E-Z Fit Adjustable trigger length.
    • Complete gun conversion in seconds with ProConnect cartridge
Compatible material: Primers, stains, acrylic paints, enamels, latex, interior paint, exterior paint
Compatible replacement pump: 248205
Convertible: Not convertible
Filter mesh size: 60
Frame configuration: Hi boy
Frequency (Hz): 50
Hose diameter (inch): 1/4
Hose inlet diameter (cm): 635
Hose inlet diameter (inch): 1/4
Hose inlet diameter (mm): 6.35
Inner diameter of material hose (inch): 1/4
Material outlet size (mm): 6.35
Material outlet thread type: NPSM
Maximum delivery rate (L/min): 3.6
Maximum hose length (m): 60
Maximum nozzle size (inch): 31
Maximum nozzle size 1 gun (inch): 31
Maximum nozzle size 2 guns (inch): 46
Maximum operating pressure (kPa): 2270
Maximum operating pressure (kg/cm²): 22.7
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 82
Minimum generator output (W): 5000
Minimum generator output (kW): 0
Model: Ultra Max II
Motor size (kW): 1.3
Motor type: Brushless, DC
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating overpressure (psi): 3300
Permissible operating pressure (bar): 227
Phases: 1
Pressure control type: SmartControl
Product series: ProContractor
Pump mounting type: ProConnect
Pump rod type: MaxLife
Pump sleeve material: MaxLife
Pump type: Endurance Vortex
Rated power (kW): 1.3
Region Plug type: Region IT, DK, CH (plug type L, K & J)
Series: 695
Size of the material outlet opening (inches): 1/4
Spray gun type: Contractor PC Pro pistol
Spraying technology: Airless
Supply voltage: Electric
Total height (cm): 99
Total height (mm): 9,779,000
Total length (cm): 75
Total length (mm): 749.3
Total width (cm): 57.2
Total width (mm): 5,715,000
Type: Airless sprayer
Voltage (V): 230
Weight (kg): 50
Wetted material: Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
More information
  • Product number: 1035472
  • Manufacturer: Graco
  • EAN: 00755652817291
  • Weight: 61.688 kg
  • Length: 680 mm
  • Width: 800 mm
  • Height: 1060 mm
