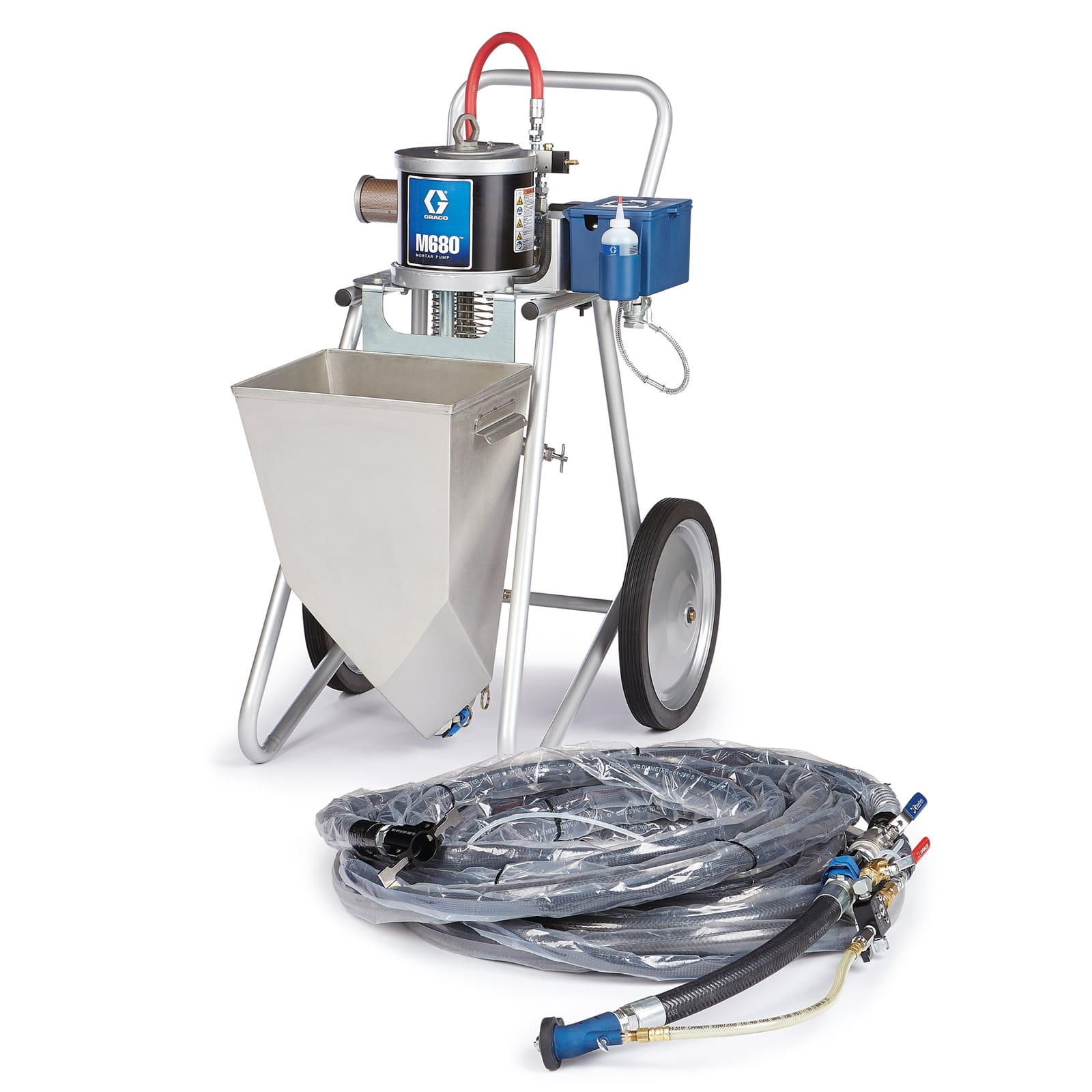

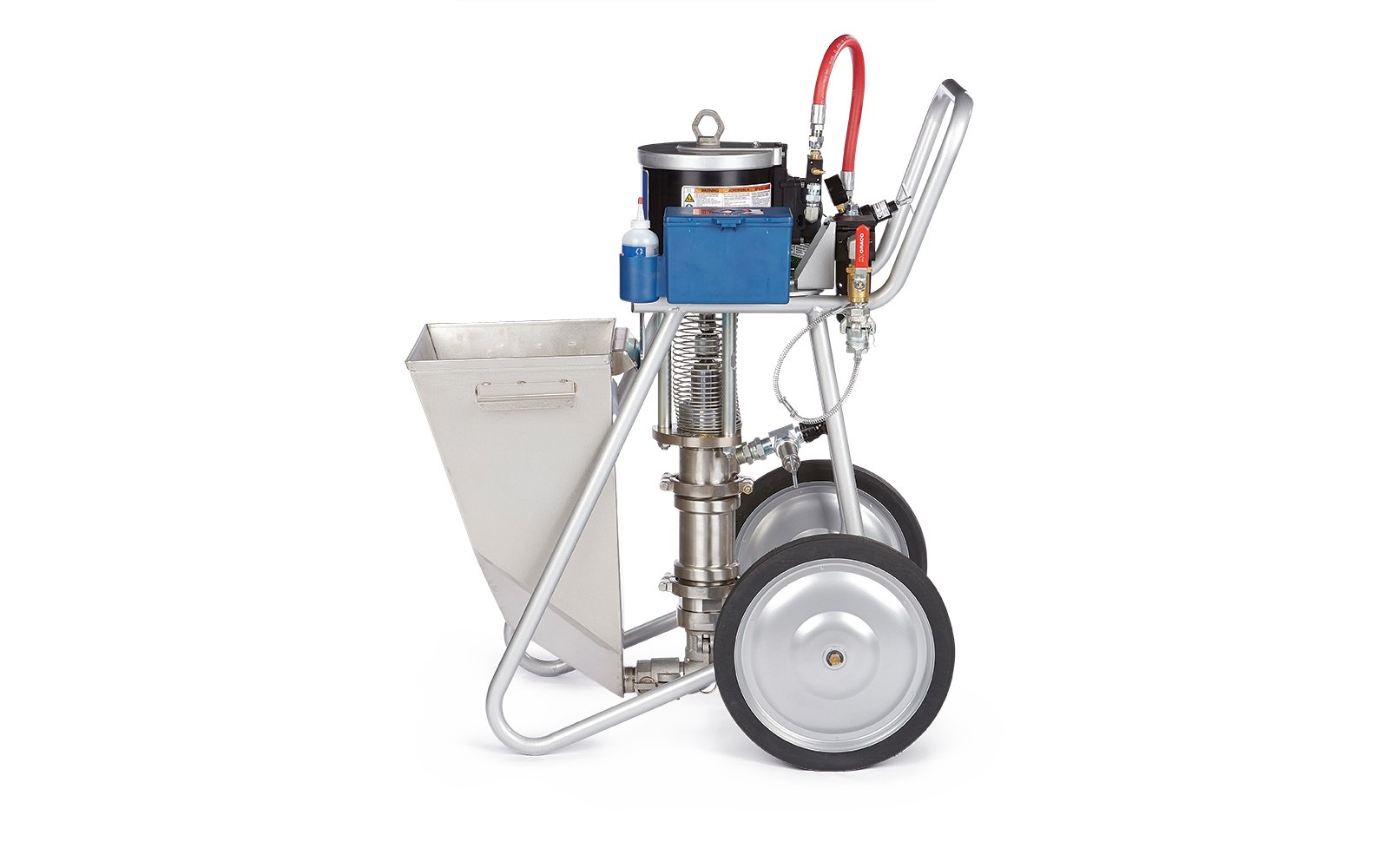

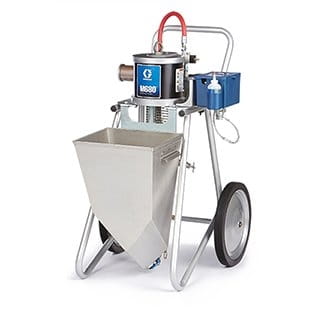

ToughTek M680a piston pump system without accessories, flex hose applicator
€14,639.98*
% €15,410.50* (5% saved)Ready for shipping in 5-8 Werktage
Graco's ToughTek M680a mortar pump is used for applications with coarse materials such as epoxy mortars, non-slip coatings (bridges and marine industry - solvent-based coatings) or cementitious materials and handles difficult polymers with fillers such as glass flakes, quartz sand or normal sand. The fully stainless design makes cleaning epoxy mortars simple and easy.
Mobile sprayer for mortar, cementitious and heavy filled materials
Key features:
- Low pressure pumping (13.7 to 34.5 bar/200 to 500 psi) reduces wear on the lower pump
- Less material waste and more uniform finish than manual processing
- Quick, easy cleaning with high-speed flushing
- Can be quickly dismantled for manual cleaning
- Explosion-proof for potentially explosive spraying areas
- A convenient air source for pumping and atomising air
Flex hose applicator
- Ideal for heavily filled materials that flocculate easily
- With round nozzle; provides a rough surface texture
- Simple design, easy to clean
- Part number 24T947 for ordering
Wand applicator
- For hard-to-reach areas
- Ideal for heavily filled materials that flocculate easily
- With round nozzle; ensures a rough surface texture
- Simple construction, easy to clean
- Part number 24T946 for ordering
HTX 680 Applicator
- Good for lighter materials that do not normally flocculate
- Includes nozzles for a round spray pattern; for a medium textured finish with a round spray pattern
- Air mixed into the material through multiple venturi ports provides an even spray pattern
- Provides a more controlled spray pattern on lightweight materials or high solids coatings
- With discs for a flat spray pattern - sprays the spray pattern like a fan, creating a larger coverage area per pass
- Part number 24U209 for ordering
Large capacity material hopper
- 95 litre (25 gal) material container set
- Ideal for materials that require more than 38 litres (10 gal.) capacity, such as refractory materials
- Increases productivity by minimising refills
- Easy connection to the ToughTek M680a
- Easy connection and maintenance
- Part number 24W889 for ordering
| Application: | industry |
|---|---|
| Compatible material: | Cementitious material |
| Gender of the material inlet thread: | External thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | stainless steel |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 7 |
| Maximum operating pressure (kPa): | 7000 |
| Maximum operating pressure (psi): | 1000 |
| Model: | ToughTek |
| Motor type: | Pneumatic |
| Permissible operating pressure (bar): | 70 |
| Series: | M680a |
| Size of the material outlet opening (inches): | 1 |
| Type: | Pneumatic piston pump system |
- Product number: 1038611
- Manufacturer: Graco
- EAN: 00633955500884
- Weight: 115.968 kg
- Length: 970 mm
- Width: 770 mm
- Height: 1300 mm
