Product information

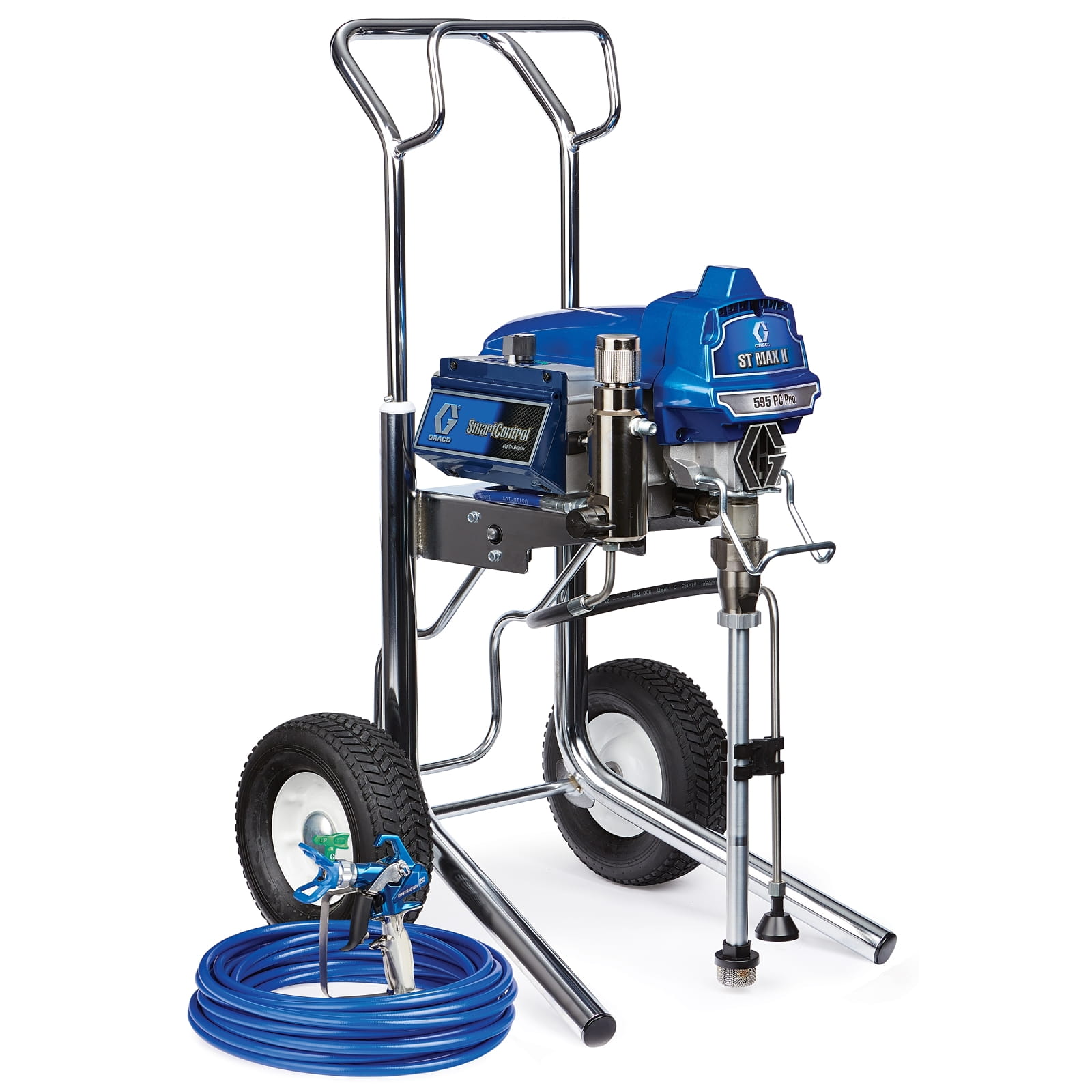

The ST Max II 595 PC Pro airless sprayer is the ideal solution for the painting professional who expects the highest possible performance from a small, portable device. It supports WideRAC spray nozzles so that large-area projects can be completed more quickly. At the same time, the longer pump stroke ensures a longer service life after each replacement.

Improved productivity Unrivalled reliability. Graco's mid-size electric airless sprayers help you get more work done in a day with increased flow and higher production output.

  • Durable "Endurance Chromex" piston pump
    • Lasts 2 times longer than the next leading brand
    • Durable "V-Max Blue" packings, Chromex piston rod and hardened stainless steel cylinder
    • Faster cleaning with the QuikAccess inlet valve
  • SmartControl with digital display

    • Consistent pressure output with every job
    • Continuous performance monitoring and adjustment of the engine speed to the spraying requirements
    • Measurement of litres/gallons, operating hours and sprayer pressure
    • Support messages and diagnostic support
  • MaxPower motor and Advantage Drive
    • Proven performance for all painting applications
    • Brushless design with high torque
    • The most durable drive
    • Hardened steel gears ensure extremely smooth running
  • One-piece ProConnect pump replacement system
    • No more costly downtime
    • Pump changes in minutes - no tools, bolts or parts to lose
  • FastFlush cleaning system with high flow rate
    • More spraying and less cleaning
    • 4 times faster cleaning with half the amount of water
  • "Easy Out pump filter
    • Easy maintenance and less clogging
    • Exclusive inside-out filter process for a high-quality finish
  • Durable chassis construction with stand
    • Withstands harsh operating environments
    • Design allows easy replacement of material containers by a single person
    • Retractable handle doubles as a hose tray
    • Stand for easy replacement of material containers by a single person
  • "Contractor PC spray gun

    • Comfort and control all day long
    • The lightest gun in its class
    • Up to 50 % less trigger pull
    • Length-adjustable "E-Z Fit" trigger
    • Convert the entire gun in seconds with the ProConnect cartridge
  • Durable chassis construction with stand
    • Withstands harsh working environments
    • Design allows for easy one-person material container replacement
    • Retractable handle doubles as a hose holder
    • Stand allows one person to easily change material containers
    • Tool box for easy storage of accessories, spare parts and tools
  • "Contractor PC spray gun
    • Comfort and control all day long
    • The lightest gun in its class
    • Up to 50 % less trigger pull
    • Length-adjustable "E-Z Fit" trigger
    • Conversion of the complete gun in seconds with the ProConnect cartridge
Compatible replacement pump: 17C489
Convertible: Not convertible
Filter mesh size: 60
Frame configuration: Hi boy
Frequency (Hz): 60
Hose diameter (inch): 1/4
Hose inlet diameter (cm): 635
Hose inlet diameter (inch): 1/4
Hose inlet diameter (mm): 6.35
Inner diameter of material hose (inch): 1/4
Material outlet size (mm): 6.35
Material outlet thread type: NPSM
Maximum delivery rate (L/min): 2.6
Maximum hose length (m): 45
Maximum nozzle size (inch): 27
Maximum nozzle size 1 gun (inch): 27
Maximum operating pressure (kPa): 2270
Maximum operating pressure (kg/cm²): 22.7
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 90
Minimum generator output (W): 4000
Minimum generator output (kW): 0
Model: ST Max II
Motor size (kW): 1.19
Motor type: Brushless, DC
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating overpressure (psi): 3300
Permissible operating pressure (bar): 227
Phases: 1
Pressure control type: SmartControl
Pump mounting type: ProConnect
Pump rod type: Chromex
Pump sleeve material: Hardened stainless steel
Pump type: Endurance
Rated power (kW): 1.19
Region Plug type: UK region (plug type G)
Series: 595 PC Pro
Size of the material outlet opening (inches): 1/4
Spray gun type: Contractor PC Pro pistol
Spraying technology: Airless
Supply voltage: Electric
Total height (cm): 72
Total height (mm): 7,112,000
Total length (cm): 59.1
Total length (mm): 590.55
Total width (cm): 52.1
Total width (mm): 5,207,000
Type: Airless sprayer
Voltage (V): 110
Weight (kg): 33
Wetted material: Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
More information
  • Product number: 1032625
  • Manufacturer: Graco
  • EAN: 00755652818908
  • Weight: 40.823 kg
  • Length: 630 mm
  • Width: 550 mm
  • Height: 800 mm
