Manufacturer no.:
CS2110

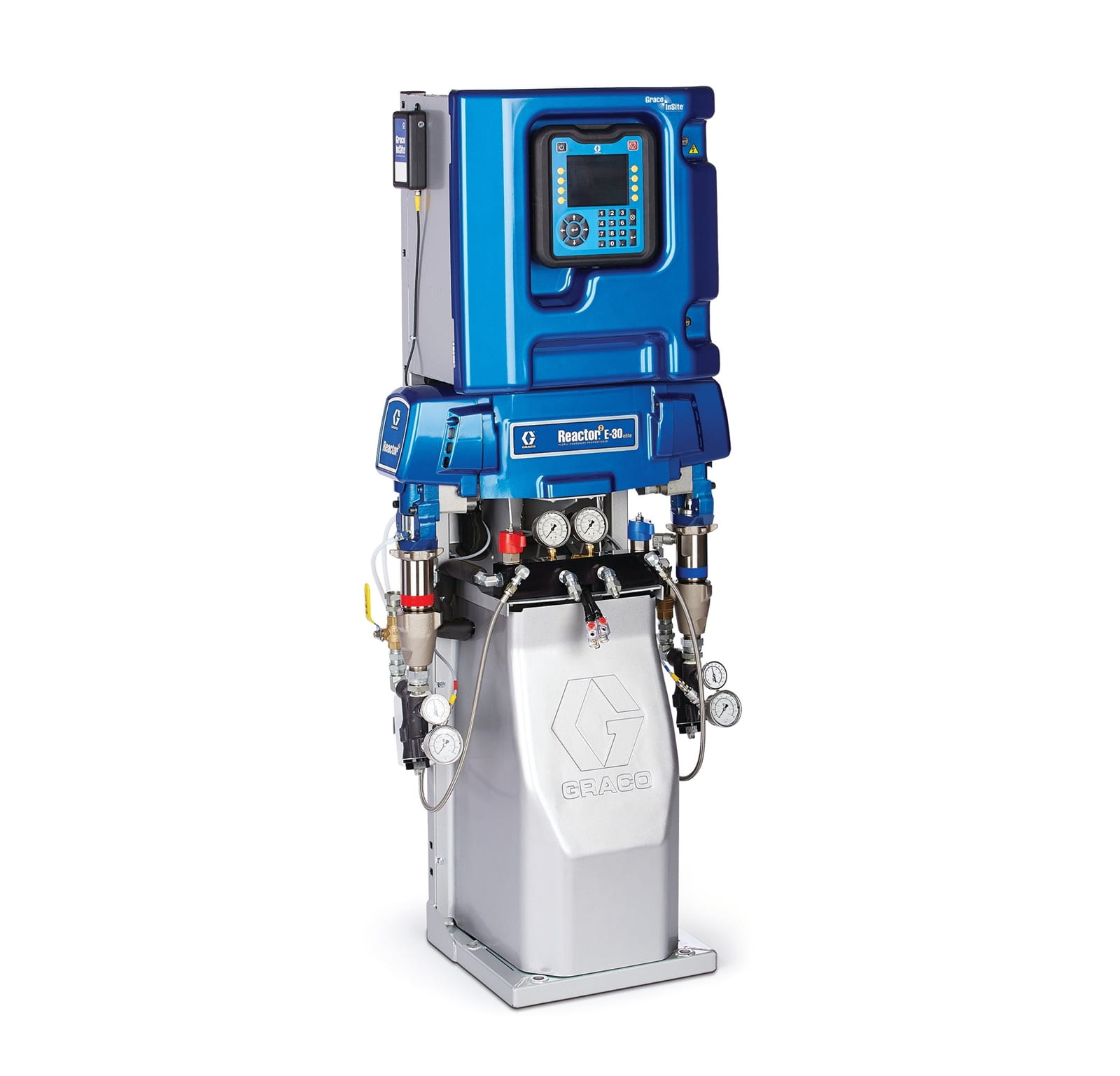

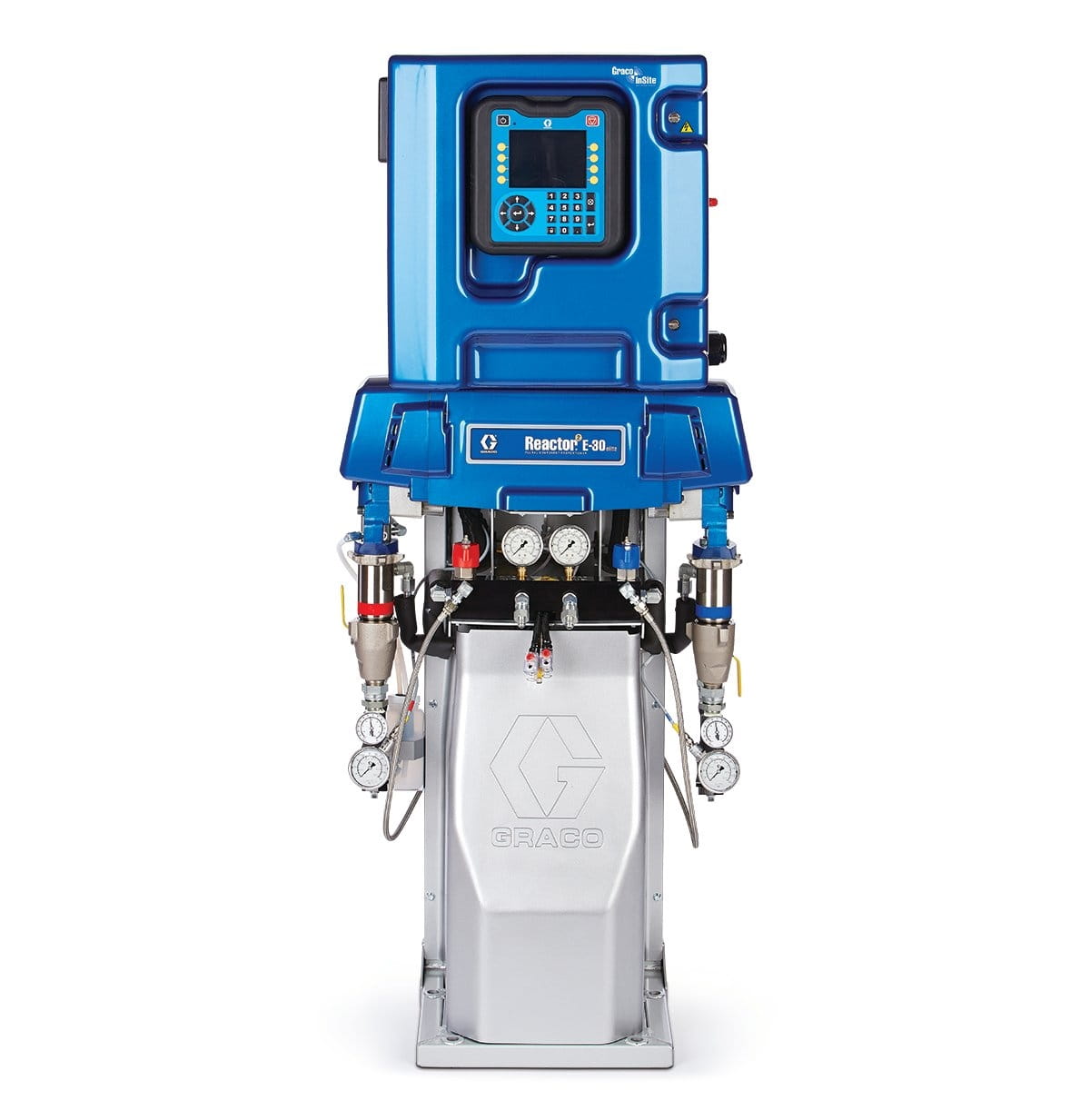

Reactor 2 E-30 Elite complete dosing unit, Fusion CS gun, heated hose with Xtreme wrap, 10 kW, 230/400 V
€42,092.44*
% €46,769.38* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Every single feature of the Reactor 2 has been strategically designed to support your business operations with innovations that help you ensure a smooth workflow. Improved software and hardware for better spraying performance. And new technologies for a better end result.

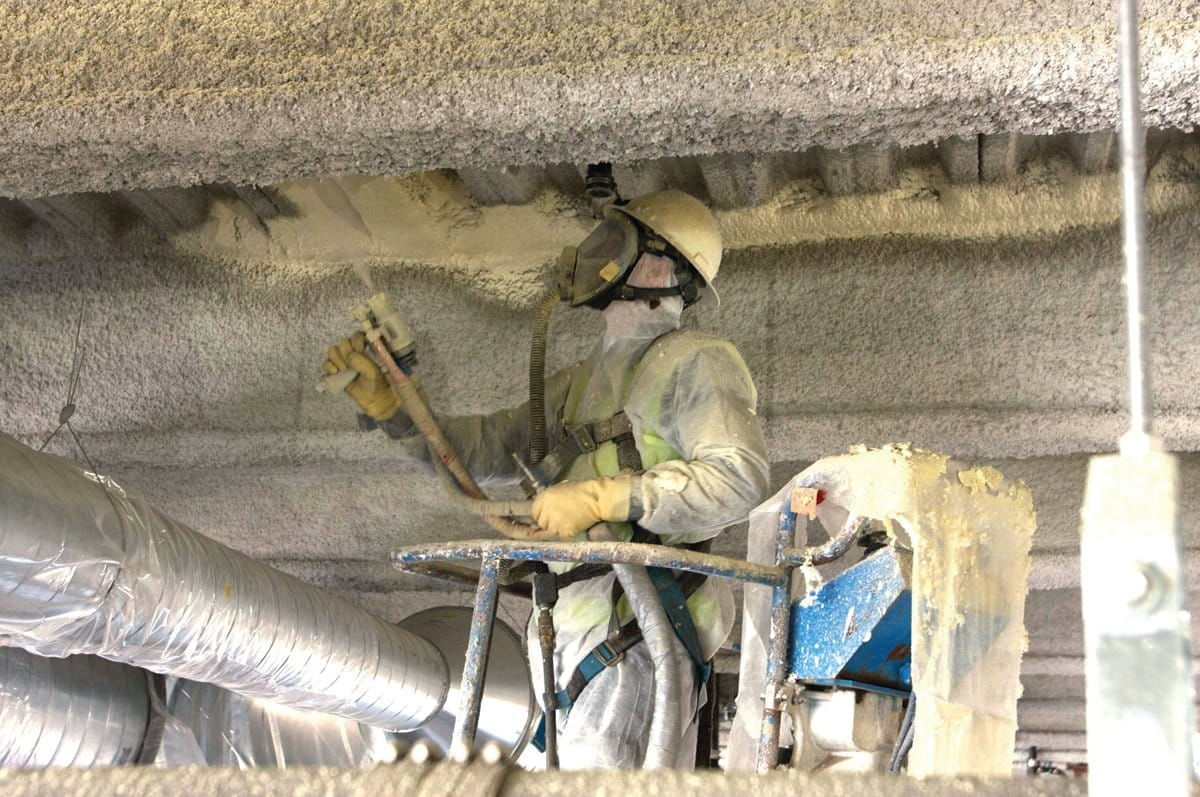

Next generation technology for spray foam and polyurea insulation
Advantages of the Reactor 2 E-30:

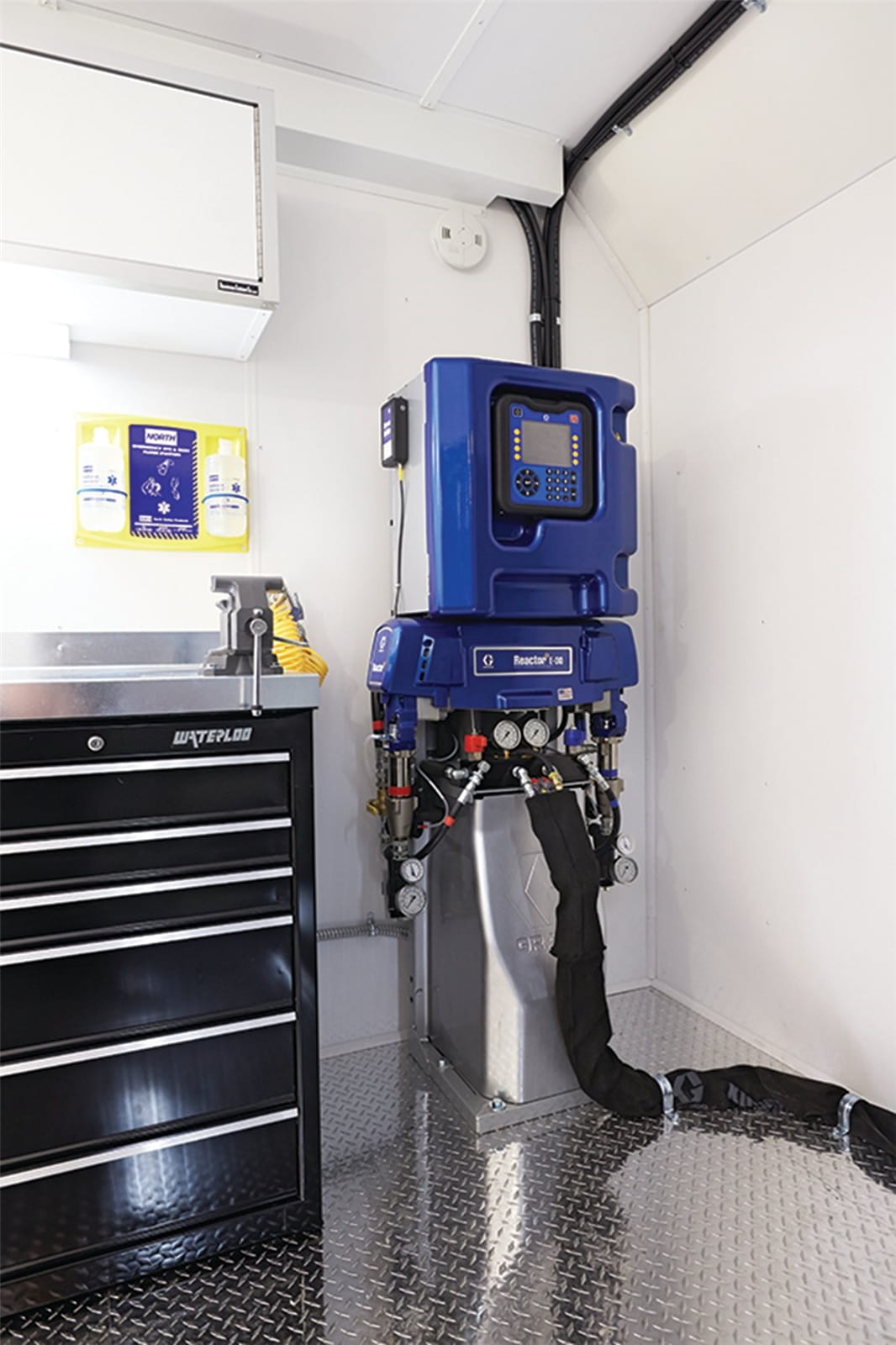

- Compact footprint - more space in the spraying system
- Ergonomic design - easier maintenance
- Extended control modules
- Better spraying performance compared to conventional electric Reactor systems
- Quick and smooth troubleshooting with QR codes
Graco InSite gives you:
- Better control - monitor your spray foam or polyurea operations from anywhere
- Better documentation - automatically capture job log data and spray parameters - so you can confirm that the job was sprayed to specification
- Better fleet and team management
- Better cost containment and forecasting
- Graco InSite is standard on all Reactor 2 Elite models
Advanced control technology
- Tracks, monitors and stores project data
- Data can be saved and downloaded to a USB drive
- Storage of up to 24 chemical recipes
- Drum level indicator
Graco InSite technology for remote data transfer
- Transmits real-time job activity that you can view on your smartphone, tablet or computer
- Standard on Elite models
Quick and easy troubleshooting thanks to QR code links
- Ensures less downtime
- Easily accessible, conveniently placed electronics
Advanced control modules
- Handles power fluctuations
Overvoltage protection
- Protects your electronics from excessive power peaks
- Consistent and constant spraying performance - similar to hydraulic systems
3 year warranty
- Includes user display module, control modules and electric motor
- One of the best in the industry
| Application: | Spray foam |
|---|---|
| Applicator type: | Hand- |
| Compatible material: | Multicomponent materials |
| Component A, inlet size (inch): | 1/2 |
| Component A, inlet size (mm): | 12.7 |
| Component A, thread type: | JIC |
| Component B, inlet size (mm): | #10 |
| Component B, outlet size (inch): | 5/8 |
| Component B, outlet size (mm): | 15,875 |
| Component B, thread type: | JIC |
| Component type: | Two-component |
| Frequency (Hz): | 50/60 |
| Gender of the material inlet thread: | Internal thread |
| Gun type: | Fusion CS |
| Hose length (m): | 15, 3 |
| Hose type: | Single hose |
| Includes: | Dispenser, CS Gun, CS Fusion Gun, Heated Hose with Xtreme Wrap, Heated Whip End, Graco Insite, Fluid Inlet Sensors |
| Material application.: | Polyurethane foam |
| Material inlet thread type: | NPT |
| Maximum conveying capacity (kg/min): | 13.61 |
| Maximum material temperature (°C): | 88 |
| Maximum mixing ratio: | 1:1 |
| Maximum operating pressure (MPa): | 13.8 |
| Maximum operating pressure (kPa): | 13800 |
| Maximum operating pressure (psi): | 2000 |
| Model: | Reactor 2 |
| Noise pressure level, (dB(A)): | 83.6 |
| Permissible operating pressure (bar): | 138 |
| Phases: | 1, 3 |
| Print type: | High pressure |
| Product series: | Elite |
| Product type: | multi-component |
| Rated power (W): | 10200 |
| Rated power (kW): | 10 |
| Series: | E-30 |
| Sink type: | solvent |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Sound level, (dB(A)): | 93.5 |
| Supply voltage: | Electric |
| Total depth (cm): | 38.1 |
| Total depth (mm): | 381 |
| Total height (cm): | 160 |
| Total height (mm): | 1600 |
| Total width (cm): | 66.8 |
| Total width (mm): | 668 |
| Type: | Complete dosing device |
| Voltage (V): | 230, 400 |
| Weight (kg): | 161 |
| Wetted material: | Aluminum, Stainless Steel, Zinc Plated Carbon Steel, Brass, Carbide, Chrome, Chemical Resistant O-Rings, PTFE, UHMWPE |
More information
- Product number: 1036360
- Manufacturer: Graco
- EAN: 00633955646629
- Weight: 208.488 kg
Technical details
Operating specifications
| UPC product | 6 3 3955646629 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of Origin | US |
| Unit | EA |
Technical
| Amperage (A) | 34 @ 350 to 415 V ac (3-phase WYE), 50 @ 200 to 240 V ac (3-phase Delta), 78 @ 200 to 240 V ac (1-phase ) |
|---|---|
| Component A inlet size (in) | 1/2 |
| Component A inlet size (mm) | 12. 7 |
| Component A Thread Type | J IC |
| Component B inlet size (mm) | #10 |
| Component B Outlet Size (in) | 5/8 |
| Component B Outlet Size (mm) | 15. 875 |
| Component Type | Two Component |
| Fluid inlet size (cm) | 1. 905 |
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Frequency (Hz) | 50/60 |
| Includes | Proportioner, Fusion CS Gun, Heated Hose with Xtreme-Wrap, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors |
| Material application | Polyurethane foam |
| Maximum flow rate (kg/min) | 13. 61 |
| Maximum flow rate (lb/min) | 30 |
| Maximum fluid temperature (°C) | 88 |
| Maximum fluid temperature (°F) | 1 90 |
| Maximum mix ratio | 1: 1 |
| Maximum working pressure (bar) | 138 |
| Maximum working pressure (kPa) | 1 3 800 |
| Maximum working pressure (MPa) | 13. 8 |
| Maximum working pressure (psi) | 2 0 00 |
| Overall Depth (cm) | 38. 1 |
| Overall Depth (in) | 15 |
| Overall Depth (mm) | 381 |
| Overall height (cm) | 160 |
| Overall height (in) | 63 |
| Overall height (mm) | 1 6 00 |
| Overall width (cm) | 66. 8 |
| Overall width (in) | 26. 3 |
| Overall width (mm) | 668 |
| Power Rating (HP) | 13. 68 |
| Power rating (kW) | 10 |
| Power rating (W) | 1 0 200 |
| Product Type | Plural Component |
| Sound Pressure Level (dB(A)) | 83. 6 |
| Weight (kg) | 1 61 |
| Model | Reactor 2 |
| Series | E-30 |
| Product Series | Elite |
| Pants Package | Single Trousers |
