Manufacturer no.:
26A304

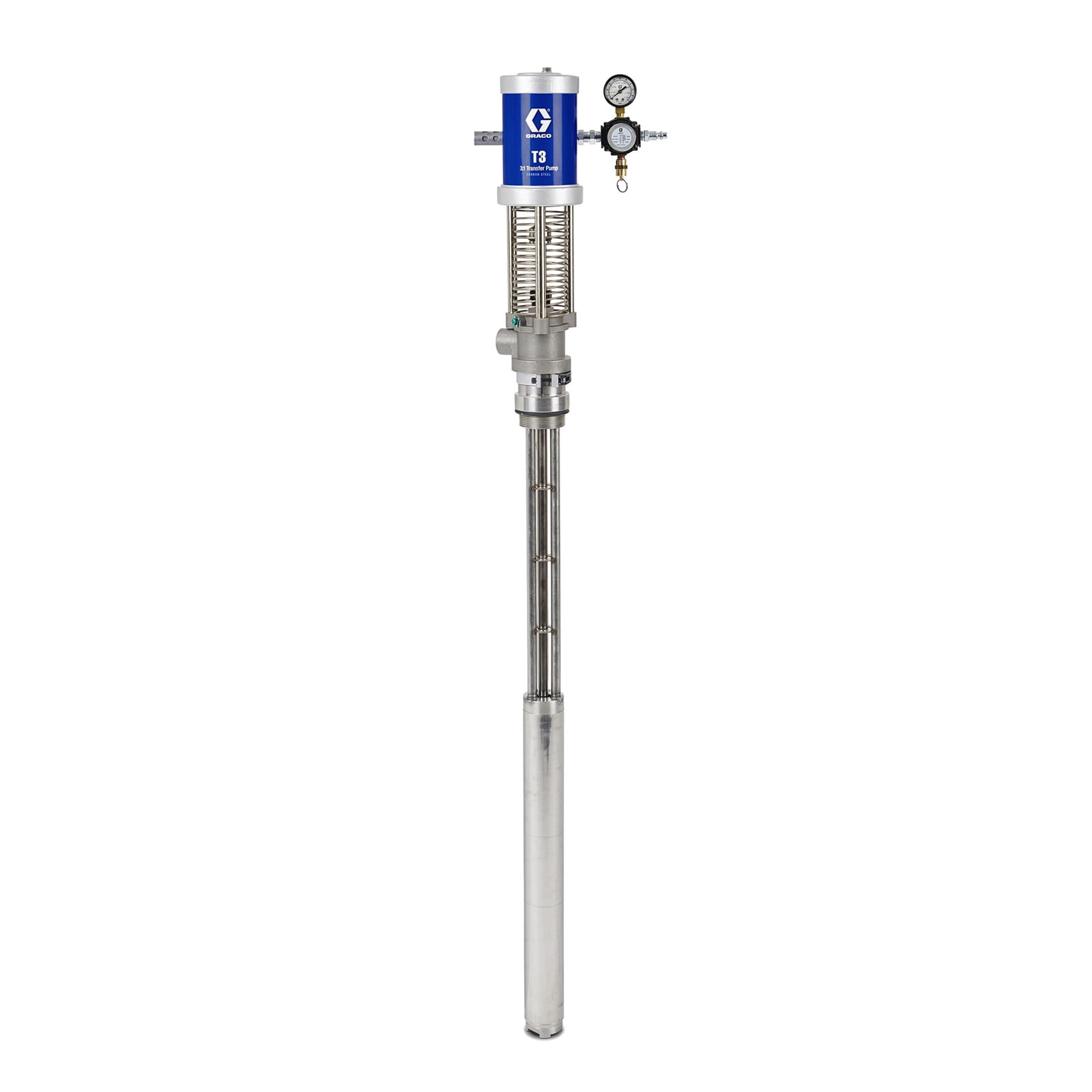

Pump T3 with pressure ratio 3:1
€2,693.57*
% €2,992.85* (10% saved)Prices include VAT plus shipping costs
€2,263.50*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Feed pumps are required to feed A and B materials to the Reactor spray systems. The T3 feed pump combines Graco's proven Merkur air motor with the popular T2 stainless steel lower pump. The T3 is a 3:1 ratio pump that uses less air pressure to deliver the same required material pressure.
- Easier to manoeuvre - The overall height of the T3 is 9.4 cm (3.7") shorter above the drum than the T2, making it easier to remove from the drum within a sprayer.
- Quieter - studies show that the T3 feed pump is approximately 3x quieter than the T2 feed pump.

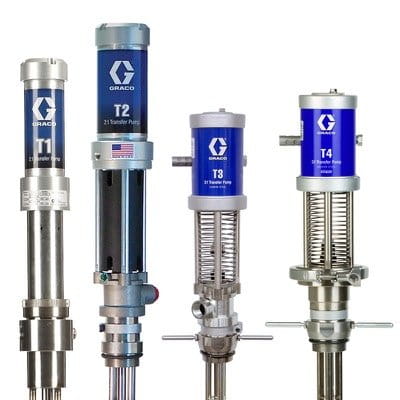

- Less maintenance - the Merkur air motor is based on air control valve technology. The switching of the air motor is purely pneumatic. This differs from the T1 and T2 feed pumps, which use a mechanical reversing mechanism in the air motor.
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | Polyurethane foam, polyurea |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Includes: | Material feed kit, air hose kit |
| Material: | stainless steel |
| Material outlet thread type: | NPT |
| Maximum air inlet pressure (MPa): | 0.69 |
| Maximum air supply pressure (bar): | 6.9 |
| Maximum air supply pressure (kPa): | 690 |
| Maximum inlet air pressure (psi): | 100 |
| Maximum operating pressure (MPa): | 2.2 |
| Maximum operating pressure (kPa): | 2170 |
| Maximum operating pressure (psi): | 315 |
| Model: | T3 |
| Package options: | Bare |
| Permissible operating pressure (bar): | 21.7 |
| Series: | stainless steel |
| Size of the air inlet (mm): | 6.35 |
| Transmission ratio of the pump: | 3:1 |
| Type: | Pneumatic piston pump |
| Weight (kg): | 10 |
| Wetted material: | stainless steel |
More information
- Product number: 1038687
- Manufacturer: Graco
- EAN: 00755652409694
- Weight: 12.7 kg
- Length: 1500 mm
- Width: 200 mm
- Height: 200 mm
Technical details
Operating specifications
| UPC product | 755652409694 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of Origin | US |
| Unit | EA |
| Height | 20 CM |
| Length | 150 CM |
| Width | 20 cm |
| Volume | . 06 m³ |
| Shipping weight | 12.7 KG |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet size (mm) | 6. 35 |
| Air inlet thread gender | Female |
| Fluid outlet thread gender | Female |
| Includes | Fluid Supply Kit, Air Hose Kit |
| Maximum air inlet pressure (bar) | 6. 9 |
| Maximum air inlet pressure (kPa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum working pressure (bar) | 21. 7 |
| Maximum working pressure (kPa) | 2170 |
| Maximum working pressure (psi) | 315 |
| Model | T3 |
| Series | Stainless Steel |
| Weight (kg) | 10 |
| Maximum working pressure (MPa) | 2. 2 |
| Maximum air inlet pressure (MPa) | 0. 69 |
