Manufacturer no.:
GCP2R4

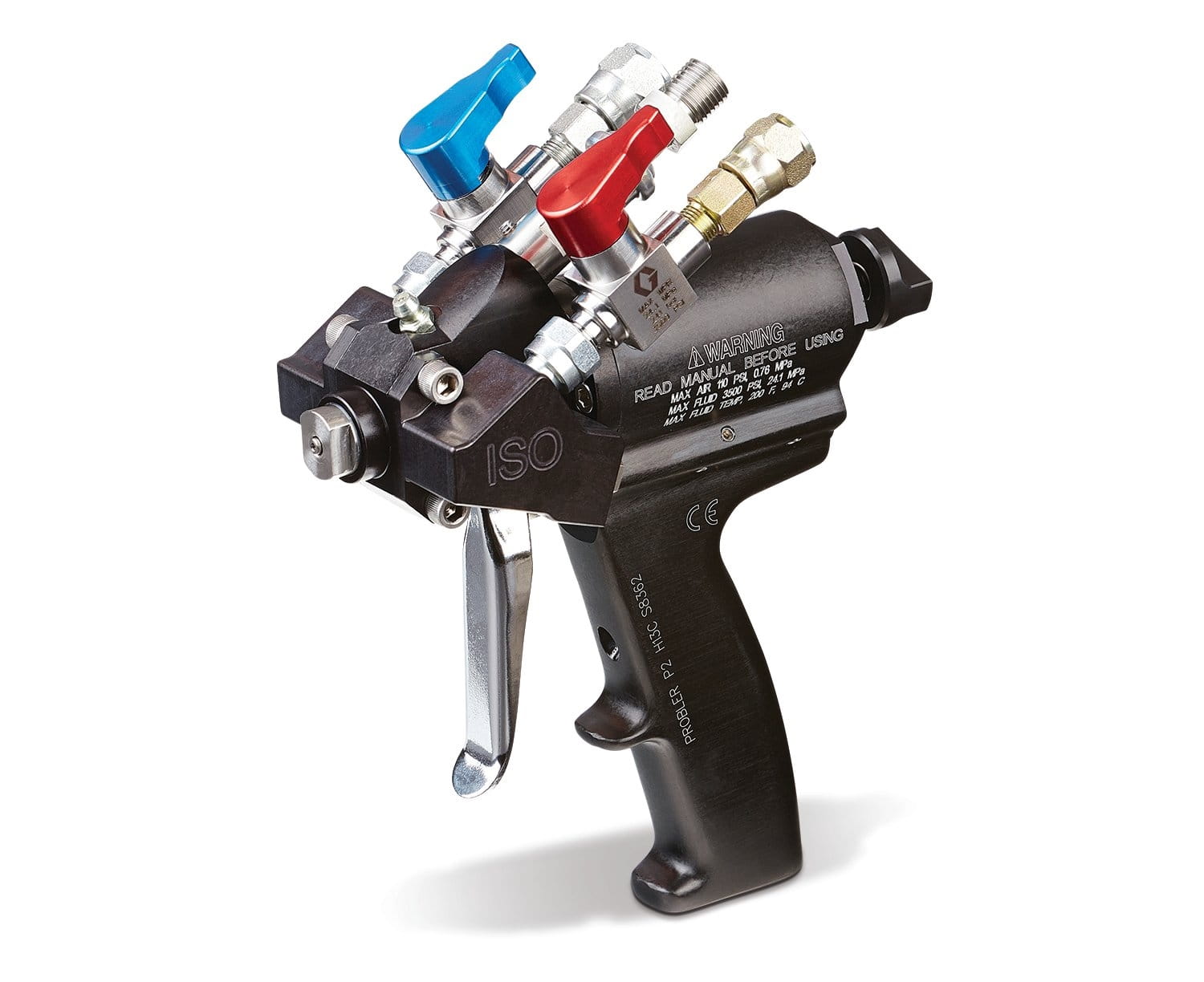

Probler P2 gun assembly with 04 mixing chamber set
€3,252.98*
% €3,827.04* (15% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Probler P2 gun is lightweight and easy to handle - even in difficult spraying positions. The twin-piston design provides a trigger force of more than 136 kg (300 pounds) - far more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to operate.
For high flow rates when spraying polyurethane foam and polyurea applications.
- Easy daily maintenance
- Quick response trigger
- Quick to replace chamber insert
- The design, which prevents cross-contamination, practically prevents material from entering the air piston
- Ergonomic handle and balanced design
| Air inlet size (inches): | 1/4-18 |
|---|---|
| Air inlet thread type: | NPSM |
| Compatible material: | Adhesives, polyurethane, roof coating, polyurea, polyurethane coating |
| Component A, inlet size (cm): | 1.27 |
| Component A, inlet size (inch): | 1/2-20 |
| Component A, inlet size (mm): | 12.7 |
| Component A, inlet thread type: | UNF |
| Component B, inlet size (cm): | 111,125 |
| Component B, inlet size (inch): | 7/16-18 |
| Component B, inlet size (mm): | 11.1125 |
| Component B, inlet thread type: | UNF |
| Component type: | multi-component |
| Gender of the air inlet thread: | External thread |
| Gun activation: | Hand- |
| Gun type: | Air Purge |
| Gun weight (g): | 1770 |
| Gun weight (kg): | 1.77 |
| Gun weight (oz): | 32.4 |
| Maximum air inlet pressure (MPa): | 0.76 |
| Maximum air pressure (MPa): | 0.76 |
| Maximum air pressure (bar): | 7.6 |
| Maximum air pressure (kPa): | 760 |
| Maximum air pressure (psi): | 110 |
| Maximum air supply pressure (bar): | 7.6 |
| Maximum air supply pressure (kPa): | 760 |
| Maximum conveying capacity (kg/min): | 18 |
| Maximum inlet air pressure (psi): | 110 |
| Maximum material operating pressure (MPa): | 22.1 |
| Maximum material operating pressure (bar): | 221 |
| Maximum material pressure (MPa): | 24.1 |
| Maximum material pressure (bar): | 241 |
| Maximum material pressure (kPa): | 24100 |
| Maximum material pressure (psi): | 3500 |
| Maximum material temperature (°C): | 93 |
| Minimum air supply pressure (MPa): | 0.62 |
| Minimum air supply pressure (bar): | 6.2 |
| Minimum air supply pressure (kPa): | 620 |
| Minimum air supply pressure (psi): | 90 |
| Minimum delivery rate (kg/min): | 1.4 |
| Mixing chamber: | 04 (0.070) |
| Model: | P2 |
| Nozzle opening size (inches): | 70 |
| Permissible operating overpressure (psi): | 3200 |
| Pistol series: | standard |
| Rinsing method: | Air |
| Series: | standard |
| Size of the air inlet (cm): | 635 |
| Size of the air inlet (mm): | 6.35 |
| Size of the material opening (cm): | 178 |
| Size of the material opening (mm): | 1.78 |
| Spray gun mixing type: | impact |
| Spray pattern: | Flat nozzle |
| Spray pattern size (mm): | 393.7 |
| Total height (cm): | 12.1 |
| Total height (mm): | 121 |
| Total length (cm): | 7.9 |
| Total length (mm): | 79 |
| Total width (cm): | 17.4 |
| Total width (mm): | 174 |
| Type: | Spray accessory kit |
| Wetted parts: | Stainless steel, mild steel, chemical-resistant O-rings, PTFE |
More information
- Product number: 1031512
- Manufacturer: Graco
- EAN: 00633955449718
- Weight: 1.85 kg
- Length: 430 mm
- Width: 180 mm
- Height: 330 mm
