Manufacturer no.: 237144

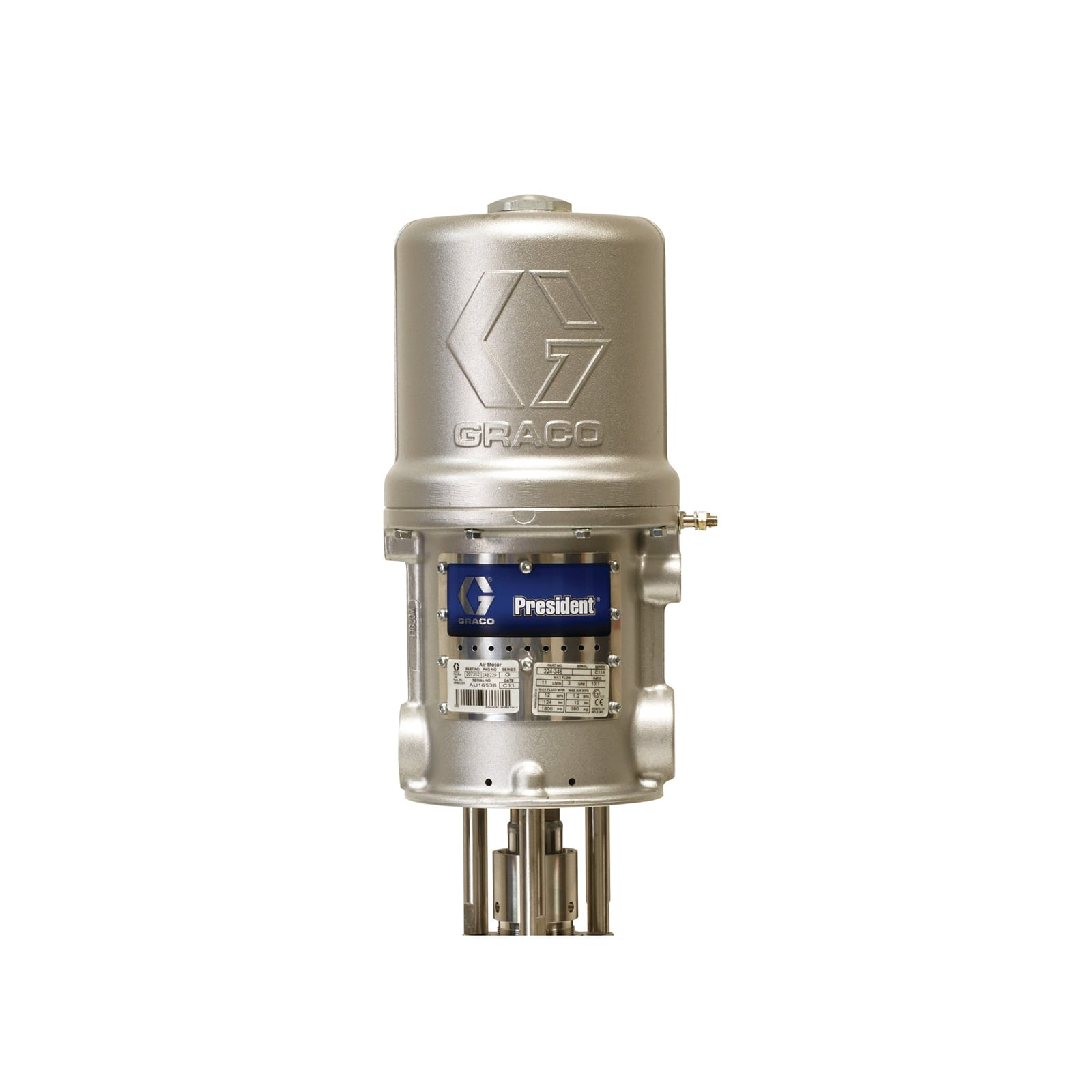

Pneumatic President 2-ball 3:1 piston pump, carbon steel, barrel, four leather seals, one PTFE

€6,213.14*

% €7,646.94* (18.75% saved)

€5,221.13*

Price excl. VAT

Ready for shipping in 5-8 Werktage

Also interesting

Product information

Pneumatic 2-ball piston pump for a wide range of applications

Reliable President air motor technology provides low-maintenance operation and long equipment life
Positive displacement, 2-ball piston provides smooth, easy-to-control fluid delivery
Stainless steel and carbon steel models are available to handle a variety of fluids (including catalysed materials)

Air inlet size (inches):	3/8
Air inlet thread type:	NPSM
Application:	supply
Compatible material:	Water Based, Solvent Based, High Solids, Xirallic, CARC, Metal, Top Coats, Stains, Lacquer
Gender of the air inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Includes:	Container length
Material:	Normal steel
Material outlet size (cm):	2.54
Material outlet size (mm):	25.4
Material outlet thread type:	NPT
Material section type:	2-ball
Maximum air supply pressure (bar):	8.27
Maximum air supply pressure (kPa):	827
Maximum continuous double stroke rate (DH/min):	60
Maximum delivery rate (L/min):	37.85
Maximum inlet air pressure (psi):	120
Maximum operating pressure (MPa):	12.4
Maximum operating pressure (kPa):	12400
Maximum operating pressure (psi):	1800s
Maximum operating temperature (°C):	82
Model:	President
Permissible operating pressure (bar):	124
Portable:	Not portable
Sealing material:	Leather, PTFE
Series:	2-Ball
Size of the air inlet (cm):	9,525
Size of the air inlet (mm):	9,525
Size of the material outlet opening (inches):	1
Transmission ratio of the pump:	3:1
Type:	Pneumatic piston pump
Wetted material:	Normal steel
