Manufacturer no.: A25403

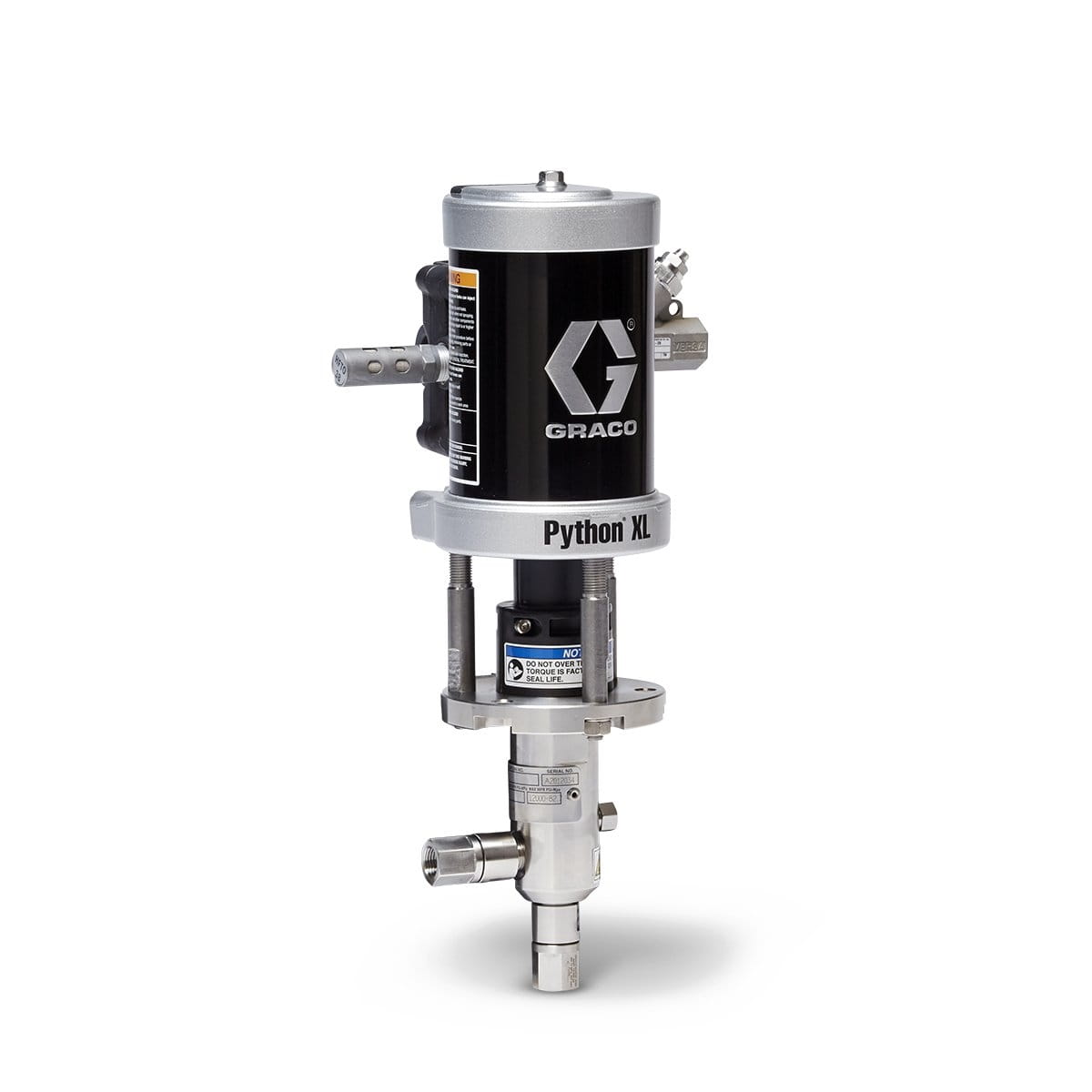

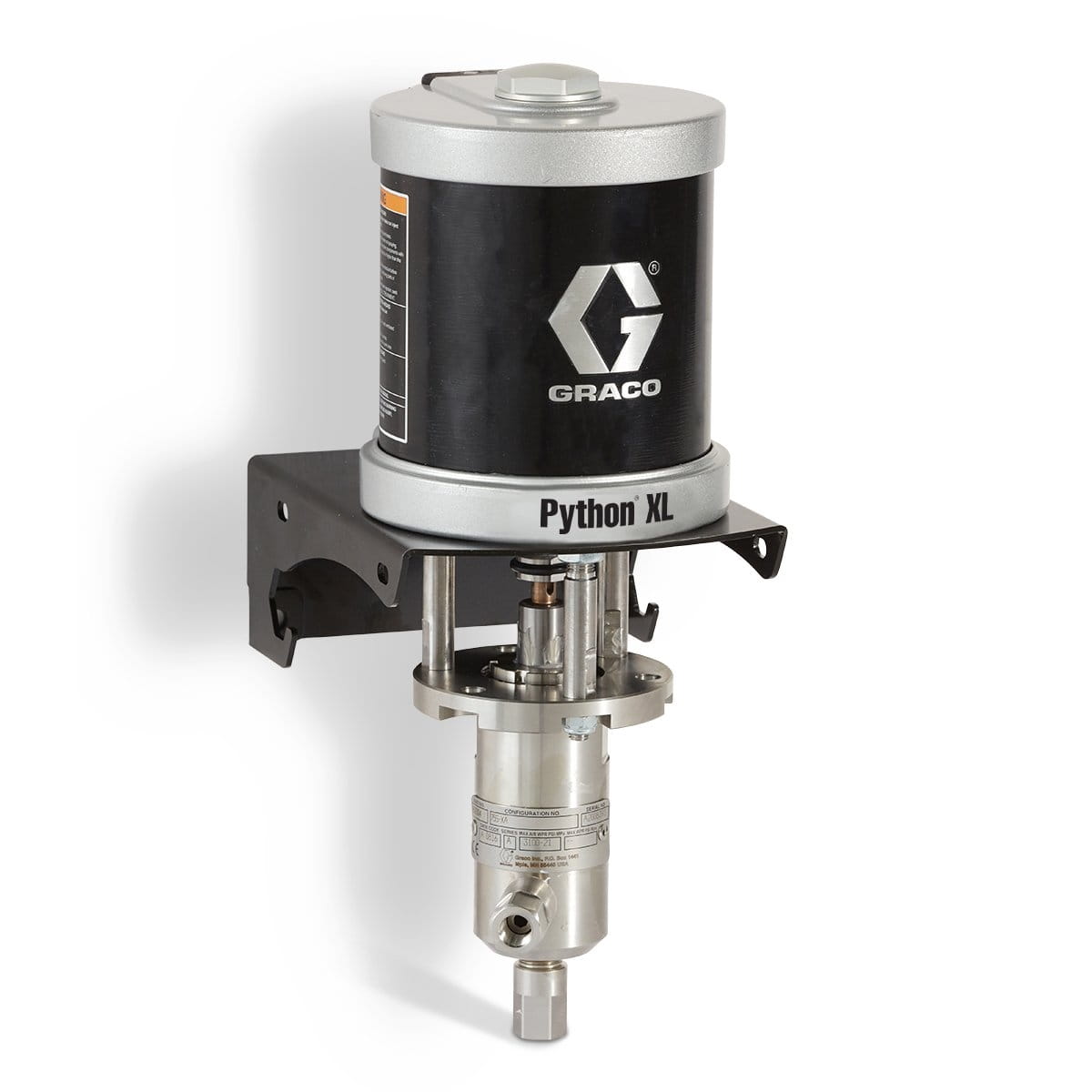

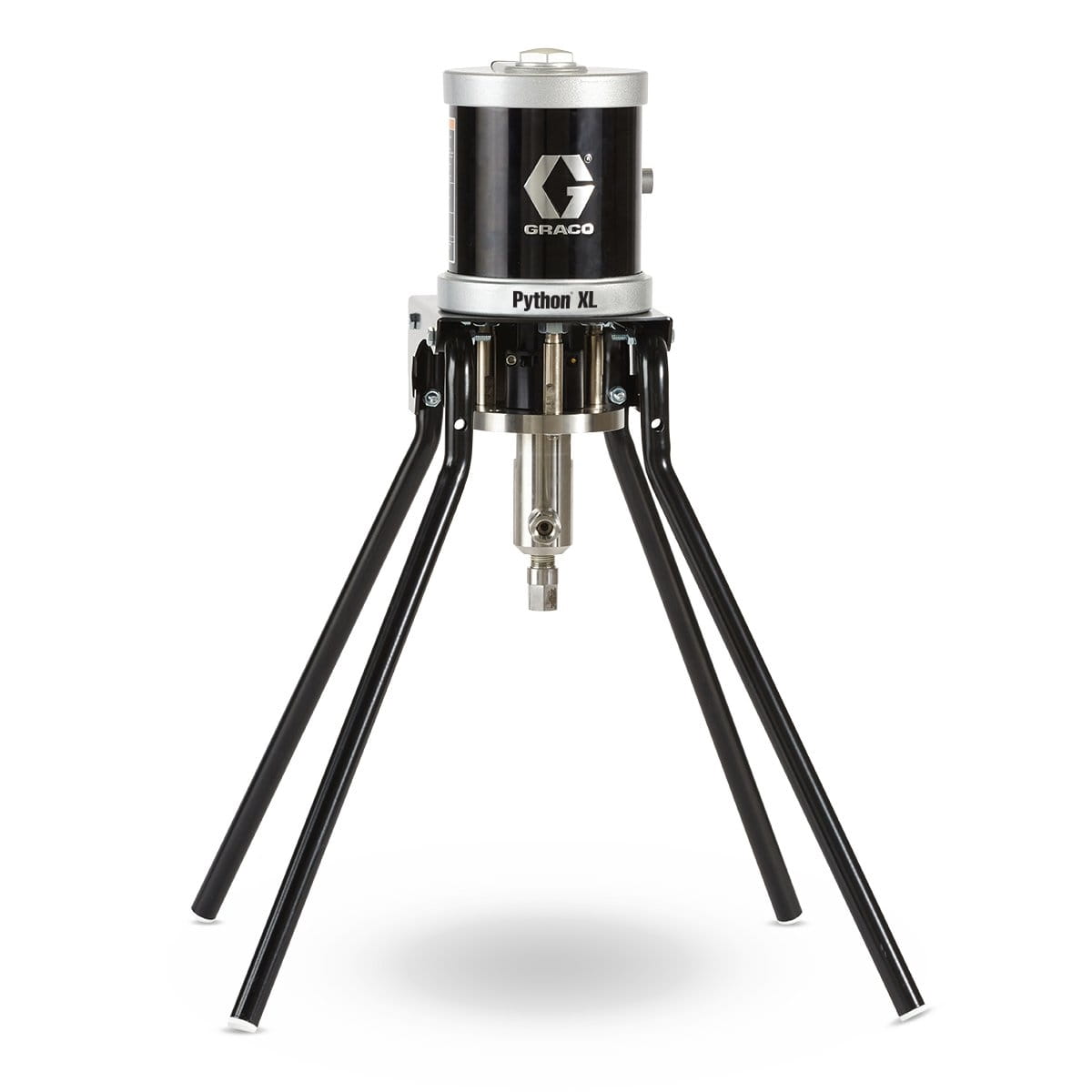

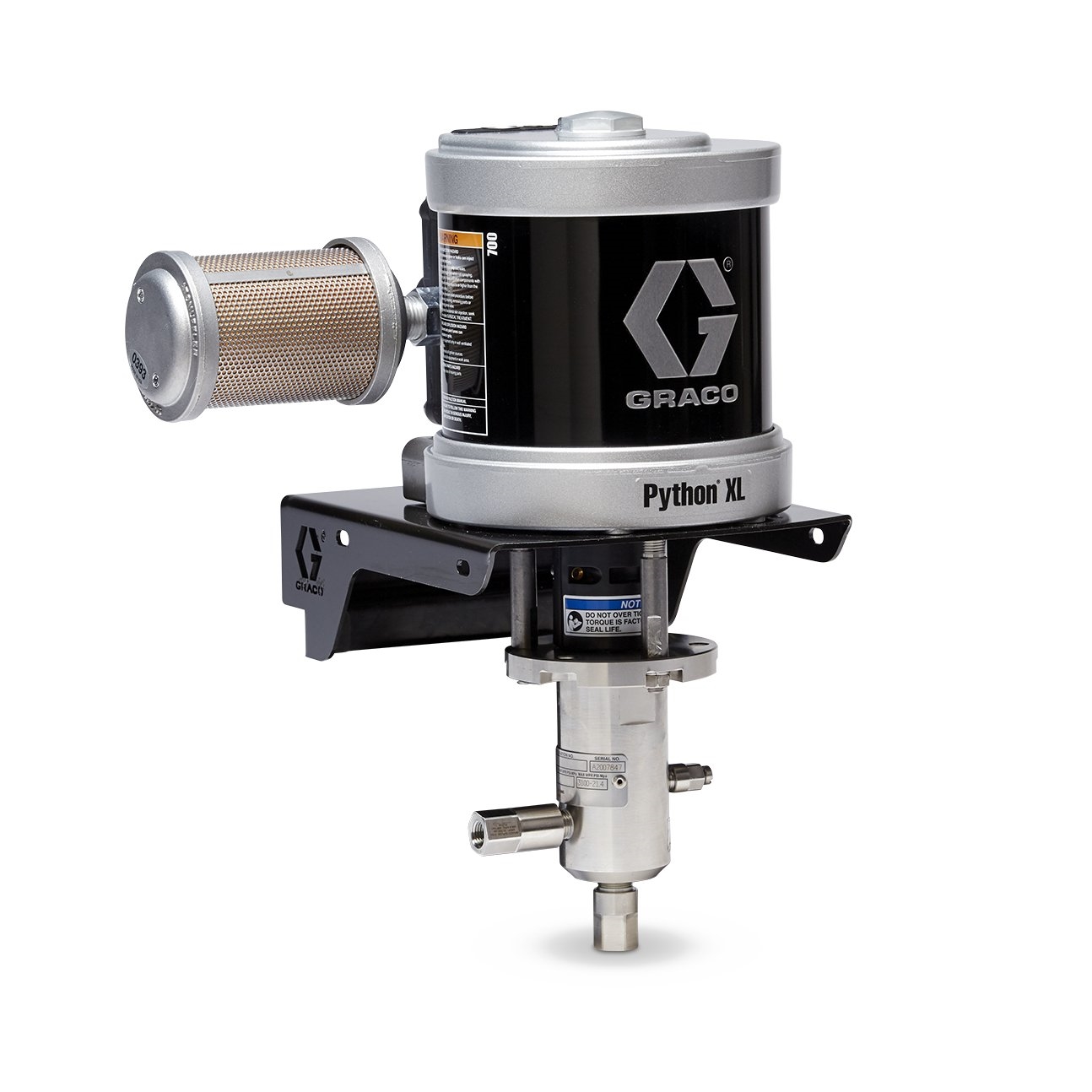

Pneumatic chemical metering pump Python® XL, 4-1/2" air motor, 5/8" piston, Chromex beschichtet, FKM seals, CE approved

€3,979.84*

% €4,422.04* (10% saved)

Prices include VAT plus shipping costs

€3,344.40*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

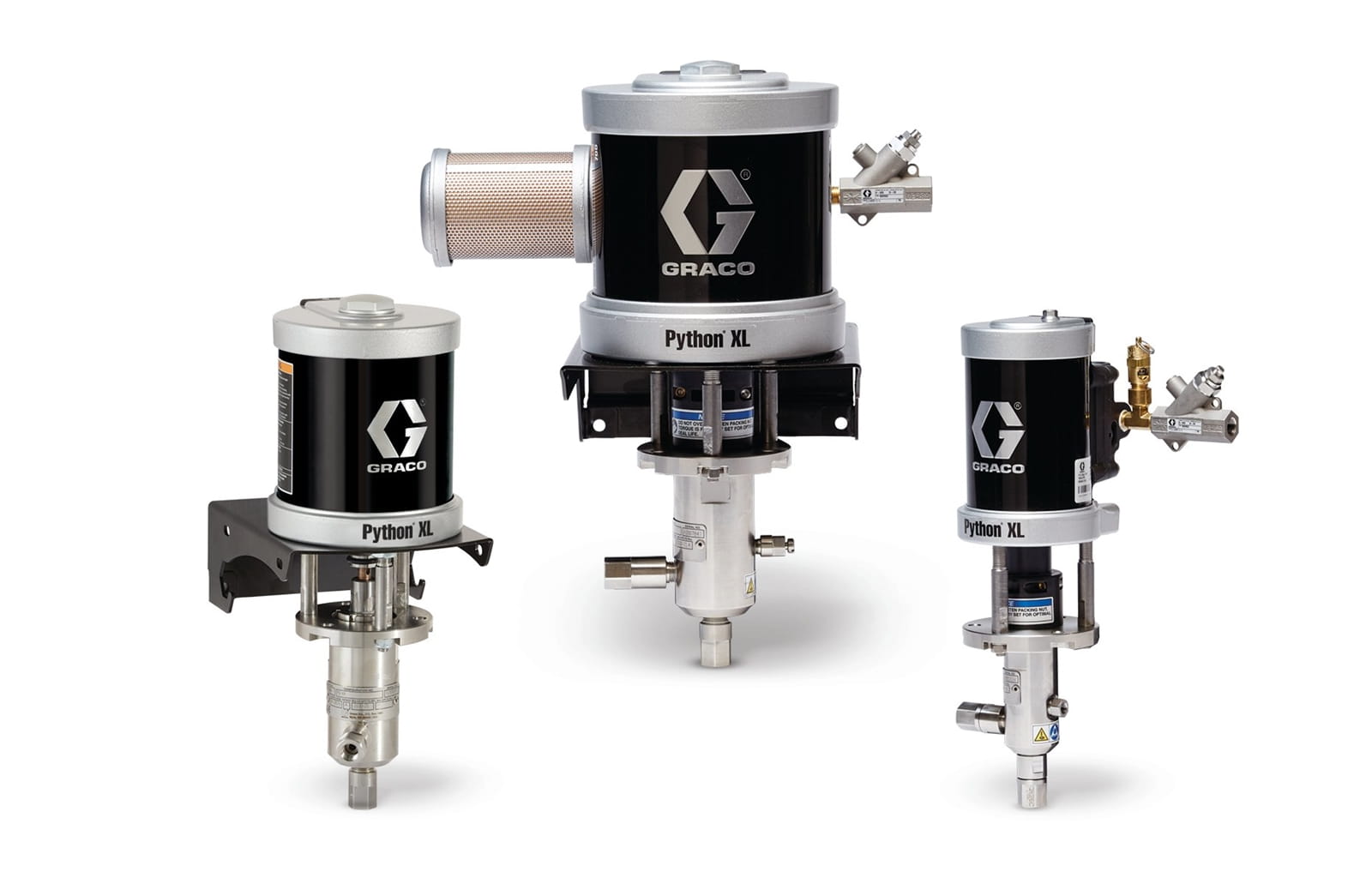

Python XL series pumps are ideal for wells with low gas or compressed air inlet pressure. The pumps can operate at up to 12,000 psi, are easy to use and feature an air motor with the same proven technology that Graco offers in other product lines. In addition, the Python XL's highly durable pistons (Chromex™ and ceramic coated), seals and air valves are designed to last for years of service before replacement is required.

Serviceability
- Modular air valve
- Detachable pilot valve
- Displacement pumps are interchangeable with other Python XL models.
- Piston seals can be replaced in 10 minutes or less

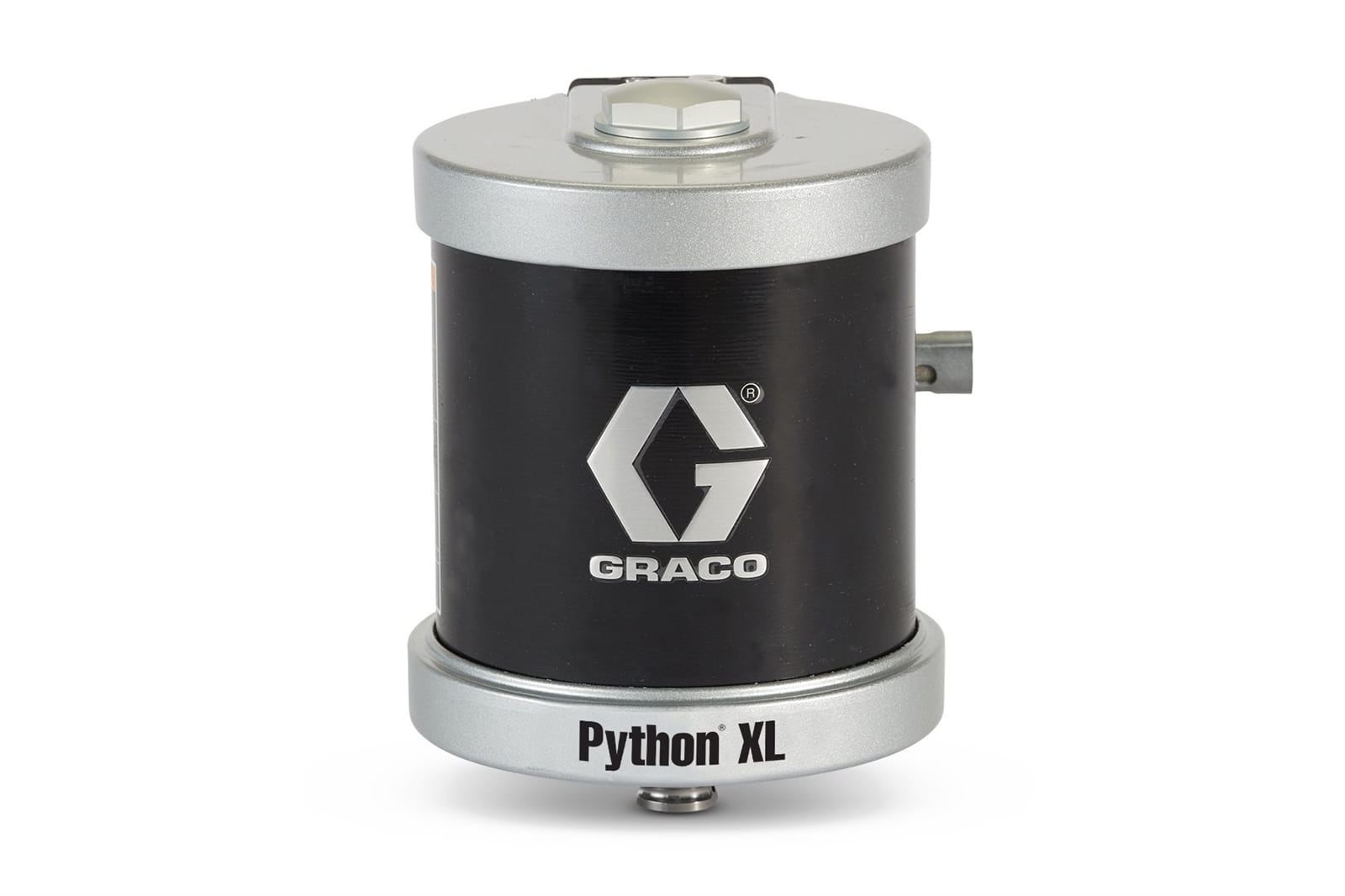

The most technically advanced air motor on the market
- Requires only a minimum of 15 psi to operate the pump
- Low air/gas consumption for greater efficiency
- Silencer ensures low operating noise levels
- Proven Graco® Merkur® air motor technology
Robust and simple design
- 316 stainless steel wetted parts
- Three stroke settings
- HNBR, FKM, FKM-ETP, FFKM, and TFE/P piston seals and check valve seals
Environmentally friendly
- 97% recyclable waste gas
- Reduced emissions of volatile methane

Air inlet size (inches):	1/4
Air inlet thread type:	NPT
Application:	Non-hazardous area
Authorisations:	CE
Compatible material:	Chemicals
Gender of the air inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Material outlet size (cm):	635
Material outlet size (mm):	6.35
Material outlet thread type:	NPT
Maximum air supply pressure (bar):	7
Maximum air supply pressure (kPa):	70
Maximum continuous double stroke rate (DH/min):	100
Maximum inlet air pressure (psi):	100
Maximum operating pressure (MPa):	35.9
Maximum operating pressure (kPa):	35850
Maximum operating pressure (psi):	5200
Maximum operating temperature (°C):	80
Minimum operating temperature (°C):	-40
Model:	python
Permissible operating pressure (bar):	358.5
Piston material:	FKM
Piston size (cm):	1.6
Piston size (mm):	15.9
Sealing material:	FKM
Series:	XL
Size of the air inlet (cm):	635
Size of the air inlet (mm):	6.35
Size of the air motor (inch):	4-1/2
Size of the material outlet opening (inches):	1/4
Type:	Pneumatic chemical pump
