Manufacturer no.: 247978

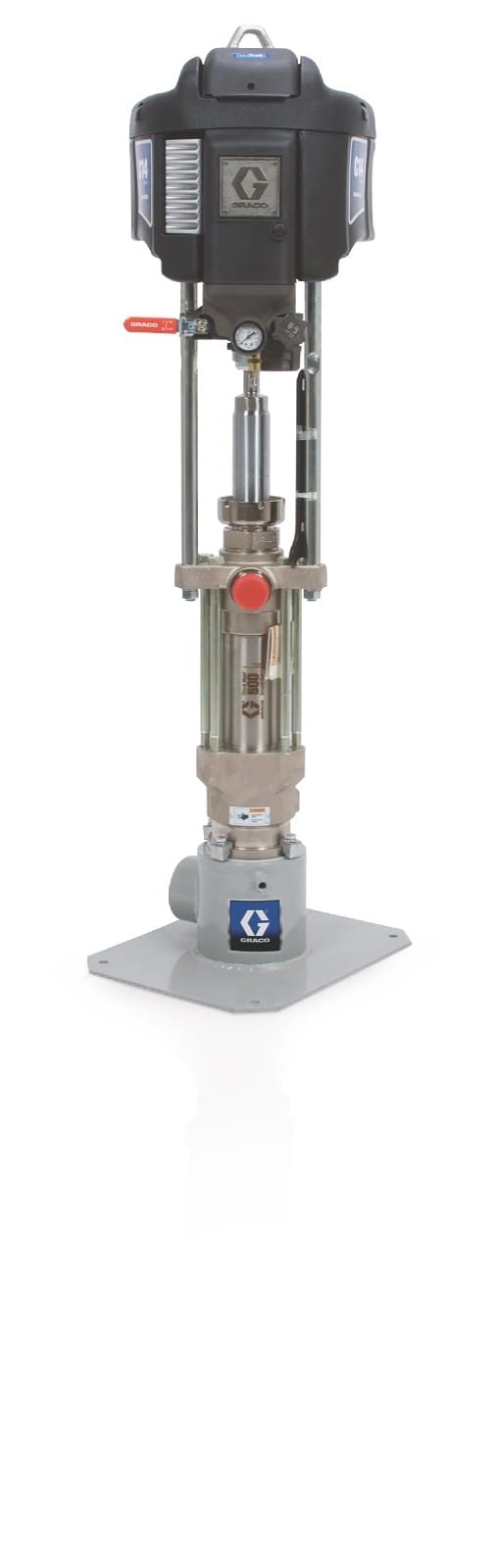

NXT™ Check-Mate® 68:1 grease pump system with DataTrak floor stand

€13,629.55*

% €15,143.94* (10% saved)

€11,453.40*

Price excl. VAT

Ready for shipping in 5-8 days

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Move large amounts of grease faster! Graco's proven NXT technology gives you the best value for money - fewer parts, faster repairs and long life.

Intuitive, easy-to-use controls give you pump diagnostics to track material usage and schedule routine maintenance
Long service life -- the Check-Mate pump is a proven workhorse
Less icing and noise - the new NXT air motor is up to 50% quieter than previous models
Integrated ram and pump controls are easy to use
NXT air motor
- Easier maintenance thanks to modular design
- Robust panelling that will not rust or dent
- The most technically advanced air motor on the market
Integrated air regulator
- Lockable, easily rotatable regulator
- Easily accessible thanks to front mounting
- Compact and modular
- Integrated filtration
Xtreme® coupling
- Quick-release coupling facilitates maintenance
Replaceable outlet fitting
- Reduces repair costs
Piston valve with floating piston seal
- Maximum pressure equalisation over a wide material viscosity range
Replaceable seat
- Minimises service costs

Air inlet size (inches):	0.75
Air inlet thread type:	NPT
Application:	industry
Compatible material:	Fat
Gender of the air inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Includes:	68:1 Check-Mate pump with DataTrak, NXT 6500 air motor, 200cc lower pump, floor stand, air hose, fluid hose
Material outlet size (cm):	2.54
Material outlet size (mm):	25.4
Material outlet thread type:	NPT
Maximum operating air pressure:	100
Maximum operating pressure (MPa):	36.5
Maximum operating pressure (kPa):	36500
Maximum operating pressure (psi):	5300
Model:	Check Mate
Motor type:	Pneumatic
Mounting position:	Floor stand
Permissible operating overpressure (psi):	5300
Permissible operating pressure (bar):	365
Size of the material outlet opening (inches):	1
Type:	Piston pump system
Wetted material:	Steel, leather

More information

Technical details

Fluid outlet size (cm)	2. 54
Fluid outlet size (mm)	25. 4
Fluid outlet thread gender	Female
Includes	68:1 Check-Mate Pump with DataTrak, NXT 6500 Air Motor, 200cc Lower, Floor Stand, Air Hose, Fluid H ose
Maximum working pressure (bar)	365
Maximum working pressure (kPa)	3 6 500
Maximum working pressure (psi)	5 3 00
Air inlet size (in)	0. 75
Air inlet thread gender	Female
Maximum flow rate (lb/min @ 60 cpm)	22. 8
Pump Weight (lb)	64
Maximum Working Pressure (MPa)	36. 5
Maximum Air Working Pressure	100
Model	Check-Mate
