Product images may vary
Manufacturer no.: 17E666

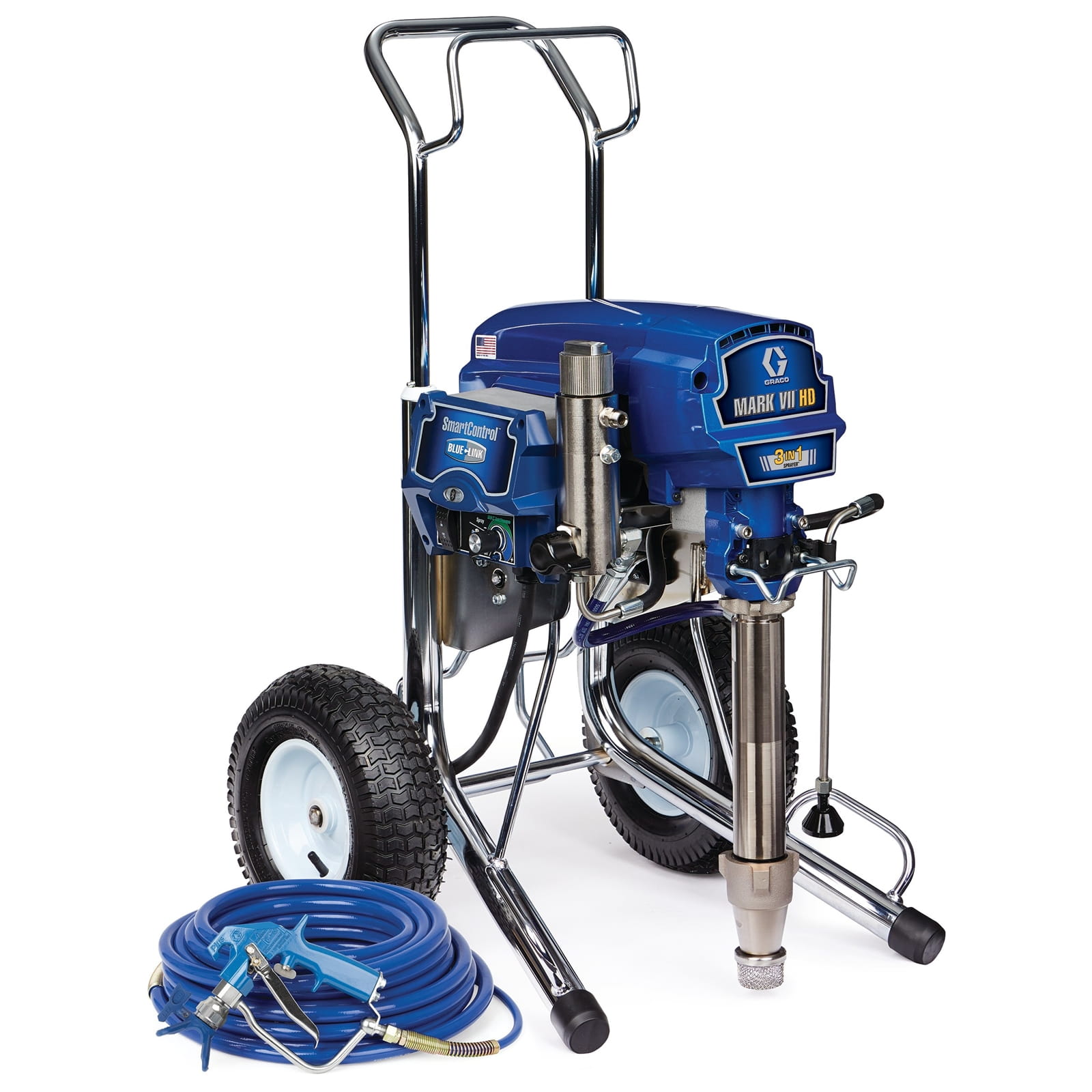

Mark VII HD Standard Series Electric airless sprayer, 230V, Multi

€12,048.75*

% €13,387.50* (10% saved)

Prices include VAT plus shipping costs

€10,125.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Free shipping within Germany
Also interesting
Product information

The Mark VII HD offers a higher flow rate - so jobs can be completed faster. This unit offers 40% higher productivity compared to the Mark V and features an improved high performance plastering gun that can accommodate a larger nozzle size to handle all textured finishes as well as the wide range of primers and paints.

Always reliable MARK HD standard series electric airless texture sprayers offer unrivalled durability and performance and are capable of handling a wide range of nozzle sizes, longer hose lengths and heavier coatings with ease.

  • Endurance Chromex piston pump
    • The most reliable pump
    • Lasts 2x longer than the next leading brand
    • Long-life ceramic and stainless steel balls for maximum versatility
    • Faster cleaning with the QuikAccess inlet foot valve
  • MaxFlo 2 with flocculation protection
    • Less flocculation, higher productivity
    • Self-cleaning Vibra-Seal technology prevents material build-up
    • Uninterrupted spraying with effective flocculation protection for greater productivity
    • Optimised diffusers for the thickest coatings
  • BlueLink
    application and spray gun management system
    • Optimise your operation
    • Track every sprayer: precise location and hourly productivity
    • Keep an eye on work progress: on-demand productivity data and reporting from anywhere
    • Maximise uptime Set maintenance schedules, warnings and job site notes
  • SmartControl 4.0 with ProGuard protection system
    • Precision pressure control
    • Lowest dead zone at any pressure delivers a consistent spray pattern without pressure fluctuations
    • Prevents electrical damage due to extreme power supply conditions at the point of use
    • WatchDog pump protection system automatically prevents pump damage when material supply is too low
  • FastFlush 2 system
    • Now fast cleaning is even FASTER
    • Clean the pump up to six times faster with half the amount of water
    • Material flow at high speed thanks to 60% higher motor speed
  • MaxPower DC motor and Advantage Drive
    • Maintenance-free performance
    • Field-proven brushless design
    • The drive with the longest service life
    • Improved site conditions with extremely quiet operation
  • WatchDog pump protection system
    • Prevents damage when the pump is idling.
    • Switches the pump off automatically if the material supply is too low
  • Easy Out pump filter
    • Easy pump maintenance and less clogging
    • The inside-out design ensures less dirt and fewer clogged nozzles
  • Robust suction valve
    • Maintenance-free high-pressure emptying function
  • Durable chassis with robust construction
    • Robust and easy to move
    • Withstands adverse conditions on site and absorbs shocks and vibrations
    • Easy hose storage thanks to integrated hose reel and telescopic handle
    • Easy loading thanks to integrated lifting handles
Compatible replacement pump: 17H830
Convertible: Not convertible
Double strokes per gallon: 97
Filter mesh size: 60
Frame configuration: Hi boy
Frequency (Hz): 50
Hose inlet diameter (cm): 1.27
Hose inlet diameter (inch): 1/2
Hose inlet diameter (mm): 12.7
Hose reel type: Hose holder
Inner diameter of material hose (inch): 1/2
Material outlet size (mm): 12.7
Material outlet thread type: NPSM
Maximum delivery rate (L/min): 6
Maximum hose length (m): 45
Maximum nozzle size (inch): 47
Maximum nozzle size 1 gun (inch): 47
Maximum operating pressure (MPa): 22.7
Maximum operating pressure (kPa): 22700
Maximum operating pressure (kg/cm²): 22.7
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 82
Minimum generator output (W): 5000
Minimum generator output (kW): 0
Model: Mark HD
Motor size (kW): 1.9
Motor type: Brushless, DC
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating overpressure (psi): 3300
Permissible operating pressure (bar): 227
Phases: 1
Pressure control type: SmartControl 4.0
Product series: Standard
Pump mounting type: QuikChange
Pump rod type: Hard chrome plated
Pump sleeve material: Hard chrome plated
Pump type: Endurance
Rated power (kW): 1.9
Series: VII
Size of the material outlet opening (inches): 1/2
Spray gun type: HD plastering gun, blue
Spraying technology: Airless
Supply voltage: Electric
Total height (cm): 74.9
Total height (mm): 7,493,000
Total length (cm): 66
Total length (mm): 660.4
Total width (cm): 61
Total width (mm): 6,096,000
Type: Airless sprayer
Voltage (V): 230
Volume per cycle (cycles/gal): 97
Weight (kg): 63
Wetted material: Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
More information
  • Product number: 1039718
  • Manufacturer: Graco
  • EAN: 00755652817574
  • Weight: 73.481 kg
  • Length: 720 mm
  • Width: 650 mm
  • Height: 1000 mm

Technical details

Operating specifications
UPC product 755652817574
Division CED
Price Block 2 49
Country of origin US
Unit EA
Height 100 CM
Length 72 CM
Width 65 cm
Volume . 468 m³
Shipping weight 73.48 kg
Technical
Compatible replacement pump 17H830
Convertible Non - convertible
Engine size (HP) 2.5 Brushless DC
Engine size (kW) 1. 9
Fluid outlet size (mm) 12. 7
Frame Configuration Hi-Boy
Hose inlet diameter (cm) 1. 27
Hose inlet diameter (in) 1/2
Hose inlet diameter (mm) 12. 7
Hose reel type Hose rack
Maximum flow rate (L/min) 6
Maximum Hose Length (ft) 150
Maximum Hose Length (m) 45
Maximum sound pressure level (dB(A)) 82
Maximum tip size (in) 0. 047
Maximum tip size gun 1 (in) 0. 047
Maximum working pressure (psi) 3 3 00
Maximum working pressure (kPa) 2 2 700
Power Rating (HP) 2. 5
Power rating (kW) 1. 9
Maximum working pressure (MPa) 22. 7
Pressure Control Type SmartControl 4. 0
Overall Width (mm) 609. 6000
Model Mark HD
Maximum working pressure (bar) 2 27
Overall Height (cm) 74. 9
Overall Height (in) 29. 5
Weight (kg) 63
Overall height (mm) 749. 3000
Overall length (cm) 66
Overall width (in) 2 4
Overall Length (in) 26
Series VII
Overall Length (mm) 660. 4
Overall Width (cm) 61
Maximum working pressure (kg/cm²) 22. 7
Fluid Hose Inside Diameter (in) 1/2
Outlet Paint Filter 60 mesh stainless steel screen
Minimum generator power (kW) 0
Frequency (Hz) 50
Pump Mount Type QuickChange
Pump rod type Hard Chrome
Minimum generator power (W) 500
Number of Guns 1
Filter mesh size 6
Cycles per gallon 97
Volume per cycle (cycles/gal) 97
Product Series Standard
