Manufacturer no.:
D54355

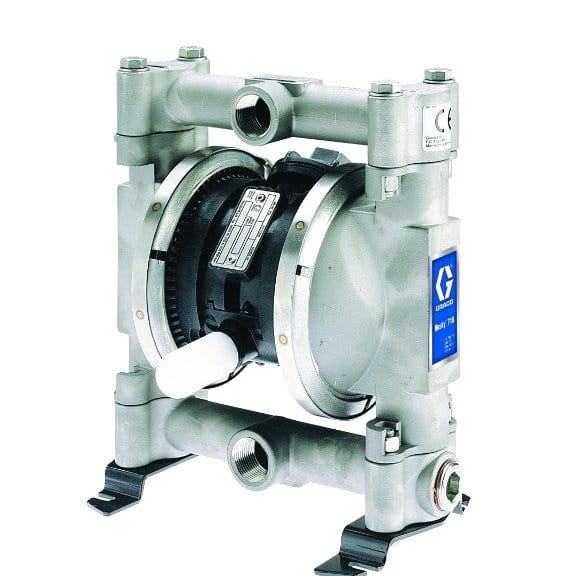

Husky 716 SS (3/4" NPT) standard pump, PP centre housing, SS seats, hardened SS balls and TPE diaphragm
€2,915.26*
% €3,239.18* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 716 air-operated diaphragm pump has an external control for remote operation.
- Centre housing and end opening
- No mechanical seals to leak or fail
- Smooth operation at less than 85 dB(A) with user-friendly remote muffler for even lower noise levels
- Easy-to-service air and ball check valves
- 19.05 mm (3/4") centre and end opening
- No seals to leak or fail
- Smooth operation; less than 85 dB(A) with user-friendly remote muffler for even lower noise levels
- Easy to maintain air and ball check valves
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | TPE (Hytrel) |
| Compatible material: | Antifreeze, Cleaning Agents, Engine Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink |
| Connection type: | With thread |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | Connection in the centre: |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | stainless steel |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | stainless steel |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 1,905 |
| Material outlet size (mm): | 19.05 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 0.7 |
| Maximum air pressure (bar): | 7 |
| Maximum air pressure (kPa): | 700 |
| Maximum air pressure (psi): | 100 |
| Maximum delivery rate (L/min): | 60.6 |
| Maximum material pressure (MPa): | 0.7 |
| Maximum material pressure (bar): | 7 |
| Maximum material pressure (kPa): | 700 |
| Maximum material pressure (psi): | 100 |
| Maximum number of cycles (DH/min): | 400 |
| Maximum operating temperature (°C): | 107 |
| Maximum solids size (cm): | 2,383 |
| Maximum solids size (mm): | 2.4 |
| Membrane, compatible material: | TPE |
| Membrane material: | TPE (Hytrel) |
| Minimum operating temperature (°C): | 4 |
| Model: | Husky |
| Seat material: | stainless steel |
| Series: | 716 |
| Size of the exhaust air opening (inches): | 3/8 |
| Size of the material inlet opening (cm): | 1,905 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 3/4 |
| Standards met:: | ATEX, CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1034818
- Manufacturer: Graco
- EAN: 00633955963481
- Weight: 9.06 kg
- Length: 274 mm
- Width: 244 mm
- Height: 305 mm
Technical details
Operating specifications
| UPC product | 6 3 3955963481 |
|---|---|
| Division | PRO |
| Price Block | 2 61 |
| Country of origin | US |
| Unit | EA |
| Height | 30.5 CM |
| Length | 27.4 CM |
| Width | 24.4 CM |
| Volume | . 02 m³ |
| Shipping weight | 9 .06 KG |
Technical
| Air exhaust port size (in) | 3/ |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/4 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 1. 905 |
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 1. 905 |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 2 8 |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 700 |
| Maximum air pressure (psi) | 100 |
| Maximum cycle rate (CPM) | 400 |
| Maximum flow rate (L/min) | 60. 6 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 700 |
| Maximum fluid pressure (psi) | 100 |
| Maximum operating temperature (°C) | 1 07 |
| Maximum operating temperature (°F) | 225 |
| Maximum solid size (cm) | 0. 2383 |
| Maximum solid size (in) | 0. 09375 |
| Maximum solid size (mm) | 2. 4 |
| Minimum operating temperature (°C) | 4 |
| Minimum operating temperature (°F) | 40 |
| Model | H usky |
| Overall Height (in) | 10. 43 |
| Series | 716 |
| Maximum fluid pressure (MPa) | 0. 7 |
| Maximum air pressure (MPa) | 0. 7 |
| Diaphragm compatible material | TP E |
