Manufacturer no.: D5C315

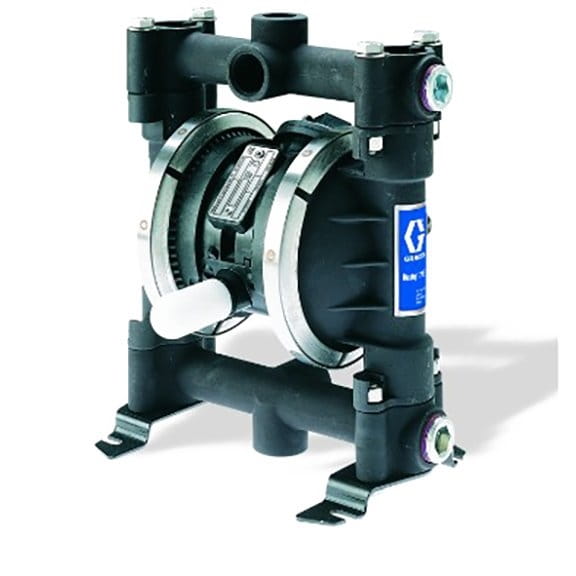

Husky 716 AL (3/4" BSP) standard pump, PP centre housing, SS seats, PTFE balls and TPE diaphragms

€1,291.63*

% €1,435.14* (10% saved)

Prices include VAT plus shipping costs

€1,085.40*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

The Husky 716 air-operated diaphragm pump has an external control for remote operation.

Centre housing and end opening
No mechanical seals to leak or fail
Smooth operation at less than 85 dB(A) with user-friendly remote muffler for even lower noise levels
Easy-to-service air and ball check valves
19.05 mm (3/4") centre and end opening
No seals to leak or fail
Smooth operation; less than 85 dB(A) with user-friendly remote muffler for even lower noise levels
Easy to maintain air and ball check valves

Air inlet size (inches):	1/4
Air inlet thread type:	NPT
Application:	industry
Ball material:	PTFE
Compatible material:	Antifreeze, Cleaning Agents, Engine Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection type:	With thread
Distributor O-ring material:	PTFE
Distributor configuration:	Connection in the centre:
Gender of the air inlet thread:	Internal thread
Material:	aluminum
Material inlet thread type:	NPT
Material in the liquid housing:	aluminum
Material of the centre housing:	Polypropylene
Material outlet size (cm):	1,905
Material outlet size (mm):	19.05
Material outlet thread type:	NPT
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	7
Maximum air pressure (kPa):	700
Maximum air pressure (psi):	100
Maximum delivery rate (L/min):	60.6
Maximum material pressure (MPa):	0.7
Maximum material pressure (bar):	7
Maximum material pressure (kPa):	700
Maximum material pressure (psi):	100
Maximum number of cycles (DH/min):	400
Maximum operating temperature (°C):	107
Maximum solids size (cm):	2,383
Maximum solids size (mm):	2.4
Membrane, compatible material:	TPE
Membrane material:	TPE (Hytrel)
Minimum operating temperature (°C):	4
Model:	Husky
Seat material:	stainless steel
Series:	716
Size of the exhaust air opening (inches):	3/8
Size of the material inlet opening (cm):	1,905
Size of the material inlet opening (inches):	3/4
Size of the material inlet opening (mm):	19.05
Size of the material outlet opening (inches):	3/4
Standards met::	ATEX, CE
Supply voltage:	Air
Thread of the exhaust air opening (inside/outside):	Internal thread
Thread of the exhaust air opening (type):	NPT
Type:	Pneumatic diaphragm pump
