Manufacturer no.:
D5B918

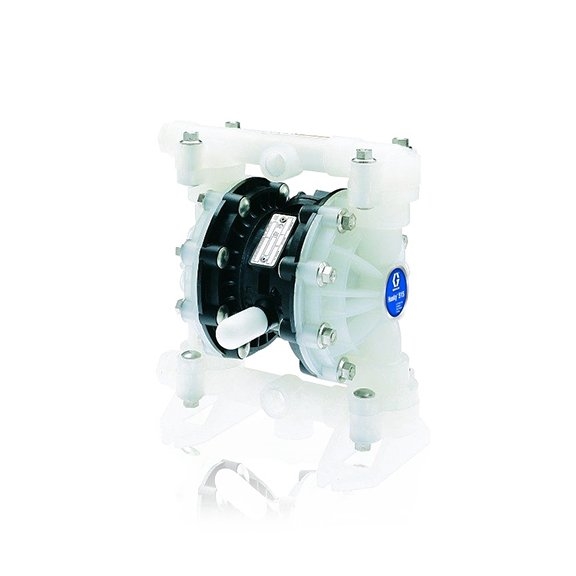

Husky 515 PP (1/2" BSP) standard pump, PP centre housing, PP seats, PTFE balls and FKM diaphragm
€1,423.36*
% €1,581.51* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 515 air-operated double diaphragm pump is equipped with a non-blocking and low-pulsation air valve that enables a smooth and fast stroke change.
The material cover (screw-through design) prevents material leakage and makes the Husky pump safer and more reliable.
- Centre and end opening optionally available.
- No mechanical seals to cause material leakage or failure
- Quiet running at less than 85 dB(A) with user-friendly remote silencer for even lower noise levels
- Easy to maintain air and ball check valves
- Requires only 0.14 MPa (1.4 bar, 20 psi)
- Split manifold option so multiple materials can be pumped without mixing
- Delivery rate up to 56.7 l/min
- Easy to maintain air and ball check valves
- Reliable air valves for years of continuous operation
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | PTFE |
| Compatible material: | Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Gear Oil, Cutting Oil, Water - Wastewater Treatment, Ink |
| Connection type: | With thread |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | Connection in the centre: |
| Gender of the air inlet thread: | Internal thread |
| Material: | Polypropylene |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 1.27 |
| Material outlet size (mm): | 12.7 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 0.7 |
| Maximum air pressure (bar): | 7 |
| Maximum air pressure (kPa): | 700 |
| Maximum air pressure (psi): | 100 |
| Maximum delivery rate (L/min): | 56.8 |
| Maximum material pressure (MPa): | 0.7 |
| Maximum material pressure (bar): | 7 |
| Maximum material pressure (kPa): | 700 |
| Maximum material pressure (psi): | 100 |
| Maximum number of cycles (DH/min): | 400 |
| Maximum operating temperature (°C): | 66 |
| Maximum solids size (cm): | 2,383 |
| Maximum solids size (mm): | 2.4 |
| Membrane, compatible material: | FKM |
| Membrane material: | Fluoroelastomer |
| Minimum operating temperature (°C): | 4 |
| Model: | Husky |
| Seat material: | Polypropylene |
| Series: | 515 |
| Size of the exhaust air opening (inches): | 3/8 |
| Size of the material inlet opening (cm): | 1.27 |
| Size of the material inlet opening (inches): | 1/2 |
| Size of the material inlet opening (mm): | 12.7 |
| Size of the material outlet opening (inches): | 1/2 |
| Standards met:: | ATEX, CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1033944
- Manufacturer: Graco
- EAN: 00633955904125
- Weight: 3.783 kg
- Length: 274 mm
- Width: 213 mm
- Height: 335 mm
Technical details
Operating specifications
| UPC product | 633955904125 |
|---|---|
| Division | PRO |
| Price Block | 260 |
| Country of Origin | US |
| Unit | EA |
| Height | 33.5 CM |
| Length | 27.4 CM |
| Width | 21.3 CM |
| Volume | 0. 02 m³ |
| Shipping weight | 3 .78 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/ |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/4 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 1. 27 |
| Fluid inlet size (in) | 1/2 |
| Fluid inlet size (mm) | 12. 7 |
| Fluid outlet size (cm) | 1. 27 |
| Fluid outlet size (mm) | 12. 7 |
| Maximum air consumption (SCFM) | 2 8 |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 700 |
| Maximum air pressure (psi) | 100 |
| Maximum cycle rate (CPM) | 400 |
| Maximum flow rate (L/min) | 56. 8 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 700 |
| Maximum fluid pressure (psi) | 100 |
| Maximum operating temperature (°C) | 66 |
| Maximum operating temperature (°F) | 1 5 0 |
| Maximum solid size (cm) | 0. 2383 |
| Maximum solid size (in) | 0. 09375 |
| Maximum solid size (mm) | 2. 4 |
| Minimum operating temperature (°C) | 4 |
| Minimum operating temperature (°F) | 40 |
| Model | H usky |
| Overall Height (in) | 10. 63 |
| Series | 515 |
| Maximum fluid pressure (MPa) | 0. 7 |
| Maximum air pressure (MPa) | 0. 7 |
| Diaphragm compatible material | F KM |
