Manufacturer no.:
653549

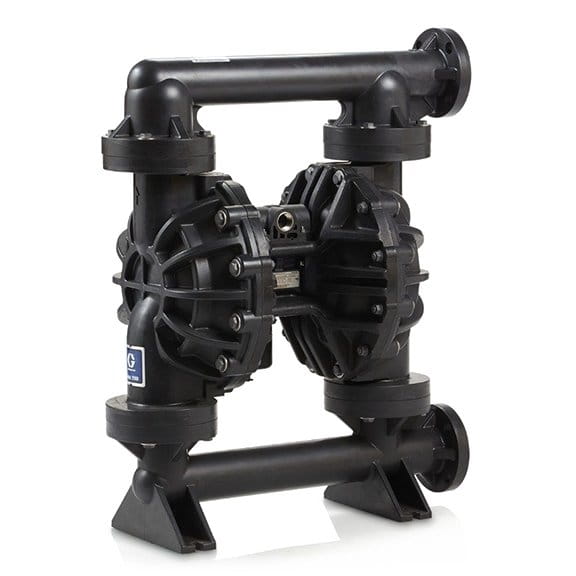

Husky 2200 PVDF pump, PP centre housing, PVDF seats, SP balls & SP diaphragm
€12,503.93*
% €13,893.25* (10% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Husky 2200 air-operated diaphragm pump has a one-piece polypropylene centre housing for increased reliability and chemical compatibility. They are also equipped with a patented, highly reliable modular air valve that can be serviced online. These diaphragm points are fitted with a reinforced frame to ensure greater reliability and minimise material leakage.
- Optimised overall air efficiency
- Highest material flow in its class
- Extended range of materials for use in a variety of applications
- Available with overmoulded diaphragms (up to five times longer diaphragm life)
- ANSI centre section (2" - 50.8 mm) and end opening optionally available
- High flow rate - 757 l/min in a compact, portable size
- Material pressure up to 0.86 MPa (8.6 bar, 125 psi)
- Lubricant-free operation
- Available in polypropylene and PVDF
| Air inlet size (inches): | 3/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Santoprene |
| Compatible material: | Antifreeze, Cleaning Agent, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer |
| Connection type: | End flange, ANSI/DIN |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Material: | PVDF |
| Material in the liquid housing: | PVDF (Kynar) |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 05.08 |
| Material outlet size (mm): | 50.8 |
| Maximum air pressure (MPa): | 0.86 |
| Maximum air pressure (bar): | 8.6 |
| Maximum air pressure (kPa): | 860 |
| Maximum air pressure (psi): | 125 |
| Maximum delivery rate (L/min): | 757 |
| Maximum material pressure (MPa): | 0.86 |
| Maximum material pressure (bar): | 8.6 |
| Maximum material pressure (kPa): | 860 |
| Maximum material pressure (psi): | 125 |
| Maximum number of cycles (DH/min): | 125 |
| Maximum operating temperature (°C): | 82 |
| Maximum solids size (cm): | 9,525 |
| Maximum solids size (mm): | 9,525 |
| Membrane, compatible material: | Santoprene |
| Membrane material: | Santoprene |
| Minimum operating temperature (°C): | 0 |
| Minimum storage temperature (°C): | 0 |
| Model: | Husky |
| Seat material: | PVDF (Kynar) |
| Series: | 2200 |
| Size of the exhaust air opening (inches): | 1 |
| Size of the material inlet opening (cm): | 05.08 |
| Size of the material inlet opening (inches): | 2 |
| Size of the material inlet opening (mm): | 50.8 |
| Size of the material outlet opening (inches): | 2 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1038023
- Manufacturer: Graco
- EAN: 00633955262775
- Weight: 62.514 kg
