Manufacturer no.:
654537

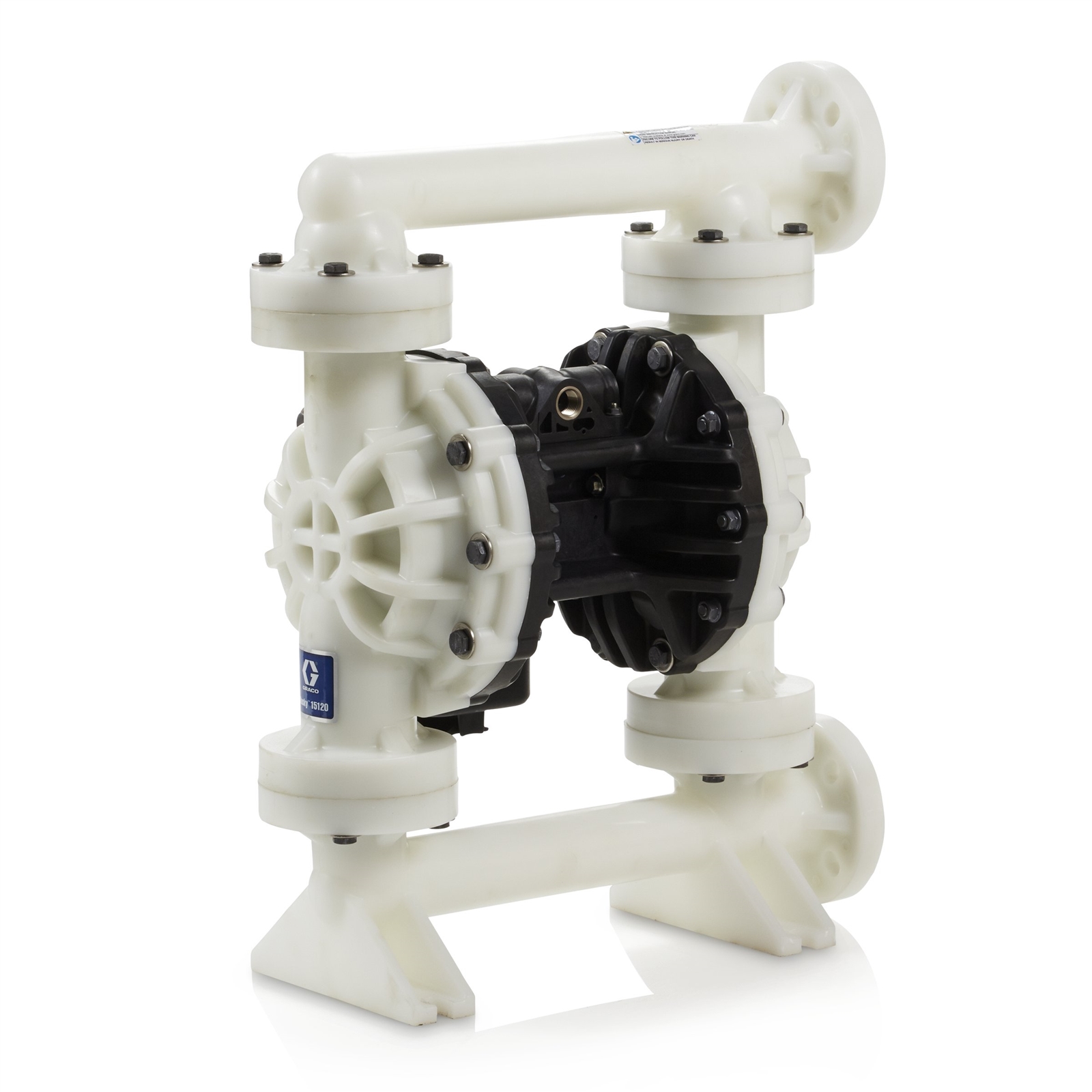

Husky 15120 PP pump, end flange, PP centre housing, PVDF seats, PTFE balls & PO diaphragm
€6,476.34*
% €7,195.93* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 15120 air-operated diaphragm pump features a failure-free, low pulsation air valve that provides a smooth and fast stroke change.
The one-piece centre section prevents leaks and reduces maintenance on Husky pumps compared to other diaphragm pumps.
- Improved overall efficiency (up to 40 % more efficient)
- Highest material flow in its class
- Up to five times longer diaphragm life compared to other air-operated diaphragm pumps
- Expanded range of materials for use in a variety of applications
- ANSI centre section 38.1 mm (1-1/2") and end opening optionally available
- High flow rate - 454 l/min in a compact, portable size
- Material pressure up to 0.86 MPa (8.6 bar, 125 psi)
- Lubricant-free operation
- Available in polypropylene and PVDF
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | PTFE |
| Compatible material: | Antifreeze, Cleaning Agent, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer |
| Connection type: | End flange, ANSI/DIN |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | Polypropylene |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 3.81 |
| Material outlet size (mm): | 38.1 |
| Maximum air pressure (MPa): | 0.86 |
| Maximum air pressure (bar): | 8.6 |
| Maximum air pressure (kPa): | 860 |
| Maximum air pressure (psi): | 125 |
| Maximum delivery rate (L/min): | 454 |
| Maximum material pressure (MPa): | 0.86 |
| Maximum material pressure (bar): | 8.6 |
| Maximum material pressure (kPa): | 860 |
| Maximum material pressure (psi): | 125 |
| Maximum number of cycles (DH/min): | 183 |
| Maximum operating temperature (°C): | 66 |
| Maximum solids size (cm): | 635 |
| Maximum solids size (mm): | 6.35 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE coated |
| Minimum operating temperature (°C): | 0 |
| Minimum storage temperature (°C): | 0 |
| Model: | Husky |
| Seat material: | PVDF (Kynar) |
| Series: | 15120 |
| Size of the exhaust air opening (inches): | 1 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 1-1/2 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1038555
- Manufacturer: Graco
- EAN: 00633955679894
- Weight: 27.215 kg
Technical details
Operating specifications
| UPC product | 6 3 3955679894 |
|---|---|
| Division | PRO |
| Price Block | 264 |
| Country of origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 27.22 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 1 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 3. 81 |
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 3. 81 |
| Fluid outlet size (mm) | 38. 1 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 85 |
| Maximum air pressure (bar) | 8. 6 |
| Maximum air pressure (kPa) | 860 |
| Maximum air pressure (psi) | 125 |
| Maximum cycle rate (CPM) | 1 83 |
| Maximum flow rate (L/min) | 4 54 |
| Maximum fluid pressure (bar) | 8. 6 |
| Maximum fluid pressure (kPa) | 860 |
| Maximum fluid pressure (psi) | 125 |
| Maximum operating temperature (°C) | 66 |
| Maximum operating temperature (°F) | 1 5 0 |
| Maximum solid size (cm) | 0. 635 |
| Maximum solid size (in) | 0. 25 |
| Maximum solid size (mm) | 6. 35 |
| Minimum operating temperature (°C) | 0 |
| Minimum operating temperature (°F) | 32 |
| Minimum storage temperature (°C) | 0 |
| Minimum storage temperature (°F) | 32 |
| Model | H usky |
| Series | 15120 |
| Maximum fluid pressure (MPa) | 0. 86 |
| Maximum air pressure (MPa) | 0. 86 |
| Diaphragm compatible material | PTFE |
