Manufacturer no.: 654500

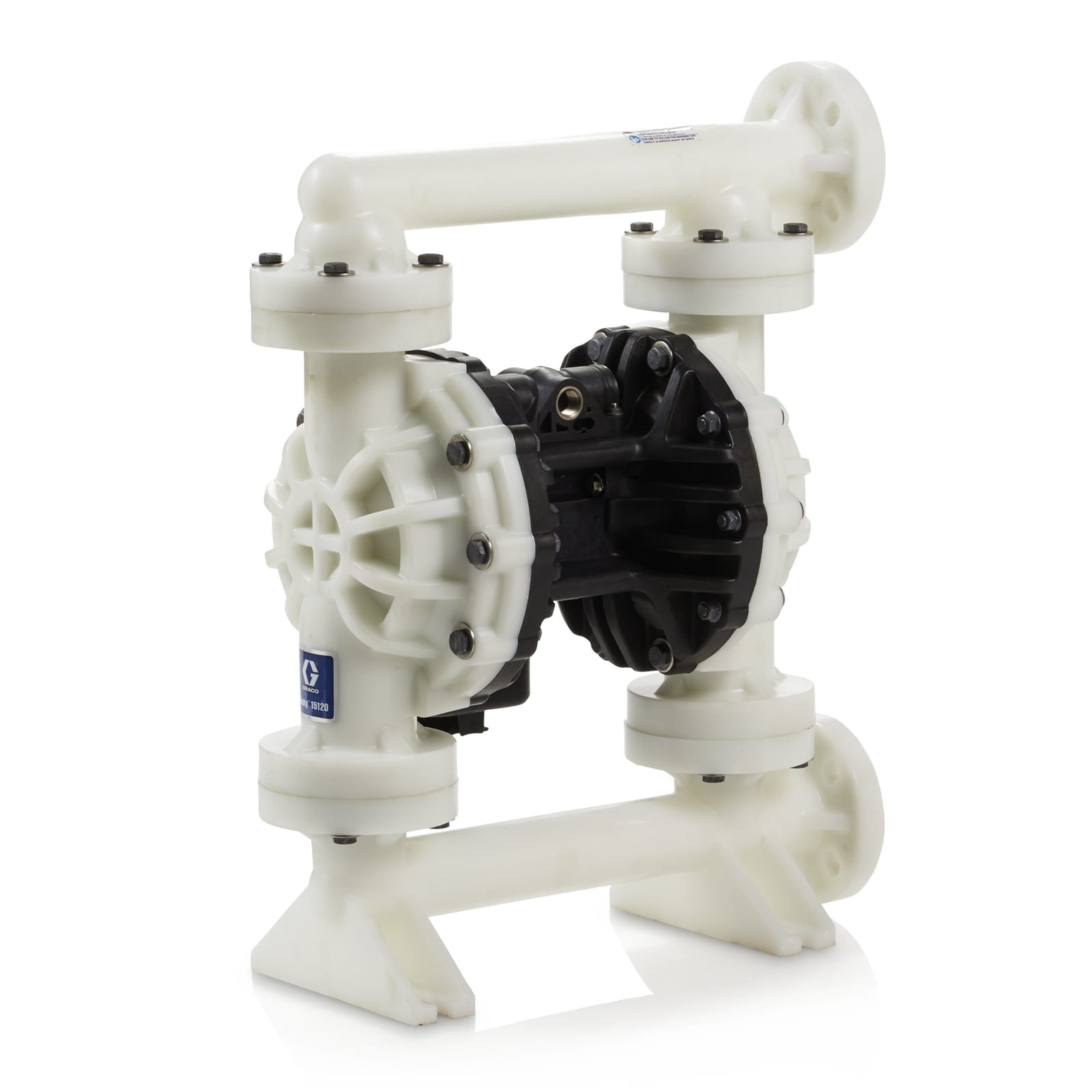

Husky 15120 PP pump, centre flange, PP centre housing, PP seats, SP balls & SP diaphragm

€4,100.44*

% €4,686.22* (12.5% saved)

Prices include VAT plus shipping costs

€3,445.75*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Husky 15120 air-operated diaphragm pump features a failure-free, low pulsation air valve that provides a smooth and fast stroke change.

The one-piece centre section prevents leaks and reduces maintenance on Husky pumps compared to other diaphragm pumps.

Improved overall efficiency (up to 40 % more efficient)
Highest material flow in its class
Up to five times longer diaphragm life compared to other air-operated diaphragm pumps
Expanded range of materials for use in a variety of applications
ANSI centre section 38.1 mm (1-1/2") and end opening optionally available
High flow rate - 454 l/min in a compact, portable size
Material pressure up to 0.86 MPa (8.6 bar, 125 psi)
Lubricant-free operation
Available in polypropylene and PVDF

Air inlet size (inches):	1/2
Air inlet thread type:	NPT
Application:	industry
Ball material:	Santoprene
Compatible material:	Antifreeze, Cleaning Agent, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer
Connection type:	Centre flange, ANSI/DIN
Distributor O-ring material:	PTFE
Distributor configuration:	Connection in the centre:
Gender of the air inlet thread:	Internal thread
Gender of the material inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Material:	Polypropylene
Material in the liquid housing:	Polypropylene
Material of the centre housing:	Polypropylene
Material outlet size (cm):	3.81
Material outlet size (mm):	38.1
Maximum air pressure (MPa):	0.86
Maximum air pressure (bar):	8.6
Maximum air pressure (kPa):	860
Maximum air pressure (psi):	125
Maximum delivery rate (L/min):	454
Maximum material pressure (MPa):	0.86
Maximum material pressure (bar):	8.6
Maximum material pressure (kPa):	860
Maximum material pressure (psi):	125
Maximum number of cycles (DH/min):	183
Maximum operating temperature (°C):	66
Maximum solids size (cm):	635
Maximum solids size (mm):	6.35
Membrane, compatible material:	Santoprene
Membrane material:	Santoprene
Minimum operating temperature (°C):	0
Minimum storage temperature (°C):	0
Model:	Husky
Seat material:	Polypropylene
Series:	15120
Size of the exhaust air opening (inches):	1
Size of the material inlet opening (cm):	3.81
Size of the material inlet opening (inches):	1-1/2
Size of the material inlet opening (mm):	38.1
Size of the material outlet opening (inches):	1-1/2
Standards met::	CE
Supply voltage:	Air
Thread of the exhaust air opening (inside/outside):	Internal thread
Thread of the exhaust air opening (type):	NPT
Type:	Pneumatic diaphragm pump
