Manufacturer no.: 24Y553

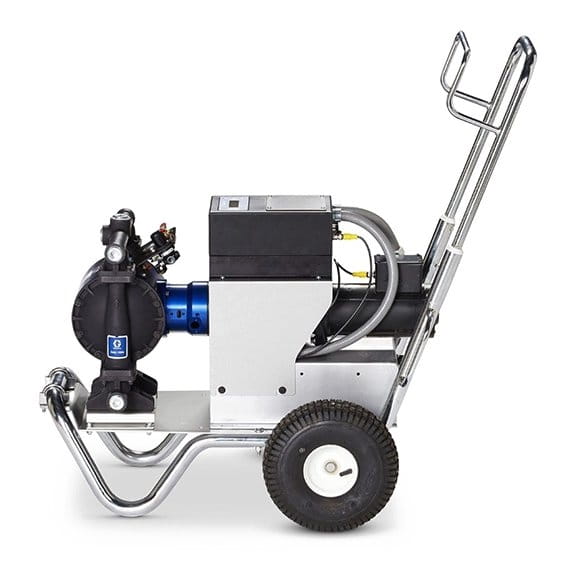

Husky 1050e AL Electrically operated metal double membrane pump system with trolley, SP

€11,054.68*

% €13,005.51* (15% saved)

Prices include VAT plus shipping costs

€9,289.65*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Our e-Series Husky pumps are ideal for applications that require only low pulsation and smooth flow. Thanks to the patented air drive, pulsation can be minimised or even completely eliminated, without the need for expensive pulsation dampers or pressure compensation tanks.

Thanks to the patented technology, you can operate the pump at a reduced pressure, thus avoiding pump failures due to clogged lines or closed valves.
Energy consumption is reduced by a factor of five compared to conventional air-operated diaphragm pumps thanks to the energy-efficient electric drive.
The sealless diaphragm pumps prevent leaks and pump failures due to dry running.

Air inlet size (inches):	3/8
Air inlet thread type:	NPT
Application:	industry
Ball material:	Santoprene
Connection type:	With thread
Distributor configuration:	Connection in the centre:
Gender of the air inlet thread:	Internal thread
Gender of the material inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Material:	aluminum
Material inlet thread type:	NPT
Material in the liquid housing:	aluminum
Material of the centre housing:	aluminum
Material outlet size (cm):	2.54
Material outlet size (mm):	25.4
Material outlet thread type:	NPT
Maximum air pressure (MPa):	0.55
Maximum air pressure (bar):	5.5
Maximum air pressure (kPa):	550
Maximum air pressure (psi):	80
Maximum current (A):	5.2
Maximum delivery rate (L/min):	159
Maximum material pressure (MPa):	0.48
Maximum material pressure (bar):	4.8
Maximum material pressure (kPa):	480
Maximum material pressure (psi):	70
Maximum motor speed (rpm):	3600
Maximum number of cycles (DH/min):	280
Maximum operating temperature (°C):	40
Maximum permissible storage temperature (°C):	40
Maximum solids size (cm):	3,175
Maximum solids size (mm):	3,175
Membrane, compatible material:	Santoprene
Membrane material:	Santoprene
Minimum operating temperature (°C):	0
Minimum storage temperature (°C):	0
Model:	Husky
Motor type:	Brushless, DC
Seat material:	Santoprene
Series:	1050e
Size of the material inlet opening (cm):	2.54
Size of the material inlet opening (inches):	1
Size of the material inlet opening (mm):	25.4
Size of the material outlet opening (inches):	1
Supply voltage:	Electric
Type:	Electric diaphragm pump
Voltage (V ac):	320

More information

Product number: 1038119
Manufacturer: Graco
EAN: 00755652315209
Weight: 105.233 kg

Technical details

Specifications

Operating specifications

UPC product	755652315209
Division	PRO
Price Block	2 16
Country of origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	105.23 KG
HTS code (EU)	8413508090
HTS code (GB)	8413508090

Technical

Air inlet size (in)	3/
Air inlet thread gender	Female
Fluid inlet size (cm)	2. 54
Fluid inlet size (in)	1
Fluid inlet size (mm)	25. 4
Fluid inlet thread gender	Female
Fluid outlet size (cm)	2. 54
Fluid outlet size (mm)	25. 4
Fluid outlet thread gender	Female
Maximum air pressure (bar)	5. 5
Maximum air pressure (kPa)	550
Maximum air pressure (psi)	80
Maximum amperage (A)	5. 2
Maximum cycle rate (CPM)	2 8 0
Maximum flow rate (L/min)	1 59
Maximum fluid pressure (bar)	4. 8
Maximum fluid pressure (kPa)	480
Maximum fluid pressure (psi)	70
Maximum motor speed (RPM)	3600
Maximum operating temperature (°C)	40
Maximum operating temperature (°F)	104
Maximum solid size (cm)	0. 3175
Maximum solid size (in)	0. 125
Maximum solid size (mm)	3. 175
Maximum storage temperature (°C)	40
Maximum storage temperature (°F)	1 04
Minimum operating temperature (°C)	0
Minimum operating temperature (°F)	32
Minimum storage temperature (°C)	0
Minimum storage temperature (°F)	32
Model	H usky
Power Rating (HP)	2. 2
Series	1050e
Maximum fluid pressure (MPa)	0. 48
Maximum air pressure (MPa)	0. 55
Diaphragm compatible material	Sant op rene
